2005 TOYOTA AVENSIS Circuit

A66053
Engine Room R/B No.4EFI Relay



A79066
Engine Room R/B No.4EFI No.1 Fuse
1
2
A54396Mass Air Flow Meter Connector
Wire Harness Side
+B
A6
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
05±193
AVENSIS REPAIR MANUAL (RM1018E)
4CHECK HARNESS AND CONNECTOR(MASS AIR FLOW METER ± EFI RELAY)
(a)Remove the EFI relay from the engine room R/B No.4.
(b)Remove the EFI No.1 fuse from the engine room R/B
No.4.
(c)Disconnect the mass air flow meter connector.
(d)Check for continuity between the wire harness side con- nectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
EFI relay (3) ± EFI No.1 fuse (1)ContinuityEFI No.1 fuse (2) ± +B (A6±1)Continuity
Standard (Check for short):
Symbols (Terminal No.)Specified condition
EFI relay (3) or EFI No.1 fuse (1) ± Body groundNocontinuityEFI No.1 fuse (2) or +B (A6±1) ± Body groundNo continuity
NOTICE:
Do not insert the tester leads hard in the procedure (c), the
holder may be damaged.
NGREPAIR OR REPLACE HARNESS OR CONNECTOR
OK
CHECK FOR ECM POWER SOURCE CIRCUIT (See page 05±257)

B62793
Reference (Bank 1 Sensor 1 System Drawing)A/F Sensor
A/F Relay
Heater
Sensor A1A+ HA1A
Duty
Control
ECM
From
Battery A/F Fuse
A1A±
MREL
05±182
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
DTCP0031/21OXYGEN (A/F) SENSOR HEATER CONTROL CIRCUIT LOW (BANK 1 SENSOR 1)
DTCP0032/21OXYGEN (A/F) SENSOR HEATER CONTROL CIRCUIT HIGH (BANK 1 SENSOR 1)
DTCP0051/28OXYGEN (A/F) SENSOR HEATER CONTROL CIRCUIT LOW (BANK 2 SENSOR 1)
DTCP0052/28OXYGEN (A/F) SENSOR HEATER CONTROL CIRCUIT HIGH (BANK 2 SENSOR 1)
CIRCUIT DESCRIPTION
Refer to DTC P2237/21 on page 05±248.
HINT:

These DTCs are related to the air fuel raito (A/F) sensor, although the caption is the heated oxygen
sensor.

The ECM provides a pulse width modulated control circuit to adjust curre\
nt through the heater. The
heated oxygen sensor heater circuit uses a relay on the B+ side of the c\
ircuit.
DTC No.DTC Detection ConditionTrouble Area
P0031/21
P0051/28Heated current is 0.8 A or less when heater operates
(1 trip detection logic)
Open or short in heater circuit of A/F sensor

A/F sensor heater
P0032/21
P0052/28When the heater operates, heated current exceeds 19.7 A
(1 trip detection logic)
A/F relay

ECM
HINT:

Bank 1 refers to the bank that includes cylinder No.1.

Bank 2 refers to the bank that does not include cylinder No.1.

Sensor 1 refers to the sensor closest to the engine assembly.

Sensor 2 refers to the sensor farthest away from the engine assembly.
05C6T±01

±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
05±181
AVENSIS REPAIR MANUAL (RM1018E)
DTCP0016/18CRANKSHAFT POSITION ±CAMSHAFT
POSITION CORRELATION (BANK 1 SENSOR
A)
CIRCUIT DESCRIPTION
Refer to DTC P0335/12, 13 and P0339/13 on page 05±226.
DTC No.DTC Detection ConditionTrouble Area
P0016/18Deviation in crankshaft position sensor signal and VVT sensor
1 signal (2 trip detection logic)
Mechanical system (Timing chain has jumped a tooth, chain
stretched)

ECM
WIRING DIAGRAM
Refer to DTC P0335/12, 13 and P0339/13 on page 05±226.
INSPECTION PROCEDURE
Read freeze frame data using the hand±held tester. Freeze frame data records the engine conditions when
a malfunction is detected. When troubleshooting, it is useful for determi\
ning whether the vehicle was running
or stopped, the engine was warmed up or not, the air±fuel ratio was lea\
n or rich, etc. at the time of the mal-
function.
1CHECK VALVE TIMING (See page 14±139)
NGADJUST VALVE TIMING (See page 14±139)
OK
CHECK AND REPLACE ECM (See page 01±32)
05C7F±01

A71007
MassAir Flow Meter Crankshaft Position Sensor
Actual Valve TimingCorrection Target Valve Timing
Feedback
Duty Control ECM
Camshaft Timing
Oil Control
Valve (OCV)
Vehicle Speed Signal Engine Coolant Temp. SensorThrottle Position Sensor
Camshaft Position Sensor
± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
05±169
AVENSIS REPAIR MANUAL (RM1018E)
DTC P0010/39 CAMSHAFT POSITION ºAº ACTUATOR
CIRCUIT (BANK 1)
CIRCUIT DESCRIPTION
The VVT system controls the intake camshaft to provide the optimal valve timing for every driving condition. This control
is performed based on the signals, such conditions as intake air volume, throttle position and engine coolant tempera-
ture.
The ECM controls the oil control valve (OCV), based on the signals output from the sensors. The VVT controller regu-
lates the intake camshaft angle using oil pressure through the oil control valve (OCV). As result, the relative position
between the camshaft and the crankshaft becomes optimal, and the engine torque improves, fuel economy improves,
exhaust emissions decrease under overall driving conditions. Also, the ECM detects the actual valve timing using the
signals from the camshaft position sensor and the crankshaft position sensor, and performs feedback control. This is
how target valve timing is achieved by the ECM.
DTC No.DTC Detection ConditionTrouble Area
P0010/39Open or short in oil control valve (OCV) circuit

Open or short in oil control valve circuit

Oil control valve

ECM
05C6R±01

A76888
FL MAIN
StarterCircuit
Opening Relay
Start Position SWEFI Relay
AM2
BatteryECM
STA MREL Ignition SWFuel Pump
ST2
ST
Relay
(NE Signal) (A/T)FC
EFISTTr
(M/T)
(A/T) AM2 05±264
± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

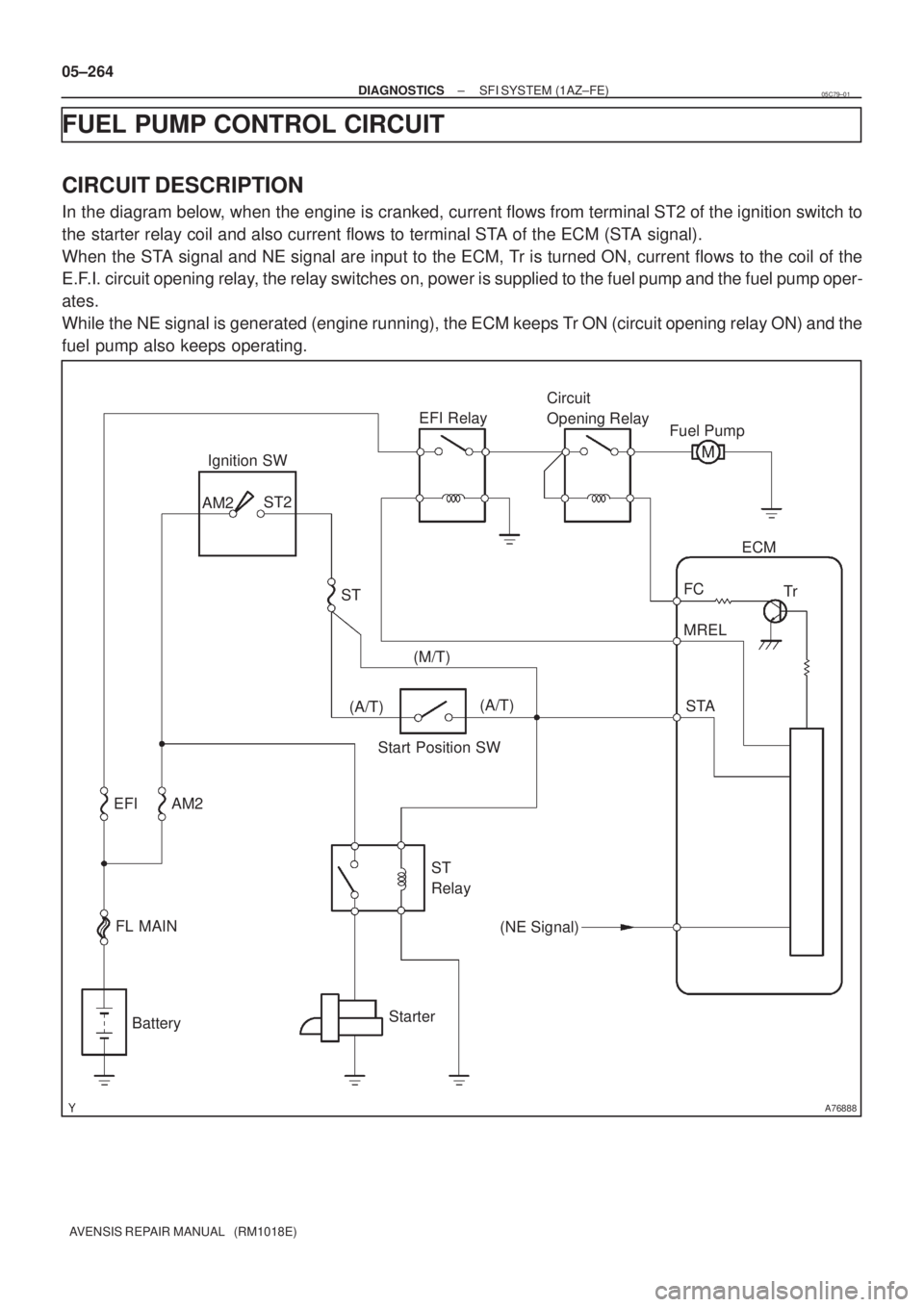

FUEL PUMP CONTROL CIRCUIT
CIRCUIT DESCRIPTION
In the diagram below, when the engine is cranked, current flows from terminal ST2 of the ignition switch to
the starter relay coil and also current flows to terminal STA of the ECM (STA signal).
When the STA signal and NE signal are input to the ECM, Tr is turned ON, current flows to the coil of the
E.F.I. circuit opening relay, the relay switches on, power is supplied to the fuel pump and the fuel pump oper-
ates.
While the NE signal is generated (engine running), the ECM keeps Tr ON (circuit opening relay ON) and the
fuel pump also keeps operating.
05C79±01

A76889
FCECM
IB1 Engine Room
R/B No. 1
Engine Room
J/B No. 1
B±G
FL MAIN
BatteryGR
ECW±B 1AE9 10
32 51
1
3 5
4B 1EFI
EFI
Relay
B±G
F25
Fuel
Pump 4
5
W±B 10 Engine
Room
J/B No. 4 1
24 4
4
4 4A 1C8
Circuit
Opening
Relay B±Y
1
2
1
Engine Room
R/B No. 4
BR B±WB±WB±WB±W
L±BG±Y G±Y GR
B±YGR
MREL E98
IE12
6
IC3
± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
05±265
AVENSIS REPAIR MANUAL (RM1018E)
WIRING DIAGRAM

B16200
C8
A18294
FC (+)E1 (±)
ECM Connector
E12E9
05±266
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

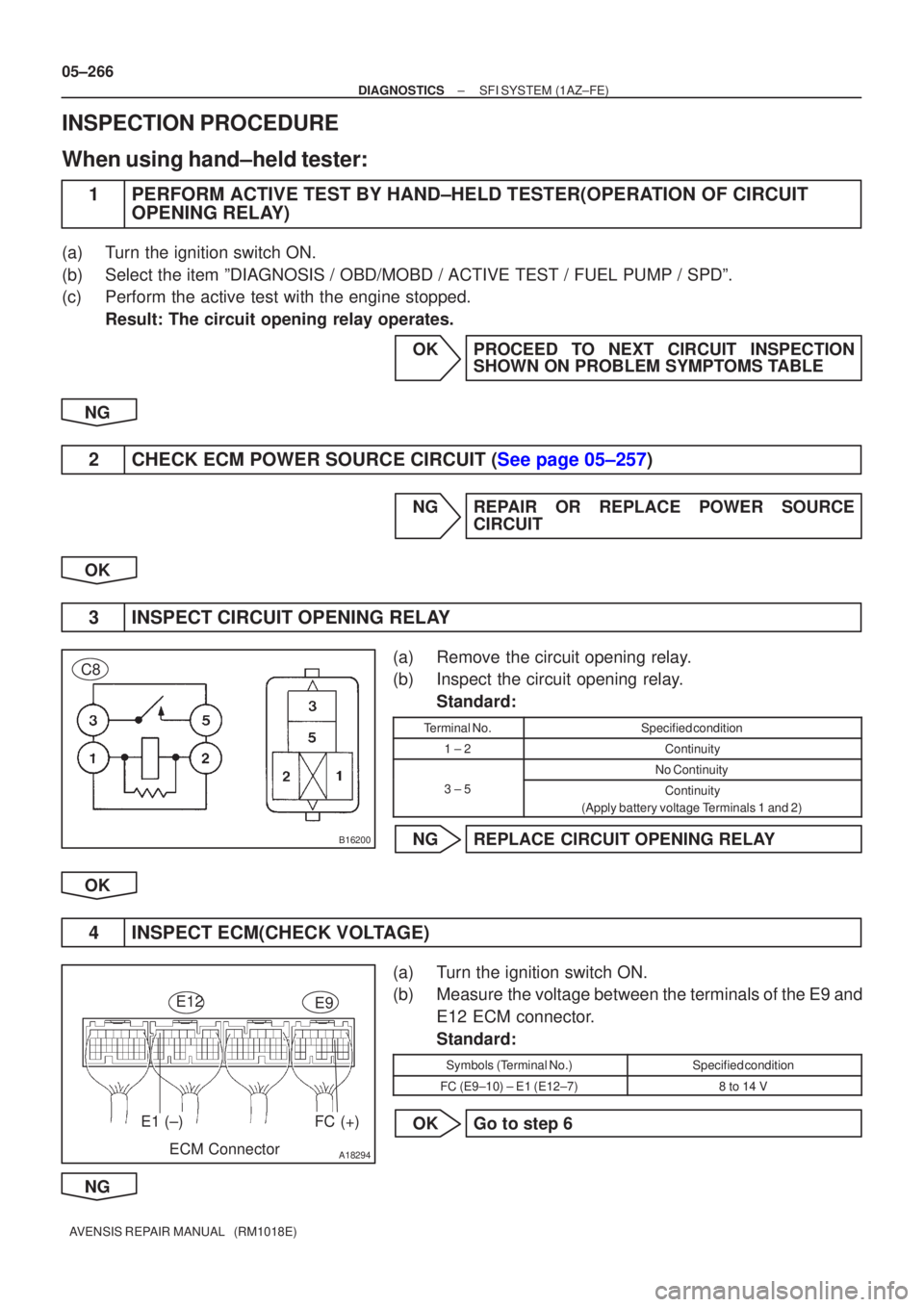

INSPECTION PROCEDURE
When using hand±held tester:
1PERFORM ACTIVE TEST BY HAND±HELD TESTER(OPERATION OF CIRCUIT OPENING RELAY)
(a)Turn the ignition switch ON.
(b)Select the item ºDIAGNOSIS / OBD/MOBD / ACTIVE TEST / FUEL PUMP / SPD\
º.
(c)Perform the active test with the engine stopped.
Result: The circuit opening relay operates.
OKPROCEED TO NEXT CIRCUIT INSPECTIONSHOWN ON PROBLEM SYMPTOMS TABLE
NG
2CHECK ECM POWER SOURCE CIRCUIT (See page 05±257)
NG REPAIR OR REPLACE POWER SOURCE CIRCUIT
OK
3 INSPECT CIRCUIT OPENING RELAY
(a) Remove the circuit opening relay.
(b) Inspect the circuit opening relay. Standard:
Terminal No.Specified condition
1 ± 2Continuity
No Continuity
3 ± 5Continuity
(Apply battery voltage Terminals 1 and 2)
NG REPLACE CIRCUIT OPENING RELAY
OK
4 INSPECT ECM(CHECK VOLTAGE)
(a) Turn the ignition switch ON.
(b) Measure the voltage between the terminals of the E9 and E12 ECM connector.
Standard:
Symbols (Terminal No.)Specified condition
FC (E9±10) ± E1 (E12±7)8 to 14 V
OK Go to step 6
NG

A66053
Engine Room R/B No.4EFI Relay
123
5
A79099
Wire Harness Side
C8
Circuit Opening Relay Connector
A65748
E9
MRELFC
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
05±267
AVENSIS REPAIR MANUAL (RM1018E)

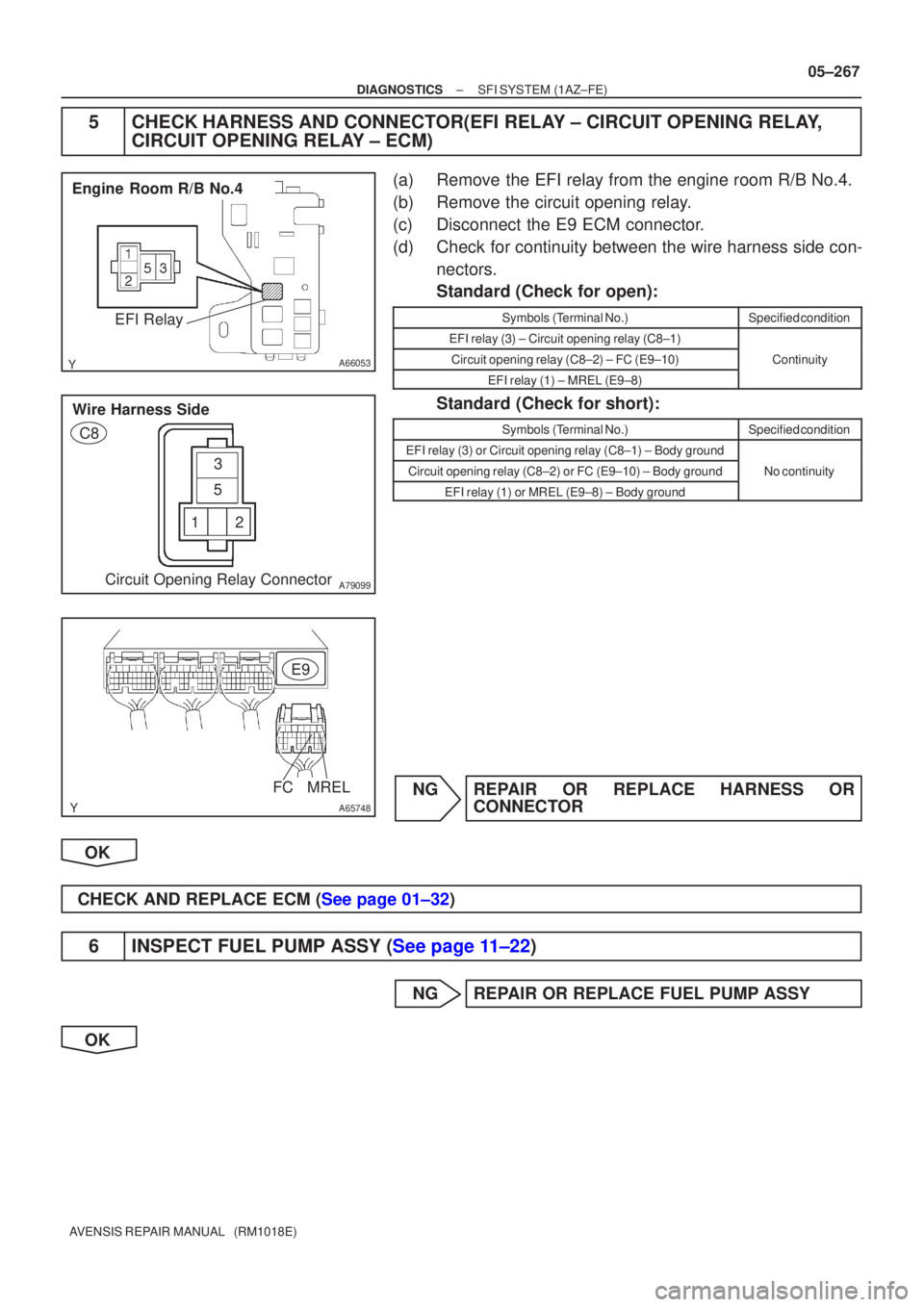

5CHECK HARNESS AND CONNECTOR(EFI RELAY ± CIRCUIT OPENING RELAY,
CIRCUIT OPENING RELAY ± ECM)
(a)Remove the EFI relay from the engine room R/B No.4.
(b)Remove the circuit opening relay.
(c)Disconnect the E9 ECM connector.
(d)Check for continuity between the wire harness side con-
nectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
EFI relay (3) ± Circuit opening relay (C8±1)
Circuit opening relay (C8±2) ± FC (E9±10)Continuity
EFI relay (1) ± MREL (E9±8)
y
Standard (Check for short):
Symbols (Terminal No.)Specified condition
EFI relay (3) or Circuit opening relay (C8±1) ± Body ground
Circuit opening relay (C8±2) or FC (E9±10) ± Body groundNo continuity
EFI relay (1) or MREL (E9±8) ± Body ground
y
NGREPAIR OR REPLACE HARNESS OR CONNECTOR
OK
CHECK AND REPLACE ECM (See page 01±32)
6INSPECT FUEL PUMP ASSY (See page 11±22)
NG REPAIR OR REPLACE FUEL PUMP ASSY
OK
