2005 TOYOTA 4RUNNER Owners Manual

’05 4Runner_U (L/O 0504)
279

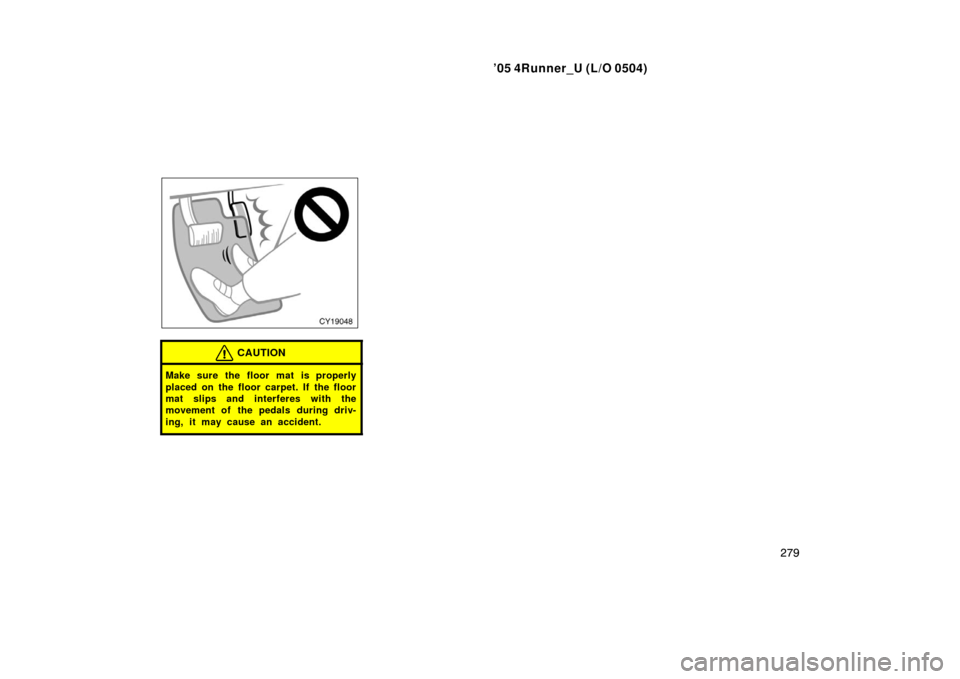

CAUTION
Make sure the floor mat is properly
placed on the floor carpet. If the floor
mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.

’05 4Runner_U (L/O 0504)
280

’05 4Runner_U (L/O 0504)
281
INFORMATION BEFORE DRIVING YOUR
TOYOTA
Off−road vehicle precautions 282
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Break −in period 283
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Fuel 283
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 285
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 285
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Three −way catalytic converters 286
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust cautions 287
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Facts about engine oil consumption 287
. . . . . . . . . . . . . . . . . . . . . . . . . .
Iridium −tipped spark plugs 288
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 289
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Brake pad wear limit indicators 292
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Limited −slip differential 293
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Your Toyota’s identification 293
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels 294
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Suspension and chassis 295
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Tire information 296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Vehicle load limits 304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Cargo and luggage 305
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Types of tires 308
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 2

’05 4Runner_U (L/O 0504)
282

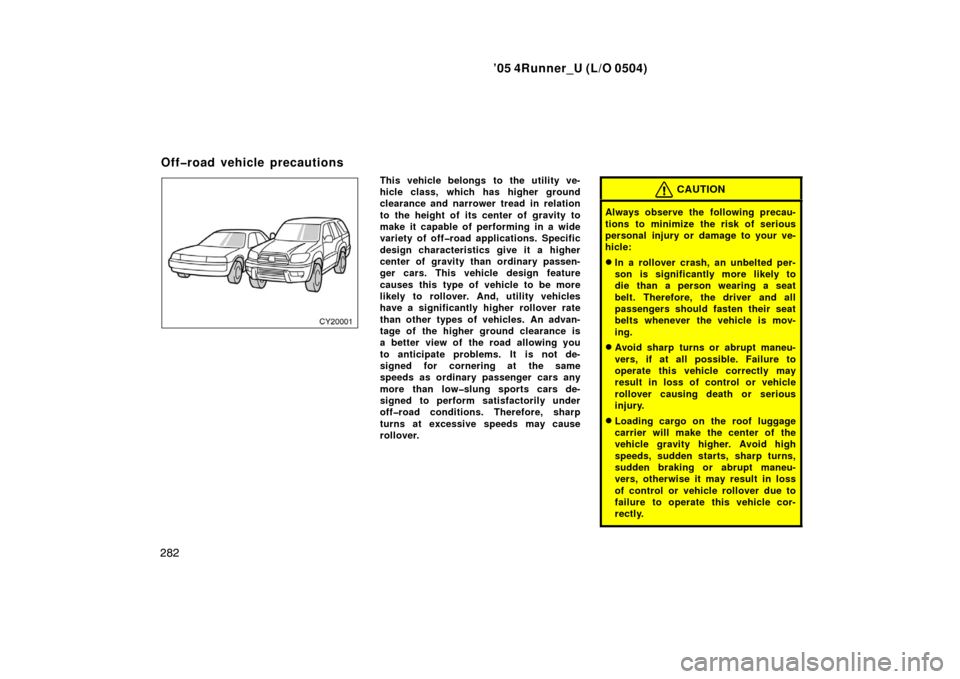

This vehicle belongs to the ut ility ve-
hicle class, which has higher ground
clearance and narrower tread in relation
to the height of its center of gravity to
make it capable of performing in a wide
variety of offroad applications. Specific
design characteristics give it a higher
center of gravity than ordinary passen-
ger cars. This vehicle design feature
causes this type of vehicle to be more
likely to rollover. And, utility vehicles
have a significantly higher rollover rate
than other types of vehicles. An advan-
tage of the higher ground clearance is
a better view of the road allowing you
to anticipate problems. It is not de-
signed for cornering at the same
speeds as ordinary passenger cars any
more than lowslung sports cars de-
signed to perform satisfactorily under
offroad conditions. Therefore, sharp
turns at excessive speeds may cause
rollover.CAUTION
Always observe the following precau-
tions to minimize the risk of serious
personal injury or damage to your ve-
hicle:
In a rollover crash, an unbelted per-
son is significantly more likely to
die than a person wearing a seat
belt. Therefore, the driver and all
passengers should fasten their seat
belts whenever the vehicle is mov-
ing.
Avoid sharp turns or abrupt maneu-
vers, if at all possible. Failure to
operate this vehicle correctly may
result in loss of control or vehicle
rollover causing death or serious
injury.
Loading cargo on the roof luggage
carrier will make the center of the
vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneu-
vers, otherwise it may result in loss
of control or vehicle rollover due to
failure to operate this vehicle cor-
rectly.
Offroad vehicle precautions

’05 4Runner_U (L/O 0504)
283
Always slow down in gusty cross-
winds. Because of its profile and
higher center of gravity, your ve-
hicle is more sensitive to side
winds than an ordinary passenger
car. Slowing down will allow you to
have better control.
When driving offroad or in rugged
terrain, do not drive at excessive
speeds, jump, make sharp turns,
strike objects, etc. This may cause
loss of control or vehicle rollover
causing death or serious injury. You
are also risking expensive damage
to your vehicle’s suspension and
chassis.
Do not drive horizontally across
steep slopes. Driving straight up or
straight down is preferred. Your ve-
hicle (or any similar offroad ve-
hicle) can tip over sideways much
more easily than forward or back-
ward.
Drive gently and avoid high speeds.
Your vehicle does not need an elaborate
break−in. But following a few simple tips
for the first 1600 km (1000 miles) can add
to the future economy and long life of
your vehicle:
Avoid full throttle acceleration when
starting and driving.
Avoid racing the engine.
Try to avoid hard stops during the first
300 km (200 miles).
Do not drive for a long time at any
single speed, either fast or slow.
Do not tow a trailer during the first 800
km (500 miles). FUEL TYPE
Your new vehicle must use only un-
leaded gasoline.
To help prevent gas station mix
−ups, your
Toyota has a smaller fuel tank opening.
The special nozzle on pumps with un-
leaded fuel will fit it, but the larger stan-
dard nozzle on pumps with leaded gas will
not.
At a minimum, the gasoline you use
should meet the specifications of ASTM
D4814 in the U.S.A. and CGSB 3.5 −M93
in Canada.NOTICE
Do not use leaded gasoline. Use of
leaded gasoline will cause the three
way catalytic converter to lose its ef-
fectiveness and the emission control
system to function improperly. Also,
this can increase maintenance costs.
Breakin period Fuel

’05 4Runner_U (L/O 0504)
284
OCTANE RATING
Select Octane Rating 87 (Research
Octane Number 91) or higher. For
improved vehicle performance, the use
of premium unleaded gasoline with an
Octane Rating of 91 (Research Octane
Number 96) or higher is recommended.
Use of unleaded gasoline with an octane
rating or research octane number lower
than stated above will cause persistent
heavy knocking. If it is severe, this will
lead to engine damage.
If your engine knocks...
If you detect heavy knocking even when
using the recommended fuel, or if you
hear steady knocking while holding a
steady speed on level roads, consult your
Toyota dealer.
However, occasionally, you may notice
light knocking for a short time while accel-
erating or driving up hills. This is normal
and there is no need for concern.
GASOLINE CONTAINING DETERGENT
ADDITIVES
Toyota recommends the use of gasoline
that contains detergent additives to
avoid buildup of engine deposits. However, all gasoline sold in the U.S.
contains detergent additives to keep clean
and/or clean intake systems.
QUALITY GASOLINE
Automotive manufacturers in the U.S.,
Europe and Japan have developed a
specification for quality fuel named
WorldWide Fuel Charter (WWFC) that
is expected to be applied world wide.
The WWFC consists of four categories
that depend on required emission lev-
els. In the U.S., category 4 has been
adopted. The WWFC improves air quali-
ty by providing for better emissions in
vehicle fleets, and customer satisfaction
through better vehicle performance.
CLEANER BURNING GASOLINE
Cleaner burning gasoline, including re-
formulated gasoline that contains oxy-
genates such as ethanol or MTBE is
available in many areas.
Toyota recommends the use of cleaner
burning gasoline and appropriately blended
reformulated gasoline. These types of gas-
oline provide excellent vehicle perfor-
mance, reduce vehicle emissions, and im-
prove air quality.
OXYGENATES IN GASOLINE
Toyota allows the use of oxygenate
blended gasoline where the oxygenate
content is up to 10% ethanol or 15%
MTBE. If you use gasohol in your
Toyota, be sure that it has an octane
rating no lower than 87.
Toyota does not recommend the use of
gasoline containing methanol.
GASOLINE CONTAINING MMT
Some gasoline contain an octane en-
hancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of
gasoline that contains MMT. If fuel con-
taining MMT is used, your emission con-
trol system may be adversely affected.
The Malfunction Indicator Lamp on the in-
strument cluster may come on. If this hap-
pens, contact your Toyota dealer for ser-
vice.
GASOLINE QUALITY
In a very few cases, you may experience
driveability problems caused by the partic-
ular gasoline that you are using. If you
continue to have unacceptable driveability,
try changing gasoline brands. If this does
not rectify your problem, then consult your
Toyota dealer.

’05 4Runner_U (L/O 0504)
285
NOTICE
Do not use gasohol other than
stated above. It will cause fuel sys-
tem damage or vehicle performance
problems.
 If driveab ility problems occur (poor
hot starting, vaporizing, engine
knock, etc.), discontinue the use.
 Take care not to spill gasohol dur-
ing refueling. Gasohol may cause
paint damage.
FUEL TANK CAPACITY
87 L (23.0 gal., 19.1 Imp. gal.) The fuel pump shut off system stops sup-
plying fuel to the engine to minimize the
risk of fuel leakage when the engine stalls
or an airbag inflates upon collision. To
restart the engine after the fuel pump shut
off system activates, turn the ignition
switch to “ACC” or “LOCK” once and start
it.
CAUTION
Inspect the ground under the vehicle
before restarting the engine. If you
find that liquid has leaked onto the
ground, it is the fuel system has
been damaged and it is in need of
repair. In this case, do not restart the
engine.
If you plan to drive your Toyota in
another country...
First,
comply with the vehicle registration
laws.
Second, confirm the availability of the cor-
rect fuel (unleaded and minimum octane
number).
Fuel pump shut off system Operation in foreign countries

’05 4Runner_U (L/O 0504)
286
The threeway catalytic converter is an
emission control device installed in the
exhaust system.
The purpose is to reduce pollutants in the
exhaust gas.
CAUTION
Keep people and combustible mate-
rials away from the exhaust pipe
while the engine is running. The
exhaust gas is very hot.
Do not idle or park your vehicle
over anything that might burn easi-
ly such as grass, leaves, paper or
rags.
NOTICE
A large amount of unburned gases
flowing into the threeway catalytic
converter may cause it to overheat
and create a fire hazard. To prevent
this and other damage, observe the
following precautions:
Use only unleaded gasoline.
 Do not drive with an extremely low
fuel level; running out of fuel could
cause the engine to misfire, creat-
ing an excessive load on the three
way catalytic converter.
 Do not allow the engine to run at
idle speed for more than 20 min-
utes.
 Avoid racing the engine.
 Do not pushstart or pullstart your
vehicle.
 Do not turn off the ignition while
the vehicle is moving.
Keep your engine in good running
order. Malfunctions in the engine
electrical system, electronic ignition
system/distributor ignition system
or fuel systems could cause an ex-
tremely high threeway catalytic
converter temperature.
 If the engine becomes difficult to
start or stalls frequently, take your
vehicle in for a checkup as soon
as possible. Remember, your Toyota
dealer knows your vehicle and its
threeway catalytic converter sys-
tem best.
 To ensure that the threeway cata-
lytic converter and the entire emis-
sion control system operate proper-
ly, your vehicle must receive the
periodic inspections required by the
Toyota Maintenance Schedule. For
scheduled maintenance information,
refer to the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supple-
ment”.
Threeway catalytic converters
