2005 TOYOTA 4RUNNER Owners Manual

’05 4Runner_U (L/O 0504)
ix
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your
Toyota contain explosive chemicals. If the vehicle is
scrapped with the airbags and pretensioners left as they
are, it may cause an accident such as fire. Be sure to
have the systems of the SRS airbag and seat belt preten-
sioner removed and disposed of by a qualified service
shop or by your Toyota dealer before you dispose of your
vehicle.
Onpavement and offroad
driving tips
This vehicle belongs to the utility vehicle class. Utility ve-
hicles have a significantly higher rollover rate than other
types of vehicles. This vehicle will handle and maneuver
differently from an ordinary passenger car because it is
designed for off −road use also. In addition, this vehicle
has a higher ground clearance and center of gravity than
that of an ordinary passenger car. This vehicle design fea-
ture causes this type of vehicle to be more likely to rol-
lover. Failure to operate this vehicle correctly may result in
loss of control, accidents or vehicle rollover causing death
or serious injury. Be sure to read “Off −road vehicle precau-
tions” on page 282 in Section 2 and “Off −road driving pre-
cautions” on page 313 in Section 3.

’05 4Runner_U (L/O 0504)
x
Leak detection pump
This pump performs fuel evaporation leakage check. This
check is done approximately five hours after the engine is
turned off. So you may hear sound coming from under-
neath the luggage compartment for several minutes. It
does not indicate a malfunction.

’05 4Runner_U (L/O 0504)
1
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Instrument cluster overview 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 7
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1

’05 4Runner_U (L/O 0504)
2

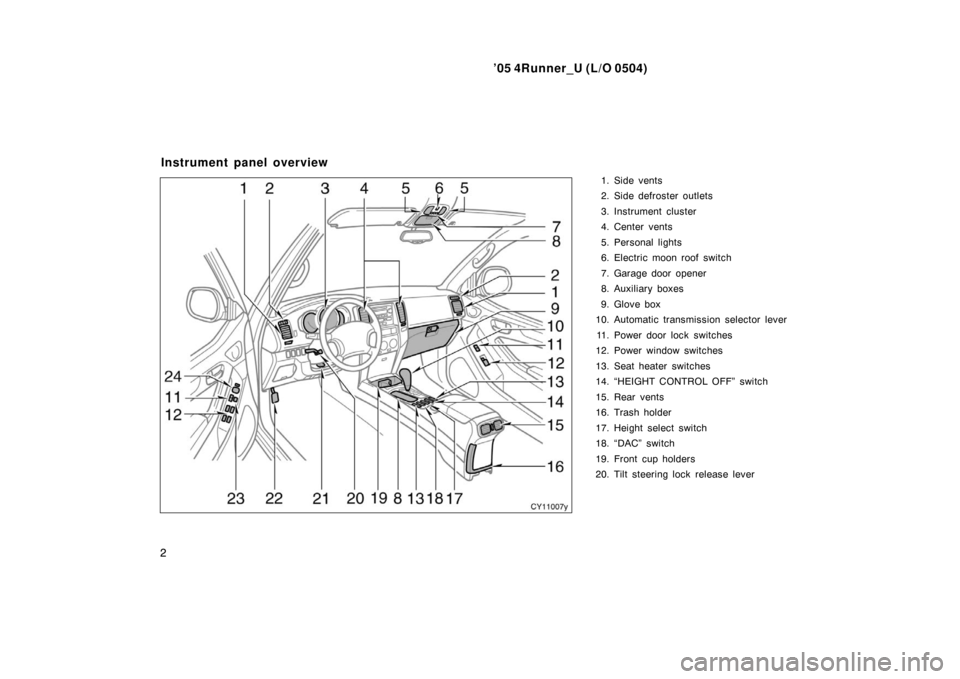

1. Side vents
2. Side defroster outlets
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switch
7. Garage door opener
8. Auxiliary boxes
9. Glove box
10. Automatic transmission selector lever
11. Power door lock switches
12. Power window switches
13. Seat heater switches
14. “HEIGHT CONTROL OFF” switch
15. Rear vents
16. Trash holder
17. Height select switch
18. “DAC” switch
19. Front cup holders
20. Tilt steering lock release lever
Instrument panel overview

’05 4Runner_U (L/O 0504)
3
21. Telescopic steering lock release lever
22. Parking brake pedal
23. Window lock switch
24. Power rear view mirror control switches

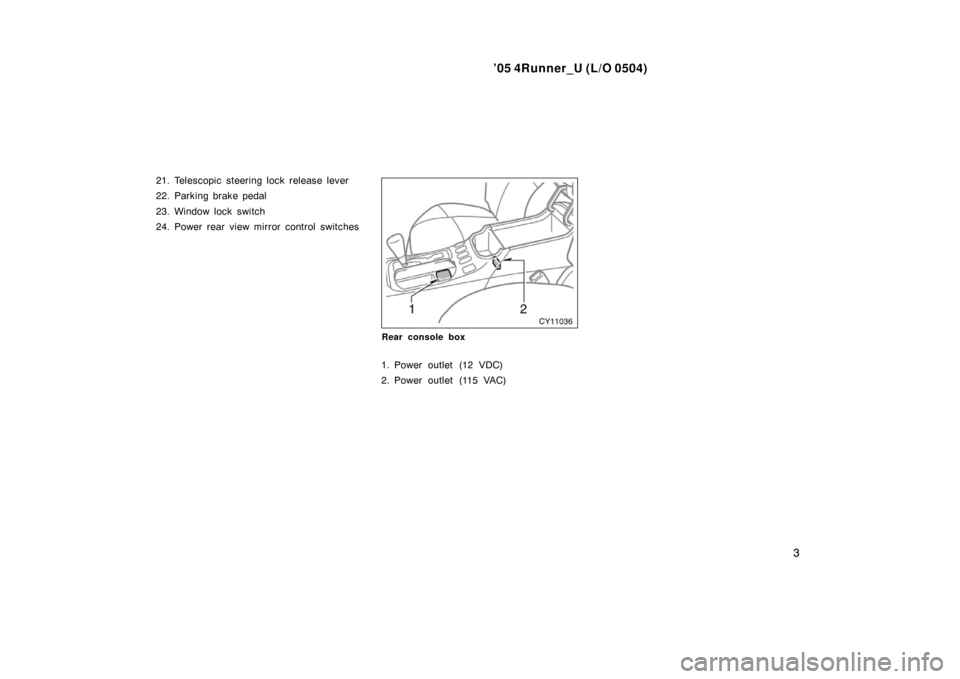

Rear console box
1. Power outlet (12 VDC)
2. Power outlet (115 VAC)

’05 4Runner_U (L/O 0504)
4
1. Instrument panel light control dial
2. Headlight, turn signal and front fog
light switches
3. Audio remote control switches
4. Wiper and washer switches
5. Power back window switch
6. Audio system/rear view monitor system and navigation system including audio
system (For the navigation system, see
the separate “Navigation System
Owner ’s Manual”.)
7. Front passenger ’s seat belt reminder light
8. Engine immobilizer/theft deterrent system indicator light
9. Front passenger occupant classification indicator light
10. Multi −information display
11. Emergency flasher switch
12. Air conditioning controls
13. Auxiliary box
14. Back window and outside rear view mirror defogger switch
15. Four −wheel drive control switch knob
(full −time four −wheel drive models) or
multi −mode control switch knob
(multi −mode four −wheel drive models)

’05 4Runner_U (L/O 0504)
5
16. Ignition switch
17. Cruise control switch
18. Hood lock release lever
19. Fuel filler door opener
20. Roll sensing of curtain shield airbags off switch
21. “AUTO LSD” switch
22. Center differential lock switch
23. Power outlet main switch

’05 4Runner_U (L/O 0504)
6
1. Trip meter reset button
2. Tachometer
3. Service reminder indicators and
indicator lights 4. Speedometer
5. Fuel gauge
6. Low fuel level warning light
7. Engine coolant temperature gauge
8. Odometer and two trip meters
9. Odometer/two trip meter changeover
button
Instrument cluster overview
