2005 TOYOTA 4RUNNER Owners Manual

’05 4Runner_U (L/O 0504)
263
6. Repeat steps 2 through 5 for each re-
maining HomeLink button to program
another device.
Programming a rolling code system
If your device is “Rolling Code”
equipped, it is necessary to follow
steps 1 through 4 under the heading
“Programming the HomeLink
” before
proceeding with the steps listed below.
1. Locate the “training” button on the ceil- ing mounted garage door opener motor.
The exact location and color of the
button may vary by brand of garage
door opener. Refer to the owner ’s
guide supplied by the garage door
opener manufacturer for the location of
this “training” button.
2. Press the “training” button on the ceil- ing mounted garage door opener motor.
Following this step, you have 30 seconds
in which to initiate step 3 below. 3. Press and release the vehicle’s pro- grammed HomeLink
 button twice. The
garage door may open. If the door
does open, the programming process is
complete. If the door does not open,
press and release the button a third
time. This third press and release will
complete the programming process by
opening the garage door. The ceiling mounted garage door opener
motor should now recognize the
HomeLink
 unit and be able activate the
garage door up/down.
4. Repeat steps 1 through 3 for each re- maining HomeLink
 button to program
another rolling code system.
Programming an entrance gate/program-
ming all devices in the Canadian market 1. Decide which of the 3 HomeLink
 but-
tons you want to program.
2. Place your hand −held gate/device
transmitter 25 to 75 mm (1 to 3 in.)
away from the surface of the
HomeLink
.
Keep the indicator light on the HomeLink

in view while programming. 3. Press and hold the selected HomeLink
 button.
4. Continuously press and release ( cycle)
the hand− held gate/device transmitter
button every two seconds until step 5
is complete.
5. When the indicator light on the HomeLink
 changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons. 6. Test the operation of the HomeLink
 by
pressing the newly programmed button.
Check to see if the gate/device oper-
ates correctly.
7. Repeat steps 1 through 6 for each re- maining HomeLink
 button to program
another device.
Programming other devices
To program other devices such as home
security systems, home door locks or
lighting, contact your authorized Toyota
dealer for assistance.
Reprogramming a button
Individual HomeLink
 buttons cannot be
erased, however, to reprogram a single
button, follow the procedure “Programming
the HomeLink
”.
(b) Operating the HomeLink

To operate the HomeLink, press the
appropriate HomeLink button to activate
the programmed device. The HomeLink
indicator light should come on. The
HomeLink continues to send the signal
for up to 20 seconds as long as the
button is pressed.

’05 4Runner_U (L/O 0504)
264
(c) Erasing the entire HomeLink
memory (all three programs)
To erase all previously programmed codes
at one time, press and hold down the 2
outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase
the programs stored in the HomeLink

memory. For additional programming assistance
with your HomeLink
 Universal
Transceiver call the:
The Toyota Customer Experience
Center at 1 −800− 331−4331 (U.S.A.)
Toyota Canada Customer Interaction
Centre at 1 −888− 869−6828 (Canada)
Refer to HomeLink
 on the internet at:
WWW.HOMELINK.COM
CAUTION
When programming the HomeLink
Universal Transceiver, you may be
operating a garage door or other
device. Make sure people and ob-
jects are out of the way of the ga-
rage door or other device to pre-
vent potential harm or damage.
Do not use this HomeLink Univer-
sal Transceiver with any garage
door opener that lacks the safety
stop and reverse feature as re-
quired by federal safety standards.
(This includes any garage door
opener model manufactured before
April 1, 1982.) A garage door open-
er which cannot detect an object
(signaling the door to stop and re-
verse), does not meet current feder-
al safety standards. Using a garage
door opener without these features
increases risk of serious injury or
death.

’05 4Runner_U (L/O 0504)
265
This device complies with Part 15 of the
FCC Rules and with RSS −210 of the IC
Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
WARNING: This transmitter has been
tested and complies with FCC and IC
rules. Changes or modifications not
expressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
device.To use the auxiliary bo xes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Type A—As this holder is designed
for holding a light object such as
eyeglasses, do not place any heavy
objects in them. Heavy objects may
cause the holder to open and the
contents to fly out resulting in inju-
ries.
NOTICE
Type A—During hot weather, the inte-
rior of the vehicle becomes very hot.
Do not leave anything flammable or
deformable such as a lighter, glasses,
etc. inside.
Type A (over head console)
Type B (instrument panel)
Auxiliary boxes—

’05 4Runner_U (L/O 0504)
266

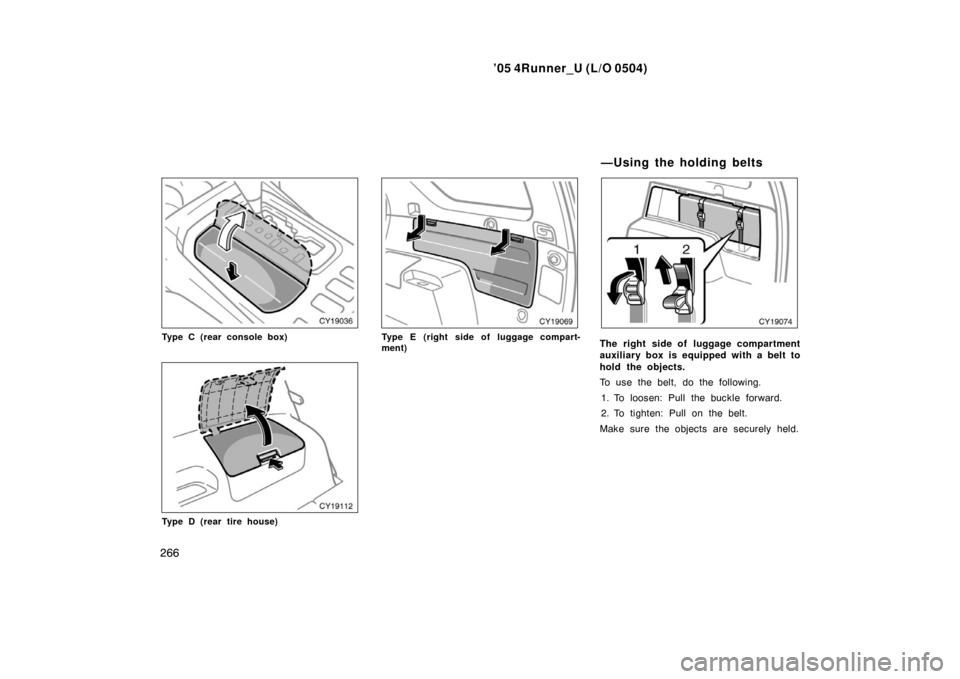

Type C (rear console box)
Type D (rear tire house)
Type E (right side of luggage compart-
ment)The right side of luggage compartment
auxiliary box is equipped with a belt to
hold the objects.
To use the belt, do the following.
1. To loosen: Pull the buckle forward.
2. To tighten: Pull on the belt.
Make sure the objects are securely held.
—Using the holding belts

’05 4Runner_U (L/O 0504)
267
CONSOLE BOX TABLE
To use the console box table, open it.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the table closed while
driving.
NOTICE
To prevent damage to the table, do
not place any object heavier than 1
kg (2.20 lb.) on it, and do not leave
any object on the table for a long
time.
CONSOLE BOX
To access the rear console box, pull up
the console box lid while pushing the
lock release button.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
Rear console box

’05 4Runner_U (L/O 0504)
268
The rear console box is equipped with
a tissue box holder on the inside of the
rear console box lid.
To use the tissue box holder:
1. Pull up the console box lid while push- ing the lock release button.
2. Place a tissue box in the lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, keep the console box
lid closed when it is not in use.
Tissue box holder Coin holder

’05 4Runner_U (L/O 0504)
269
The rear console box is equipped with
a coin holder.
To use the coin holder:
1. Pull up the console box lid while push- ing the lock release button.
2. Push coins down into the holder.
The coin holder is detachable.The trash holder is designed to use the
grocery bag as a trash bag.
To use the trash holder:
1. Raise the trash holder.
2. Fit the grocery bag onto the holder by hanging its handles on the two hooks
indicated at the left and right.
The trash holder can support to 1 kg
(2.20 lb.).
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, keep the trash holder
closed when it is not in use.
Trash holder

’05 4Runner_U (L/O 0504)
270
If the trash holder is pulled strongly or
stepped on, it will detach from the rear
console box to protect it from damag-
ing.
If the trash holder becomes detached, re-
install it in a horizontal direction as indi-
cated in the illustration. It cannot be
installed in any other direction.
NOTICE
Do not deliberately pull or step on
the trash holder, as it may be dam-
aged or broken.
The cup holders are designed for hold-
ing cups or drinkcans securely.
The cup holder can be adjustable to the
size of the cups or drinkcans by
changing the holder position and the
arm position, as shown.
With the instrument panel lights on, the
front cup holder position indicator lights
will come on.
CAUTION
Do not place anything else other than
cups or drinkcans in the cup holder,
as such items may be thrown about
in the compartment and possibly in-
jured people in the vehicle during
sudden braking or in an accident.
Front cup holders
