2005 TOYOTA 4RUNNER Owners Manual

’05 4Runner_U (L/O 0504)
239
Ventilation
For best results, set controls as follows:
For automatic operation—
Press in the “AUTO” button.
Temperature— Towards low temperature
Air intake—FRESH (outside air)
Air conditioning—OFF
For manual operation—
Fan speed— To the desired fan speed
Temperature— To w a r d s COLD
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging and defrosting
—The inside of the windshield
For best results, set controls as follows:
—For automatic operation
Temperature— To w a r d s high temperature
to heat; low temperature
to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
—For manual operation
Fan speed— To the desired fan speed
Temperature— To w a r d s high temperature
to heat; low temperature
to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Pressing the windshield air flow button
turns on the defogging function with the
purpose of clearing the front view.
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again. Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
—The outside of the windshield
For best results, set controls as follows:
—For automatic operation
Temperature— Towards high temperature
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
—For manual operation
Fan speed— To the desired fan speed
Temperature— Towards high temperature
Air intake—FRESH (outside air)
Air flow—WINDSHIELD

’05 4Runner_U (L/O 0504)
240
Pressing the windshield air flow button
turns on the defogging function with the
purpose of clearing the front view.
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.Center vents
Side vents
Rear vents
If air flow control is not satisfactory, check
the instrument panel and rear vents. The
instrument panel and rear vents may be
opened or closed as shown.
Instrument panel and rear
vents

’05 4Runner_U (L/O 0504)
241
The air conditioning filter information
label is placed on the upper right side
of the glove box as shown and indi-
cates that a filter has been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.The air conditioning filter is behind the
glove box. The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioning and heater experiences extreme
reductions in operating efficiency, or if
the windows begin to fog up easily.
To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance sched-
ule. In dusty areas or areas with heavy
traffic flow, such as inner city or desert
areas, early replacement may be required.
(For scheduled maintenance information,
please refer to the “Scheduled Mainte-
nance Guide” or “Owner ’s Manual Supple-
ment”.)
Air conditioning filter—
—Checking and replacing the
air conditioning filter

’05 4Runner_U (L/O 0504)
242
1. Open the glove box. Remove the
screw with a Phillipshead screw-
driver and slide the hook as shown.2. Push in each side of the glove boxto disconnect the claws.3. Remove the filter case by holdingboth sides.

’05 4Runner_U (L/O 0504)
243
4. Remove the filter from the filter
case.
5. Inspect the filter on the surface.
If it is the just moderately dusty, it may
be cleaned by blowing compressed air
from the reverse surface. Do not wash or
oil the filter.
If it is dirty, it should be replaced.
When setting the filter to the filter case,
ensure that the flat side of the filter is
down and the ribbed side is up.
Position the filter case so that the “ ↑UP”
mark is pointing up and install it in the
vehicle.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.

’05 4Runner_U (L/O 0504)
244

’05 4Runner_U (L/O 0504)
245
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Multi−information display 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compass 249
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Rear view monitor system 254
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet 258
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 260
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener 261
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Auxiliary boxes 265
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Rear console box 267
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Tissue box holder 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Coin holder 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Trash holder 269
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Front cup holders 270
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Rear cup holders and tray 271
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear cup holders 272
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Bottle holders 273
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Tie −down hooks 274
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Grocery bag hooks 274
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Cargo net hooks 274
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Luggage cover 275
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Double deck 276
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Roof luggage carrier 277
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Floor mat 278
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

’05 4Runner_U (L/O 0504)
246

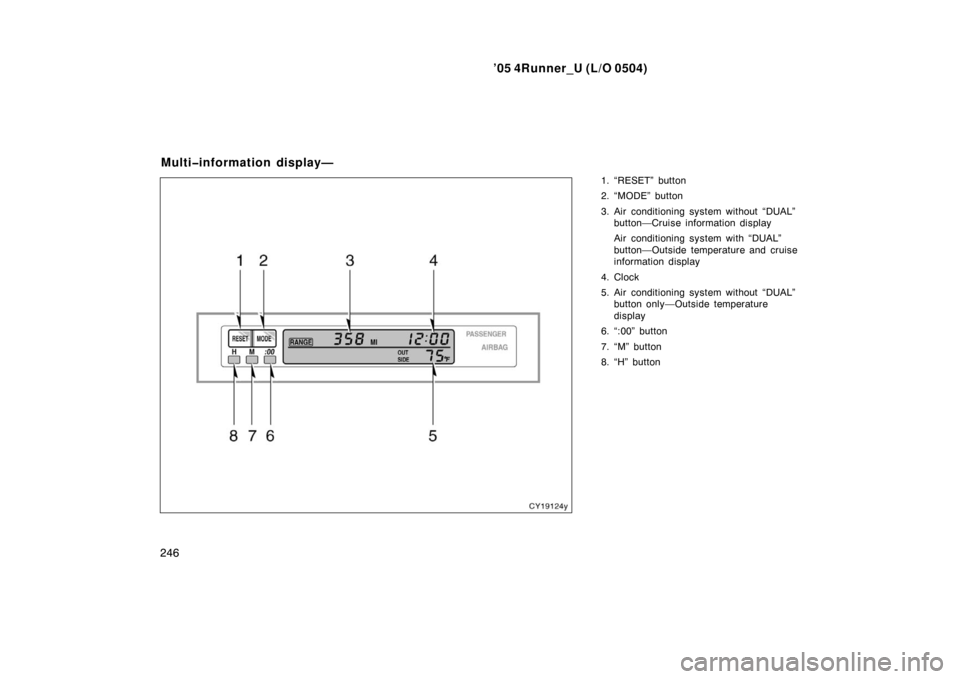

1. “RESET” button
2. “MODE” button
3. Air conditioning system without “DUAL”
button—Cruise information display
Air conditioning system with “DUAL”
button—Outside temperature and cruise
information display
4. Clock
5. Air conditioning system without “DUAL” button only—Outside temperature
display
6. “:00” button
7. “M” button
8. “H” button
Multiinformation display—
