“HI” (high) mode—
The vehicle height is about 40 mm (1.6
in.) higher at rear than the “N” mode
height.
This mode is suitable when driving on the
bumpy roads and through water.
However, when the vehicle speed exceeds
about 30 km/h (19 mph) or over in the
“HI” mode, the “N” mode is automatically
selected.
CAUTION
The “HI” mode should be used for
severe offroad driving condition
only. Because the vehicle’s center of
gravity is higher in this setting, the
vehicle may become unstable when
turning abruptly, resulting in accident.
“LO” (low) mode—
The vehicle height is about 20 mm (0.8
in.) lower at rear than the “N” mode
height.
This mode allows you easy access to the
vehicle (getting in and out) and easy load-
ing and unloading operation.
This mode is available when the vehicle
speed is under about 12 km/h (7 mph).
NOTICE
Use the “LO” mode when the vehicle
is stopped. Otherwise, when the ve-
hicle speed exceeds about 12 km/h (7
mph), “N” mode is selected automati-
cally. So be careful when you drive in
any place where the overhead height
is limited.
(b) Vehicle height mode changing con-
dition
To change the vehicle height, it is neces-
sary to meet the following conditions.
The engine should be running.
The height control “OFF” indicator light
should go off.
When selecting a mode, there is a ve-
hicle speed limit. Refer to the following
table.
Yes = The mode can be selected.
No = The mode cannot be selected.
“LO”
mode“N”
mode“HI”
mode
Under about
12 km/h
(7 mph)
Ye sYe sYe s
Under about
30 km/h
(19 mph)
NoYe sYe s
About
30 km/h
(19 mph) or
over
NoYe sNo
In the following cases, the rear height
control suspension will not operate.
The underbody of the vehicle has
touched the surface on bumpy roads.
The area around the rear suspension
is coated with ice.

’05 4Runner_U (L/O 0504)
184
If the vehicle is moved to its usual loca-
tion or the ice is removed and the height
select switch is pressed, the vehicle
height control cannot be operated. In this
case, turn off and restart the engine, then
push the control switches.
(c) Vehicle height adjustment

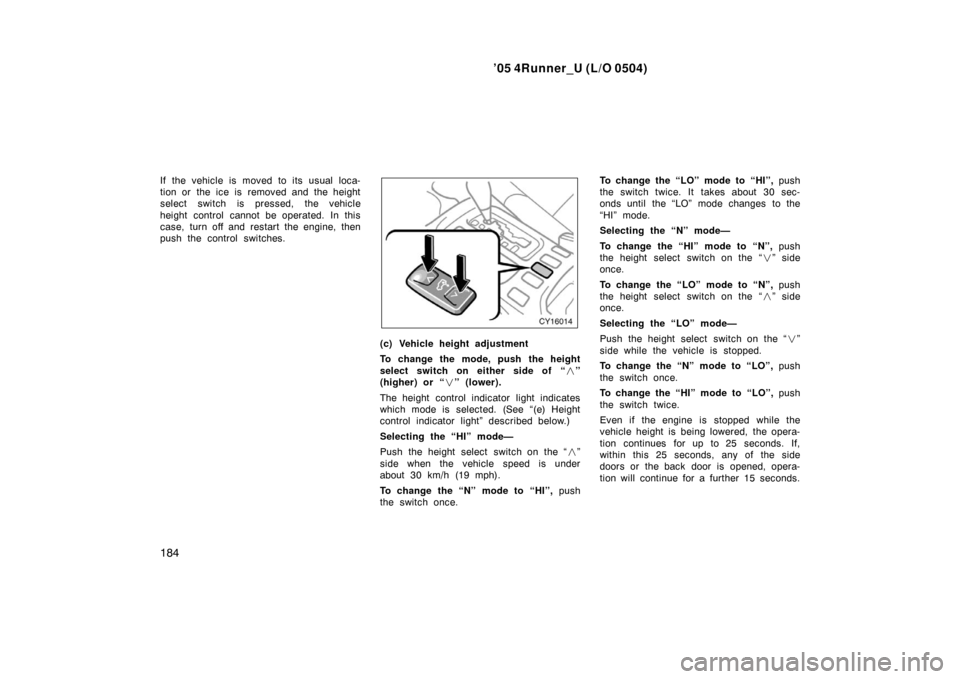

To change the mode, push the height
select switch on either side of “ ”
(higher) or “ ” (lower).
The height control indicator light indicates
which mode is selected. (See “(e) Height
control indicator light” described below.)
Selecting the “HI” mode—
Push the height select switch on the “ ”
side when the vehicle speed is under
about 30 km/h (19 mph).
To change the “N” mode to “HI”, push
the switch once. To change the “LO” mode to “HI”,
push
the switch twice. It takes about 30 sec-
onds until the “LO” mode changes to the
“HI” mode.
Selecting the “N” mode—
To change the “HI” mode to “N”, push
the height select switch on the “ ” side
once.
To change the “LO” mode to “N”, push
the height select switch on the “ ” side
once.
Selecting the “LO” mode—
Push the height select switch on the “ ”
side while the vehicle is stopped.
To change the “N” mode to “LO”, push
the switch once.
To change the “HI” mode to “LO”, push
the switch twice.
Even if the engine is stopped while the
vehicle height is being lowered, the opera-
tion continues for up to 25 seconds. If,
within this 25 seconds, any of the side
doors or the back door is opened, opera-
tion will continue for a further 15 seconds.

’05 4Runner_U (L/O 0504)
185
NOTICE
If the vehicle height is changed fre-
quently when the vehicle is heavily
loaded, the compressor may over-
heat, causing the vehicle height ad-
justment operation to stop.
 Before you lower the vehicle height
with the height select switch, check
under the vehicle to make sure
nothing to damage the vehicle or
no one to be injured is there and
that the underbody of the vehicle
does not touch the ground.
 After unloading, the height of a ve-
hicle equipped with the rear height
control air suspension becomes
slightly higher than the normal ve-
hicle height. Take sufficient care
where the overhead height is re-
stricted.
 Do not select the “LO” mode in the
bumpy roads. If the underbody of
the vehicle touches the rugged road
surface, the vehicle may be dam-
aged.
(d) Turning off the rear height control
air suspension
To turn off the rear height control air
suspension with the vehicle stopped,
push the “HEIGHT CONTROL OFF”
switch. The height control “OFF” indi-
cator light comes on and the vehicle
height is fixed in the same mode as the
height control switch is pushed.
This status is memorized in the system
even after the engine is stopped.
If you push the switch again, the height
control “OFF” indicator light goes out and
the rear height control air suspension is
turned on.
Even after the rear height control air sus-
pension is turned off with the “HEIGHT
CONTROL OFF” switch, if the vehicle
speed exceeds 30 km/h (19 mph), the
rear height control air suspension automat-
ically selects the “N” mode.

’05 4Runner_U (L/O 0504)
186
CAUTION
If you drive through deep water over
about 700 mm (28 in.) in depth, put
the vehicle height in the “HI” mode
with the height select switch and then
turn off the rear height control air
suspension by pushing the “HEIGHT
CONTROL OFF” switch.
NOTICE
When jacking up or insta lling tire
chains, be sure to turn off the rear
height control air suspension by
pushing the “HEIGHT CONTROL
OFF” switch and stop the engine.
Otherwise, the vehicle height may
change because of the automatic
leveling function, resulting in an un-
expected accident.
 If your vehicle must be towed, put
the vehicle height in the “N” mode
and turn off the rear height control
air suspension. Otherwise, the ve-
hicle height may change because of
the automatic leveling function, re-
sulting in an unexpected accident.
If your vehicle gets ditched, turn off
the rear height control air suspen-
sion with the “HEIGHT CONTROL
OFF” switch. Otherwise, the vehicle
height may change because of the
automatic leveling function resulting
in an unexpected accident.

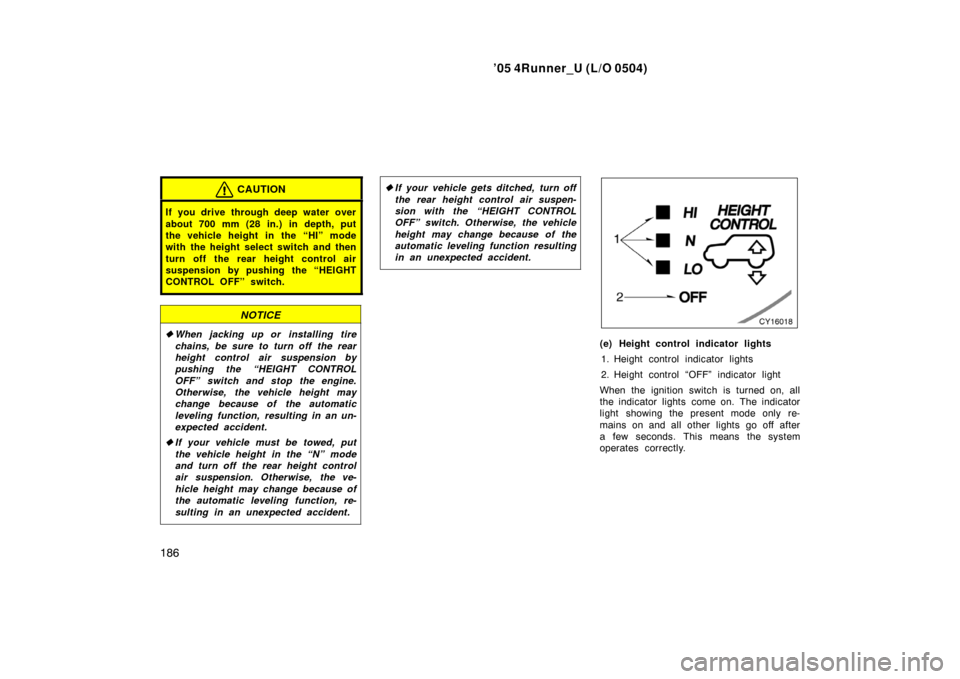

(e) Height control indicator lights
1. Height control indicator lights
2. Height control “OFF” indicator light
When the ignition switch is turned on, all
the indicator lights come on. The indicator
light showing the present mode only re-
mains on and all other lights go off after
a few seconds. This means the system
operates correctly.

’05 4Runner_U (L/O 0504)
187
If you change the vehicle height mode,
the indicator lights change as follows:
When changing the vehicle height from
the “N” mode to “HI”:
1. The “N” mode indicator light goes off and the “HI” mode indicator light blinks.
2. After the vehicle height control reaches the “HI” mode, the “HI” mode indicator
light remains on.
If the underbody of the vehicle has
touched the surface on bumpy roads or
the area around the rear suspension is
coated with ice, the vehicle height cannot
be lowered with the height select switch.
The height control indicator lights change
as follows: 1. The present mode indicator light goes
off and the selected mode indicator
light blinks.
2. The selected mode indicator light goes off. (The vehicle height does not
change.) The present mode indicator
light comes on again.
In this case, even if the vehicle is moved
to its usual location or the ice is removed
and the height select switch is pressed,
vehicle height control cannot be operated.
Turn off the engine once and then restart
it.
Height control “OFF” indicator light:
When the ignition switch is turned on, this
light comes on. If it goes out after a few
seconds, the rear height control air sus-
pension operates correctly. If you push the
“HEIGHT CONTROL OFF” switch, the rear
height control air suspension is turned off.
The height control “OFF” indicator light
comes on.
In the following cases, there is a problem
somewhere in the rear height control air
suspension. Although there is no problem
to continue normal driving, have the rear
height control air suspension checked by
your Toyota dealer as soon as possible.
The height control “OFF” indicator light
does not come on when the ignition
switch is turned on.
The height control “OFF” indicator light
blinks.
(f) Parking and stopping tips
If you immediately stop the engine to park
the vehicle after off −road driving, the ve-
hicle height is lowered slightly as the ve-
hicle becomes cool. When parking, make
sure there is nothing that will be in con-
tact with the underbody of the vehicle.
When you start the engine, the vehicle
returns to the previous height.
If you park the vehicle for a long time,
the vehicle height may be gradually low-
ered. When parking for a long time, make
sure there is nothing that will be in con-
tact with the underbody of the vehicle.
When you start the engine, the vehicle
returns to the previous height.
If you stop the engine, the vehicle height
may change in accordance with the
change in the temperature. When you
start the engine, the vehicle returns to the
previous height.

’05 4Runner_U (L/O 0504)
188
(g) Rear height control failure warning
If there is a problem somewhere in the
rear height control air suspension, the “N”
mode is automatically selected. If this oc-
curs, the height control “OFF” indicator
light blinks and the vehicle height control
cannot be activated until the malfunction
is corrected. If this is the case, bring your
vehicle to your Toyota dealer as soon as
possible and have it checked. The tire pressure warning system is de-
signed to provide warning when tire
inflation pressure of one or more of
your tires (including the spare tire) is
low. The low tire pressure warning light
comes on to inform you that low tire
inflation pressure may hamper driving.
LOW TIRE PRESSURE WARNING LIGHT
This light comes on when the ignition key
is turned to the “ON” position. It goes off
after a few seconds. This indicates that
the tire pressure warning system is func-
tioning properly.
Tire pressure warning
system—

’05 4Runner_U (L/O 0504)
189
If the low tire pressure warning light
comes on or blinks, do the following.
If the warning light comes on:
Stop your vehicle in a safe place as
soon as possible and check that the
inflation pressure of all tires (including
the spare tire) is as specified on the
tire and loading information label. (See
“Checking tire inflation pressure” on
page 381 in Section 72.) If the warning
light comes on even after tire inflation
pressure adjustment, you may have a
flat tire. If you have a flat tire, replace
it with the spare tire. For details, see
“If you have a flat tire” on page 335 in
Section 4.
The warning light goes off a few minutes
after air is put into the deflated tire.
This warning light may turn on due to
natural causes such as natural air leaks
or tire pressure changes caused by tem-
perature. In this case, adjusting the tire
pressure will turn off the warning light.CAUTION
When the tire pressure warning light
comes on, observe the following in-
structions:
Depending on the conditions, re-
duce to an appropriate speed as
soon as possible.
Adjust the tire pressure to the spe-
cified level as soon as possible.
Avoid abrupt steering wheel maneu-
vering and braking. Tire deteriora-
tion may reduce steering wheel con-
trol and brake effectiveness. This
may lead to serious injury or death.
The tire pressure warning system
may not activate immediately if sud-
den bursts of air leakage occur.
NOTICE
Do not use liquid sealants for a flat
tire as air pressure sensors will be
damaged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Toyota dealer
or authorized tire dealer. The tire
pressure sensors will be affected by
the installation or removal of tires.
 The tire pressure warning system is
not to be used as a substitute for
regular inspections. Be sure to
check the air pressure in the tires
on a regular basis.
 When the tires must be replaced,
replace the grommets for air pres-
sure sensors as well.

’05 4Runner_U (L/O 0504)
190
If the warning light blinks:
The tire pressure warning system may
be malfunctioning. Contact your Toyota
dealer.
SYSTEM MALFUNCTION
The tire pressure warning system does
not function properly under certain cir-
cumstances. In the following cases, the
low tire pressure warning light may not
come on even if the tire inflation pres-
sure is low, or it may come on when
the tire inflation pressure is actually
normal.
Electric devices or facilities using simi-
lar radio wave frequencies are nearby.
A radio set to similar frequencies is in
use.
A lot of snow or ice covers the ve-
hicle, in particular, around the wheels
or wheel housings.
The tires are not equipped with an air
pressure sensor.
Snow tires or tire chains are used.
Non−genuine Toyota wheels are used.
The sensor battery is expired.
Radio waves from the air pressure sen-
sor installed on the spare tire cannot
be received.
CAUTION
The use of nongenuine wheels will
cause the air pressure sensors to
transmit the electronic code in dif-
ferent manner, resulting in the sys-
tem failure.
The use of different type of tires
with genuine wheels may also
cause the malfunction of the sys-
tem.
