2005 RENAULT MEGANE engine

Downloaded from www.Manualslib.com manuals search engine
5
7

4

5
5

4

6
5

7

NU761_2_G1-FRA.qxd 10/11/05 15:53 Page 1.39
1.39
CHILD SAFETY (continued)
Rear-facing Isofix seat fitted to the
front passenger seat
The front passenger seat must be
adjusted so that the back of the child
seat is touching the dashboard.
Use belt 4supplied with the seat:
- attach the belt hook 5to the ring 6
located under the seat on the gear
lever side;
- tighten the belt. Rear-facing seat mounting ring for
rear seats
- attach the belt hook
5to ring 7.
- tighten the belt. Forward-facing seat mounting ring
(rear seats only)
- pass strap
4 (supplied with the seat)
between the two rear headrest rods;
- attach hook 5to the ring located
under the luggage compartment
carpet.
- tighten the belt.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.39 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
NU761_2_G1-FRA.qxd 10/11/05 15:53 Page 1.40
1.40
CHILD SAFETY (continued)
CHILD SAFETY
 No modifications may be made to the original component parts of the rest\
raint system (belts and seats and theirmountings).
 Carefully follow the instructions for fitting provided by the manufactur\
er of the restraint system.
 Always avoid dressing the child in bulky garments and do not place any o\
bjects between the child and the restraint system.
 The seat belt in the vehicle must be tight enough to hold the child’s seat in position securely. Check the tension regularly.
 Never wear the belt under your arm or behind your back.
 The harness or belt should be taut and fitted to suit the child’s size.
 Never allow your child to stand up or kneel on the seats while the vehic\
le is moving.
 Check that the child is in the correct position for the entire journey, particularly when they are asleep.
 Use the seat belts to hold the seat in position, even if it is not occ\
upied. Otherwise, if an accident were to occur, it may become dislodged and pose a risk to other vehicle occupants.
 Following a serious accident, check the seat belts or the ISOFIX seat mo\
unting and replace the child seat.
 Never leave a child unsupervised in a vehicle, even if they are in a res\
training device.
 Lock the rear doors (if your vehicle is equipped with the function).
 Make sure the child does not get out of the vehicle at the side where th\
ere is traffic.
 Set your children a good example; always wear your seat belt.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.40 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
2

3

1

NU761_2_G1-FRA.qxd 10/11/05 15:53 Page 1.41
1.41
DANGER
Since front passenger airbag
triggering and the position
of a rear-facing child seat
are incompatible, it is not
permitted to install such a seat in
this position unless the vehicle is
fitted with an airbag deactivation
device. The child may suffer very
serious injuries if the airbag is
deployed.
The label (on the dashboard) and
the markings (on the sun visor)
remind you of these instructions.
CHILD SAFETY (continued)
Deactivating the front passenger
airbags
(if fitted )
To fit a rear-facing child seat on the
front passenger seat, it is essentialto
deactivate the front passenger seat
additional restraint systems (frontal
and side airbags and lap
pretensioner) and the anti-
submarining airbag (for the three-
door version). To deactivate the airbags:
when the
vehicle is stationary, push and turn
lock 1to the OFF position.
With the ignition on, it is essential
to check that warning light 2,
AIRBAG OFF , is illuminated on the
instrument panel or on centre
display 3 and, depending on the
vehicle, check that the message
“passenger airbag OFF” is
displayed.
This light remains continuously lit
to let you know that you can fit a
child seat.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.41 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
1

NU761_2_G1-FRA.qxd 10/11/05 15:53 Page 1.42
1.42
The passenger airbag
must only be deactivated
or activated when the
vehicle is stationary.
If the lock is moved when the
vehicle is moving, warning lights
åand come on: the
passenger airbag is deactivated.
Switch the ignition off then on
again to reset the airbag in
accordance with the lock.
CHILD SAFETY (continued)
Activating the front passenger
airbags
You should reactivate the airbag as
soon as you remove the child seat
from the front passenger seat, to
ensure the protection of the front
passenger in the event of an impact. Operating faults
It is forbidden to fit a rear-facing
child seat to the front passenger seat
if the airbag activation/deactivation
system is faulty.
Allowing any other passenger to sit
in that seat is not recommended.
Consult your RENAULT Dealer as
soon as possible.
To reactivate the airbags:
push and
turn lock 1to the ON position.
After switching on the ignition
again, check that the
ãwarning
light is off.
The means of restraint which are
additional to the front passenger
seat belt and anti-slide airbag (for
the three-door version) are
activated.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.42 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
1

NU761_2_G1-FRA.qxd 10/11/05 15:53 Page 1.43
1.43
For safety reasons, only
adjust the steering wheel
when the vehicle is
stationary.
STEERING WHEEL
Height and depth adjustment
Pull lever 1and place the steering
wheel in the required position; push
the lever to lock the steering wheel
in place.
Never leave the steering wheel on
full lock when the vehicle is
stationary.
Never switch off the ignition when
travelling downhill, and avoid
doing so in general while driving,
as the power assisted steering and
brake servo will not function.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.43 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
22 21 16 15 14
12 3 4 5 67 8910 11 121320 19 18 17
23
24
25
26

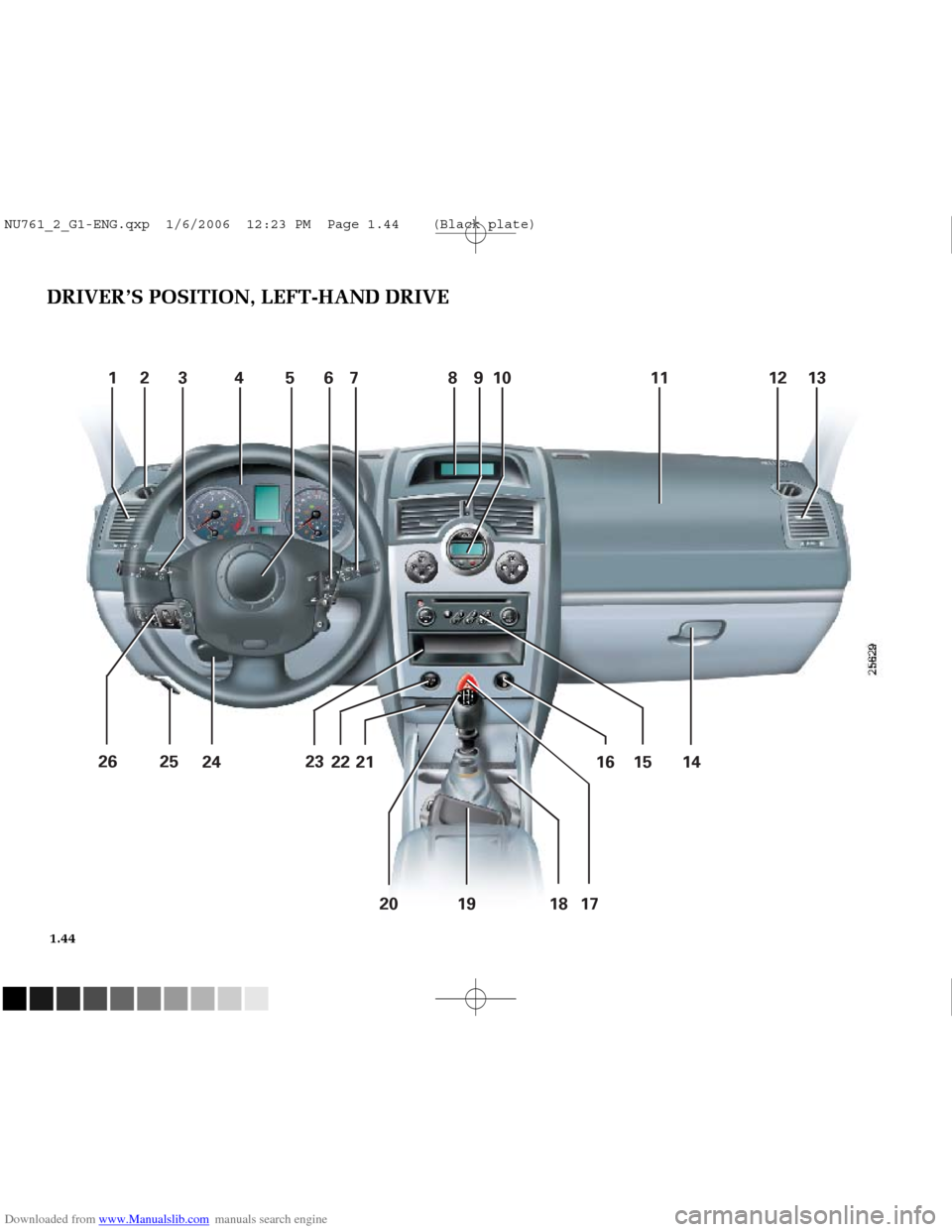

NU761_2_G1-FRA.qxd 10/11/05 15:54 Page 1.44
1.44
DRIVER’S POSITION, LEFT-HAND DRIVE
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.44 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
NU761_2_G1-FRA.qxd 10/11/05 15:54 Page 1.45
1.45
DRIVER’S POSITION, LEFT-HAND DRIVE (continued)
The equipment fitted, described below, depends on the version, option an\
d country.
1 Side air vent.
2 Side window demisting outlet.
3 Stalk for:
 direction indicators,
 external lights,
 front fog lights,
 rear fog lights.
4 Instrument panel.
5 Location of Driver’s Airbag and
horn.
6 Radio remote control.
7  Steering column stalk for
windscreen and rear screen
wash/wipe.
 Computer information readout control.
8 Display panel, depending on
vehicle, displaying the time,
temperature, radio and navigation
system information, etc. 9
Central air vents.
10 Air conditioning controls.
11 Location of passenger airbag.
12 Side window demisting outlet.
13 Side air vent.
14 Glove box.
15 Location of radio, navigation
system, etc.
16 Central door locking switch.
17 Hazard warning lights switch.
18 Location for ashtray, cigarette-
lighter and cup holder. 19
Handbrake.
20 Gear lever.
21 RENAULT card reader.
22 Engine Start/Stop button.
23 Storage compartment.
24 Control for adjusting steering
wheel height and depth.
25 Bonnet release.
26 Controls for:
 electric headlight beam adjustment,
 instrument panel lighting dimmer,
 cruise control and speed limiter,
 ASR traction control.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.45 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
12 345 6789101125 24 23 22 21 16 15 14 13 12 20 19 18 17
26

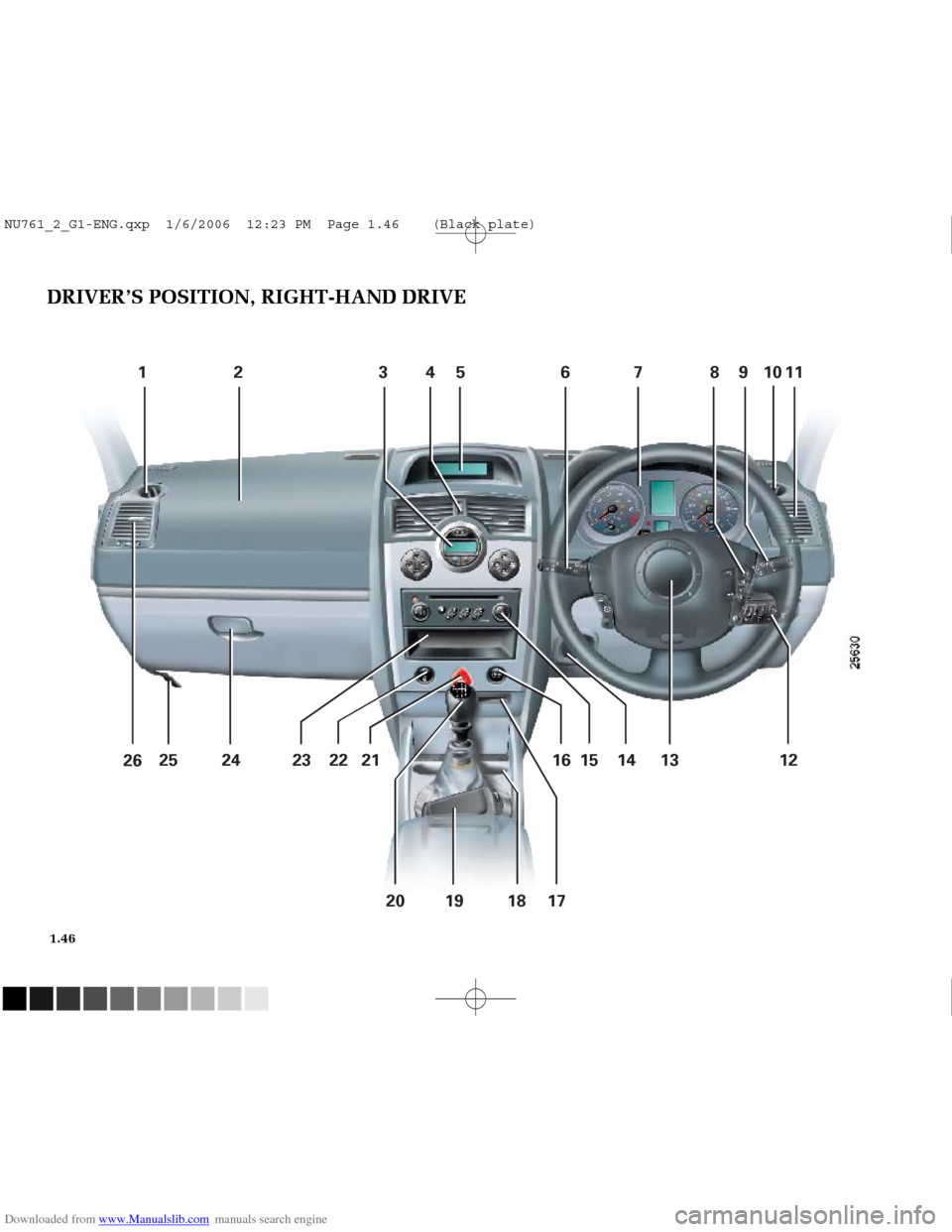

NU761_2_G1-FRA.qxd 10/11/05 15:54 Page 1.46
1.46
DRIVER’S POSITION, RIGHT-HAND DRIVE
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.46 (Black plate)
