DRIVER’S POSITION, RIGHT-HAND DRIVE (continued)
The equipment fitted, described below, depends on the version, option an\
d country.
1 Side window demisting outlet.
2 Location of passenger airbag.
3 Air conditioning controls.
4 Central air vents.
5 Display panel, depending on
vehicle, displaying the time,
temperature, radio and navigation
system information, etc...
6 Stalk for:
 direction indicators,
 external lights,
 front fog lights,
 rear fog lights.
7 Instrument panel.
8 Radio remote control.
9  Steering column stalk for
windscreen and rear screen
wash/wipe,
 Computer information readout control. 10
Side window demisting outlet.
11 Side air vent.
12 Controls for:
 electric headlight beam adjustment,
 Instrument panel lighting dimmer,
 cruise control and speed limiter,
 ASR traction control.
13 Location of Driver’s Airbag and
horn.
14 Control for adjusting steering
wheel height and depth.
15 Location of radio, navigation
system, etc.
16 Engine Start/Stop button. 17
RENAULT card reader.
18 Location for ashtray, cigarette-
lighter and cup holder.
19 Handbrake.
20 Gear lever.
21 Hazard warning lights switch.
22 Door central locking switches.
23 Storage compartment.
24 Glove box.
25 Bonnet release.
26 Side air vent.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.47 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
A34a4 B
12 11 10 C87

NU761_2_G1-FRA.qxd 10/11/05 15:54 Page 1.48
1.48

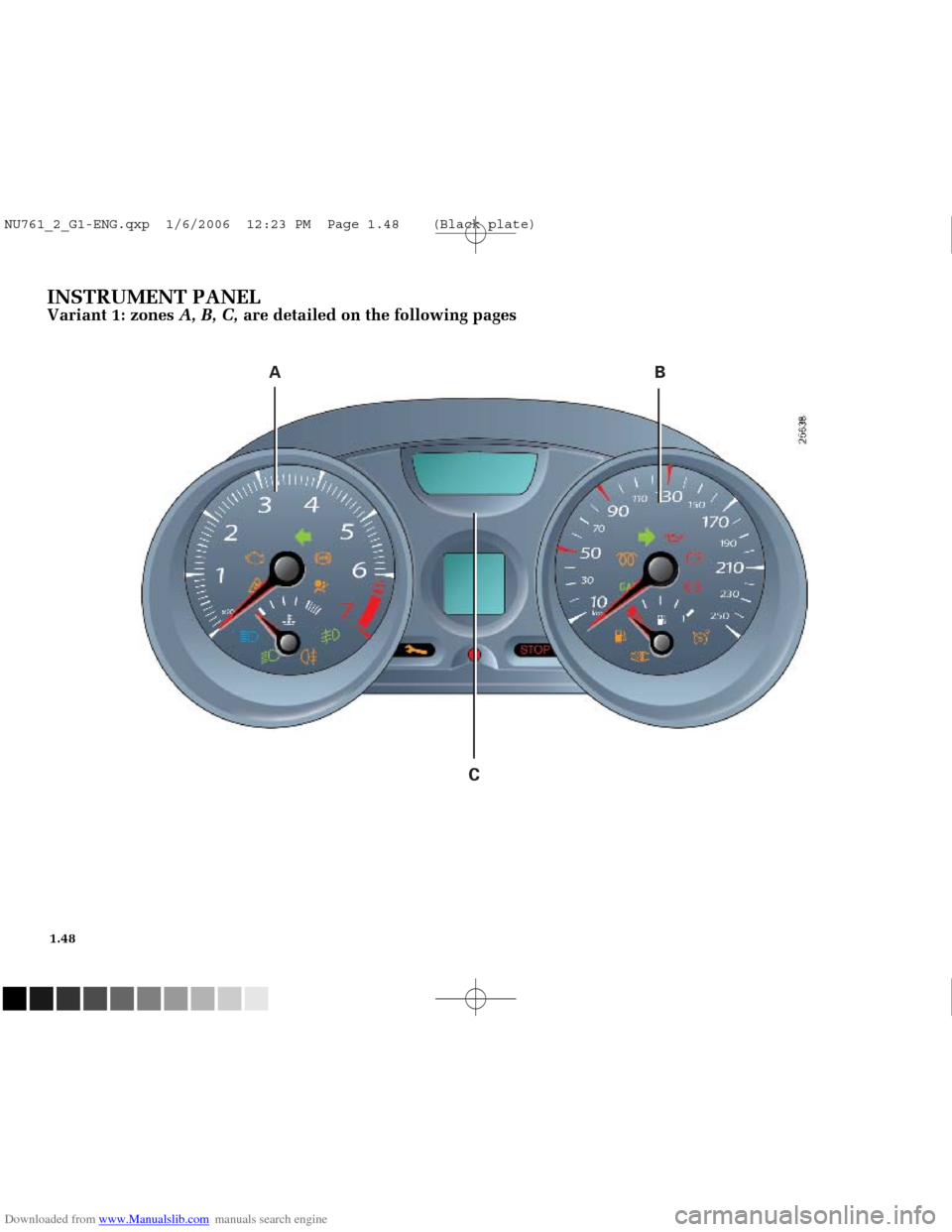

INSTRUMENT PANELVariant 1: zones A, B, C,are detailed on the following pages
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.48 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
A34a4B
12 11 10 D87

NU761_2_G1-FRA.qxd 10/11/05 15:54 Page 1.49
1.49
INSTRUMENT PANEL (continued)

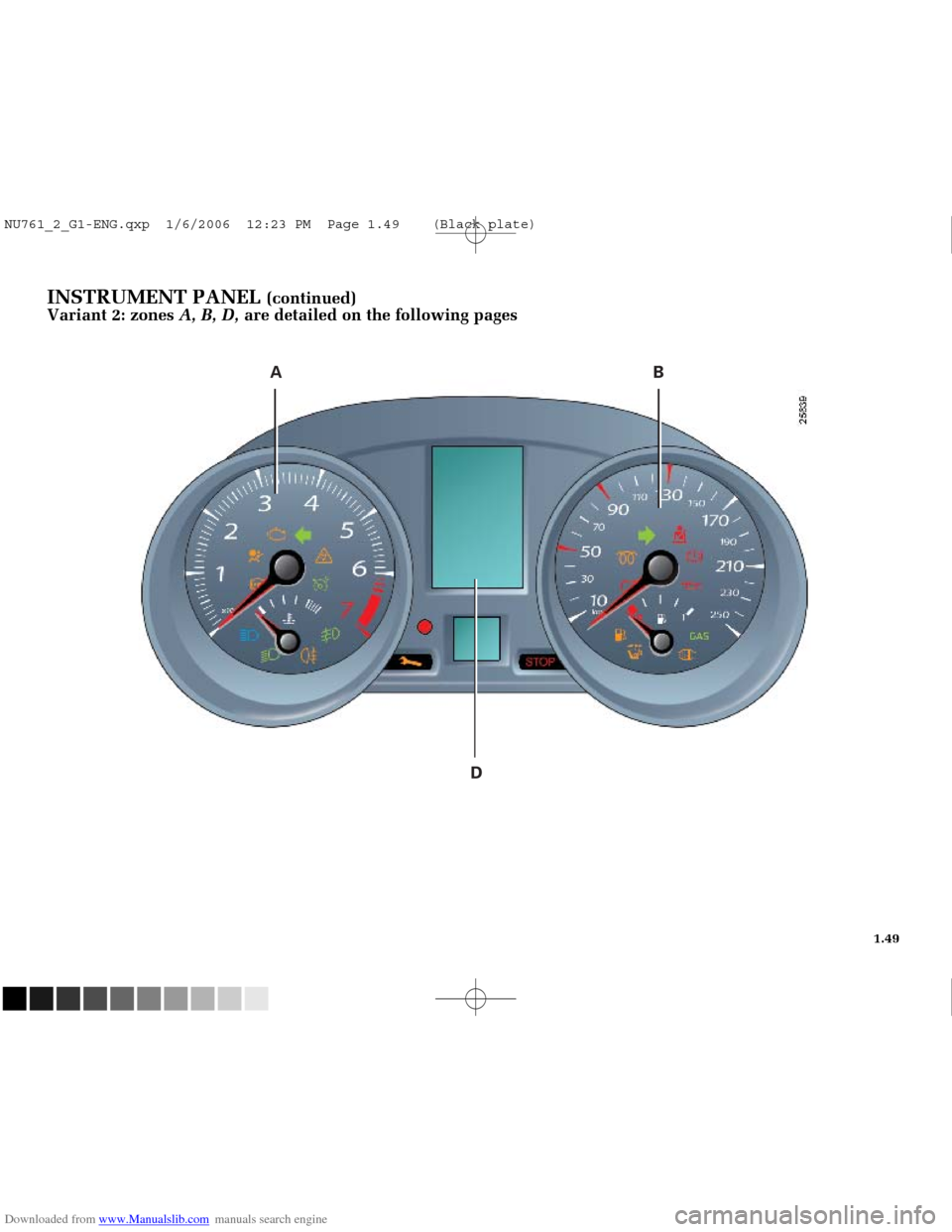

Variant 2: zones A, B, D,are detailed on the following pages
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.49 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
1234

11 10 9 8 7 6 5
a

NU761_2_G1-FRA.qxd 10/11/05 15:54 Page 1.50
1.50
INSTRUMENT PANEL (continued)

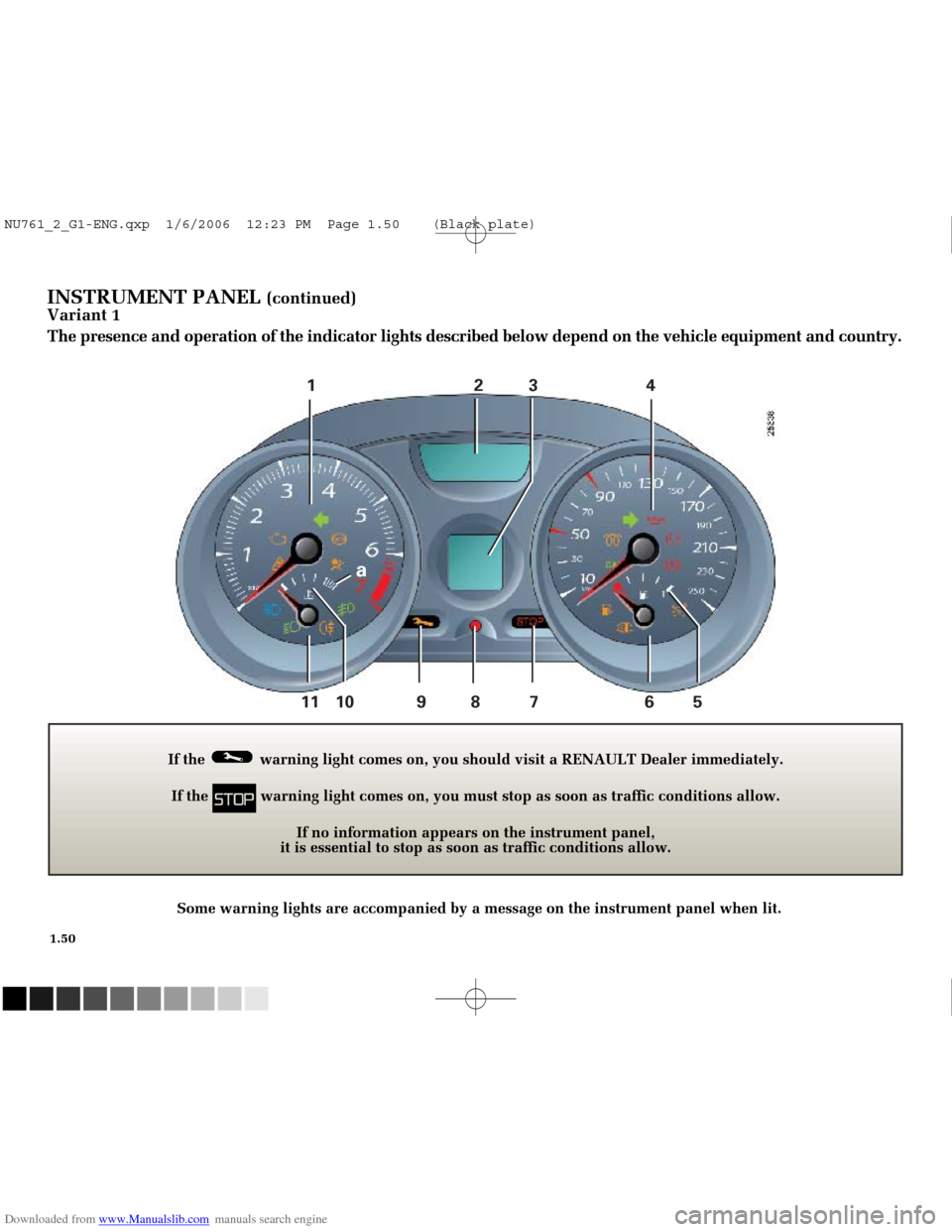

Variant 1
The presence and operation of the indicator lights described below depen\
d on the vehicle equipment and country.
If the warning light comes on, you should visit a RENAULT Dealer immediately.
If the
ûwarning light comes on, you must stop as soon as traffic conditions allo\
w. If no information appears on the instrument panel,
it is essential to stop as soon as traffic conditions allow.
Some warning lights are accompanied by a message on the instrument panel\
when lit.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.50 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
NU761_2_G1-FRA.qxd 10/11/05 15:54 Page 1.51
1.51
INSTRUMENT PANEL (continued)
The presence and operation of the indicator lights described below depen\
d on the vehicle equipment and country.
1 Rev counter
(scale × 1000)
üElectronic Stability
Program (ESP) and
traction control system
(ASR) warning light.
There are several reasons for the
warning light coming on: see
Electronic Stability Program
(ESP) and Traction control system
(ASR) in Section 2.
äFume filter system
warning light
For vehicles equipped
with this option, the light comes
on when the ignition is switched
on then goes out.
 If it lights up continuously, contact your RENAULT Dealer
as soon as possible;
 If it flashes, reduce the engine speed until the light stops
flashing.
Consult your RENAULT Dealer
as soon as possible.
Refer to the information on
emission control, fuel economy
and driving in Section 2. 1
cLeft-hand direction
indicator light
xAnti-lock braking system
(ABS) indicator light
This comes on when the
engine is started then goes out.
If it comes on when you are
driving, it indicates a fault in the
anti-lock braking system (ABS).
Braking will then be as normal,
without the ABS system.
Contact your RENAULT Dealer as
soon as possible. 1
åAirbag warning light
This lights up when the
engine is started and goes
out after a few seconds.
If it does not light up when the
ignition is switched on, or comes
on when the engine is running,
there is a fault in the system.
Consult your RENAULT Dealer as
soon as possible.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.51 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
1234

11 10 9 8 7 6 5
a

NU761_2_G1-FRA.qxd 10/11/05 15:54 Page 1.52
1.52
INSTRUMENT PANEL (continued)

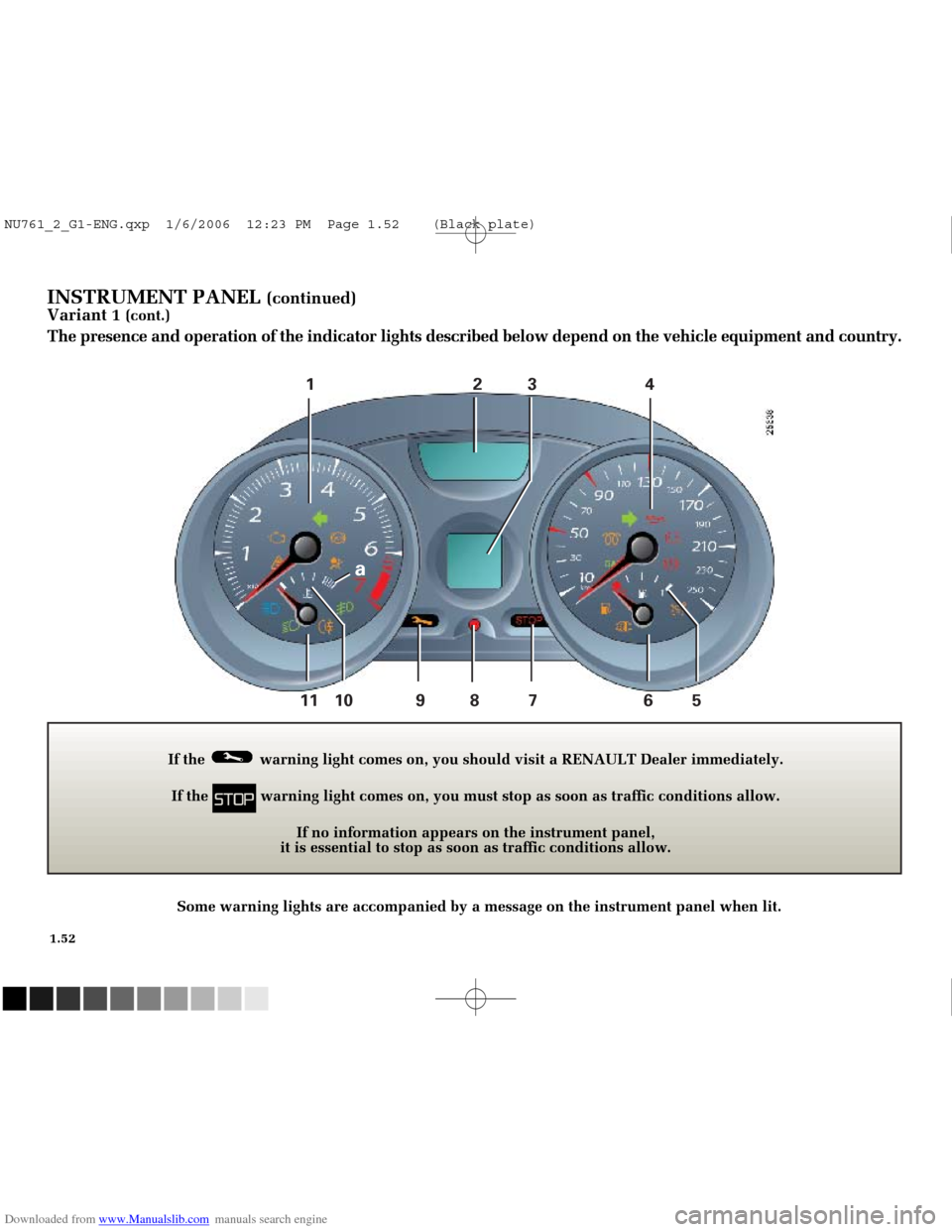

Variant 1 (cont.)
The presence and operation of the indicator lights described below depen\
d on the vehicle equipment and country.
If the warning light comes on, you should visit a RENAULT Dealer immediately.
If the
ûwarning light comes on, you must stop as soon as traffic conditions allo\
w. If no information appears on the instrument panel,
it is essential to stop as soon as traffic conditions allow.
Some warning lights are accompanied by a message on the instrument panel\
when lit.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.52 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
NU761_2_G1-FRA.qxd 10/11/05 15:54 Page 1.53
1.53
INSTRUMENT PANEL (continued)
The presence and operation of the indicator lights described below depen\
d on the vehicle equipment and country.
2 Display
Engine oil level low warning
When starting the engine, the
display shows the engine oil
minimum level warning for 30
seconds. Refer to the information on
the Engine Oil Level in Section 4.
Trip computer
After 30 seconds, the display will
toggle depending on the trip
computer: refer to the information
on the Trip computer in Section 1. 3
Door/luggage compartment
warning light or multifunction
display (depending on vehicle)
q
Doors/luggage
compartment warning light Shows when an opening
element is open or not closed
properly.
OR
Multifunction display
This indicates when an opening
element is open or not closed
properly, as well as the tyre
pressures (see Tyre pressure
monitor in Section 2) and the gear
selected (for vehicles with an
automatic transmission). 4
Speedometer (mph or km/h)
Overspeed buzzer
Depending on the vehicle, a
buzzer sounds for approximately
10 seconds every 40 seconds, as
long as the vehicle is travelling in
excess of 72 mph (120 km/h).
îLPG mode operating
indicator
Refer to the specific
document for LPG vehicles.
éPreheating indicator
light (diesel version)
With the ignition
switched on, this light should
come on; it indicates that the
heater plugs are operating.
It goes out when preheating is
finished and the engine can start.
bRight-hand direction
indicator light
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.53 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
1234

11 10 9 8 7 6 5
a

NU761_2_G1-FRA.qxd 10/11/05 15:54 Page 1.54
1.54
INSTRUMENT PANEL (continued)
Variant 1
The presence and operation of the indicator lights described below depen\
d on the vehicle equipment and country.
If the warning light comes on, you should visit a RENAULT Dealer immediately.
If the
ûwarning light comes on, you must stop as soon as traffic conditions allo\
w. If no information appears on the instrument panel,
it is essential to stop as soon as traffic conditions allow.
Some warning lights are accompanied by a message on the instrument panel\
when lit.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.54 (Black plate)
