2005 PEUGEOT 807 Owners Manual

68 -
28-02-2005
69
-
28-02-2005
Filtering the TMC messages
To ilter these messages, select the
"Filter the TMC information" func-
tion from the "Trafic Information
TMC" menu, you then obtain:
- "Route information ilter" to obtain the messages relating to the cur-
rent guidance outline,
- "Filter by event" to display the mes- sages speciic only to accidents, or
trafic jams, ...
- "Geographic ilter" to take into ac- count the messages within a radius
of action to be deined around the
vehicle and/or a location.
You can ilter these messages using
one or more ilters simultaneously. General notes on the "Map"
application**
The
"Map" application has two dis-
play modes:
- "Vehicle following on map"
mode, representing active guid-
ance on the map on the right and
a large-scale view of the next inter-
section on the left,
- "Selection-Movement on map"
mode, representing consultation
of the map at full screen size or
reduced size on the right with a
compass on the left.
To switch from one mode to the other,
press the dial on the right briely, then
select the "Move the map" or "Exit
the map mode" function.
In "Selection-movement on map"
mode, you can see symbols, repre-
senting the various types of services
which exist, sorted by category:
- "Administration and safety" symbol on a grey background,
- "Hotels, bars and restaurants" sym- bol on a yellow background,
- "Other businesses" symbol on a purple background,
- "Culture, tourism and entertainment" symbol on a white background,
-
"Sports centres and open air centres"
symbol on a green background,
- "Transportation and automobiles" symbol on a blue background. A
"Zoom" function enables you to
enlarge the map, in accordance with
the thirteen preset levels relating to
the following scales:
- 50 m/cm, 100 m/cm, 150 m/cm, 200 m/cm, 500 m/cm,
- 1 km/cm, 2 km/cm, 5 km/cm,
- 10 km/cm, 20 km/cm, 50 km/cm,
- 100 km/cm, 200 km/cm.
This is achieved by turning the dial.
This mode permits:
- displaying of the vehicle on the map with the route proposed by the
navigation if the guidance is active,
- zooming in on the map in accord- ance with the thirteen preset levels,
- displaying of the "Navigation -
Guidance" contextual menu.
"Vehicle following on map" mode
** Only with DT colour screen.
Audio equipment and telematics

68 -
28-02-2005
69
-
28-02-2005
Filtering the TMC messages
To ilter these messages, select the
"Filter the TMC information" func-
tion from the "Trafic Information
TMC" menu, you then obtain:
- "Route information ilter" to obtain the messages relating to the cur-
rent guidance outline,
- "Filter by event" to display the mes- sages speciic only to accidents, or
trafic jams, ...
- "Geographic ilter" to take into ac- count the messages within a radius
of action to be deined around the
vehicle and/or a location.
You can ilter these messages using
one or more ilters simultaneously. General notes on the "Map"
application**
The
"Map" application has two dis-
play modes:
- "Vehicle following on map"
mode, representing active guid-
ance on the map on the right and
a large-scale view of the next inter-
section on the left,
- "Selection-Movement on map"
mode, representing consultation
of the map at full screen size or
reduced size on the right with a
compass on the left.
To switch from one mode to the other,
press the dial on the right briely, then
select the "Move the map" or "Exit
the map mode" function.
In "Selection-movement on map"
mode, you can see symbols, repre-
senting the various types of services
which exist, sorted by category:
- "Administration and safety" symbol on a grey background,
- "Hotels, bars and restaurants" sym- bol on a yellow background,
- "Other businesses" symbol on a purple background,
- "Culture, tourism and entertainment" symbol on a white background,
-
"Sports centres and open air centres"
symbol on a green background,
- "Transportation and automobiles" symbol on a blue background. A
"Zoom" function enables you to
enlarge the map, in accordance with
the thirteen preset levels relating to
the following scales:
- 50 m/cm, 100 m/cm, 150 m/cm, 200 m/cm, 500 m/cm,
- 1 km/cm, 2 km/cm, 5 km/cm,
- 10 km/cm, 20 km/cm, 50 km/cm,
- 100 km/cm, 200 km/cm.
This is achieved by turning the dial.
This mode permits:
- displaying of the vehicle on the map with the route proposed by the
navigation if the guidance is active,
- zooming in on the map in accord- ance with the thirteen preset levels,
- displaying of the "Navigation -
Guidance" contextual menu.
"Vehicle following on map" mode
** Only with DT colour screen.
Audio equipment and telematics

70 -
28-02-2005
This mode permits:
- selection of any point on the map to obtain guidance towards it or to
obtain information about it (postal
address if available or, if it is not,
GPS co-ordinates),
- movement on the map by means of the four directional arrows, rep-
resenting the four cardinal points
(North, East, South, West),
- zooming in on the map in accord- ance with the thirteen preset levels,
- displaying of the "Map" contextual
menu.
"Selection-Movement on map"
mode
From the general menu , the main
"Map" menu offers various options
for guidance management:
- switching to "Selection-Movement on map" mode,
- direction of the map towards the North or in the direction of the vehicle,
- recentering of the map around the vehicle,
- opening of the services selection window visible on the map, such as
hotels, service stations, etc.
- displaying of the window for enter- ing the description for recording the
current position of the vehicle in a
directory ile.
Map
The contextual menu associated
with the "Map" application and with
the "Selection-Movement on map"
mode appears as a superimposed
display, when these are in use in the
main screen window.
This menu is limited to the following
functions:
- displaying of the information on the location selected on the map,
- selection of a location on the map as a destination,
- storing of the location selected (postal address if available or, if it is
not, GPS co-ordinates, so that they
can be recorded in a directory ile),
- switching to "Vehicle following on map" mode.
"Map" contextual menu
Audio equipment and telematics

71
-
28-02-2005

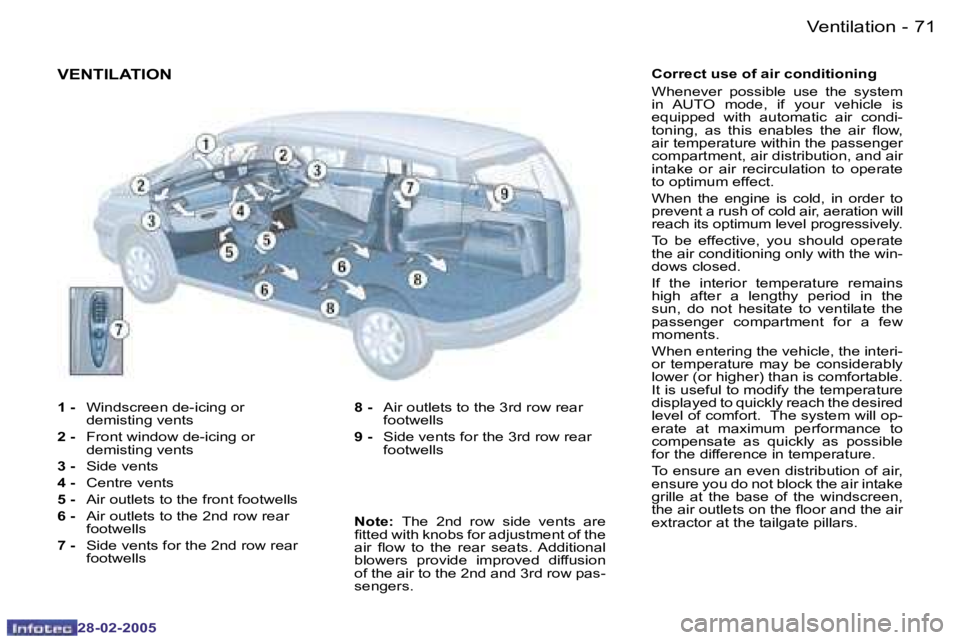

1 - Windscreen de-icing or
demisting vents
2 - Front window de-icing or
demisting vents
3 - Side vents
4 - Centre vents
5 - Air outlets to the front footwells
6 - Air outlets to the 2nd row rear
footwells
7 - Side vents for the 2nd row rear
footwells
8 - Air outlets to the 3rd row rear
footwells
9 - Side vents for the 3rd row rear
footwells
Correct use of air conditioning
Whenever possible use the system
in AUTO mode, if your vehicle is
equipped with automatic air condi-
toning, as this enables the air low,
air temperature within the passenger
compartment, air distribution, and air
intake or air recirculation to operate
to optimum effect.
When the engine is cold, in order to
prevent a rush of cold air, aeration will
reach its optimum level progressively.
To be effective, you should operate
the air conditioning only with the win-
dows closed.
If the interior temperature remains
high after a lengthy period in the
sun, do not hesitate to ventilate the
passenger compartment for a few
moments.
When entering the vehicle, the interi-
or temperature may be considerably
lower (or higher) than is comfortable.
It is useful to modify the temperature
displayed to quickly reach the desired
level of comfort. The system will op-
erate at maximum performance to
compensate as quickly as possible
for the difference in temperature.
To ensure an even distribution of air,
ensure you do not block the air intake
grille at the base of the windscreen,
the air outlets on the loor and the air
extractor at the tailgate pillars.VENTILATION
Note: The 2nd row side vents are
itted with knobs for adjustment of the
air low to the rear seats. Additional
blowers provide improved diffusion
of the air to the 2nd and 3rd row pas-
sengers.
Ventilation

72 -
28-02-2005
73
-
28-02-2005

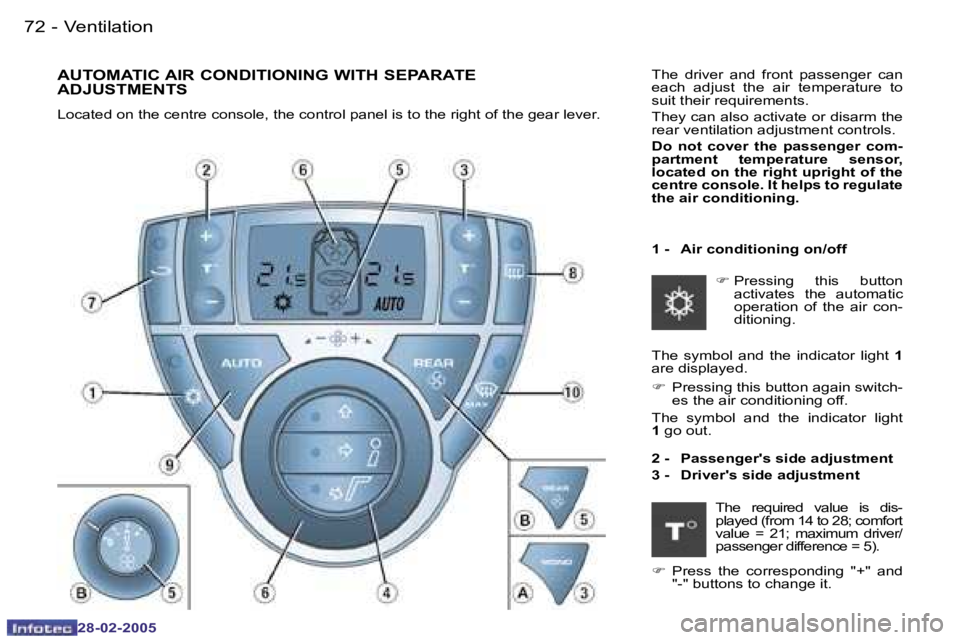

AUTOMATIC AIR CONDITIONING WITH SEPARATE
ADJUSTMENTS
Located on the centre console, the control panel is to the right of the gear lever.The driver and front passenger can
each adjust the air
temperature to
suit their requirements.
They can also activate or disarm the
rear ventilation adjustment controls.
Do not cover the passenger com-
partment temperature sensor,
located on the right upright of the
centre console. It helps to regulate
the air conditioning.
The required value is dis-
played (from 14 to 28; comfort
value = 21; maximum driver/
passenger difference = 5).
F Press the corresponding "+" and
"-" buttons to change it. F
Pressing this button
activates the automatic
operation of the air con-
ditioning.
The symbol and the indicator light 1
are displayed.
F Pressing this button again switch-
es the air conditioning off.
The symbol and the indicator light
1 go out.
1 - Air conditioning on/off
2 - Passenger's side adjustment
3 - Driver's side adjustment
Ventilation

72 -
28-02-2005
73
-
28-02-2005
F Turn the adjument con-
trol 6 respectively to
the right or to the left to
increase or reduce the
low of air.
The air low symbol 6 is illed in ac-
cording to the required value.
6 - Adjustment of the air low
To make the setting on the passenger
side the same as that on the driver's
side:
- "MONO" version air conditioning,
press button A.
- "REAR" version air conditioning, press button 2 or 3 for more than
two seconds.
F Pressing the correspond-
ing button(s) 4 directs the
low of air to:
- the windscreen,
- the side vents and the cen- tral vents,
- the side vents, the central vents and the feet,
- the windscreen and the feet,
- the feet.
The indicator light corresponding to
the required direction 4 comes on.
4 - Adjustment of the air
distribution
5 - Adjustment of the rear ventilation (REAR version)
To enable the rear passengers to adjust
the rear ventilation, press button B. The rear ventilation symbol
5 is dis-
played.
The air low adjustment controls 5
for the 2nd row side vents are op-
erational.
To disarm the rear ventilation con-
trols, press button B again.
The rear ventilation symbol 5 goes out.
F Press this button to recir-
culate the interior air.
The air recirculation symbol
and indicator light 7 are
displayed.
The recirculation isolates
the passenger compartment from
outside smells and smoke.
Avoid prolonged operation in inte-
rior air recirculation mode (risk of
condensation and deterioration of
the air quality).
F Pressing this button again returns
the system to automatic control of
the air intake.
7 - Intake of exterior air/
Recirculation of interior air F
Press button 8, with the
engine running, to de-
mist the rear screen and
the mirrors.
The demisting indicator
light 8 comes on.
It switches off automatically after ap-
proximately twelve minutes.
F Pressing the button again switch-
es it on again. If the engine is
switched off before the twelve
minutes have elapsed, demisting
will resume when the engine is
switched on again.
Note: it is possible to switch off the
demisting before it is switched off
automatically by pressing this button
again.
8 - Demisting the rear screen and
mirrors
This is the normal air con-
ditioning system operating
mode.
F Press the "AUTO" button.
The system adjusts automatically to
the value displayed by the tempera-
ture setting.
It also controls the air distribution, low,
temperature and intake to ensure com-
fort and a suficient circulation of air in
the passenger compartment. No further
action on your part is necessary.
The "AUTO" symbol is displayed.
9 - AUTO mode
Ventilation

74 -
28-02-2005
75
-
28-02-2005
The comfort program may prove
inadequate to demist or de-ice the
windows quickly (humidity, many
passengers, ice).
F In this situation, select the visibility
program.
The visibility program indicator light
10 comes on.
It manages the air conditioning,
air low, the rear screen demisting
and distributes the ventilation to the
windscreen and side windows as ef-
fectively as possible.
It switches off the air recirculation.
Note: for your comfort, between two
starting operations the settings are
retained if the temperature of the
passenger compartment has not var-
ied a great deal. If it has, operation
will resume in automatic mode.
10 - Visibility program Important precaution
Operate the air conditioning system
for 5 to 10 minutes, once or twice a
month, to keep it in perfect working
order.
If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.
Note: the condensation created by
the air conditioning system causes a
low of water under the vehicle when
stationary, which is perfectly normal.
Flashing of the points in the
temperature setting values
indicates that there is a
malfunction of the air condi-
tioning.
Contact your PEUGEOT
dealer.
11 - Switching the system off
F
Turn the air low adjustment con-
trol 6 to the left until the display is
switched off.
This action switches off all of the sys-
tem's functions, with the exception of
the rear screen demisting.
F Turning the control 6 again, or
pressing button 10 or the "AUTO"
button again, switches the system
on again with the same settings
as before. Additional heating
Vehicles itted with an HDI engine
may be itted with automatic additional
heating to improve your comfort.
When the engine is running at idle or
the vehicle is stationary, if you notice
a high-pitched whistling and a slight
emission of smoke and odours, this
is perfectly normal.
Ventilation

76 -
28-02-2005
77
-
28-02-2005

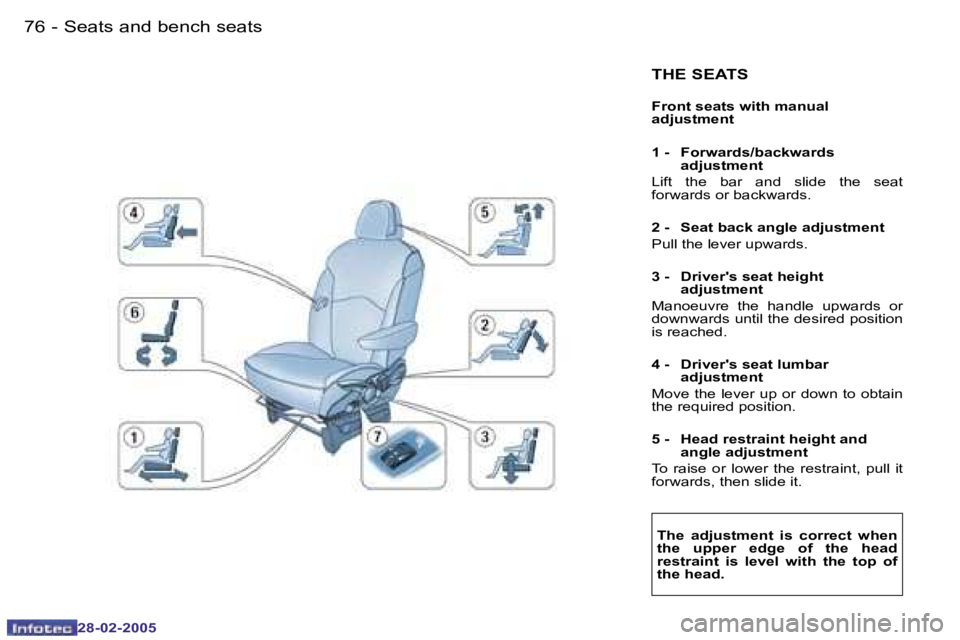

THE SEATS
Front seats with manual
adjustment
1 - Forwards/backwards
adjustment
Lift the bar and slide the seat
forwards or backwards.
2 - Seat back angle adjustment
Pull the lever upwards.
3 - Driver's seat height adjustment
Manoeuvre the handle upwards or
downwards until the desired position
is reached.
4 - Driver's seat lumbar adjustment
Move the lever up or down to obtain
the required position.
5 - Head restraint height and angle adjustment
To raise or lower the restraint, pull it
forwards, then slide it.
The adjustment is correct when
the upper edge of the head
restraint is level with the top of
the head.
Seats and bench seats
