2005 PEUGEOT 807 Owners Manual

4 -
28-02-2005
5-
28-02-2005
Familiarisation

4 -
28-02-2005
5-
28-02-2005

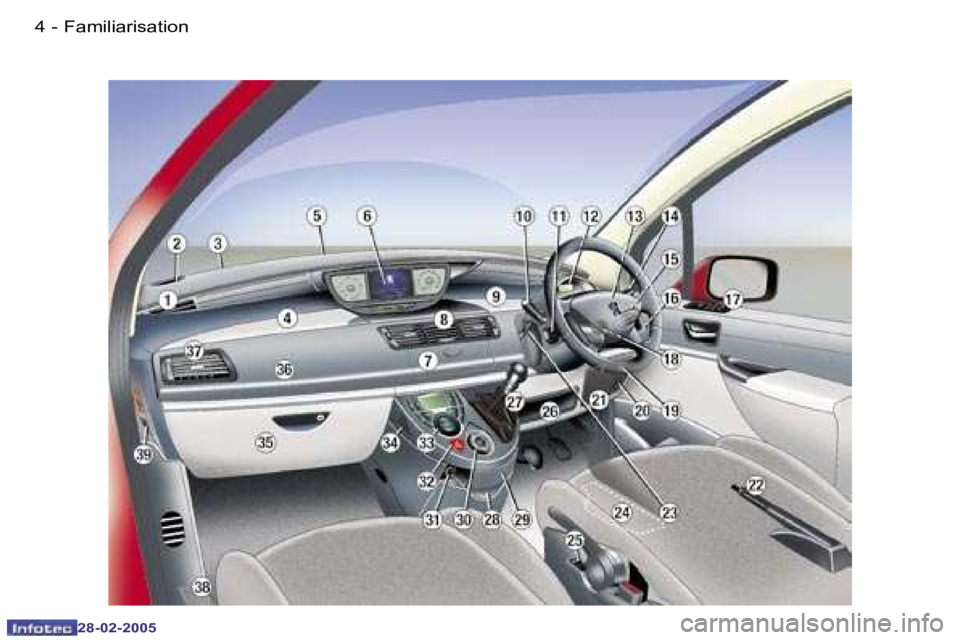

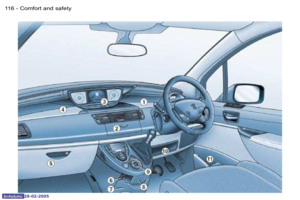

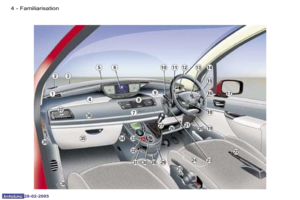

1 - Side window demisting vents.
2 - Speaker (tweeter).
3 - Windscreen demisting vents.
4 - Passenger upper glove box.
5 - Brightness sensor.
6 - Instrument panel dials/
Multifunction display.

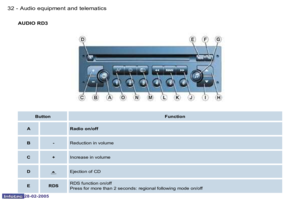

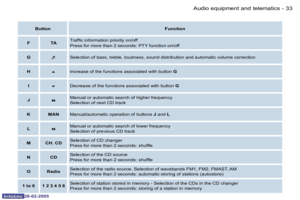

7 - RD3 audio equipment or RT3
GPS audio/telephone with lap.
8 - Central adjustable vents.
9 - Driver's upper glove box.
10 - Lights and direction
indicators stalk.
11 - Cruise control controls.
12 - Instrument panel
13 - Driver's air bag.
Horn. 14 -
Windscreen wash-wipe stalk.
Trip computer stalk.

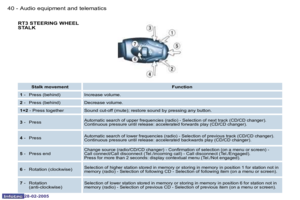

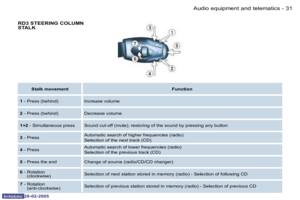

15 - Audio remote control stalk.
16 - Interior alarm disarming switch.
17 - Electric mirror controls.
Window controls.
Rear window locking control.
18 - Steering lock and ignition.
19 - Dynamic stability control
(ESP/ASR) switch.
20 - Headlamp height adjustment.

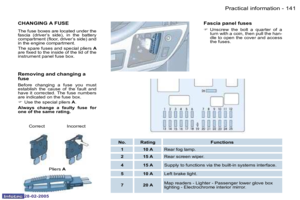

21 - Fuse box.
22 - Handbrake.
23 - Steering wheel adjustment
control.
24 - Battery/Fuse box.
25 - Heated seat switches. 26 -
Storage.
27 - Gear lever.
28 - Cooled compartment.
29 - Ashtray/Can holder.
30 - Storage compartment
or additional telematics control.
31 - Lighter/12 V accessories
socket.
32 - Hazard warning lights switch.
33 - Air conditioning controls.
34 - Passenger compartment
temperature sensor.
35 - Passenger lower glove box.
36 - Passenger air bag.
37 - Side adjustable vent.
38 - Bonnet release.
39 - Passenger air bag disarming
switch*.
* According to country.
Familiarisation

THE KEYS
The keys allow you to switch on the
ignition and to independently oper-
ate the lock on the driver's door, the
passenger's door, the fuel iller cap,
the glove box, the passenger air bag
disarming switch and the mechanical
child lock.The remote control key
Locking
Press button
A to lock the vehicle.
Button A also locates the vehicle and
reinitialises the remote control. Opening/Closing the electric
sliding side doors
Pressing button
C or D unlocks the
vehicle, then permits opening or
closing of the corresponding rear
door.
Deadlocking renders the
internal and external door
locking controls inoperative.
Do not leave anyone inside
the vehicle when it is deadlocked.
Automatic closing of the windows
Pressing button A for more than
two seconds automatically closes
the windows and places the sunroofs
in the partially open position.
: 94
Unlocking
Press button B to unlock the vehicle.
Central locking
From the driver's or passenger door,
the keys allow you to lock, deadlock
or unlock the doors and the tailgate
and to fold back the exterior mirrors.
If one of the doors or the boot is
open, it is impossible to operate the
central locking.
The remote control performs the
same functions at a distance. Deadlocking
Press button
A to lock the vehicle.
A second press on button A in
the ive seconds following locking,
changes locking to deadlocking. Folding/Unfolding the key
Press button
E to unfold or fold the
key in its case.
STARTING
1 - STOP position: the ignition is off.
2 - 1st notch, Accessories position:
the ignition is off but
the accessories can be used.
3 - 2nd notch, Running position:
the ignition is on.
4 - Starting position: operates the starter.
Familiarisation
28-02-2005
6-

8 -
28-02-2005
9-
28-02-2005
ELECTRIC WINDOWS
1 - Driver's electric window.
2 - Passenger's electric window.
3 - Rear left electric window.
4 - Rear right electric window.
5 - Disarming the rear window switches.
F Press or pull the switch lightly.
The window stops as soon as the
switch is released.
ELECTRIC MIRRORS
Adjustment
F Slide button 6 to the right or left to
select the corresponding mirror.
F Press the arrows on button 7 in all
four directions to adjust.
F Slide button 6 back to the centre
position.
STEERING WHEEL
ADJUSTMENT
F When stationary, lower control A
to unlock the steering wheel.
F Adjust the height and depth of the
steering wheel.
F Lock it by raising control A fully.
CHILD MONITORING MIRROR
Mounted on a ball joint and retracting
into its housing, it enables the driver
or front passenger to see all of the
rear seats.
: 110 : 111
Automatic mode:
F Press or pull the switch irmly.
One touch completely opens or
closes the window. Pressing the
switch again stops the window.
Safety auto-reverse: When the win-
dow is closing and meets an obsta-
cle, it stops and lowers again. Folding
When parking the vehicle, the mir-
rors can be folded back manually
or
electrically by pulling button 6 rear-
wards or automatically on locking the
vehicle.
Familiarisation

10 -
28-02-2005
11
-
28-02-2005
FRONT SEATS
Manual
1 - Forwards-backwards adjustment.
2 - Seat back angle adjustment.
3 - Driver's seat height adjustment.
4 - Driver's seat lumbar adjustment.
5 - Head restraint height and angle adjustment.
6 - Seat rotation.
7 - Heated seat.
Electric
A - Forwards-backwards
adjustment.
B - Driver's seat height adjustment.
C - Seat back angle adjustment.
M - Storing of settings.
F Switch on the ignition, then ad-
just the seat.
F Press button "M" then "1" or "2"
within 4 seconds.
1 - Recall of the irst position.
2 - Recall of the second position.
: 76
: 78
Familiarisation

12 -
28-02-2005
13
-
28-02-2005
Side seat controls:
- Forwards-backwards adjustment 1,
- Seat back angle adjustment, fold- ing, placing in the table position,
access to the 3rd row 2,
- Folding, exit from the 3rd row 3,
- Head restraint height adjustment 4. Centre seat controls:
- Forwards-backwards adjustment
1,
- Seat back angle adjustment 2,
- Placing in the table position 3,
- Folding 4,
- Head restraint height adjustment 5. Bench seat controls:
- Forwards-backwards control
1,
- Placing in the table position 2,
- Folding 3,
- Head restraint height adjustment 4.
REAR SEATS
: 82
Familiarisation

12 -
28-02-2005
13
-
28-02-2005
"Cargo" coniguration
7 seats with access to the 3rd row 5 seats with "picnic" position
6 seats "Pullman" 8 seats with bench seat
5 seats
SEAT MODULARITY AND CONFIGURATIONS
: 92
Familiarisation

10 -
28-02-2005
11
-
28-02-2005
Passenger side
temperature
Air recirculation
Air distributionRear screen and
mirrors demisting
Visibility program
Air low Rear ventilation

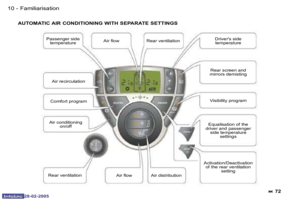

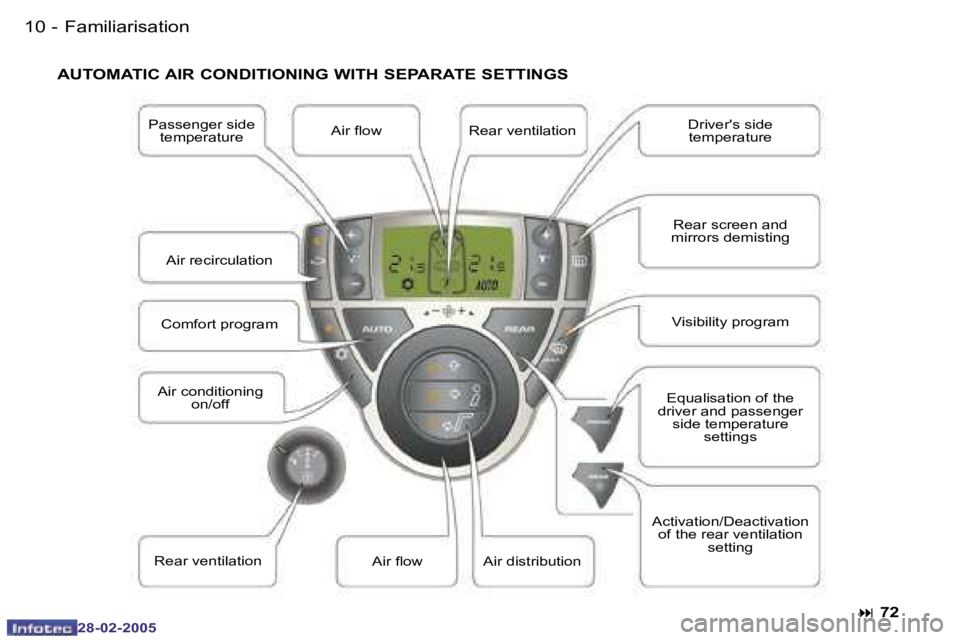

AUTOMATIC AIR CONDITIONING WITH SEPARATE SETTINGS
: 72
Driver's side
temperature
Activation/Deactivation of the rear ventilation setting
Equalisation of the
driver and passenger side temperature settings
Air low
Air conditioning
on/off
Rear ventilation Comfort program
Familiarisation
