RT3 GPS audio/telephone control
keypad
The control keypads
These let you select and validate the
functions, commands and programs
displayed.
The additional telematics control is
located by the side of the gear lever.
or additional telematics control Rotation of the dial:
This allows you to
move round the
screen and thus select a function.
It also allows you:
- with a 'setting' type parameter,
after selection, to increase or de-
crease the value,
- with a 'list' type parameter, after
opening the list, to scroll through
the values,
- with map guidance, to increase or
decrease the zoom. 'ESC' button:
- Brief press:
cancelling of opera-
tion in progress or erasing of last
superimposed display.
- Pressing for more than two sec- onds: erasing of all superimposed
displays and return to the perma-
nent display.
Pressing the dial:
This allows:
- access to the list of controls (con-
textual menu) of the permanent
display, if there is no other display
superimposed.
- conirmation of the selected func-
tion or the modiied value.
- selection of a 'setting' or 'list'
type parameter for modiication.
"MODE" button
- Brief press: modiication of per- manent display (audio system,
navigation/guidance...),
- Pressing for more than two seconds displays general information .'MENU' button:
- Brief press: access to the
general
menu
- Pressing for more than two sec- onds: access to the help menu and
to the list of voice commands .
"NAV" button
- Brief press: display of the con- textual menu of the navigation/
guidance function.
"MAIN" button
- Brief press: display of the general
information.
Tip:
You can access the general menu
by pressing:
- the dial G of the RT3 GPS audio/
telephone,
or
- the dial of the additional telematics control.
Audio equipment and telematics

62 -
28-02-2005
63
-
28-02-2005
General menu
Switch on the RT3 GPS audio/
telephone and insert the navigation
CD-Rom.
Press the "MENU" button to access
the general menu .

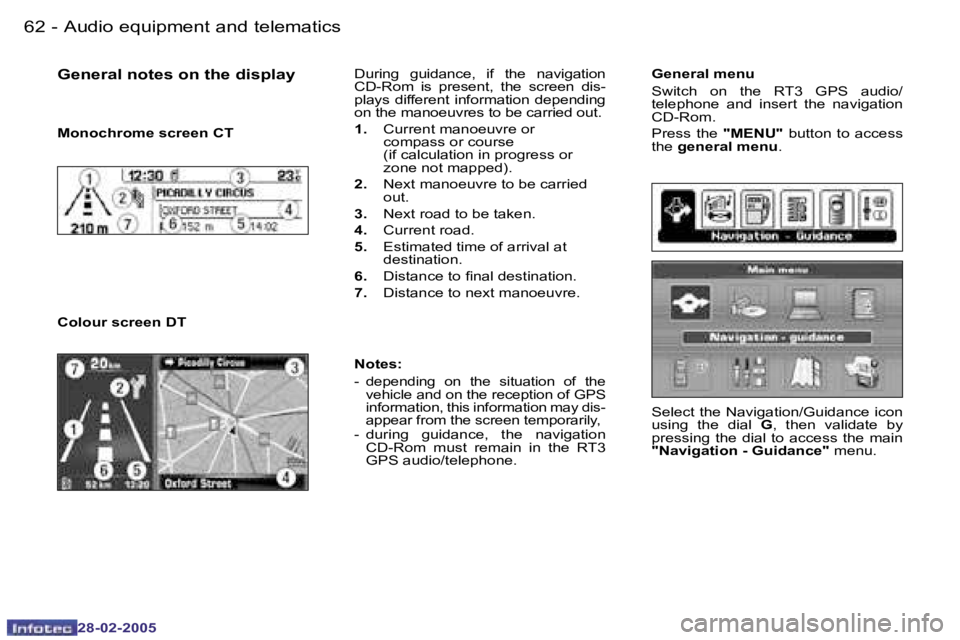

During guidance, if the navigation
CD-Rom is present, the screen dis-
plays different information depending
on the manoeuvres to be carried out.
1.
Current manoeuvre or
compass or course
(if calculation in progress or
zone not mapped).
2. Next manoeuvre to be carried
out.
3. Next road to be taken.
4. Current road.
5. Estimated time of arrival at
destination.
6. Distance to inal destination.
7. Distance to next manoeuvre.General notes on the display
Monochrome screen CT
Colour screen DT
Select the Navigation/Guidance icon
using the dial G, then validate by
pressing the dial to access the main
"Navigation - Guidance" menu.
Notes:
-
depending on the situation of the
vehicle and on the reception of GPS
information, this information may dis-
appear from the screen temporarily,
- during guidance, the navigation
CD-Rom must remain in the RT3
GPS audio/telephone.
Audio equipment and telematics

62 -
28-02-2005
63
-
28-02-2005

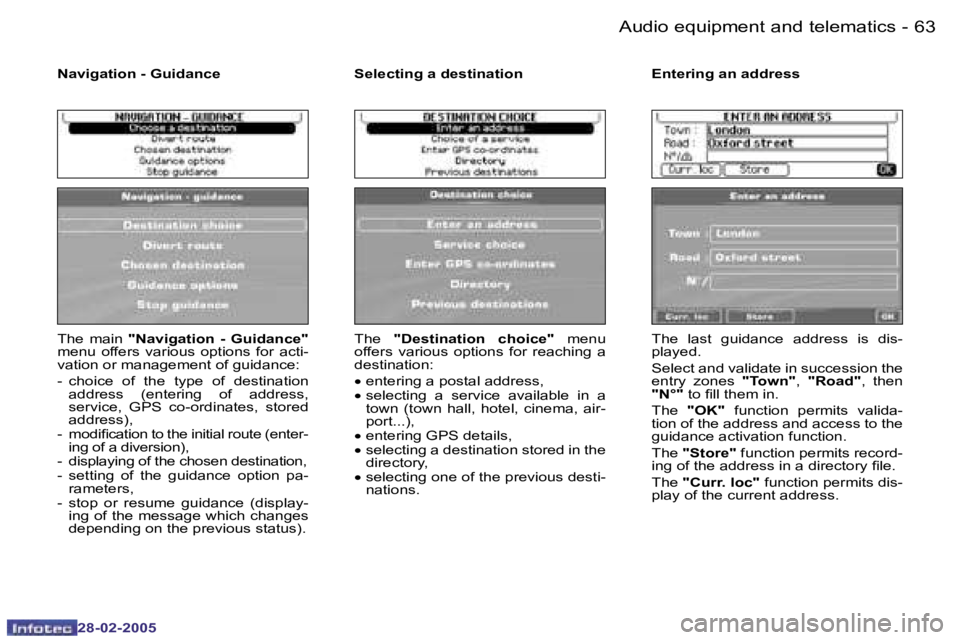

The main "Navigation - Guidance"
menu offers various options for acti-
vation or management of guidance:
- choice of the type of destination address (entering of address,
service, GPS co-ordinates, stored
address),
- modiication to the initial route (enter- ing of a diversion),
- displaying of the chosen destination,
- setting of the guidance option pa- rameters,
- stop or resume guidance (display- ing of the message which changes
depending on the previous status).
Navigation - Guidance
The "Destination choice" menu
offers various options for reaching a
destination: ฀•฀฀ entering a postal address,
฀•฀฀ selecting a service available in a
town (town hall, hotel, cinema, air-
port...),
฀•฀฀ entering GPS details,
฀•฀฀ selecting a destination stored in the
directory,
฀•฀฀ selecting one of the previous desti-
nations.
Selecting a destination
The last guidance address is dis-
played.
Select and validate in succession the
entry zones "Town", "Road" , then
"N°" to ill them in.
The "OK" function permits valida-
tion of the address and access to the
guidance activation function.
The "Store" function permits record-
ing of the address in a directory ile.
The "Curr. loc" function permits dis-
play of the current address.
Entering an address
Audio equipment and telematics

64 -
28-02-2005
65
-
28-02-2005
To enter the name of a town, select
each letter by turning the dial, then
validate each letter by pressing the
dial.
If an error is made entering the let-
ters, the "Change" function permits
erasing of the last letter entered.
Note: following the validation of a
letter, only those which could make
up a name existing in the database
appear.
As letters are entered, the "List"
function indicates the number of
towns beginning with the same let-
ters. Activation of this function per-
mits selection of a town from the list.
Entering the name of the town
When the list contains fewer than ive
names, these are displayed automati-
cally. Select a town then validate by
pressing the dial.
When the complete name of the town
is displayed, select the "OK" function
then conirm by pressing the dial.
Note: once the town has been en-
tered, you can conirm by pressing
"OK" . You will then be guided to the
centre of this town automatically.
Enter the number of the street previ-
ously entered.
Select the "OK" function, then con-
irm by pressing the dial.
Note: if the number of the street en-
tered is not available, it is rejected.
You can also select a street from the
"Junctions" function, which avoids
having to enter the street number.
Note: if the street selected does not
have a number, the list of junctions is
displayed automatically.
The full destination is displayed.
Select the "OK" function, then
conirm by pressing the dial to ac-
cess the guidance activation func-
tion. Follow the instructions given
by the system.
Entering the number of the road
or junction
Entering the name of the road
Enter the name of the street in the
same way as the name of the town.
When the full name of the street is
displayed, select the
"OK" function
then conirm by pressing the dial.
Entering the town and road using
the alphanumeric keypad
Press the numeric key which corres-
ponds to the letter required until the
letter appears on the screen, then
conirm by pressing the # key after
each letter.
Audio equipment and telematics

64 -
28-02-2005
65
-
28-02-2005

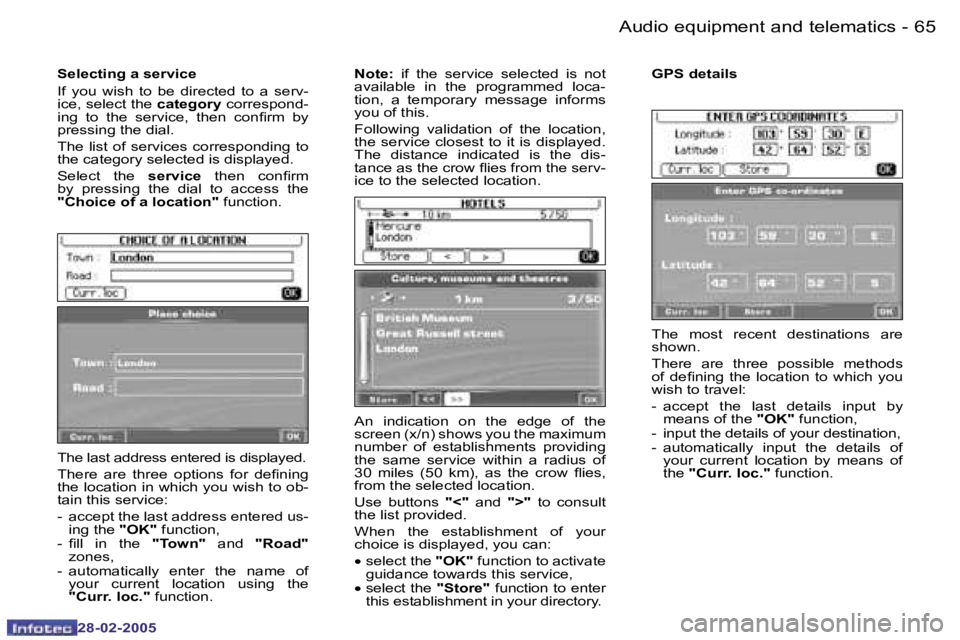

The last address entered is displayed.
There are three options for deining
the location in which you wish to ob-
tain this service:
- accept the last address entered us-
ing the "OK" function,
- ill in the "Town" and "Road"
zones,
- automatically enter the name of your current location using the
"Curr. loc." function.
Selecting a service
If you wish to be directed to a serv-
ice, select the
category correspond-
ing to the service, then conirm by
pressing the dial.
The list of services corresponding to
the category selected is displayed.
Select the service then conirm
by pressing the dial to access the
"Choice of a location" function.
An indication on the edge of the
screen (x/n) shows you the maximum
number of establishments providing
the same service within a radius of
30 miles (50 km), as the crow lies,
from the selected location.
Use buttons "<" and ">" to consult
the list provided.
When the establishment of your
choice is displayed, you can: ฀•฀฀ select the "OK" function to activate
guidance towards this service,
฀•฀฀ select the "Store" function to enter
this establishment in your directory.
Note:
if the service selected is not
available in the programmed loca-
tion, a temporary message informs
you of this.
Following validation of the location,
the service closest to it is displayed.
The distance indicated is the dis-
tance as the crow lies from the serv-
ice to the selected location.
The most recent destinations are
shown.
There are three possible methods
of deining the location to which you
wish to travel:
- accept the last details input by means of the "OK" function,
- input the details of your destination,
- automatically input the details of your current location by means of
the "Curr. loc." function.
GPS details
Audio equipment and telematics

66 -
28-02-2005
67
-
28-02-2005

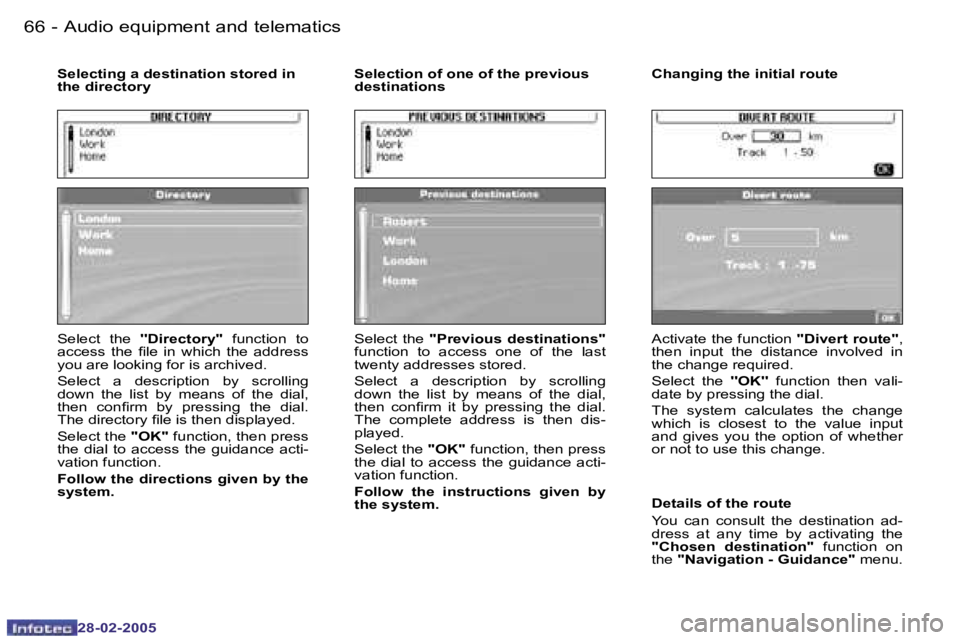

Select the ''Directory'' function to
access the ile in which the address
you are looking for is archived.
Select a description by scrolling
down the list by means of the dial,
then conirm by pressing the dial.
The directory ile is then displayed.
Select the "OK" function, then press
the dial to access the guidance acti-
vation function.
Follow the directions given by the
system.
Selecting a destination stored in
the directory
Select the "Previous destinations"
function to access one of the last
twenty addresses stored.
Select a description by scrolling
down the list by means of the dial,
then conirm it by pressing the dial.
The complete address is then dis-
played.
Select the "OK" function, then press
the dial to access the guidance acti-
vation function.
Follow the instructions given by
the system.
Selection of one of the previous
destinations
Activate the function ''Divert route'',
then input the distance involved in
the change required.
Select the ''OK'' function then vali-
date by pressing the dial.
The system calculates the change
which is closest to the value input
and gives you the option of whether
or not to use this change.
Changing the initial route
Details of the route
You can consult the destination ad-
dress at any time by activating the
"Chosen destination"
function on
the "Navigation - Guidance" menu.
Audio equipment and telematics

66 -
28-02-2005
67
-
28-02-2005

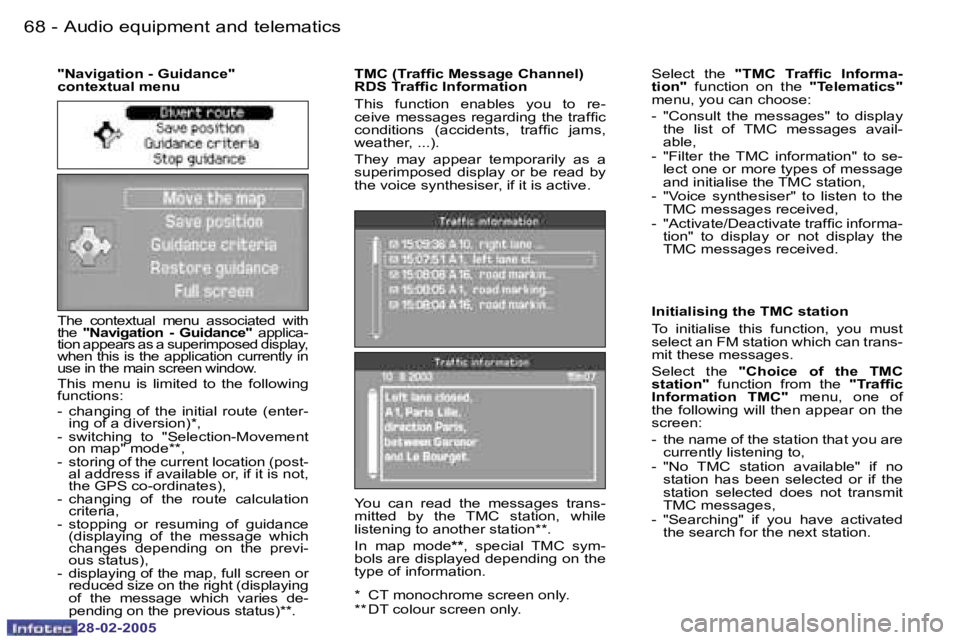

The menu ''Guidance options''
provides access to the following
functions:
- changing of the route calculation criteria,
- voice synthesis adjustment of guid- ance messages,
- description of the information relat- ing to the navigation CD-Rom,
- management of the addresses stored in the directory.
Guidance options
The last criterion used is displayed.
Select a criterion from the list, then
validate by pressing the dial.
When the criterion of your choice
has been selected, select the "OK"
function then conirm by pressing
the dial.
Calculation criteria Management of the directory
This function enables you to rename
an address stored in the directory.
Select the description correspond-
ing to the stored address to be
changed.
Select the "Rename" function, then
conirm by pressing the dial.
Select the "OK" function, then con-
irm by pressing the dial to record the
changes made.
Adjusting the voice synthesiser
Select the type of voice "male" or
"female" , after inserting the conigu-
ration CD-Rom.
Adjust the volume of the voice syn-
thesis by turning the dial, then vali-
date by pressing the dial.
Note: the volume can also be ad-
justed during a message, using the
audio/telephone button or the steer-
ing wheel control. Stopping/Resuming guidance ฀•฀฀
"Stop guidance"
During guidance, select this function
then validate. ฀•฀฀ "Resume guidance"
In the absence of guidance, select
this function then validate to activate
guidance to the last destination pro-
grammed.
Note: after re-starting the engine,
a screen appears enabling you to
resume the guidance activated be-
fore the ignition was switched off.
Audio equipment and telematics

68 -
28-02-2005
69
-
28-02-2005
The contextual menu associated with
the "Navigation - Guidance" applica-
tion appears as a superimposed display,
when this is the application currently in
use in the main screen window.
This menu is limited to the following
functions:
- changing of the initial route (enter- ing of a diversion)*,
- switching to "Selection-Movement on map" mode**,
- storing of the current location (post- al address if available or, if it is not,
the GPS co-ordinates),
- changing of the route calculation criteria,
- stopping or resuming of guidance (displaying of the message which
changes depending on the previ-
ous status),
- displaying of the map, full screen or reduced size on the right (displaying
of the message which varies de-
pending on the previous status)**.
"Navigation - Guidance"
contextual menu
TMC (Trafic Message Channel)
RDS Trafic Information
This function enables you to re-
ceive messages regarding the trafic
conditions (accidents, trafic jams,
weather, ...).
They may appear temporarily as a
superimposed display or be read by
the voice synthesiser, if it is active.Select the
"TMC Trafic Informa-
tion" function on the "Telematics"
menu, you can choose:
- "Consult the messages" to display the list of TMC messages avail-
able,
- "Filter the TMC information" to se- lect one or more types of message
and initialise the TMC station,
- "Voice synthesiser" to listen to the TMC messages received,
- "Activate/Deactivate trafic informa- tion" to display or not display the
TMC messages received.
You can read the messages trans-
mitted by the TMC station, while
listening to another station**.
In map mode **, special TMC sym-
bols are displayed depending on the
type of information.
* CT monochrome screen only.
** DT colour screen only.
Initialising the TMC station
To initialise this function, you must
select an FM station which can trans-
mit these messages.
Select the "Choice of the TMC
station" function from the "Trafic
Information TMC" menu, one of
the following will then appear on the
screen:
- the name of the station that you are currently listening to,
- "No TMC station available" if no station has been selected or if the
station selected does not transmit
TMC messages,
- "Searching" if you have activated the search for the next station.
Audio equipment and telematics
