In all cases, pay attention to the cool-
ant temperature.
Note:
in certain cases of particularly
arduous use (towing the maximum
load in high temperatures on a steep
slope), the engine automatically
limits its power and selects the ap-
propriate automatic gearbox gear in
manual mode. In this case, cutting off
the air conditioning allows the engine
power to be recovered, and therefore
the towing capacity to be increased.
If the coolant temperature warning
light comes on, stop the vehicle and
switch off the engine as soon as pos-
sible.
Tyres: check the tyre pressures of
the towing vehicle (label on the cen-
tral door pillar on the driver's side)
and of the trailer towed, observing
the recommended pressure.
Brakes: towing increases the brak-
ing distance. Drive at a moderate
speed, change down early and brake
gradually.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.
Lighting
Manual adjustment
Adjust your headlamps so as not to
dazzle other road users. Check the
electrical signalling of the trailer.
TOWING A TRAILER,
CARAVAN, BOAT, ETC...
Only use original PEUGEOT tow-
bars which have been tested and
approved from the design stage of
your vehicle.
The towbar must be itted by a
PEUGEOT dealer.
Driving advice
Distribution of loads: distribute the
load in the trailer so that the heavi-
est loads are as close as possible to
the axle and the nose weight is close
to the maximum authorised without,
however, exceeding it.
Cooling: towing a trailer on a slope
increases the coolant temperature.
As the fan is electrically controlled,
its cooling capacity is not dependent
on the engine speed.
Practical information

172 -
14-02-2005
When towing with the engine
switched off, there is no brak-
ing or steering assistance.
TOWING YOUR VEHICLE
Without lifting
(4 wheels on the ground)
You must always use a tow bar.

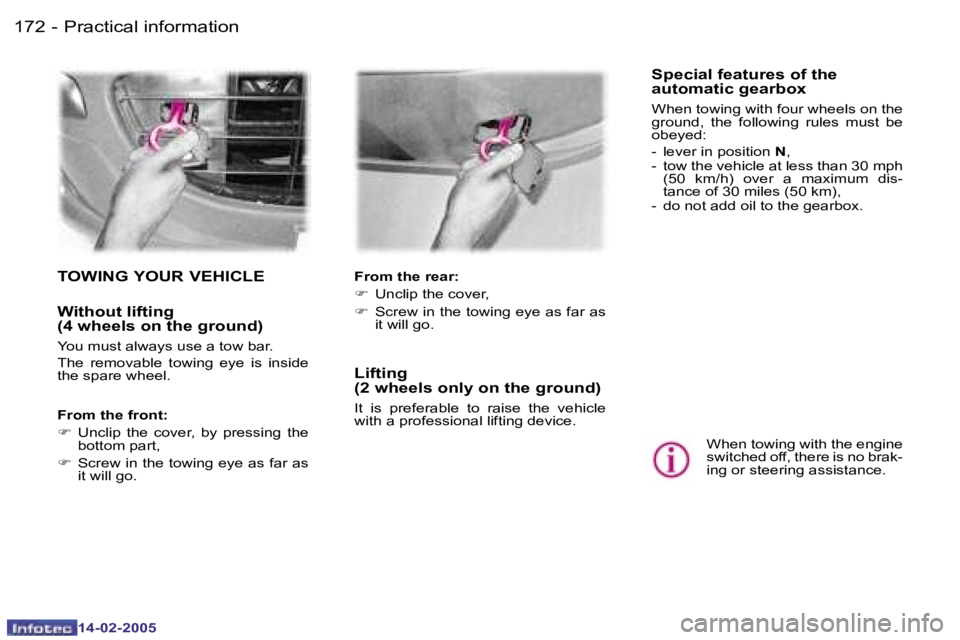

The removable towing eye is inside
the spare wheel.
From the front:
F Unclip the cover, by pressing the
bottom part,
F Screw in the towing eye as far as
it will go. From the rear:
F
Unclip the cover,
F Screw in the towing eye as far as
it will go.
Special features of the
automatic gearbox
When towing with four wheels on the
ground, the following rules must be
obeyed:
- lever in position N,
- tow the vehicle at less than 30 mph (50 km/h) over a maximum dis-
tance of 30 miles (50 km),
- do not add oil to the gearbox.
Lifting
(2 wheels only on the ground)
It is preferable to raise the vehicle
with a professional lifting device.
Practical information

173
-
14-02-2005
CHANGING A FUSE
The fuse boxes are placed in the
lower part of the fascia (passenger
side in the glove box), in the engine
compartment (left-hand side) and in
the left boot trim.

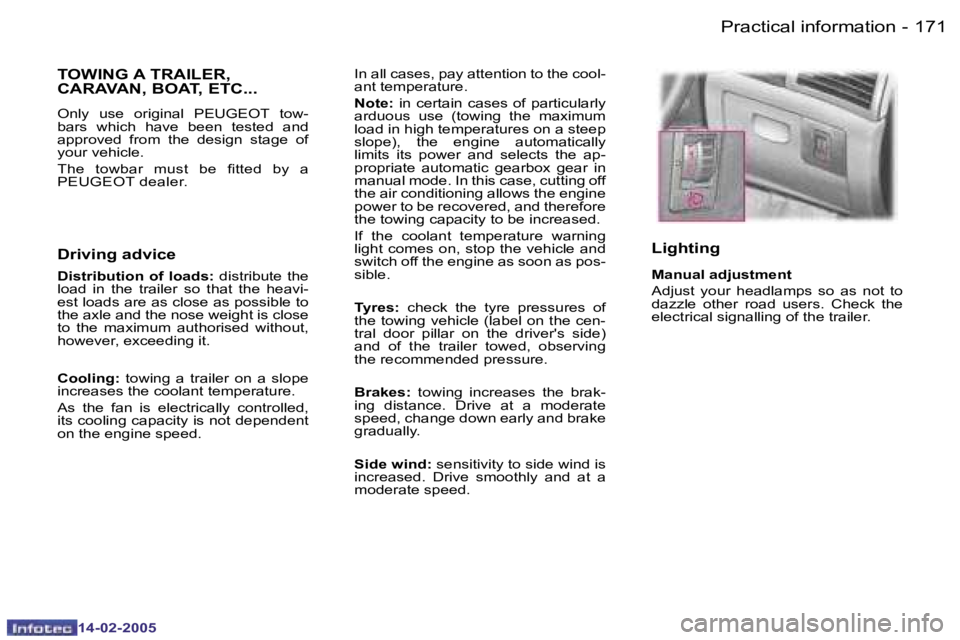

Fascia fuses

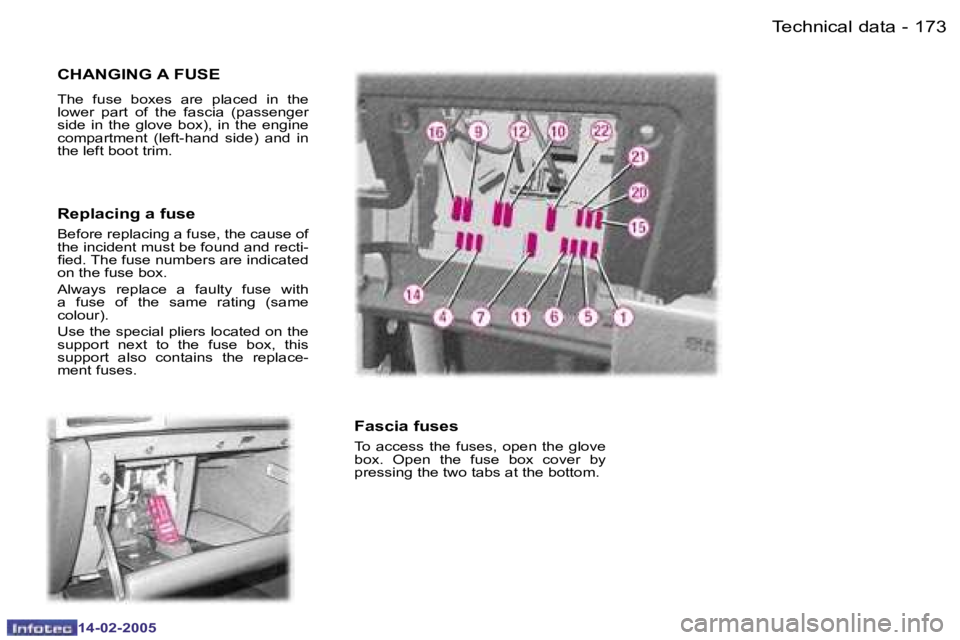

To access the fuses, open the glove
box. Open the fuse box cover by
pressing the two tabs at the bottom.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
ied. The fuse numbers are indicated
on the fuse box.
Always replace a faulty fuse with
a fuse of the same rating (same
colour).
Use the special pliers located on the
support next to the fuse box, this
support also contains the replace-
ment fuses.
Technical data

176 -
14-02-2005
177
-
14-02-2005
Boot fuses
To access the fuses located in the boot, open the storage comp
artment flap
(left-hand side) by turning the two screws to the right and remo ve the panel.
The electrical system of your
vehicle is designed to oper-
ate with standard or optional
equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer.
PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying the mal-
functions resulting from the installa-
tion of accessories not supplied and
not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular where
the equipment in question consumes
more than 10 milliamperes.
The maxi-fuses provide additional
protection for the electrical systems.
All work must be carried out by a
PEUGEOT dealer.

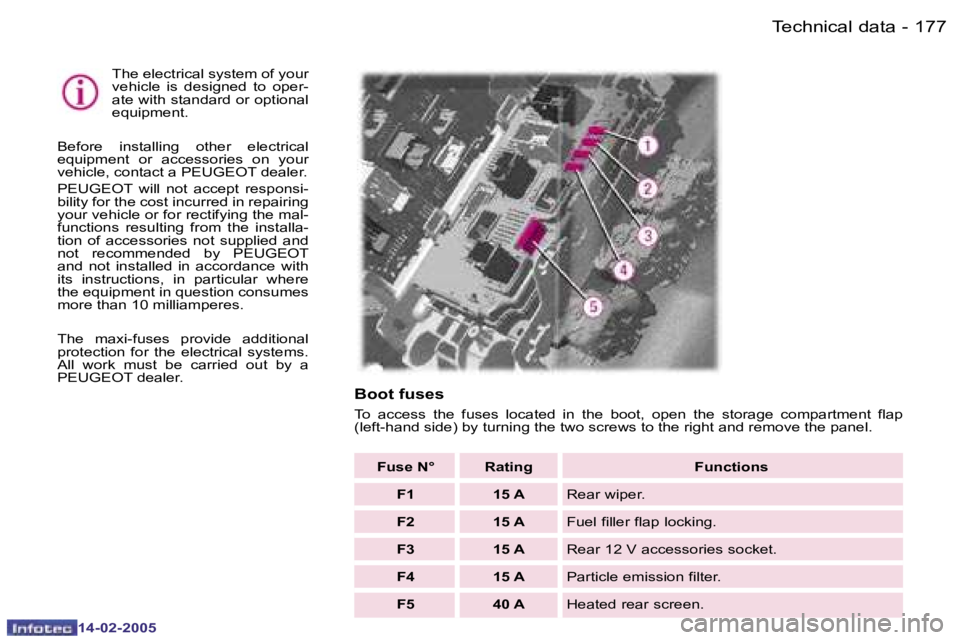

Fuse N° Rating FunctionsF1 15 A Rear wiper.
F2 15 A Fuel filler flap locking.
F3 15 A Rear 12 V accessories socket.
F4 15 A Particle emission filter.
F5 40 A Heated rear screen.
Technical data

176 -
14-02-2005
177
-
14-02-2005
Engine compartment fuses
To access the fuses located in the
engine compartment (next to the bat-
tery), remove the battery cover and
unclip the fuse box cover.
Close the fuse box cover carefully
and reit the battery cover when you
have inished. Fuse N° Rating Functions

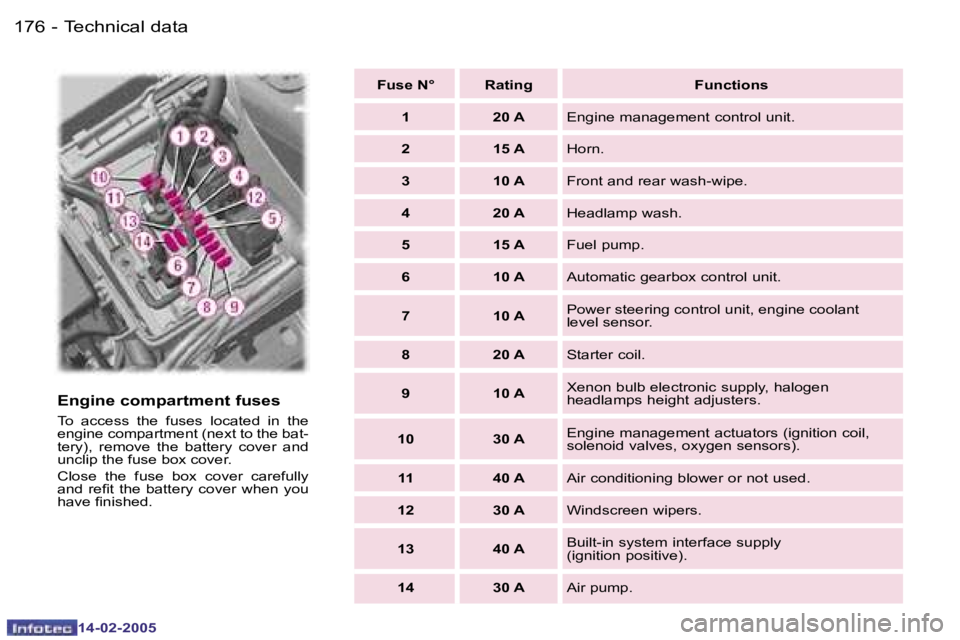

1 20 A Engine management control unit.
2 15 A Horn.
3 10 A Front and rear wash-wipe.
4 20 A Headlamp wash.
5 15 A Fuel pump.
6 10 A Automatic gearbox control unit.
7 10 A Power steering control unit, engine coolant
level sensor.
8 20 A Starter coil.
9 10 A Xenon bulb electronic supply, halogen
headlamps height adjusters.
10 30 A Engine management actuators (ignition coil,
solenoid valves, oxygen sensors).
11 40 A Air conditioning blower or not used.
12 30 A Windscreen wipers.
13 40 A Built-in system interface supply
(ignition positive).
14 30 A Air pump.
Technical data

173
-
14-02-2005
CHANGING A FUSE
The fuse boxes are placed in the
lower part of the fascia (passenger
side in the glove box), in the engine
compartment (left-hand side) and in
the left boot trim.
Fascia fuses
To access the fuses, open the glove
box. Open the fuse box cover by
pressing the two tabs at the bottom.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
ied. The fuse numbers are indicated
on the fuse box.
Always replace a faulty fuse with
a fuse of the same rating (same
colour).
Use the special pliers located on the
support next to the fuse box, this
support also contains the replace-
ment fuses.
Technical data

174 -
14-02-2005
175
-
14-02-2005
Fuse N° Rating
Functions

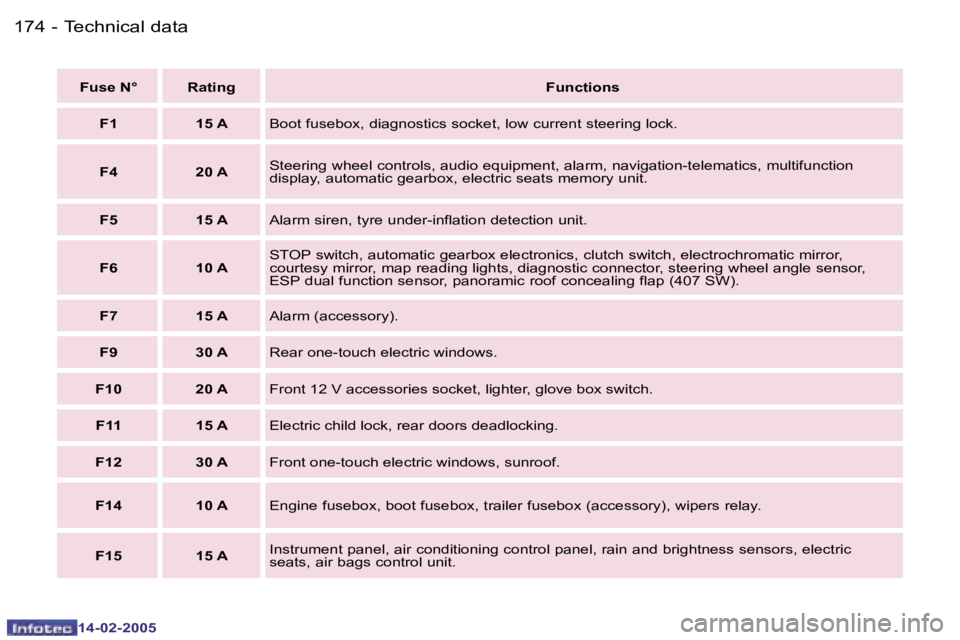

F1 15 A Boot fusebox, diagnostics socket, low current steering lock.
F4 20 A Steering wheel controls, audio equipment, alarm, navigation-t
elematics, multifunction
display, automatic gearbox, electric seats memory unit.
F5 15 A Alarm siren, tyre under-inflation detection unit.
F6 10 A STOP switch, automatic gearbox electronics, clutch switch, electrochro
matic mirror,
courtesy mirror, map reading lights, diagnostic connector, steerin g wheel angle sensor,
ESP dual function sensor, panoramic roof concealing flap (407 SW ).
F7 15 A Alarm (accessory).
F9 30 A Rear one-touch electric windows.
F10 20 A Front 12 V accessories socket, lighter, glove box switch.
F11 15 A Electric child lock, rear doors deadlocking.
F12 30 A Front one-touch electric windows, sunroof.
F14 10 A Engine fusebox, boot fusebox, trailer fusebox (accessory), wipers relay .
F15 15 A Instrument panel, air conditioning control panel, rain and
brightness sensors, electric
seats, air bags control unit.
Technical data

174 -
14-02-2005
175
-
14-02-2005
Fuse N° Rating
Functions
G36 30 A Audio Hi-Fi assembly.
G37 15 A Six-speed automatic gearbox supply.
G38 30 A Right and left heated seats.
G39 30 A Right electric seat.
G40 30 A Left electric seat.
Fuse N° Rating
Functions

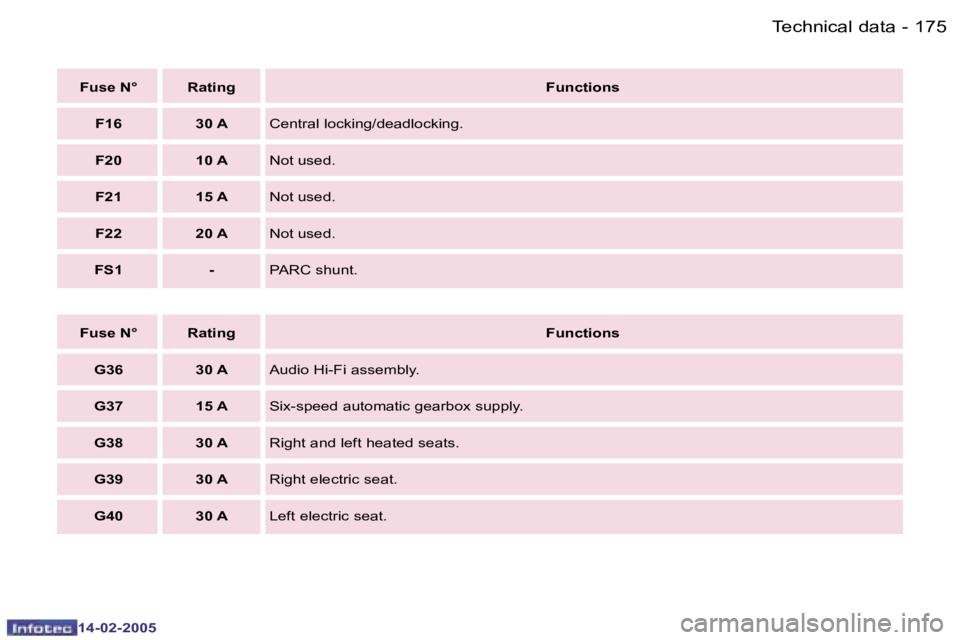

F16 30 A Central locking/deadlocking.
F20 10 A Not used.
F21 15 A Not used.
F22 20 A Not used.
FS1 - PARC shunt.
Technical data
