2005 Peugeot 407 Owner's Manual

78 -
14-02-2005
79
-
14-02-2005
Multifunction display
1 -
Indicates the reception of an
SMS* or voice message.
2 - The format of the telephone
symbol indicates:
- not crossed out: telephone connected,
- crossed out: telephone off or not connected in "hands-free"
mode" or access conditions not
met (incorrect PIN code, insuf-
icient network signal level).
3 - Indicates the level of the net-
work signal (up to 4 levels).
4 - Indicates that the "mute" is on.
In addition to the general information,
the multifunction display enables you
to display, depending on the tele-
phone model:
- the list of matched telephones,
- the directories,
- the incoming and outgoing calls,
- the data relating to the communi-
cation in progress (number, name
of the caller or person called, time
counter),
- the second call,
- the name of the operator.
The services offered by the hands-
free kit depend on the network, the
SIM card, the compatibility of the
Bluetooth equipment used and the
content formats supported.
Check which services are available
to you by looking in your telephone's
manual and asking your operator.
A list of mobile telephones which
offer the best range of services is
available from our network. Contact
a PEUGEOT dealer.
Access via the general menu

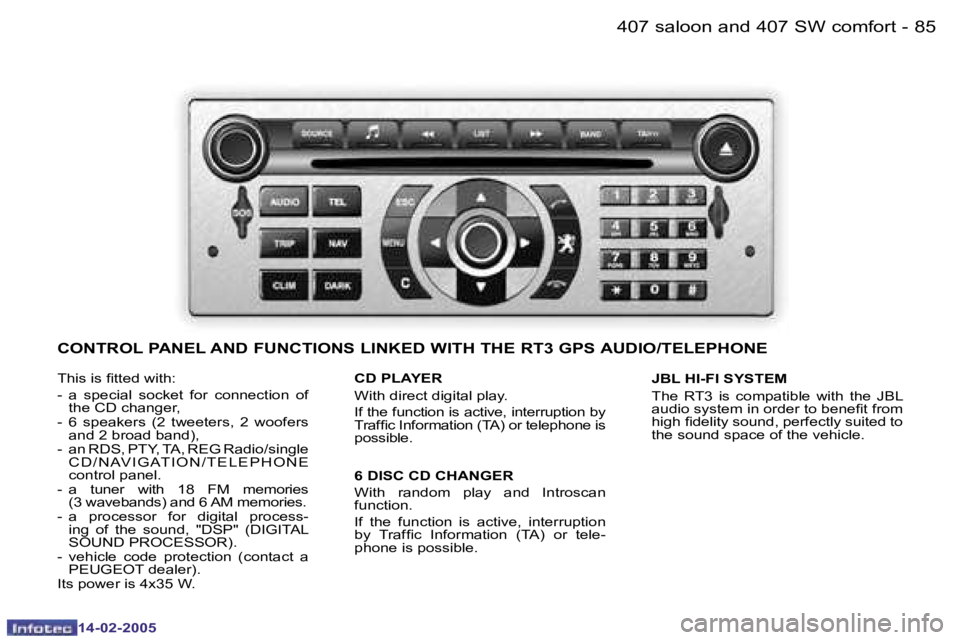

Press the "MENU" button to gain ac-
cess to the general menu .
Select the Telephone icon to open
the main "Telephone" menu, you
can choose from:
- consultation of the various directo- ries,
- coniguration of the Bluetooth sys- tem,
- management of a communication.
* According to telephone model.
407 saloon and 407 SW comfort

80 -
14-02-2005
81
-
14-02-2005
Matching the Bluetooth
telephone with the hands-free
kit
When a telephone is used with the
hands-free kit for the irst time, you
must match your telephone with the
hands-free kit.
You can match up to 4 telephones
with the hands-free kit.
This operation is only possible if the
vehicle is stationary with the igni-
tion on and there are no telephones
connected to the hands-free kit.
- Activate the Bluetooth function on
your telephone.
- Search for the Bluetooth accesso- ries present from your telephone.
- After approximately 30 seconds, select the accessory which appears
with the name of your vehicle.
A conirmation superimposed display
appears on the multifunction display.
- Accept the matching by selecting the "YES" tab using the navigator and
conirm by pressing the navigator.
- Select one of the four indexes on the "Consultation of the match-
es" list and conirm by pressing the
navigator. - Enter the authentication code
"1234" on the telephone.
On completion of this procedure, a
superimposed display informs you of
the success or failure of the match.
Once the telephone is matched, it
appears on the list of recognised
telephones "Selection of the mobile
to be connected" .
Depending on your telephone, the
connection will be made automati-
cally, otherwise, connect it manually
by selecting it from the list.
Use with several Bluetooth
telephones
Each matched telephone is associ-
ated with an index (1 to 4) on the list
of matched telephones.
When the multifunction display is
switched on, the hands-free kit auto-
matically tries to connect to the last
telephone used, if it fails after 10 sec-
onds, to the telephone with index (1),
if it fails after 10 seconds, to the tele-
phone with index (2) and so on...
During operation (not in communi-
cation), it is possible to access the
"Selection of the mobile to be con-
nected" menu in order to:
- connect another telephone in "hands-free" mode, other than the
active telephone.
- disconnect the active telephone by selecting it.

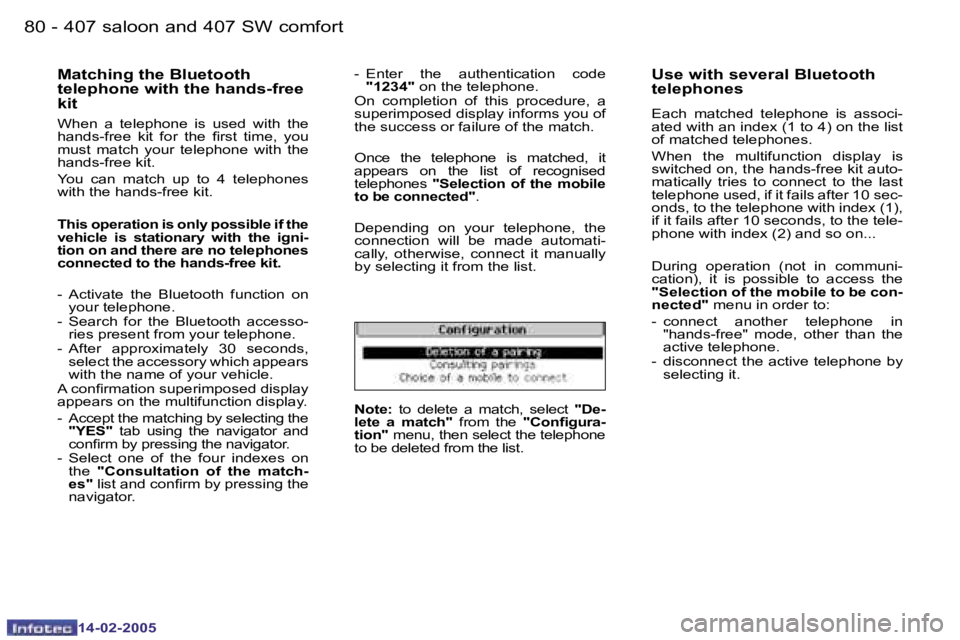

Note: to delete a match, select "De-
lete a match" from the "Conigura-
tion" menu, then select the telephone
to be deleted from the list.
407 saloon and 407 SW comfort

80 -
14-02-2005
81
-
14-02-2005
Using the telephone
directories

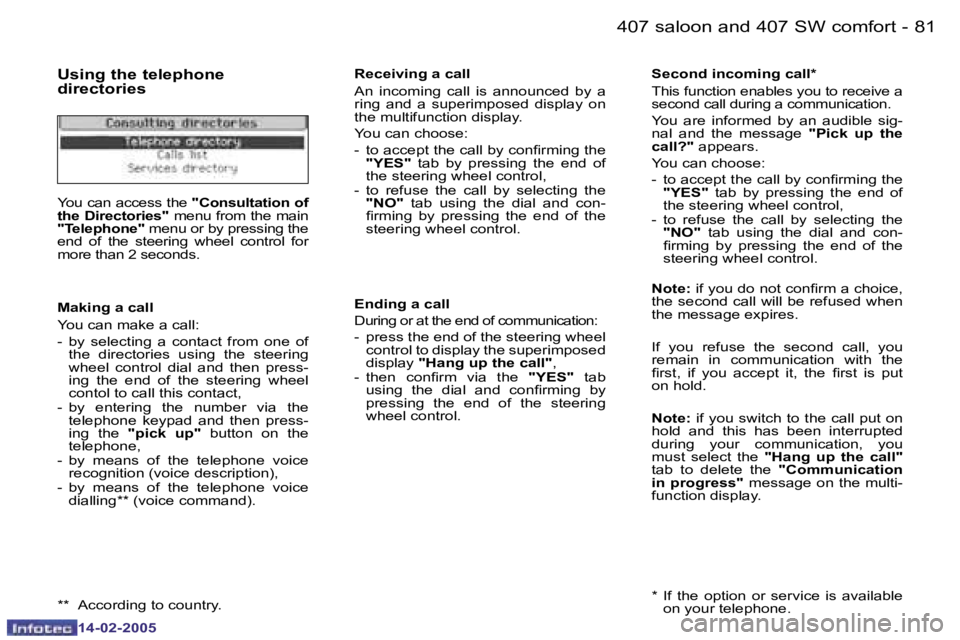

You can access the
"Consultation of
the Directories" menu from the main
"Telephone" menu or by pressing the

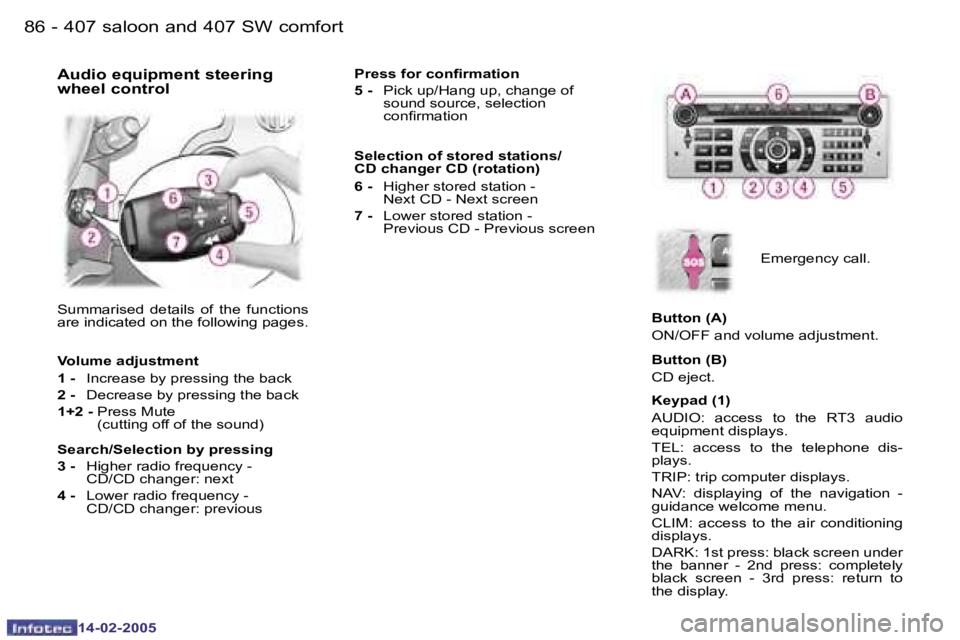

end of the steering wheel control for
more than 2 seconds.
** According to country. Receiving a call
An incoming call is announced by a
ring and a superimposed display on
the multifunction display.
You can choose:
- to accept the call by conirming the
"YES" tab by pressing the end of
the steering wheel control,
- to refuse the call by selecting the "NO" tab using the dial and con-
irming by pressing the end of the
steering wheel control. Second incoming call*
This function enables you to receive a
second call during a communication.
You are informed by an audible sig-
nal and the message
"Pick up the
call?" appears.
You can choose:
- to accept the call by conirming the "YES" tab by pressing the end of
the steering wheel control,
- to refuse the call by selecting the "NO" tab using the dial and con-
irming by pressing the end of the
steering wheel control.
Note: if you do not conirm a choice,
the second call will be refused when
the message expires.
If you refuse the second call, you
remain in communication with the
irst, if you accept it, the irst is put
on hold.
Note: if you switch to the call put on
hold and this has been interrupted
during your communication, you
must select the "Hang up the call"
tab to delete the "Communication
in progress" message on the multi-
function display.
* If the option or service is available on your telephone.
Making a call
You can make a call:
- by selecting a contact from one of
the directories using the steering
wheel control dial and then press-
ing the end of the steering wheel
contol to call this contact,
- by entering the number via the telephone keypad and then press-
ing the "pick up" button on the
telephone,
- by means of the telephone voice recognition (voice description),
- by means of the telephone voice dialling** (voice command). Ending a call
During or at the end of communication:
- press the end of the steering wheel
control to display the superimposed
display "Hang up the call" ,
- then conirm via the "YES" tab
using the dial and conirming by
pressing the end of the steering
wheel control.
407 saloon and 407 SW comfort

82 -
14-02-2005
83
-
14-02-2005
Switching between two calls
During communication, press the
end of the steering wheel control for
more than 2 seconds to display the
contextual menu:
-
"Switch the call" , when selected
then conirmed by pressing the end
of the steering wheel control, ena-
bles you to switch from one contact
to the other,
- "Hang up the call" enables you
to hang up the communication in
progress and resume the call with
the other contact. Secret mode
During communication, press the end
of the steering wheel control for more
than 2 seconds to display the contex-
tual menu:
-
"Activate secret mode" , when
selected then conirmed by press-
ing the end of the steering wheel
control, permits cutting off of the
courtesy light microphone.
During communication, press the
end of the steering wheel control for
more than 2 seconds to display the
contextual menu:
- "Deactivate secret mode" , when
selected then conirmed by press-
ing the end of the steering wheel
control, permits reactivation of the
courtesy light microphone. Telephone voice recognition
First of all, a voice description must
be associated with the chosen con-
tact and recorded in your telephone
while disconnected from the hands-
free kit (refer to your telephone's
user manual).
Continuity of service
If you enter your vehicle with your
mobile telephone in communication,
you can continue the call using the
hands-free kit after a few seconds.
To do this, you must "trigger" the
system:
- by switching on the ignition,
or
- by switching on the audio equip- ment.
Note: if you switch off the ignition
while a communication is in progress,
the system remains in "hands-free"
mode until the call is ended or until
the telephone is disconnected from
the system. Handset mode
During a private conversation or
when leaving your vehicle, it is possi-
ble, from your telephone, to transfer
the audio in order to continue the
conversation using your telephone's
handset directly.
Conversely, you can, from your tele-
phone, transfer the audio to return to
"hands-free" mode.
To use this function, please refer to
your telephone's user manual.
To activate the voice recognition,
press the end of the lights stalk then
say the previously recorded voice
description.
Notes:
Your telephone must be displaying
the welcome screen.
An audible signal, emitted by the
telephone and ampliied by the
speakers, indicates that you must
say the voice description.
407 saloon and 407 SW comfort

82 -
14-02-2005
83
-
14-02-2005
Telephone voice dialling**
To activate the voice dialling, press
the end of the lights stalk for more
than two seconds, the system asks
you to say the number to be dialled
digit by digit.
After a double conirmation audible
signal and within ive seconds, you
must say the digits one by one or in
groups of digits
("0, 1, 2, 3, 4, 5, 6, 7,
8, 9, #, *, +") .
Then wait for the double conirma-
tion audible signal and the repetition
of the digits by the system.
Then say the command "Call" to es-
tablish the communication.
If you make a mistake when say-
ing the number, say the command
"Change" once to correct the last
digit; then a second time to delete
the entire number.Using the calls log
In addition to your telephone's di-
rectories, you have a calls log which
enables you to:
- access the last ten incoming calls,
- access the last ten outgoing calls,
- access the last ten missed calls.
All of these calls are classiied in
chronological order.
Warning concerning the
"Telephone directories"
function
The "Consultation of the Directo-
ries" function permits consultation of
the content of these directories and
the making of a call, but in no case
does it permit any changes (addition,
deletion, ...).
The mobile telephone directories are
loaded into the system's memory
(1 000 numbers maximum) each time
the telephone is connected, after a
few seconds.
The mobile telephone directories
which control the "V-card" type iles
will also be transferred.
Note: if the telephone contains more
than 1 000 directory iles, only the
irst 1 000 iles will be transferred to
the system (in alphabetical order).
It will be possible to consult the re-
maining iles directly on the telephone.
If the "V-card" iles contain more than
4 levels of numbers, only the irst
4 levels will be transferred to the sys-
tem (in alphabetical order).
SMS text messages
The reception of SMS text messages
is indicated by a symbol*, represented
by an envelope on the multifunction
display.
The entering, sending or reading of
SMS text messages must be carried
out from the mobile telephone.
* According to telephone model.
** According to country.
Using the assistance services
In addition to your telephone's direc-
tories, you have an assistance serv-
ices directory which enables you to:
- call the customer contact centre:
"PEUGEOT service" ,
- call the breakdown service: "PEUGEOT Assistance" ,
- call 112: "Emergency call" .
Note: the emergency call can only
be made using the hands-free kit
if the access conditions are met
(PIN code, suficient network signal
level).
407 saloon and 407 SW comfort

84 -
14-02-2005
85
-
14-02-2005

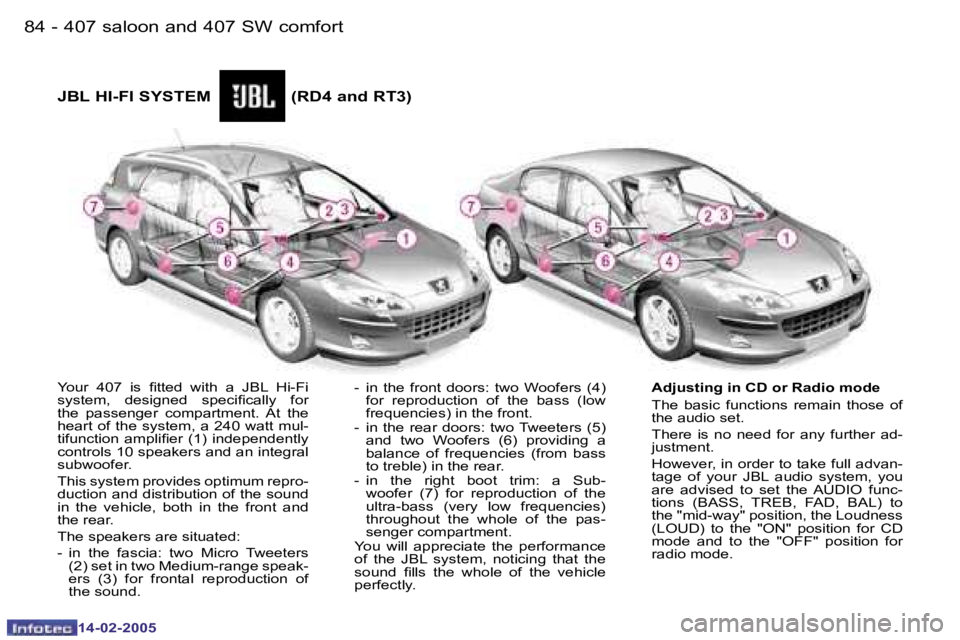

Your 407 is itted with a JBL Hi-Fi
system, designed speciically for
the passenger compartment. At the
heart of the system, a 240 watt mul-
tifunction ampliier (1) independently
controls 10 speakers and an integral
subwoofer.
This system provides optimum repro-
duction and distribution of the sound
in the vehicle, both in the front and
the rear.
The speakers are situated:
- in the fascia: two Micro Tweeters
(2) set in two Medium-range speak-
ers (3) for frontal reproduction of
the sound. - in the front doors: two Woofers (4)

for reproduction of the bass (low
frequencies) in the front.
- in the rear doors: two Tweeters (5) and two Woofers (6) providing a
balance of frequencies (from bass
to treble) in the rear.
- in the right boot trim: a Sub- woofer (7) for reproduction of the
ultra-bass (very low frequencies)
throughout the whole of the pas-
senger compartment.
You will appreciate the performance
of the JBL system, noticing that the
sound ills the whole of the vehicle
perfectly. Adjusting in CD or Radio mode
The basic functions remain those of
the audio set.
There is no need for any further ad-
justment.
However, in order to take full advan-
tage of your JBL audio system, you
are advised to set the AUDIO func-
tions (BASS, TREB, FAD, BAL) to
the "mid-way" position, the Loudness
(LOUD) to the "ON" position for CD
mode and to the "OFF" position for
radio mode.
JBL HI-FI SYSTEM (RD4 and RT3)
407 saloon and 407 SW comfort

84 -
14-02-2005
85
-
14-02-2005
This is itted with:
- a special socket for connection of
the CD changer,
- 6 speakers (2 tweeters, 2 woofers and 2 broad band),
- an RDS, PTY, TA, REG Radio/single C D / N AV I G AT I O N / T E L E P H O N E
control panel.
- a tuner with 18 FM memories (3 wavebands) and 6 AM memories.
- a processor for digital process- ing of the sound, "DSP" (DIGITAL
SOUND PROCESSOR).
- vehicle code protection (contact a PEUGEOT dealer).
Its power is 4x35 W. CD PLAYER
With direct digital play.
If the function is active, interruption by
Trafic Information (TA) or telephone is
possible.
JBL HI-FI SYSTEM
The RT3 is compatible with the JBL
audio system in order to beneit from
high idelity sound, perfectly suited to
the sound space of the vehicle.
CONTROL PANEL AND FUNCTIONS LINKED WITH THE RT3 GPS AUDIO
/TELEPHONE
6 DISC CD CHANGER
With random play and Introscan
function.
If the function is active, interruption
by Trafic Information (TA) or tele-
phone is possible.
407 saloon and 407 SW comfort

86 -
14-02-2005
87
-
14-02-2005
Summarised details of the functions
are indicated on the following pages. Press for conirmation
5
- Pick up/Hang up, change of
sound source, selection
conirmation
Button (A)
ON/OFF and volume adjustment.
Button (B)
CD eject.
Keypad (1)
AUDIO: access to the RT3 audio
equipment displays.
TEL: access to the telephone dis-
plays.
TRIP: trip computer displays.
NAV: displaying of the navigation -
guidance welcome menu.
CLIM: access to the air conditioning
displays.
DARK: 1st press: black screen under
the banner - 2nd press: completely
black screen - 3rd press: return to
the display.Emergency call.
Audio equipment steering
wheel control
Volume adjustment
1
- Increase by pressing the back
2 - Decrease by pressing the back
1+2 - Press Mute
(cutting off of the sound)
Search/Selection by pressing
3 - Higher radio frequency -
CD/CD changer: next
4 - Lower radio frequency -
CD/CD changer: previous Selection of stored stations/
CD changer CD (rotation)
6
- Higher stored station -
Next CD - Next screen
7 - Lower stored station -
Previous CD - Previous screen
407 saloon and 407 SW comfort
