2005 Peugeot 407 Owner's Manual

86 -
14-02-2005
87
-
14-02-2005
Flap for SIM card (not
supplied).
Keypad (2)
ESC (Escape): cancellation of the
operation in progress.
MENU: displaying of the general
menu.
C: deletion of the last character
entered or of the entire line.
Keypad (6) (Audio controls)
SOURCE: switching of the source
between the radio, CD and CD
changer. ¯
: access to the musical ambience,
bass, treble, loudness, rear/front bal-
ance, left/right balance and automat-
ic volume correction settings. 7 : accelerated backwards play.
LIST: displaying of the list of stations
received, of the tracks of the CD. 8 : accelerated forwards play.
BAND: Selection of the frequency
wavebands FM1, FM2, FMast (auto-
store function) and AM.
TA: TA function on/off - trafic infor-
mation priority.
PTY: access to the PTY function
(search by type of program if the
coding is activated by the broadcast-
ing stations).
Navigator
Located on the RT3 GPS audio/
telephone control keypad, this ena-
bles you to select and conirm the
functions, commands and param-
eters displayed.
It incorporates:
- the up 5, down 6, left 7, right 8
movement arrows which enable you
to move the cursor on the screen,
- the central button which enables you to move the cursor on the
screen and conirm.
Note: all selections can be cancelled
prior to conirmation by pressing the
external "ESC" (escape) button.
Details of each of the keypad controls
are indicated on the following pages.
Keypad (3)
The navigator.
Keypad (4)
TEL (green): Pick up an incoming
call.
LION: access to the PEUGEOT serv-
ices menu.
TEL (red): Hang up.
Keypad (5) (numeric keypad)
Selection of the stored radio station
(18 FM memories - 3 wavebands),
(6 AM memories).
Selection of the station stored, or of
the CD in relation to the position in
the CD changer.
Telephone keypad - alphanumeric
inputting keypad.
407 saloon and 407 SW comfort

88 -
14-02-2005
89
-
14-02-2005
On/off
Adjusting the volume
Turn the dial clockwise to increase
the volume of the audio/telephone or
anti-clockwise to decrease it.
The volume setting is speciic to each
source. It is possible to have different
settings for radio, CD or CD changer,
telephone or voice synthesiser.
Selecting "None" permits
access to all of the settings
deined below.
Adjusting the Bass
When "Bass" is displayed, vary the
setting using the navigator. - "-9" for minimum bass setting
- mid-way for normal bass setting
- "+9" for maximum bass setting
Musical ambience
This function permits the selection of
a musical ambience: "None", "Clas-
sical", "Jazz-Blues", "Pop-Rock",
"Techno" or "Vocal".
Select the musical ambience using
the navigator.
Selecting a musical ambience sets
the bass and treble automatically.
Press the button
to switch the audio
function of the RT3
GPS audio/telephone
on or off.
The RT3 GPS audio/
telephone can operate for approxi-
mately 30 minutes without the ve-
hicle's ignition being switched on,
under normal conditions of use and
maintenance of the battery.
After the ignition has been switched
off, the audio/telephone can be
switched on again by pressing the
"TEL" (green) button or by inserting
a CD in the player. Audio settings
Press button ¯ sev-
eral times to access
the Musical Ambi-
ence, Bass, Treble,
Loudness, Rear -
Front Balance, Left -
Right Balance and
Automatic Volume Adjustment set-
ting windows.
Exit from audio mode is by pressing
the "ESC" button or is automatic after
a few seconds without any action.
Bass, treble and loudness settings
are speciic to each source. It is pos-
sible to have different settings for
radio, CD or CD changer.
Anti-theft system
The RT3 GPS audio/telephone is
coded in such a way that it can op-
erate only on your vehicle. If it is to
be removed and itted to another
vehicle, check the feasibility and the
coniguration of the system with your
PEUGEOT dealer.
The anti-theft system is automatic
and requires no action on your part.
407 saloon and 407 SW comfort

88 -
14-02-2005
89
-
14-02-2005
Radio
Notes on radio reception
The quality of the radio reception is
subject to external phenomena, due
to the nature of the signals and the
way in which they are transmitted.
Both MW/LW and FM are subject to
various forms of interference. This is
not a relection on the quality of the
equipment.
On MW/LW interference may be
noticed when passing under high
voltage power lines or bridges, or in
tunnels.
On FM, interference may be the re-
sult of increasing distance from the
transmitter, delection of the signals
by obstacles (mountains, hills, build-
ings, etc.) or of being in an area which
is not covered by a transmitter.
Adjusting the Treble
When "Treble" is displayed, vary the
setting using the navigator. -
"-9" for minimum treble setting
- mid-way for normal setting
- "+9" for maximum treble setting Automatic station search
Briely press button 7
or 8 to search for the
station immediately
below or above.
The search stops at
the irst station found.
If the TA trafic infor-
mation program is se-
lected, only the most
powerful stations
broadcasting this type
of program are selected.
Searching for a station occurs irst in
"LO" sensitivity (selection of the most
powerful transmitters) during scan-
ning of the waveband, then in "DX"
sensitivity (selection of the weaker
and more distant transmitters).
To make a direct search in "DX" sen-
sitivity, briely press button 7 or 8
twice.
Selecting radio mode Press the "SOURCE"
button several times.
Selecting a waveband Briely press the
"BAND" button sev-
eral times to select the
FM1, FM2 , FMast and
AM wavebands. Manual station search
Briely press button 5
or 6 to decrease or
increase the frequency
displayed.
By continuing to press
the button in the direc-
tion selected, you will obtain continu-
ous scrolling of the frequency.
Scrolling stops at the irst station found
as soon as the button is released.
Loudness
Switch the function on or off using
the navigator.
The loudness automatically empha-
sises bass and treble tones when the
volume is low.
Setting the left/right sound
distribution
When "Left - Right Balance" is dis-
played, vary the setting using the
navigator.
Setting the rear/front sound
distribution
When "Rear - Front Balance" is dis-
played, vary the setting using the
navigator.
Automatic volume adjustment
This function allows the volume to
be adjusted automatically depending
on the level of noise produced by the
speed of the vehicle.
Switch the function on or off using
the navigator.
407 saloon and 407 SW comfort

88 -
14-02-2005
89
-
14-02-2005
Radio
Notes on radio reception
The quality of the radio reception is
subject to external phenomena, due
to the nature of the signals and the
way in which they are transmitted.
Both MW/LW and FM are subject to
various forms of interference. This is
not a relection on the quality of the
equipment.
On MW/LW interference may be
noticed when passing under high
voltage power lines or bridges, or in
tunnels.
On FM, interference may be the re-
sult of increasing distance from the
transmitter, delection of the signals
by obstacles (mountains, hills, build-
ings, etc.) or of being in an area which
is not covered by a transmitter.
Adjusting the Treble
When "Treble" is displayed, vary the
setting using the navigator. -
"-9" for minimum treble setting
- mid-way for normal setting
- "+9" for maximum treble setting Automatic station search
Briely press button 7
or 8 to search for the
station immediately
below or above.
The search stops at
the irst station found.
If the TA trafic infor-
mation program is se-
lected, only the most
powerful stations
broadcasting this type
of program are selected.
Searching for a station occurs irst in
"LO" sensitivity (selection of the most
powerful transmitters) during scan-
ning of the waveband, then in "DX"
sensitivity (selection of the weaker
and more distant transmitters).
To make a direct search in "DX" sen-
sitivity, briely press button 7 or 8
twice.
Selecting radio mode Press the "SOURCE"
button several times.
Selecting a waveband Briely press the
"BAND" button sev-
eral times to select the
FM1, FM2 , FMast and
AM wavebands. Manual station search
Briely press button 5
or 6 to decrease or
increase the frequency
displayed.
By continuing to press
the button in the direc-
tion selected, you will obtain continu-
ous scrolling of the frequency.
Scrolling stops at the irst station found
as soon as the button is released.
Loudness
Switch the function on or off using
the navigator.
The loudness automatically empha-
sises bass and treble tones when the
volume is low.
Setting the left/right sound
distribution
When "Left - Right Balance" is dis-
played, vary the setting using the
navigator.
Setting the rear/front sound
distribution
When "Rear - Front Balance" is dis-
played, vary the setting using the
navigator.
Automatic volume adjustment
This function allows the volume to
be adjusted automatically depending
on the level of noise produced by the
speed of the vehicle.
Switch the function on or off using
the navigator.
407 saloon and 407 SW comfort

90 -
14-02-2005
91
-
14-02-2005
Manual station storing
Select the station required.
Press one of the buttons "1" to "6"
for
more than two seconds.
The sound is cut off and then returns,
conirming that the station has been
stored in the memory.
Automatic storing of FM stations
in the memory (Autostore)
Press the "BAND" but-
ton for more than two
seconds.
Your audio/telephone
automatically stores
the 6 stations with the strongest sig-
nal in FM. These stations are stored
in the FMast waveband.
If it is not possible to ind 6 stations,
the remaining memories are empty.
Displaying the stations available
You can display the list
of stations received lo-
cally by pressing the
"LIST" button. This
list can include up to
30 stations.
To update this list during your journey,
press the "LIST" button for more than
two seconds.
Note: stations which permit the
broadcasting of trafic information
are indicated by the display TA. Trafic information priority (TA)
Press the "TA/PTY"
button to switch the
function on or off.
The multifunction dis-
play will show:
- TA if the function is active,
- TA crossed out if the function is ac- tive but not available.
Any trafic information lash will be
given priority, whatever source you
are listening to (radio, CD or CD
changer).
If you wish to interrupt the broad-
casting of a message, press the
"SOURCE" button to return to the
source which was in use prior to the
interruption.
The trafic information volume is
independent of the normal audio/
telephone volume. You can set it
using the volume dial or the steer-
ing wheel control. The setting will
be stored and will be used when the
next messages are broadcast. Search by type of program (PTY)

This is a search by type of program, if
the coding is activated by the broad-
casting stations.
It allows you to listen to stations
broadcasting a speciic type of pro-
gram (news, culture, sport, rock,
weather, etc.)
When FM is selected, press the "TA/
PTY" button for more than two sec-
onds to switch the function on or off.
If the function is active, to ind a PTY
program:
- press the "TA/PTY" button for more than
two seconds,
- press button 5 or 6 or turn the dial
to scroll down the different types of
programs offered, then conirm the
choice,
The irst station broadcasting the
theme selected is tuned to.
In PTY mode, the different types of
program can be stored in the memory.
To do this, press the preselection
buttons "1" to "6" for more than two
seconds. To recall the type of program
stored in the memory, briely press the
corrresponding button.
407 saloon and 407 SW comfort

90 -
14-02-2005
91
-
14-02-2005
EON system
This system connects stations which
are part of the same network. It per-
mits the broadcasting of
TA trafic
information or a PTY program by a
station that is part of the same net-
work as the station to which you are
listening.
The service is available when you
have selected the TA trafic information
program or the PTY search program. Select the "Audio Func-
tions" menu from the
general menu:
- To activate/deactivate the
RDS frequency following,
- To activate/deactivate the REG regional following
mode,
- For the TMC trafic information. In the permanent audio application,
press the navigator briely to display
the "RADIO" contextual menu.
Activate or deactivate the RDS fre-
quency following.
The multifunction display will show:
- RDS if the function is active,
- RDS crossed out or greyed out if the
function is active but not available.
"Radio" menu
By pressing the navigator dial, in the
permanent radio application, you can:
- Enter the frequency,
- Activate/Deactivate the RDS fre- quency following,
- Activate/Deactivate the REG regional following mode,
- Display Radio Text to display infor- mation connected with the station
being listened to, if "RT" is dis-
played permanently. "Audio Functions" menu
RDS
Using the RDS (Radio Data System)
function on FM
The RDS allows you to continue lis-
tening to the same station whatever
frequency it is using in the region
you are going through. The display
indicates the name of the station
selected.
However, poor coverage of the net-
work or particular environmental
conditions may interfere with the
transmission.
The radio is continually searching
for the transmitter which is transmit-
ting the same program with the best
reception.
Regional following mode (REG)
When they are part of a network,
certain stations broadcast regional
programs in the various areas they
serve. Regional following mode ena-
bles you to continue listening to the
same program.
In the permanent audio application,
press the navigator briely to display
the "RADIO" contextual menu.
Activate or deactivate regional fol-
lowing mode.
The multifunction display will show:
- REG if the function is active,
- REG crossed out or greyed out if the
function is active but not available.
407 saloon and 407 SW comfort

92 -
14-02-2005
93
-
14-02-2005
Example:
to recall the radio station
stored on button 3, the key words
are:
"Radio" "Memory" "3".
To use these key words, you must
say the word "Radio", wait for the
audible conirmation signal, then
say the word "Memory", wait for the
audible conirmation signal, then end
with the word "3", wait for the audible
conirmation signal which will carry
out the action requested.
Notes:
- between saying one key word and the next, a screen indicates the
time remaining and the key word
recognised,
- if no voice commands are uttered, this function will be deactivated af-
ter approximately ive seconds,
- if a word is not recognised, the system says "Pardon" and dis-
plays "Word not recognised" on the
screen.
Voice commands
The voice commands enable you to
control a certain number of functions
of the RT3 GPS audio/telephone us-
ing pre-recorded words or phrases.
Activation of the voice commands
Press the end of the lights stalk to
activate or deactivate this function.
Description of a directory entry
When a description is associated with a
directory entry, you can record the de-
scription vocally so that it can be used
later for direct access by means of
voice commands (e.g.: "
Call" "[Name
of vocal description] " or "Guide to"
"[Name of vocal description]" ).
Select "Consult or modify the entry"
on the "Management of directory
entries" menu to gain access to the
description inputting and recording
screen.
Press the record button at the end of
the lights stalk and follow the instruc-
tions.
407 saloon and 407 SW comfort

92 -
14-02-2005
93
-
14-02-2005
Level 1 Level 2 Level 3
RADIO PREVIOUS
NEXT
MEMORY 1 ... 6
AUTOSTORE
LIST
CD PLAYER PREVIOUS
TRACK
NEXT TRACK
TRACK NUMBER 1 ... 20
RANDOM
SCAN
REPEAT
LIST
CHANGER PREVIOUS
TRACK
NEXT TRACK
TRACK NUMBER 1 ... 20
PREVIOUS DISC
NEXT DISC
DISC NUMBER 1 ... 6
RANDOM
SCAN
REPEAT
LIST Level 1 Level 2 Level 3
TELEPHONE LAST NUMBER
DIRECTORY
DESCRIPTION
SERVICES
VOICE BOX
VOICE MAIL
SMS
MESSAGE DISPLAY
READ
TRAFFIC INFO DISPLAY
READ
NAVIGATION
GUIDANCE STOP
RESUME
DIRECTORY
DESCRIPTION
ZOOM IN
ZOOM OUT
SHOW
DESTINATION
VEHICLE
DISPLAY AUDIO
TELEPHONE
NAVIGATION
TRIP
COMPUTER
GUIDANCE
AIR CONDITIONING
CALL DESCRIPTION
GUIDE TO DESCRIPTION

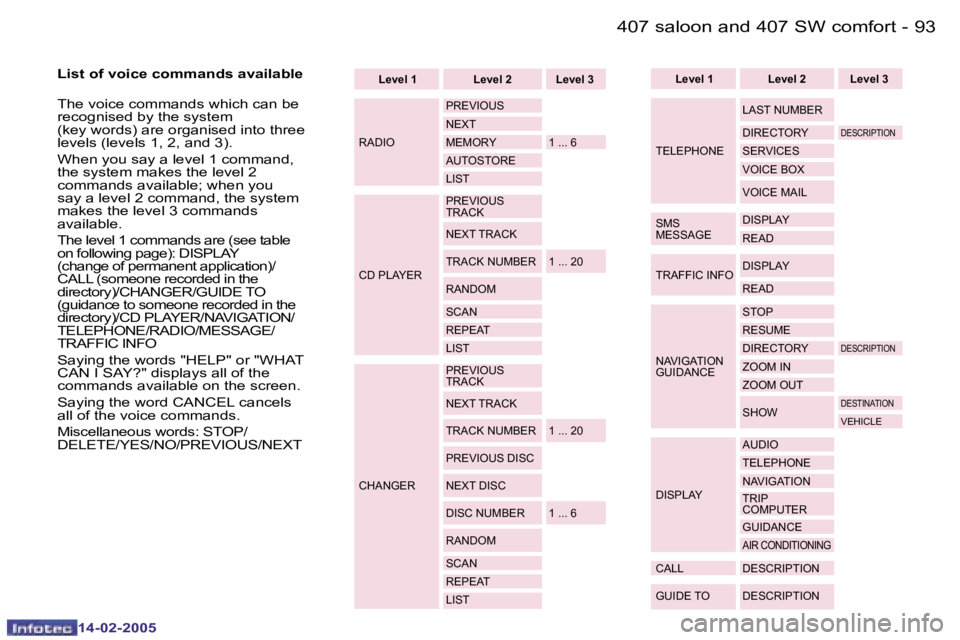

List of voice commands available
The voice commands which can be
recognised by the system
(key words) are organised into three
levels (levels 1, 2, and 3).
When you say a level 1 command,
the system makes the level 2
commands available; when you
say a level 2 command, the system
makes the level 3 commands
available.
The level 1 commands are (see table
on following page): DISPLAY
(change of permanent application)/
CALL (someone recorded in the
directory)/CHANGER/GUIDE TO
(guidance to someone recorded in the
directory)/CD PLAYER/NAVIGATION/
TELEPHONE/RADIO/MESSAGE/
TRAFFIC INFO
Saying the words "HELP" or "WHAT
CAN I SAY?" displays all of the
commands available on the screen.
Saying the word CANCEL cancels
all of the voice commands.
Miscellaneous words: STOP/
DELETE/YES/NO/PREVIOUS/NEXT
407 saloon and 407 SW comfort
