2005 NISSAN X-TRAIL oil filter

MA-36
ENGINE MAINTENANCE (YD22DDTI)

CAUTION:

The refill capacity depends on the engine oil temperature and drain time. Use these specifica-
tions for reference only.

Always use the dipstick to the determine when the proper amount of engine oil is in the engine.
7. Warm up engine and check area around drain plug and oil filter for oil leakage.
8. Stop engine and wait for 10 minutes.
9. Check the engine oil level.
Changing Oil Filter (TYPE A)ELS000CI
REMOVAL
1. Open oil filter installation/ removal cover on RH engine undercover.
2. Using the oil filter wrench, remove the oil filter.
CAUTION:

Be careful not to get burned when the engine and engine oil are hot.

When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.

Do not allow engine oil to adhere to the drive belts.

Completely wipe off any engine oil that adhere to the engine and the vehicle.

The oil filter is provided with a relief valve.
INSTALLATION
1. Remove foreign materials adhering to the oil filter installation surface.
2. Apply engine oil to the oil seal circumference of the new oil filter.
3. Screw the oil filter manually until it touches the installation surface, then tighten it by 1/2 turn. Or tighten to
specification.
INSPECTION AFTER INSTALLATION
1. Start engine, and check there is no leak of engine oil.
2. Stop engine and wait for 10 minutes.
3. Check the engine oil level and add engine oil. Refer to MA-35, "
Changing Engine Oil" .
PBIC0249E
SMA010
Oil filter:
: 18 N·m (1.8 Kg-m, 13 ft-lb)

ENGINE MAINTENANCE (YD22DDTI)
MA-37
C
D
E
F
G
H
I
J
K
MA
B
MA

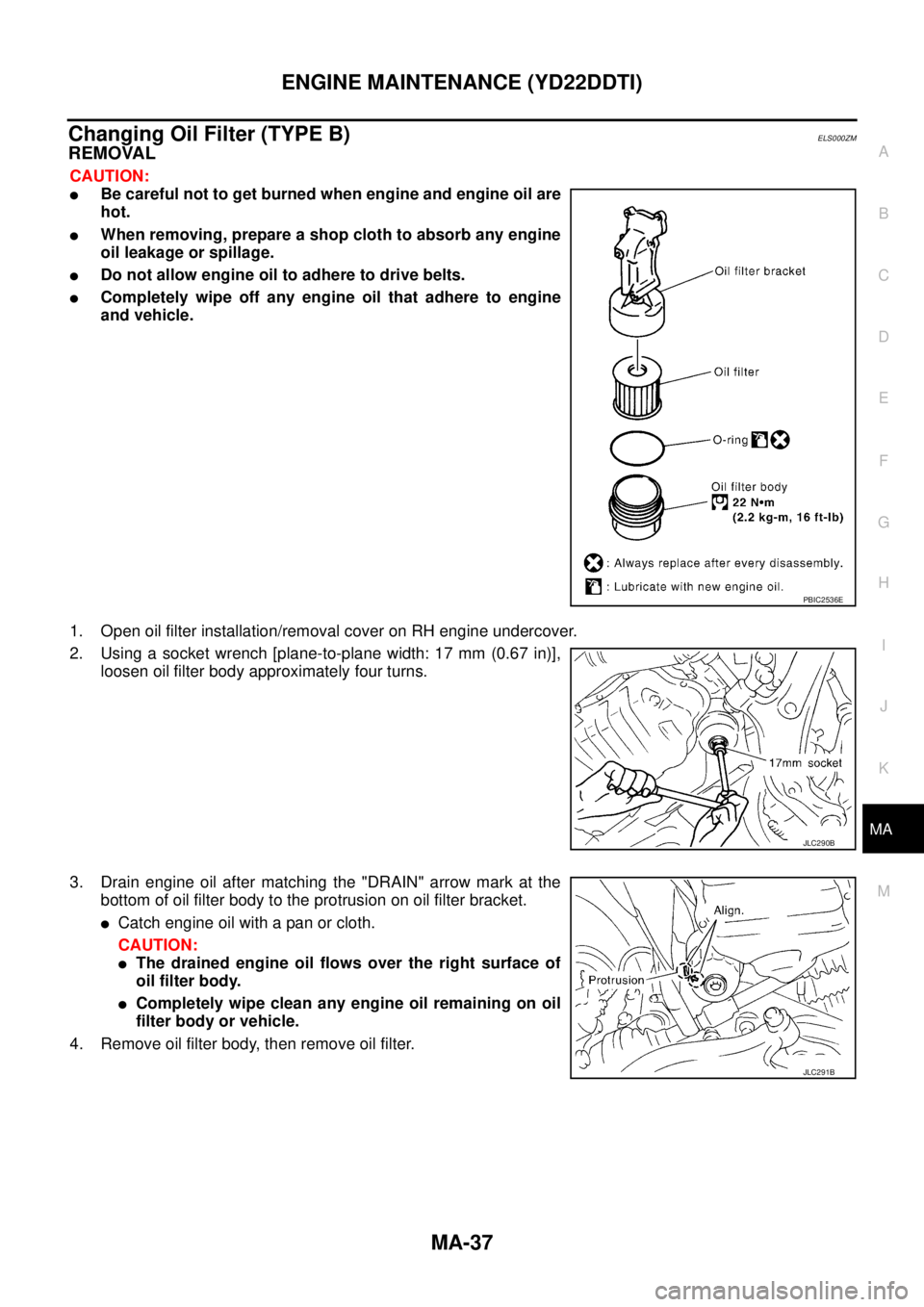

Changing Oil Filter (TYPE B)ELS000ZM
REMOVAL
CAUTION:

Be careful not to get burned when engine and engine oil are
hot.

When removing, prepare a shop cloth to absorb any engine
oil leakage or spillage.

Do not allow engine oil to adhere to drive belts.

Completely wipe off any engine oil that adhere to engine
and vehicle.
1. Open oil filter installation/removal cover on RH engine undercover.
2. Using a socket wrench [plane-to-plane width: 17 mm (0.67 in)],
loosen oil filter body approximately four turns.
3. Drain engine oil after matching the "DRAIN" arrow mark at the
bottom of oil filter body to the protrusion on oil filter bracket.

Catch engine oil with a pan or cloth.
CAUTION:

The drained engine oil flows over the right surface of
oil filter body.

Completely wipe clean any engine oil remaining on oil
filter body or vehicle.
4. Remove oil filter body, then remove oil filter.
PBIC2536E
JLC290B
JLC291B

MA-38
ENGINE MAINTENANCE (YD22DDTI)

5. Remove O-ring from oil filter body.

Push O-ring in one direction, lift the slack part using fingers,
and remove O-ring from oil filter body.
CAUTION:
Do not use a screwdrivers etc. as they may cause dam-
age to oil filter body.
INSTALLATION
1. Completely remove all foreign objects adhering to the inside of oil filter body or O-ring mounting area
(body side and bracket side).
2. Install oil filter and O-ring to oil filter body.

Push oil filter into filter body completely.
3. Install oil filter body to oil filter bracket.
INSPECTION AFTER INSTALLATION
1. After warming up engine, check there is no leaks of engine oil.
2. Stop engine and wait for 10 minutes.
3. Check the engine oil level and add engine oil. Refer to MA-35, "
Changing Engine Oil" .
Draining WaterELS000CJ
1. Prepare a tray at the drain hose open end.
2. Loosen drain cock, and operate priming pump to drain water
from fuel filter.
CAUTION:

Water in filter is drained with fuel. Prepare larger capacity
pan than fuel filter volume.

Drained water is mixed with fuel. Prevent fuel from adher-
ing to rubber parts such as engine mount insulator.
3. After draining, close drain cock by hand.
CAUTION:
If drain cock is tightened excessively, it may be damaged
and fuel will leak. Do not use tools to tighten drain cock.
4. Bleed air in fuel piping. Refer to FL-18, "
Air Bleeding" .
5. Start engine and make sure there is no fuel leakage.
JLC292B
Oil filter body:
: 22 N·m (2.2 Kg-m, 16 ft-lb)
SBIA0138E

SERVICE DATA AND SPECIFICATIONS (SDS)
MA-49
C
D
E
F
G
H
I
J
K
MA
B
MA

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitELS000K3
BELT DEFLECTION AND TENSION
QR20DE and QR25DE
YD22DDTi
*: When engine is cold.
RADIATOR
Unit: kPa (bar, kg/cm2 , psi)
ENGINE COOLANT CAPACITY
QR20DE and QR25DE
Unit: (lmp qt)
YD22DDTi
Unit: (lmp qt)
ENGINE OIL CAPACITY (APPROXIMATE)
QR20DE and QR25DE
Unit: (lmp qt)
YD22DDTi
Unit: (lmp qt)
SPARK PLUG
QR20DE and QR25DE
Unit: mm (in) Tensions of drive belts Auto-adjustment by auto-tensioner
Applied beltBelt deflection with 98 N (10 kg, 22 lb) force applied* mm (in)
New Adjusted Limit for re-adjusting
A/C compressor belt 4 - 5 (0.16 - 0.20) 6 - 7 (0.24 - 0.28) 8.5 (0.335)
Alternator and water pump belt 9.0 - 10.5 (0.354 - 0.413) 11.0 - 12.5 (0.433 - 0.492) 16.5 (0.650)
Cap relief pressureStandard 78 - 98 (0.78 - 0.98, 0.8 - 1.0, 11 - 14)
Limit 59 (0.59, 0.6, 9)
Leakage test pressure 157 (1.57, 1.6, 23)
Coolant capacity (With reservoir tank at “MAX” level) 7.1 (6-1/4)
Reservoir tank coolant capacity (At “MAX” level) 0.7 (5/8)
Coolant capacity (With reservoir tank at “MAX” level) 9.5 (8-3/8)
Reservoir tank coolant capacity (At “MAX” level) 0.7 (5/8)
Drain and refill With oil filter change 4.1 (3-5/8)
Without oil filter change 3.7 (3-1/4)
Dry engine (Overhaul)4.7 (4-1/8)
Drain and refill With oil filter change 5.2 (4-5/8)
Without oil filter change 4.9 (4-3/8)
Dry engine (Overhaul)6.3 (5-1/2)
Destination Except Russia For Russia
MakeNGK
Standard type LFR5A-11 PLFR5A-11
Hot type LFR4A-11 PLFR4A-11
Cold type LFR6A-11 PLFR6A-11
Spark plug gap Standard: 1.0 - 1.1 (0.039 - 0.043) Nominal: 1.1 (0.043)
