DTC P0102, P0103 MAF SENSOR
EC-1083
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P0102, P0103 MAF SENSORPFP:22680
Component DescriptionEBS01189
The mass air flow sensor is placed in the stream of intake air. It mea-
sures the intake flow rate by measuring a part of the entire intake
flow. The mass air flow sensor controls the temperature of the hot
wire to a certain amount. The heat generated by the hot wire is
reduced as the intake air flows around it. The more air, the greater
the heat loss.
Therefore, the electric current supplied to hot wire is changed to
maintain the temperature of the hot wire as air flow increases. The
ECM detects the air flow by means of this current change.
CONSULT-II Reference Value in Data Monitor ModeEBS0118A
Specification data are reference values.
*: This signal is converted by ECM internally. Thus this differs from ECM terminal voltage.
On Board Diagnosis LogicEBS0118C
DTC Confirmation ProcedureEBS0118D
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-1085, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB1604E
MONITOR ITEM CONDITION SPECIFICATION
MAS AIR/FL SE*

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 1.5 - 2.0V
2,000 rpm 2.2 - 2.7V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0102
0102Mass air flow sensor circuit
low inputAn excessively low voltage from the sensor is
sent to ECM.

Harness or connectors
(The sensor circuit is open or
shorted.)

Mass air flow sensor P0103
0103Mass air flow sensor circuit
high inputAn excessively high voltage from the sensor is
sent to ECM.
SEF817Y

EC-1110
[YD (WITH EURO-OBD)]
DTC P0192, P0193 FRP SENSOR

DTC P0192, P0193 FRP SENSORPFP:16638
DescriptionEBS0119D
The fuel rail pressure (FRP) sensor is placed to the fuel rail. It measures the fuel pressure in the fuel rail. The
sensor sends voltage signal to the ECM. As the pressure increases, the voltage rises.
The ECM controls the fuel pressure in the fuel rail by the inlet throttling device. The ECM uses the signal from
fuel rail pressure sensor as a feedback signal.
CONSULT-II Reference Value in Data Monitor ModeEBS0119E
Specification data are reference values.
On Board Diagnosis LogicEBS0119G
NOTE:

If DTC P0192 or P0193 is displayed with DTC P0652 or P0653, first perform trouble diagnosis for
DTC P0652 or P0653. Refer to EC-1240, "
DTC P0652, P0653 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureEBS0119H
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to E C - 111 3 , "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
MONITOR CONDITION SPECIFICATOIN
ACT CR PRESS

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 20 - 30 MPa
2,000 rpm 45 - 55 MPa
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0192
0192Fuel rail pressure sensor
circuit low inputAn excessively low voltage from the sensor is
sent to ECM.

Harness or connectors
(The sensor circuit is open or
shorted.)

Fuel rail temperature sensor P0193
0193Fuel rail temperature sen-
sor circuit high inputAn excessively high voltage from the sensor is
sent to ECM.
SEF817Y

EC-1124
[YD (WITH EURO-OBD)]
DTC P0217 ENGINE OVER TEMPERATURE

DTC P0217 ENGINE OVER TEMPERATUREPFP:21481
System DescriptionEBS0119Y
COOLING FAN CONTROL
*: These signals are sent to the ECM through CAN communication line.
The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, air condi-
tioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].
OPERATION
CONSULT-II Reference Value in Data Monitor ModeEBS0119Z
Specification data are reference values.
Sensor Input signal to ECM ECM function Actuator
Vehicle speed sensor* Vehicle speed
Cooling fan
controlCooling fan relay Engine coolant temperature sensor Engine coolant temperature
Air conditioner switch* Air conditioner ON signal
SEF421Z
MONITOR ITEM CONDITION SPECIFICATION
COOLING FAN

When cooling fan is stopped. OFF

When cooling fans operate at low speed. LOW

When cooling fans operate at high speed. HI

EC-1126
[YD (WITH EURO-OBD)]
DTC P0217 ENGINE OVER TEMPERATURE

WITHOUT CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-762,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-762,
"Diagnostic Procedure" .
3. Start engine.
Be careful not to overheat engine.
4. Set temperature control lever to full cold position.
5. Turn air conditioner switch ON.
6. Turn blower fan switch ON.
7. Run engine at idle for a few minutes with air conditioner operating.
Be careful not to overheat engine.
8. Make sure that cooling fans operates at low speed.
If NG, go to EC-762, "
Diagnostic Procedure" .
If OK, go to the following step.
9. Turn ignition switch OFF.
10. Turn air conditioner switch and blower fan switch OFF.
11. Disconnect engine coolant temperature sensor harness connec-
tor.
12. Connect 150Ω resistor to engine coolant temperature sensor
harness connector.
13. Restart engine and make sure that cooling fan operates at
higher speed than low speed.
Be careful not to overheat engine.
14. If NG, go to EC-762, "
Diagnostic Procedure" .
SEF621W
SEC163BA
MEC475B

DTC P0217 ENGINE OVER TEMPERATURE
EC-1129
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

3. CHECK COOLING FAN HIGH SPEED OPERATION
With CONSULT-II

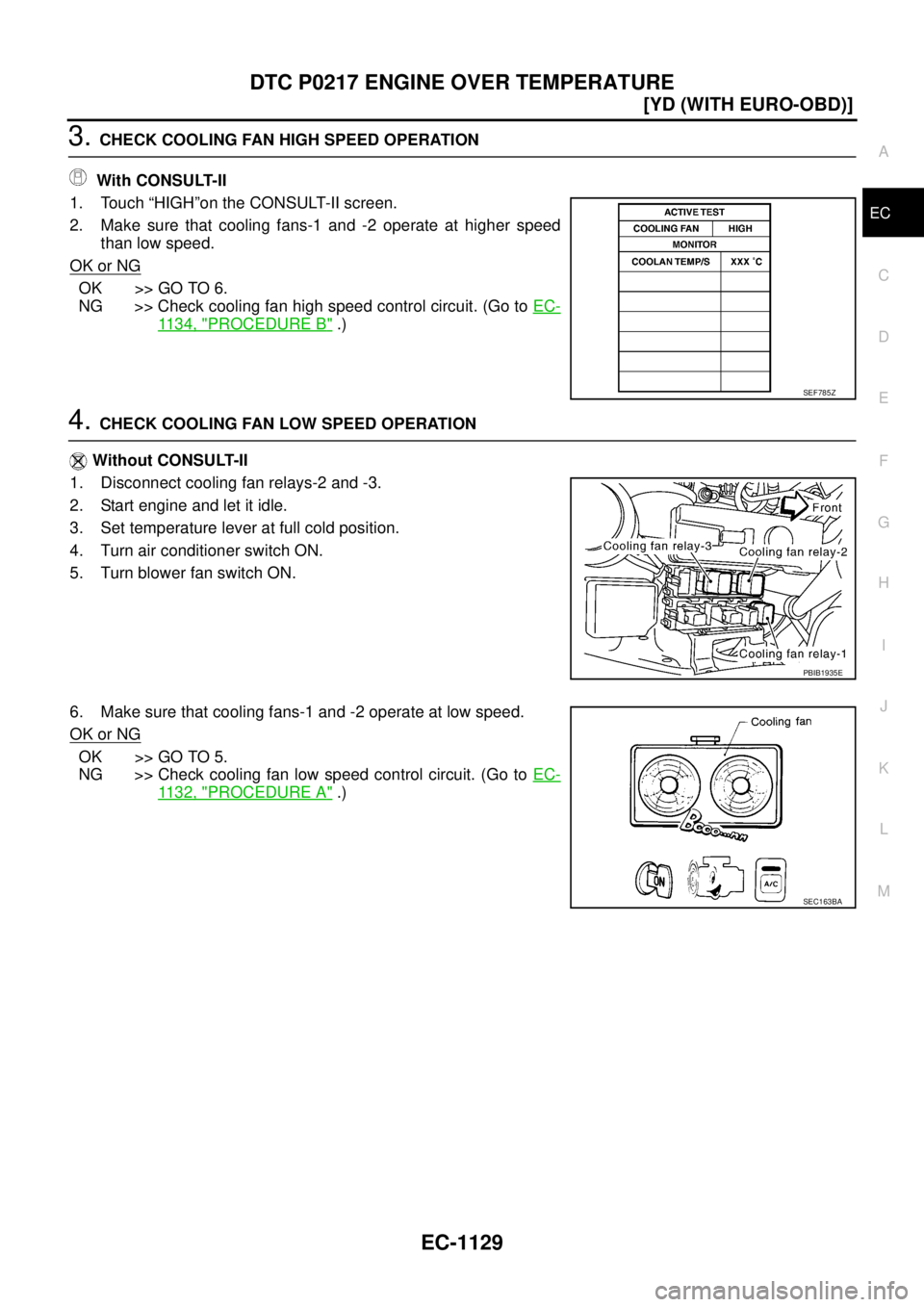

1. Touch “HIGH”on the CONSULT-II screen.
2. Make sure that cooling fans-1 and -2 operate at higher speed
than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go to EC-
11 3 4 , "PROCEDURE B" .)
4. CHECK COOLING FAN LOW SPEED OPERATION
Without CONSULT-II
1. Disconnect cooling fan relays-2 and -3.
2. Start engine and let it idle.
3. Set temperature lever at full cold position.
4. Turn air conditioner switch ON.
5. Turn blower fan switch ON.
6. Make sure that cooling fans-1 and -2 operate at low speed.
OK or NG
OK >> GO TO 5.
NG >> Check cooling fan low speed control circuit. (Go to EC-
11 3 2 , "PROCEDURE A" .)
SEF785Z
PBIB1935E
SEC163BA

EC-1130
[YD (WITH EURO-OBD)]
DTC P0217 ENGINE OVER TEMPERATURE

5. CHECK COOLING FAN HIGH SPEED OPERATION-I
Without CONSULT-II
1. Turn ignition switch OFF.
2. Reconnect cooling fan relays-2 and -3.
3. Turn air conditioner switch and blower fan switch OFF.
4. Disconnect engine coolant temperature sensor harness connec-
tor.
5. Connect 150Ω resistor to engine coolant temperature sensor
harness connector.
6. Restart engine and make sure that cooling fans-1 and -2 oper-
ate at higher speed than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go to EC-
11 3 4 , "PROCEDURE B" .)
6. CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the pressure drops.
CAUTION:
Higher than the specified pressure may cause radiator damage.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following for leak.

Hose

Radiator

Water pump (Refer to CO-43, "WATER PUMP" .)
>> Repair or replace.
PBIB1892E
MEC475B
Testing pressure: 157 kPa (1.57 bar, 1.6 kg/cm2 , 23psi)
Pressure should not drop.
SLC754A

DTC P0237, P0238 TC BOOST SENSOR
EC-1151
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P0237, P0238 TC BOOST SENSORPFP:22365
Component DescriptionEBS011AM
The turbocharger boost sensor detects pressure in the exit side of
the charge air cooler. The sensor output voltage to the ECM
increases as pressure increases.
CONSULT-II Reference Value in Data Monitor ModeEBS011WE
Specification data are reference values.
MBIB0614E
MBIB0899E
MONITOR ITEM CONDITION SPECIFICATION
INT/M PRES SE [kPa]

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle Approx. 100 kPa
2,800 rpm Approx. 126 kPa
4,000 rpm Approx. 106 kPa

EC-1186
[YD (WITH EURO-OBD)]
DTC P0401 EGR FUNCTION

DTC P0401 EGR FUNCTIONPFP:14710
DescriptionEBS011OS
SYSTEM DESCRIPTION
*: This signal is sent to the ECM through CAN communication line.
This system controls flow rate of EGR led from exhaust manifold to intake manifold. The opening of the EGR
by-pass passage in the EGR volume control valve changes to control the flow rate. A built-in step motor
moves the valve in steps corresponding to the ECM output pulses. The opening of the valve varies for opti-
mum engine control. The optimum value stored in the ECM is determined by considering various engine con-
ditions.
The EGR volume control valve remains close under the following conditions.

Engine stopped

Engine starting

Low engine coolant temperature

High engine speed

Accelerator pedal fully depressed
COMPONENT DESCRIPTION
EGR Volume Control Valve
The EGR volume control valve uses a step motor to control the flow
rate of EGR from exhaust manifold. This motor has four winding
phases. It operates according to the output pulse signal of the ECM.
Two windings are turned ON and OFF in sequence. Each time an
ON pulse is issued, the valve opens or closes, changing the flow
rate. When no change in the flow rate is needed, the ECM does not
issue the pulse signal. A certain voltage signal is issued so that the
valve remains at that particular opening.
Sensor Input Signal to ECM ECM Function Actuator
Crankshaft position sensor Engine speed
EGR volume con-
trolEGR volume control
valve Vehicle speed sensor* Vehicle speed
Engine coolant temperature sensor Engine coolant temperature
Ignition switch Start signal
Accelerator pedal position sensor Accelerator pedal position
Mass air flow sensor Amount of intake air
Air conditioner switch
* Air conditioner operation
SEF908Y
SEF411Y
