2005 NISSAN X-TRAIL AUTOMATIC

EC-1690
[YD (WITHOUT EURO-OBD)]
AUTOMATIC SPEED CONTROL DEVICE (ASCD)

AUTOMATIC SPEED CONTROL DEVICE (ASCD)PFP:18930
System DescriptionEBS01FEB
INPUT/OUTPUT SIGNAL CHART
BASIC ASCD SYSTEM
Refer to Owner's Manual for ASCD operating instructions.
Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed
without depressing accelerator pedal. Driver can set vehicle speed in advance between approximately 40 km/
h (25 MPH) and 185 km/h (115 MPH).
ECM controls fuel injection value to regulate engine speed.
Operation status of ASCD is indicated by CRUISE indicator and SET indicator in combination meter. If any
malfunction occurs in ASCD system, it automatically deactivates control.
SET OPERATION
Press ASCD MAIN switch. (The CRUISE indicator in combination meter illuminates.)
When vehicle speed reaches a desired speed between approximately 40 km/h (25 MPH) and 185 km/h (115
MPH), press SET switch. (Then SET indicator in combination meter illuminates.)
ACCEL OPERATION
If the RESUME/ACCELERATE switch is depressed during cruise control driving, increase the vehicle speed
until the switch is released or vehicle speed reaches maximum speed controlled by the system.
And then ASCD will keep the new set speed.
CANCEL OPERATION
When any of following conditions exist, cruise operation will be canceled.

CANCEL switch is depressed

More than 2 switches at ASCD steering switch are depressed at the same time (Set speed will be
cleared.).

Brake pedal is depressed

Clutch pedal is depressed or gear position is changed to the neutral position

Vehicle speed increased to 13 km/h higher than the set speed

Vehicle speed decreased to 13 km/h lower than the set speed

ESP system is operated
When the ECM detects any of the following conditions, the ECM will cancel the cruise operation and inform
the driver by blinking indicator lamp.

Malfunction for some self-diagnoses regarding ASCD control: SET lamp will blink quickly.
If MAIN switch is turned to OFF during ASCD is activated, all of ASCD operations will be canceled and vehicle
speed memory will be erased.
COAST OPERATION
When the SET/COAST switch is depressed during cruise control driving, decrease vehicle set speed until the
switch is released. And then ASCD will keep the new set speed.
RESUME OPERATION
When the RESUME/ACCELERATE switch is depressed after cancel operation other than depressing MAIN
switch is performed, vehicle speed will return to last set speed. To resume vehicle set speed, vehicle condition
must meet following conditions.

Brake pedal is released

Clutch pedal is released

Vehicle speed is greater than 40 km/h (25 MPH) and less than 185 km/h (115 MPH)
Sensor Input signal to ECM ECM function Actuator
ASCD brake switch Brake pedal operation
ASCD vehicle speed control Fuel injector and Fuel pump Stop lamp switch Brake pedal operation
ASCD clutch switch Clutch pedal operation
ASCD steering switch ASCD steering switch operation
Combination meter Vehicle speed

AUTOMATIC SPEED CONTROL DEVICE (ASCD)
EC-1691
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Component DescriptionEBS01FEC
ASCD STEERING SWITCH
Refer to EC-1557 .
ASCD BRAKE SWITCH
Refer to EC-1544 and EC-1664 .
ASCD CLUTCH SWITCH
Refer to EC-1544 .
STOP LAMP SWITCH
Refer to EC-1544 and EC-1664 .
ASCD INDICATOR
Refer to EC-1692 .

EC-1692
[YD (WITHOUT EURO-OBD)]
ASCD INDICATOR

ASCD INDICATORPFP:24814
Component DescriptionEBS01FED
ASCD indicator lamp illuminates to indicate ASCD operation status. The Lamp has two indicators, CRUISE
and SET, and is integrated in combination meter.
CRUISE indicator illuminates when MAIN switch on ASCD steering switch is turned ON to indicated that
ASCD system is ready for operation.
SET indicator illuminates when the following conditions are met.

CRUISE indicator is illuminated.

SET/COAST switch on ASCD steering switch is turned ON while vehicle speed is within the range of
ASCD setting.
SET indicator remains lit during ASCD control.
Refer to EC-1690, "
AUTOMATIC SPEED CONTROL DEVICE (ASCD)" for the ASCD function.

CONTROL LINKAGE
MT-17
D
E
F
G
H
I
J
K
L
MA
B
MT

Removal and InstallationECS00CY6
Note the following, when removal and installation.

Shift the control lever to the neutral position for removal.

Keep in mind that the select side lock plate for securing control cable is different from the shift side lock
plate.

After assembly, make sure selector lever automatically returns to Neutral when it is moved to 1st, 2nd, or
Reverse.
Install select cable according to the following procedure.
1. Install select cable of transaxle side to control assembly.
2. Install select cable to pin on select lever part of control device
assembly.

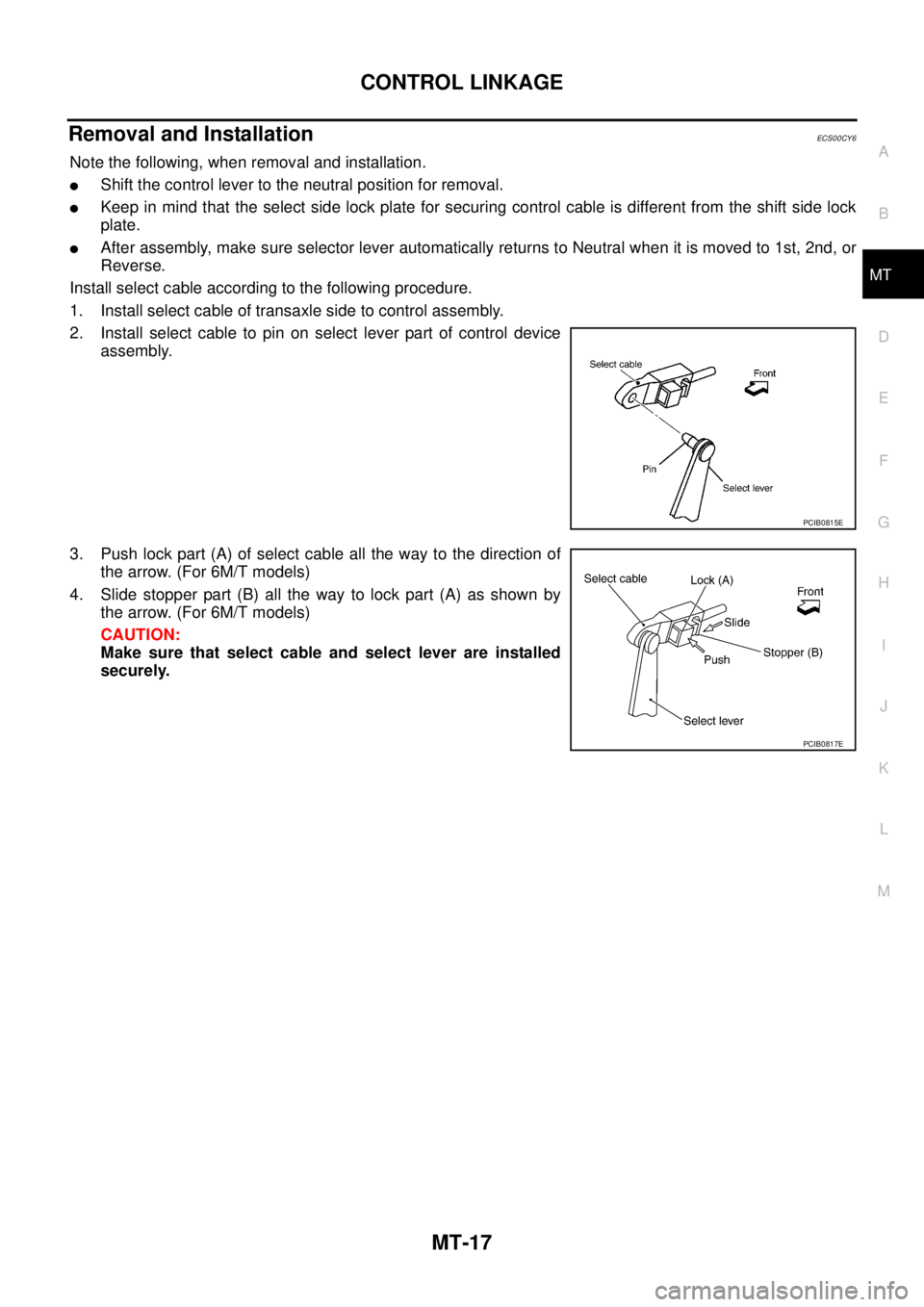

3. Push lock part (A) of select cable all the way to the direction of
the arrow. (For 6M/T models)
4. Slide stopper part (B) all the way to lock part (A) as shown by
the arrow. (For 6M/T models)
CAUTION:
Make sure that select cable and select lever are installed
securely.
PCIB0815E
PCIB0817E

AT-1
AUTOMATIC TRANSAXLE
C TRANSMISSION/TRANSAXLE
CONTENTS
D
E
F
G
H
I
J
K
L
M
SECTION AT
A
B
AT

AUTOMATIC TRANSAXLE
TROUBLE DIAGNOSIS — INDEX ............................. 6
Alphabetical & P No. Index for DTC ......................... 6
PRECAUTIONS .......................................................... 8
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 8
Precautions for On Board Diagnostic (EURO-OBD)
System of A/T and Engine — Euro-OBD — ............. 8
Precautions for Trouble Diagnosis ........................... 8
Precautions for Harness Repair ............................... 8
Precautions .............................................................. 9
Service Notice or Precautions ................................ 10
Wiring Diagrams and Trouble Diagnosis ................. 11
PREPARATION ......................................................... 12
Special Service Tools ............................................. 12
Commercial Service Tools ...................................... 15
A/T FLUID ................................................................. 16
Checking A/T Fluid ................................................. 16
Changing A/T Fluid ................................................ 17
OVERALL SYSTEM ................................................. 18
Cross-Sectional View ............................................. 18
Hydraulic Control Circuit ........................................ 19
A/T Electrical Parts Location .................................. 20
Circuit Diagram ...................................................... 21
Shift Mechanism ..................................................... 22
TCM Function ......................................................... 31
CAN Communication .............................................. 32
Input/Output Signal of TCM .................................... 34
Line Pressure Control ............................................ 34
Shift Control ........................................................... 35
Lock-Up Control ..................................................... 36
Engine Brake Control (Overrun Clutch Control) ..... 37
Control Valve .......................................................... 39
EURO-OBD
ON BOARD DIAGNOSTIC SYSTEM DESCRIP-
TION .......................................................................... 40
Introduction ............................................................ 40
EURO-OBD Function for A/T System .................... 40One or Two Trip Detection Logic of EURO-OBD .... 40
EURO-OBD Diagnostic Trouble Code (DTC) ......... 40
Malfunction Indicator (MI) ....................................... 44
CONSULT-II ............................................................ 44
Diagnostic Procedure Without CONSULT-II ........... 52
TROUBLE DIAGNOSIS — INTRODUCTION ........... 57
Introduction ............................................................. 57
Work Flow ............................................................... 61
TROUBLE DIAGNOSIS — BASIC INSPECTION .... 64
A/T Fluid Check ...................................................... 64
Stall Test ................................................................. 65
Line Pressure Test .................................................. 68
Road Test ............................................................... 70
TROUBLE DIAGNOSIS — GENERAL DESCRIP-
TION .......................................................................... 85
Symptom Chart ....................................................... 85
TCM Terminals and Reference Value ..................... 94
DTC U1000 CAN COMMUNICATION LINE .............. 97
Description .............................................................. 97
On Board Diagnosis Logic ...................................... 97
Possible Cause ....................................................... 97
DTC Confirmation Procedure ................................. 97
Wiring Diagram — AT — CAN ................................ 98
Diagnostic Procedure ............................................. 99
DTC P0705 PARK/NEUTRAL POSITION (PNP)
SWITCH ..................................................................100
Description ............................................................100
On Board Diagnosis Logic ....................................100
Possible Cause .....................................................100
DTC Confirmation Procedure ...............................100
Wiring Diagram — AT — PNP/SW .......................102
Diagnostic Procedure ...........................................103
DTC P0710 A/T FLUID TEMPERATURE SENSOR
CIRCUIT ..................................................................106
Description ............................................................106
On Board Diagnosis Logic ....................................106
Possible Cause .....................................................106
DTC Confirmation Procedure ...............................106
Wiring Diagram — AT — FTS ..............................108

PRECAUTIONS
AT-11
D
E
F
G
H
I
J
K
L
MA
B
AT


Steel particles or clutch lining material found in fluid filter or on magnet when no internal parts in unit are
worn or damaged — indicates that lining material came from converter.
The torque converter should not be replaced if:

The fluid has an odor, is discolored, and there is no evidence of metal or clutch facing particles.

The threads in one or more of the converter bolt holes are damaged.

Transaxle failure did not display evidence of damaged or worn internal parts, steel particles or clutch plate
lining material in unit and inside the fluid filter.

Vehicle has been exposed to high mileage (only). The exception may be where the torque converter
clutch dampener plate lining has seen excess wear by vehicles operated in heavy and/or constant traffic,
such as taxi, delivery or police use.
EURO-OBD SELF-DIAGNOSIS — EURO-OBD —

A/T self-diagnosis is performed by the TCM in combination with the ECM. The results can be read through
the blinking pattern of the O/D OFF indicator lamp or the malfunction indicator (MI). Refer to the table on
AT- 4 5 , "
SELF-DIAGNOSTIC RESULT TEST MODE" for the indicator used to display each self-diagnostic
result.

The self-diagnostic results indicated by the MI are automatically stored in both the ECM and TCM memo-
ries.
Always perform the procedure “HOW TO ERASE DTC” on AT- 4 2 , "
HOW TO ERASE DTC" to com-
plete the repair and avoid unnecessary blinking of the MI.

The following self-diagnostic items can be detected using ECM self-diagnostic results mode* only when
the O/D OFF indicator lamp does not indicate any malfunctions.
–PNP switch
–A/T 1st, 2nd, 3rd, or 4th gear function
*: For details of EURO-OBD, refer to EC-52, "
ON BOARD DIAGNOSTIC (OBD) SYSTEM" .

Certain systems and components, especially those related to EURO-OBD, may use a new style
slide-locking type harness connector.
For description and how to disconnect, refer to PG-74, "
HARNESS CONNECTOR" .
Wiring Diagrams and Trouble DiagnosisECS004Q4
When you read wiring diagrams, refer to the following:

GI-14, "How to Read Wiring Diagrams"

PG-2, "POWER SUPPLY ROUTING"
When you perform trouble diagnosis, refer to the following:

GI-10, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES"

GI-23, "How to Perform Efficient Diagnosis for an Electrical Incident"

OVERALL SYSTEM
AT-23
D
E
F
G
H
I
J
K
L
MA
B
AT

CLUTCH AND BAND CHART

*1: Operates when overdrive control switch is set in “OFF” position.

*2: Oil pressure is applied to both 2nd “apply” side and 3rd “release” side of band servo piston. However, brake band does not con-
tract because oil pressure area on the “release” side is greater than that on the “apply” side.

*3: Oil pressure is applied to 4th “apply” side in condition *2 above, and brake band contracts.

*4: A/T will not shift to 4th when overdrive control switch is set in “OFF” position.

: Operates.

A: Operates when throttle opening is less than 3/16, activating engine brake.

B: Operates during “progressive” acceleration.

C: Operates but does not affect power transmission.

D: Operates when throttle opening is less than 3/16, but does not affect engine brake. Shift positionRever
se
clutch
5High
clutch
6For-
ward
clutch
15Over-
run
clutch
17Band servo
Forward
one-way
clutch
16Low
one-
way
clutch
18Low &
revers
e
brake
19Lock-
upRemarks
2nd
apply3rd
releas
e4th
apply
PPA R K
POSITION
RREVERSE
POSITION
NNEUTRAL
POSITION
D*41st *1D B B
Automatic
shift
1 ⇔ 2 ⇔ 3 ⇔
4 2nd *1A B
3rd *1A *2C C B
*1
4th C *3C C
21stBBAutomatic
shift
1 ⇔ 2⇐3
2ndB
3rd *2C C B
11stB
Locks (held
stationary) in
1st speed
1 ⇐ 2⇐3 2ndB
3rd *2C C B

OVERALL SYSTEM
AT-31
D
E
F
G
H
I
J
K
L
MA
B
AT

TCM FunctionECS004QE
The function of the TCM is to:

Receive input signals sent from various switches and sensors.

Determine required line pressure, shifting point, lock-up operation, and engine brake operation.

Send required output signals to the respective solenoids.
CONTROL SYSTEM OUTLINE
The automatic transaxle senses vehicle operating conditions through various switches and sensors. It always
controls the optimum shift position and reduces shifting and lock-up shocks.
CONTROL SYSTEM
SWITCHES & SENSORS

TCM

ACTUATORS
PNP switch
Accelerator pedal position (APP)
sensor
Closed throttle position signal
Wide open throttle position signal
Engine speed signal
A/T fluid temperature sensor
Revolution sensor
Vehicle speed sensor
Overdrive control switch signal
Stop lamp switch signalShift control
Line pressure control
Lock-up control
Overrun clutch control
Timing control
Fail-safe control
Self-diagnosis
CONSULT-II communication line
control
CAN systemShift solenoid valve A
Shift solenoid valve B
Overrun clutch solenoid valve
Torque converter clutch solenoid
valve
Line pressure solenoid valve
O/D OFF indicator lamp
SCIA4505E
