2005 NISSAN X-TRAIL ignition

TROUBLE DIAGNOSIS
EC-605
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
X: Applicable
*1: This item includes 1st trip DTCs.ItemDIAGNOSTIC TEST MODE
WORK
SUPPORTSELF-DIAGNOSTIC
RESULTS
DATA
MONI-
TORDATA
MONITOR
(SPEC)ACTIVE
TEST DTC*
1FREEZE
FRAME
DATA*
2
ENGINE CONTROL COMPONENT PARTS
INPUT
Crankshaft position sensor (POS)××××
Camshaft position sensor (PHASE)×××
Mass air flow sensor×××
Engine coolant temperature sensor×××××
Heated oxygen sensor 1×××
Heated oxygen sensor 2××
Vehicle speed signal××××
Accelerator pedal position sensor×××
Throttle position sensor×××
Intake air temperature sensor××
Knock sensor×
Refrigerant pressure sensor××
Closed throttle position switch (accelerator
pedal position sensor signal)××
Air conditioner switch××
Park/neutral position (PNP) switch×××
Stop lamp switch×××
Power steering pressure sensor×××
Battery voltage××
Electrical load signal××
ASCD steering switch*
3×××
ASCD brake switch*
3×××
ASCD clutch switch*
3×××
ENGINE CONTROL COMPONENT PARTS
OUTPUT
Fuel injectors×××
Power transistor (Ignition timing)×××
Throttle control motor relay×××
Throttle control motor×
EVAP canister purge volume control sole-
noid valve×××
Air conditioner relay××
Fuel pump relay××××
Cooling fan relay××××
Heated oxygen sensor 1 heater××
Heated oxygen sensor 2 heater××
Intake valve timing control solenoid valve××××
VIAS control solenoid valve*
3×××

EC-606
[QR (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

*2: This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-II screen in freeze frame data
mode only if a 1st trip DTC or DTC is detected. For details, refer to EC-566, "
FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME
DATA" .
*3: For QR25DE engine models

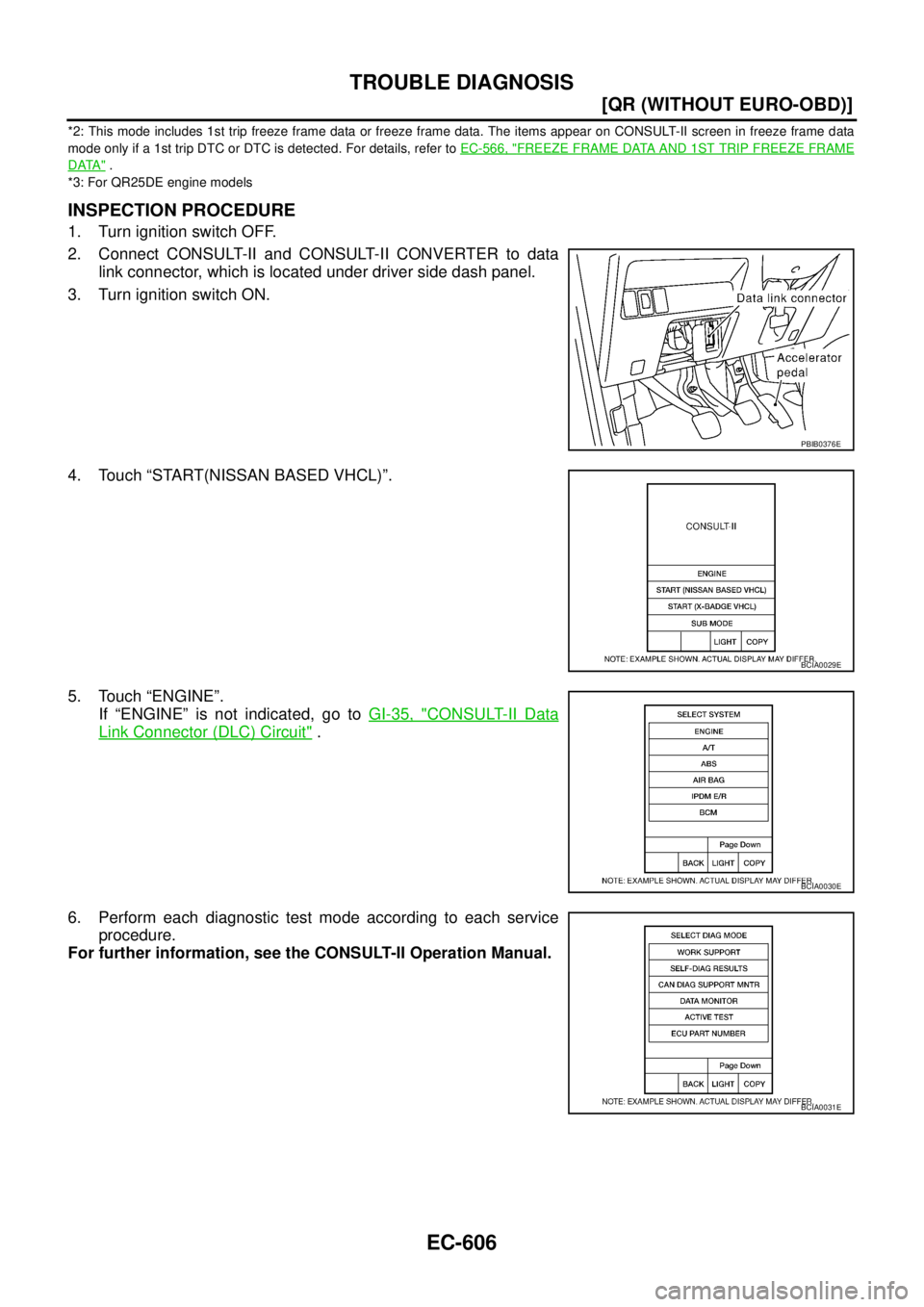

INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector, which is located under driver side dash panel.
3. Turn ignition switch ON.
4. Touch “START(NISSAN BASED VHCL)”.
5. Touch “ENGINE”.
If “ENGINE” is not indicated, go to GI-35, "
CONSULT-II Data
Link Connector (DLC) Circuit" .
6. Perform each diagnostic test mode according to each service
procedure.
For further information, see the CONSULT-II Operation Manual.
PBIB0376E
BCIA0029E
BCIA0030E
BCIA0031E

TROUBLE DIAGNOSIS
EC-607
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

WORK SUPPORT MODE
Work Item
*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to EC-533, "INDEX FOR DTC" .
Freeze Frame Data and 1st Trip Freeze Frame Data
*: The items are the same as those of 1st trip freeze frame data.WORK ITEM CONDITION USAGE
FUEL PRESSURE RELEASE

FUEL PUMP WILL STOP BY TOUCHING “START” DUR-
ING IDLING.
CRANK A FEW TIMES AFTER ENGINE STALLS.When releasing fuel pressure
from fuel line
IDLE AIR VOL LEARN

THE IDLE AIR VOLUME THAT KEEPS THE ENGINE
WITHIN THE SPECIFIED RANGE IS MEMORIZED IN
ECM.When learning the idle air volume
SELF-LEARNING CONT

THE COEFFICIENT OF SELF-LEARNING CONTROL
MIXTURE RATIO RETURNS TO THE ORIGINAL COEF-
FICIENT.When clearing the coefficient of
self-learning control value
TARGET IDLE RPM ADJ*

IDLE CONDITION When setting target idle speed
TARGET IGN TIM ADJ*

IDLE CONDITION When adjusting target ignition tim-
ing
Freeze frame data
item*Description
DIAG TROUBLE
CODE
[PXXXX]

The engine control component part/control system has a trouble code, it is displayed as PXXXX. (Refer to
EC-533, "
INDEX FOR DTC" .)
FUEL SYS-B1

“Fuel injection system status” at the moment a malfunction is detected is displayed.

One mode in the following is displayed.
Mode2: Open loop due to detected system malfunction
Mode3: Open loop due to driving conditions (power enrichment, deceleration enleanment)
Mode4: Closed loop - using oxygen sensor(s) as feedback for fuel control
Mode5: Open loop - has not yet satisfied condition to go to closed loop
COOLANT TEMP
[°C] or [°F]

The engine coolant temperature at the moment a malfunction is detected is displayed.
L-FUEL TRM-B1 [%]

“Long-term fuel trim” at the moment a malfunction is detected is displayed.

The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule
than short-term fuel trim.
S-FUEL TRM-B1 [%]

“Short-term fuel trim” at the moment a malfunction is detected is displayed.

The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel
schedule.
ENGINE SPEED
[rpm]

The engine speed at the moment a malfunction is detected is displayed.
VHCL SPEED
[km/h] or [mph]

The vehicle speed at the moment a malfunction is detected is displayed.
B/FUEL SCHDL
[msec]

The base fuel schedule at the moment a malfunction is detected is displayed.
INT/A TEMP SE
[°C] or [°F]

The intake air temperature at the moment a malfunction is detected is displayed.

EC-608
[QR (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

DATA MONITOR MODE
Monitored Item
×: Applicable
Monitored item [Unit]ECM
INPUT
SIGNALSMAIN
SIG-
NALSDescription Remarks
ENG SPEED [rpm]××

Indicates the engine speed computed from the
signals of the crankshaft position sensor
(POS) and camshaft position sensor (PHASE).

Accuracy becomes poor if engine
speed drops below the idle rpm.

If the signal is interrupted while the
engine is running, an abnormal
value may be indicated.
MAS A/F SE-B1 [V]××

The signal voltage of the mass air flow sensor
is displayed.
When the engine is stopped, a
certain value is indicated.
B/FUEL SCHDL
[msec]×

“Base fuel schedule” indicates the fuel injec-
tion pulse width programmed into ECM, prior
to any learned on board correction.
A/F ALPHA-B1 [%]×

The mean value of the air-fuel ratio feedback
correction factor per cycle is indicated.

When the engine is stopped, a
certain value is indicated.

This data also includes the data
for the air-fuel ratio learning con-
trol.
COOLAN TEMP/S
[°C] or [°F]××

The engine coolant temperature (determined
by the signal voltage of the engine coolant
temperature sensor) is displayed.

When the engine coolant tempera-
ture sensor is open or short-cir-
cuited, ECM enters fail-safe mode.
The engine coolant temperature
determined by the ECM is dis-
played.
HO2S1 (B1) [V]××

The signal voltage of the heated oxygen sen-
sor 1 is displayed.
HO2S2 (B1) [V]×

The signal voltage of the heated oxygen sen-
sor 2 is displayed.
HO2S1 MNTR (B1)
[RICH/LEAN]××

Display of heated oxygen sensor 1 signal dur-
ing air-fuel ratio feedback control:
RICH: means the mixture became “rich”, and
control is being affected toward a leaner mix-
ture.
LEAN: means the mixture became “lean”, and
control is being affected toward a rich mixture.
After turning ON the ignition
switch, “RICH” is displayed until
air-fuel mixture ratio feedback
control begins.

When the air-fuel ratio feedback is
clamped, the value just before the
clamping is displayed continu-
ously.
HO2S2 MNTR (B1)
[RICH/LEAN]×

Display of heated oxygen sensor 2 signal:
RICH: means the amount of oxygen after three
way catalyst is relatively small.
LEAN: means the amount of oxygen after
three way catalyst is relatively large.

When the engine is stopped, a
certain value is indicated.
VHCL SPEED SE
[km/h] or [mph]××

The vehicle speed computed from the vehicle
speed signal is displayed.
BATTERY VOLT [V]××

The power supply voltage of ECM is displayed.
ACCEL SEN 1 [V]××

The accelerator pedal position sensor signal
voltage is displayed.
ACCEL SEN 2 signal is converted
by ECM internally. Thus, it differs
from ECM terminal voltage signal. ACCEL SEN 2 [V]×
THRTL SEN 1 [V]××

The throttle position sensor signal voltage is
displayed.
THRTL SEN 2 signal is converted
by ECM internally. Thus, it differs
from ECM terminal voltage signal. THRTL SEN 2 [V]×
INT/A TEMP SE
[°C] or [°F]××

The intake air temperature (determined by the
signal voltage of the intake air temperature
sensor) is indicated.

TROUBLE DIAGNOSIS
EC-609
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
START SIGNAL
[ON/OFF]××
Indicates start signal status [ON/OFF] com-
puted by the ECM according to the signals of
engine speed and battery voltage.
After starting the engine, [OFF] is
displayed regardless of the starter
signal.
CLSD THL POS
[ON/OFF]××

Indicates idle position [ON/OFF] computed by
ECM according to the accelerator pedal posi-
tion sensor signal.
AIR COND SIG
[ON/OFF]××

Indicates [ON/OFF] condition of the air condi-
tioner switch as determined by the air condi-
tioner signal.
P/N POSI SW
[ON/OFF]××

Indicates [ON/OFF] condition from the park/
neutral position (PNP) switch signal.
PW/ST SIGNAL
[ON/OFF]××

[ON/OFF] condition of the power steering
pressure sensor as determined by the power
steering pressure sensor signal is indicated.
LOAD SIGNAL
[ON/OFF]××

Indicates [ON/OFF] condition from the electri-
cal load signal.
ON: Rear window defogger switch is ON and/
or lighting switch is in 2nd position (placed in
LOW position for models with Xenon head-
lamp).
OFF: Both rear window defogger switch and
lighting switch are OFF.
IGNITION SW
[ON/OFF]×

Indicates [ON/OFF] condition from ignition
switch.
HEATER FAN SW
[ON/OFF]×

Indicates [ON/OFF] condition from the heater
fan switch signal.
BRAKE SW
[ON/OFF]×

Indicates [ON/OFF] condition from the stop
lamp switch signal.
INJ PULSE-B1
[msec]×

Indicates the actual fuel injection pulse width
compensated by ECM according to the input
signals.
When the engine is stopped, a
certain computed value is indi-
cated.
IGN TIMING [BTDC]×

Indicates the ignition timing computed by ECM
according to the input signals.
When the engine is stopped, a
certain value is indicated.
PURG VOL C/V [%]

Indicates the EVAP canister purge volume
control solenoid valve control value computed
by the ECM according to the input signals.

The opening becomes larger as the value
increases.
INT/V TIM (B1)
[°CA]

Indicates [°CA] of intake camshaft advanced
angle.
INT/V SOL (B1) [%]

The control value of the intake valve timing
control solenoid valve (determined by ECM
according to the input signal) is indicated.

The advance angle becomes larger as the
value increases
VIAS S/V*
[ON/OFF]

The control condition of the VIAS control sole-
noid valve (determined by ECM according to
the input signals) is indicated.
ON: VIAS control solenoid valve is operating.
OFF: VIAS control solenoid valve is not oper-
ating.
AIR COND RLY
[ON/OFF]×

The air conditioner relay control condition
(determined by ECM according to the input
signals) is indicated. Monitored item [Unit]ECM
INPUT
SIGNALSMAIN
SIG-
NALSDescription Remarks

EC-612
[QR (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

ACTIVE TEST MODE
Test Item
*:Leaving cooling fan OFF with CONSULT-II while engine is running may cause the engine to overheat.TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
FUEL INJEC-
TION

Engine: Return to the original
trouble condition

Change the amount of fuel injec-
tion using CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.

Harness and connectors

Fuel injector

Heated oxygen sensor 1
IGNITION TIM-
ING

Engine: Return to the original
trouble condition

Timing light: Set

Retard the ignition timing using
CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.

Perform Idle Air Volume Learning.
POWER BAL-
ANCE

Engine: After warming up, idle
the engine.

Air conditioner switch OFF

Shift lever: N (A/T), Neutral (M/T)

Cut off each injector signal one at
a time using CONSULT-II.Engine runs rough or dies.

Harness and connectors

Compression

Fuel injector

Power transistor

Spark plug

Ignition coil
COOLING FAN*

Ignition switch: ON

Turn the cooling fan LOW, HI,
OFF with CONSULT-II.Cooling fan moves and stops.

Harness and connectors

Cooling fan relay

Cooling fan motor
ENG COOLANT
TEMP

Engine: Return to the original
trouble condition

Change the engine coolant tem-
perature using CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.

Harness and connectors

Engine coolant temperature sen-
sor

Fuel injector
FUEL PUMP
RELAY

Ignition switch: ON (Engine
stopped)

Turn the fuel pump relay ON and
OFF using CONSULT-II and lis-
ten to operating sound.Fuel pump relay makes the operat-
ing sound.
Harness and connectors

Fuel pump relay
PURG VOL
CONT/V

Engine: After warming up, run
engine at 1,500 rpm.

Change the EVAP canister purge
volume control solenoid valve
opening percent using CON-
SULT-II.Engine speed changes according to
the opening percent.
Harness and connectors

Solenoid valve
V/T ASSIGN
ANGLE

Engine: Return to the original
trouble condition

Change intake valve timing using
CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.

Harness and connectors

Intake valve timing control sole-
noid valve

TROUBLE DIAGNOSIS
EC-615
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

CONSULT-II Reference Value in Data Monitor ModeEBS010XE
Remarks:

Specification data are reference values.

Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification data in
spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED

Run engine and compare CONSULT-II value with the tachometer indi-
cation.Almost the same speed as the
tachometer indication.
MAS A/F SE-B1 See EC-620, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
B/FUEL SCHDL See EC-620, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
A/F ALPHA-B1 See EC-620, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
COOLAN TEMP/S

Engine: After warming up More than 70°C (158°F)
HO2S1 (B1)

Engine: After warming upMaintaining engine speed at 2,000
rpm0 - 0.3V ←→ Approx. 0.6 - 1.0V
HO2S2 (B1)

Engine: After warming up

Keeping the engine speed
between 3,500 and 4,000 rpm for
1 minute and at idle for 1 minute
under no loadRevving engine from idle to 3,000
rpm quickly.0 - 0.3V ←→ Approx. 0.6 - 1.0V
HO2S1 MNTR (B1)

Engine: After warming upMaintaining engine speed at 2,000
rpmLEAN ←→ RICH
Changes more than 5 times dur-
ing 10 seconds.
HO2S2 MNTR (B1)

Engine: After warming up

Keeping the engine speed
between 3,500 and 4,000 rpm for
1 minute and at idle for 1 minute
under no loadRevving engine from idle to 3,000
rpm quickly.LEAN ←→ RICH
VEH SPEED SE

Turn drive wheels and compare CONSULT-II value with the speedome-
ter indication.Almost the same speed as the
speedometer indication.
BATTERY VOLT

Ignition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN 1

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.0 - 4.7V
ACCEL SEN 2*
1
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.3 - 1.2V
Accelerator pedal: Fully depressed 3.9 - 4.8V
THRTL SEN 1
THRTL SEN 2*
1

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released More than 0.36V

Shift lever: D (A/T), 1st (M/T) Accelerator pedal: Fully depressed Less than 4.75V
START SIGNAL

Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS

Ignition switch: ONAccelerator pedal: Fully released ON
Accelerator pedal: Slightly
depressedOFF
AIR COND SIG

Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON
P/N POSI SW

Ignition switch: ONShift lever:
P or N (A/T), Neutral (M/T)ON
Shift lever: Except above OFF
PW/ST SIGNAL

Engine: After warming up, idle
the engineSteering wheel is not being turned OFF
Steering wheel is being turned ON

EC-616
[QR (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

LOAD SIGNAL
Ignition switch: ONRear window defogger switch is ON
and/or lighting switch is in 2nd
(placed in LOW position for models
with Xenon headlamp).ON
Rear window defogger switch is
OFF and lighting switch is OFF.OFF
IGNITION SW

Ignition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW

Ignition switch: ONHeater fan is operating. ON
Heater fan is not operating OFF
BRAKE SW

Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1

Engine: After warming up

Air conditioner switch: OFF

Shift lever: P or N (A/T), Neutral
(M/T)

No loadIdle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING

Engine: After warming up

Air conditioner switch: OFF

Shift lever: P or N (A/T), Neutral
(M/T)

No loadIdle 13° - 17° BTDC
2,000 rpm 25° - 45° BTDC
PURG VOL C/V

Engine: After warming up

Air conditioner switch: OFF

Shift lever: P or N (A/T), Neutral
(M/T)

No loadIdle 0%
2,000 rpm 20 - 30%
INT/V TIM (B1)

Engine: After warming up

Air conditioner switch: OFF

Shift lever: P or N (A/T), Neutral
(M/T)

No loadIdle−5° - 5°CA
2,000 rpm Approx. 0° - 20°CA
INT/V SOL (B1)

Engine: After warming up

Air conditioner switch: OFF

Shift lever: P or N (A/T), Neutral
(M/T)

No loadIdle 0% - 2%
2,000 rpm Approx. 0% - 50%
VIAS S/V*
2
Engine: After warming upIdle OFF
More than 5,000 rpm ON
AIR COND RLY

Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates)ON
FUEL PUMP RLY

For 1 second after turning ignition switch ON

Engine running or crankingON

Except above conditions OFF
THRTL RELAY

Ignition switch: ON ON MONITOR ITEM CONDITION SPECIFICATION
