2005 NISSAN X-TRAIL ignition

EC-436
[QR (WITH EURO-OBD)]
DTC P2138 APP SENSOR

Diagnostic ProcedureEBS010V3
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-132, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2021E

DTC P2138 APP SENSOR
EC-437
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 6 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
Check voltage between APP sensor terminal 4 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 4.
4. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 4 and ECM terminal 91.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace open circuit.
PBIB0498E
Voltage: Approximately 5V
PBIB0914E
Voltage: Approximately 5V
PBIB0915E
Continuity should exist.

EC-438
[QR (WITH EURO-OBD)]
DTC P2138 APP SENSOR

5. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 6.
NG >> Repair short to ground or short to power in harness or connectors.
6. CHECK THROTTLE POSITION SENSOR
Refer to EC-431, "
Component Inspection" .
OK or NG
OK >> GO TO 12.
NG >> GO TO 7.
7. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-47, "
Throttle Valve Closed Position Learning" .
3. Perform EC-47, "
Idle Air Volume Learning" .
>>INSPECTION END
8. CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 3 and ECM terminal 82, APP sensor terminal 1
and ECM terminal 83.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between APP sensor terminal 5 and ECM terminal 106, APP sensor terminal 2
and ECM terminal 98.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 10.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
ECM terminal Sensor terminal Reference Wiring Diagram
91 APP sensor terminal 4EC-434
47 Electric throttle control actuator terminal 1EC-426
Continuity should exist.
Continuity should exist.

DTC P2138 APP SENSOR
EC-439
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

10. CHECK APP SENSOR
Refer to EC-439, "
Component Inspection" .
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
11 . REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace the accelerator pedal assembly.
2. Perform EC-46, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-47, "
Throttle Valve Closed Position Learning" .
4. Perform EC-47, "
Idle Air Volume Learning" .
>>INSPECTION END
12. CHECK INTERMITTENT INCIDENT
Refer to EC-124, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS010V4
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and ground under the following
conditions.
4. If NG, replace accelerator pedal assembly and go to the next
step.
5. Perform EC-46, "
Accelerator Pedal Released Position Learning" .
6. Perform EC-47, "
Throttle Valve Closed Position Learning" .
7. Perform EC-47, "
Idle Air Volume Learning" .
Removal and InstallationEBS010V5
ACCELERATOR PEDAL
Refer to ACC-2, "ACCELERATOR CONTROL SYSTEM" .
Terminal Accelerator pedal Voltage
106
(Accelerator pedal position
sensor 1)Fully released 0.5 - 1.0V
Fully depressed 3.9 - 4.7V
98
(Accelerator pedal position
sensor 2)Fully released 0.15 - 0.6V
Fully depressed 1.95 - 2.4V
MBIB0023E

EC-440
[QR (WITH EURO-OBD)]
IGNITION SIGNAL

IGNITION SIGNALPFP:22448
Component DescriptionEBS010V6
IGNITION COIL & POWER TRANSISTOR
The ignition signal from the ECM is sent to and amplified by the
power transistor. The power transistor turns ON and OFF the ignition
coil primary circuit. This ON/OFF operation induces the proper high
voltage in the coil secondary circuit.
PBIB1969E

IGNITION SIGNAL
EC-441
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

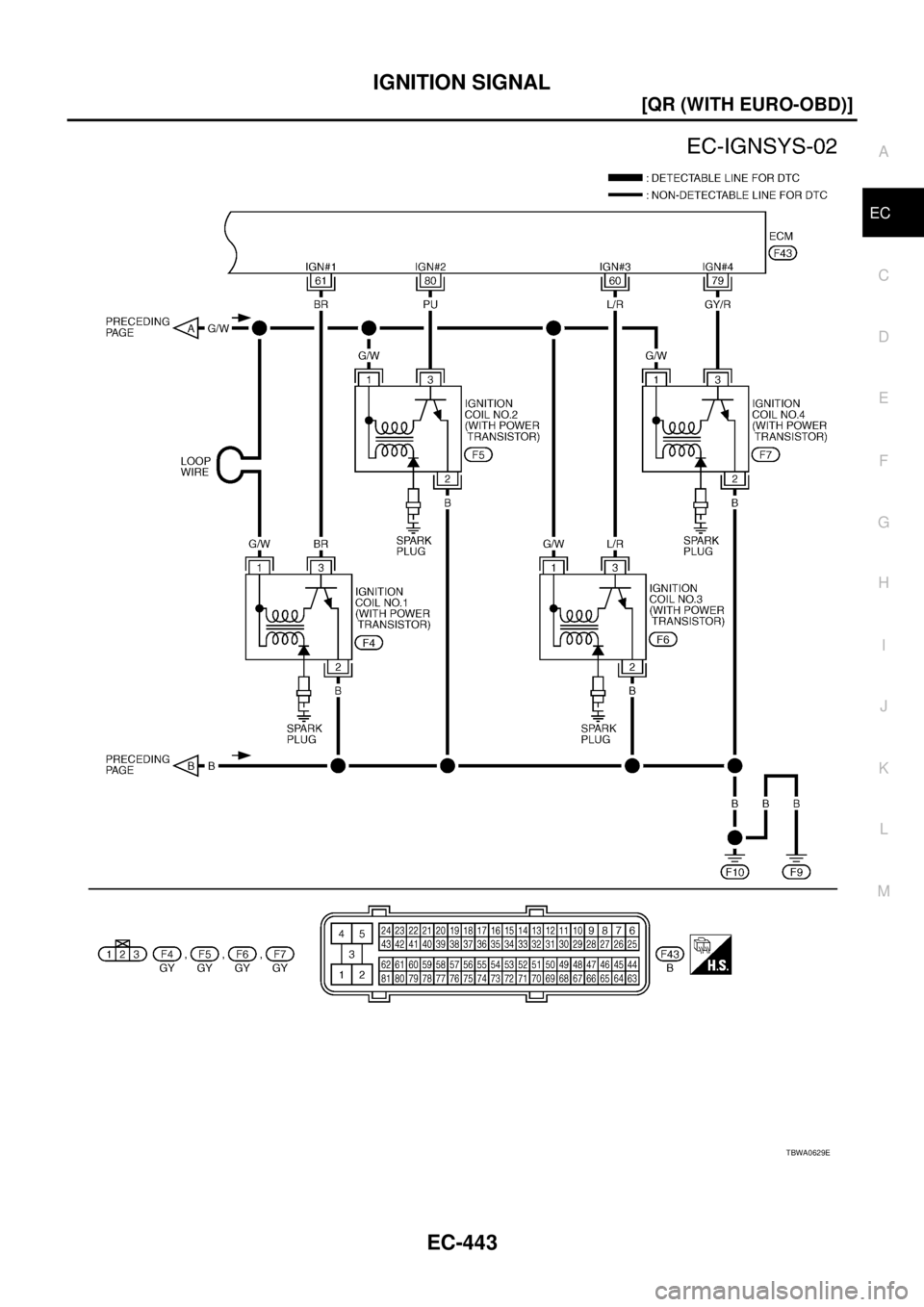

Wiring DiagramEBS010V7
TBWA0628E

EC-442
[QR (WITH EURO-OBD)]
IGNITION SIGNAL

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
111 G/WECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition switch
OFF0 - 1.0V
[Ignition switch: OFF]

More than a few seconds after turning ignition
switch OFFBATTERY VOLTAGE
(11 - 14V)
11 9
120SB
GYPower supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
121 W/LPower supply for ECM
(Back-up)[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)

IGNITION SIGNAL
EC-443
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

TBWA0629E
