MT-82
MAINSHAFT AND GEARS

Synchronizer
Check items below. If necessary, replace them with new ones.

Damage and unusual wear on contact surfaces of coupling
sleeve, synchronizer hub and shifting insert.

Coupling sleeve and synchronizer hub must move smoothly.

If any crack, damage, or excessive wear is found on cam face of
baulk ring or working face of insert, replace it.
BAULK RING CLEARANCE

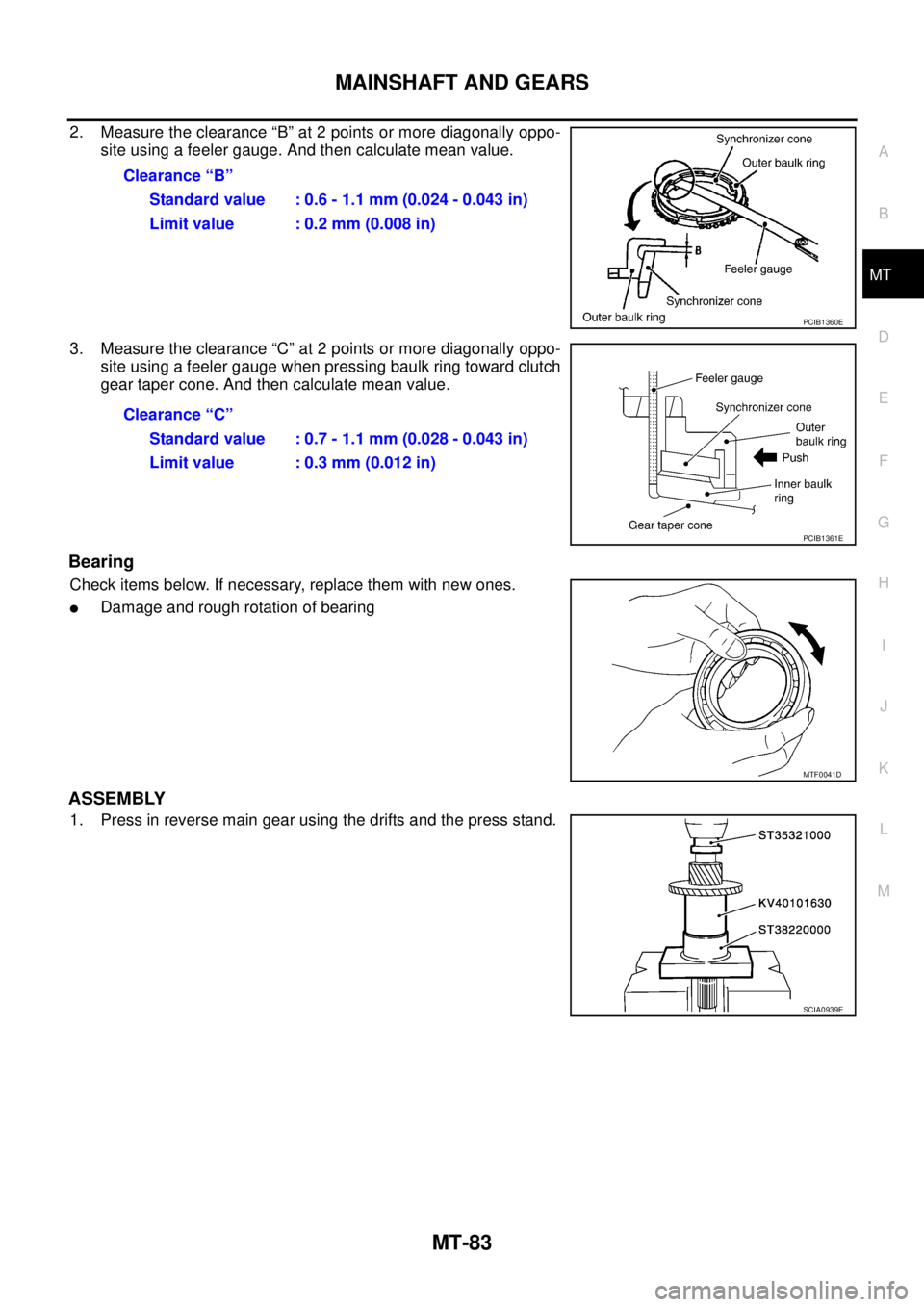

Triple-cone synchronizer (1st and 2nd)

Check the clearance between outer baulk ring, synchronizer
cone and inner baulk ring as follows.
CAUTION:
The clearances “A”, “B” and “C” are controlled with outer
baulk ring, synchronizer cone and inner baulk ring as a set.
Replace them as a set if the clearances are outside the limit
value.
1. Measure the clearance “A” at 2 points or more diagonally oppo-
site using a feeler gauge when pressing baulk ring toward clutch
gear taper cone. And then calculate mean value.
SMT387A
SMT867D
PCIB1358E
Clearance “A”
Standard value : 0.6 - 1.2 mm (0.024 - 0.047 in)
Limit value : 0.3 mm (0.012 in)
PCIB1359E

MAINSHAFT AND GEARS
MT-83
D
E
F
G
H
I
J
K
L
MA
B
MT

2. Measure the clearance “B” at 2 points or more diagonally oppo-
site using a feeler gauge. And then calculate mean value.
3. Measure the clearance “C” at 2 points or more diagonally oppo-
site using a feeler gauge when pressing baulk ring toward clutch
gear taper cone. And then calculate mean value.
Bearing
Check items below. If necessary, replace them with new ones.

Damage and rough rotation of bearing
ASSEMBLY
1. Press in reverse main gear using the drifts and the press stand.Clearance “B”
Standard value : 0.6 - 1.1 mm (0.024 - 0.043 in)
Limit value : 0.2 mm (0.008 in)
PCIB1360E
Clearance “C”
Standard value : 0.7 - 1.1 mm (0.028 - 0.043 in)
Limit value : 0.3 mm (0.012 in)
PCIB1361E
MTF0041D
SCIA0939E

AT-10
PRECAUTIONS


After performing each TROUBLE DIAGNOSIS, perform
“DTC (Diagnostic Trouble Code) CONFIRMATION PROCE-
DURE”.
The DTC should not be displayed in the “DTC Confirmation
Procedure” if the repair is completed.

Before proceeding with disassembly, thoroughly clean the out-
side of the transaxle. It is important to prevent the internal parts
from becoming contaminated by dirt or other foreign matter.

Disassembly should be done in a clean work area.

Use lint-free cloth or towels for wiping parts clean. Common
shop rags can leave fibers that could interfere with the operation
of the transaxle.

Place disassembled parts in order for easier and proper assembly.

All parts should be carefully cleaned with a general purpose, non-flammable solvent before inspection or
reassembly.

Gaskets, seals and O-rings should be replaced any time the transaxle is disassembled.

It is very important to perform functional tests whenever they are indicated.

The valve body contains precision parts and requires extreme care when parts are removed and serviced.
Place disassembled valve body parts in order for easier and proper assembly. Care will also prevent
springs and small parts from becoming scattered or lost.

Properly installed valves, sleeves, plugs, etc. will slide along bores in valve body under their own weight.

Before assembly, apply a coat of recommended ATF to all parts. Apply petroleum jelly to protect O-rings
and seals, or hold bearings and washers in place during assembly. Do not use grease.

Extreme care should be taken to avoid damage to O-rings, seals and gaskets when assembling.

After overhaul, refill the transaxle with new ATF.

When the A/T drain plug is removed, only some of the fluid is drained. Old A/T fluid will remain in torque
converter and ATF cooling system.
Always follow the procedures under “Changing A/T Fluid” in the AT section when changing A/T fluid. Refer
to “Changing A/T Fluid”, AT- 1 6 , "
A/T FLUID" .
Service Notice or PrecautionsECS004Q3
FAIL -SAF E
The TCM has an electronic Fail-Safe (limp home mode). This allows the vehicle to be driven even if a major
electrical input/output device circuit is damaged.
Under Fail-Safe, the vehicle always runs in third gear, even with a shift lever position of “1”, “2” or “D”. The cus-
tomer may complain of sluggish or poor acceleration.
Always follow the “WORK FLOW”, refer to AT- 2 5 5 , "
Work Flow" (EXCEPT FOR Euro-OBD) or AT- 6 1 , "Work
Flow" (Euro-OBD).
The SELF-DIAGNOSIS results will be as follows:

The first SELF-DIAGNOSIS will indicate damage to the vehicle speed sensor or the revolution sensor.

During the next SELF-DIAGNOSIS, performed after checking the sensor, no damages will be indicated.
TORQUE CONVERTER SERVICE
The torque converter should be replaced under any of the following conditions:

External leaks in the hub weld area.

Converter hub is scored or damaged.

Converter pilot is broken, damaged or fits poorly into crankshaft.

Steel particles are found after flushing the cooler and cooler lines.

Pump is damaged or steel particles are found in the converter.

Vehicle has TCC shudder and/or no TCC apply. Replace only after all hydraulic and electrical diagnoses
have been made. (Converter clutch material may be glazed.)

Converter is contaminated with engine coolant containing antifreeze.

Internal failure of stator roller clutch.

Heavy clutch debris due to overheating (blue converter).
SAT652J

AT-406
[ALL]
ON-VEHICLE SERVICE

7. Remove control valve assembly by removing fixing bolts A, B
and C .
CAUTION:
Be careful not to drop manual valve and servo release accu-
mulator return springs.
Bolt length, number and location:
8. Remove manual valve from control valve assembly.
CAUTION:
Be careful not to drop manual valve.
9. Disassemble and inspect control valve assembly if necessary. Refer to AT- 4 4 8 , "
Control Valve Assembly"
AT- 4 5 7 , "Control Valve Upper Body" and AT- 4 6 1 , "Control Valve Lower Body" .
10. Remove servo release accumulator and N-D accumulator by
applying compressed air if necessary.

Hold each piston with a paper towel.
AAT260A
Bolt symbol A B C
Bolt length “ ” mm (in)40.0 mm
(1.575 in)33.0 mm
(1.299 in)43.5 mm
(1.713 in)
Number of bolts 5 6 2
SCIA3150E
SAT935J

ON-VEHICLE SERVICE
AT-407
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

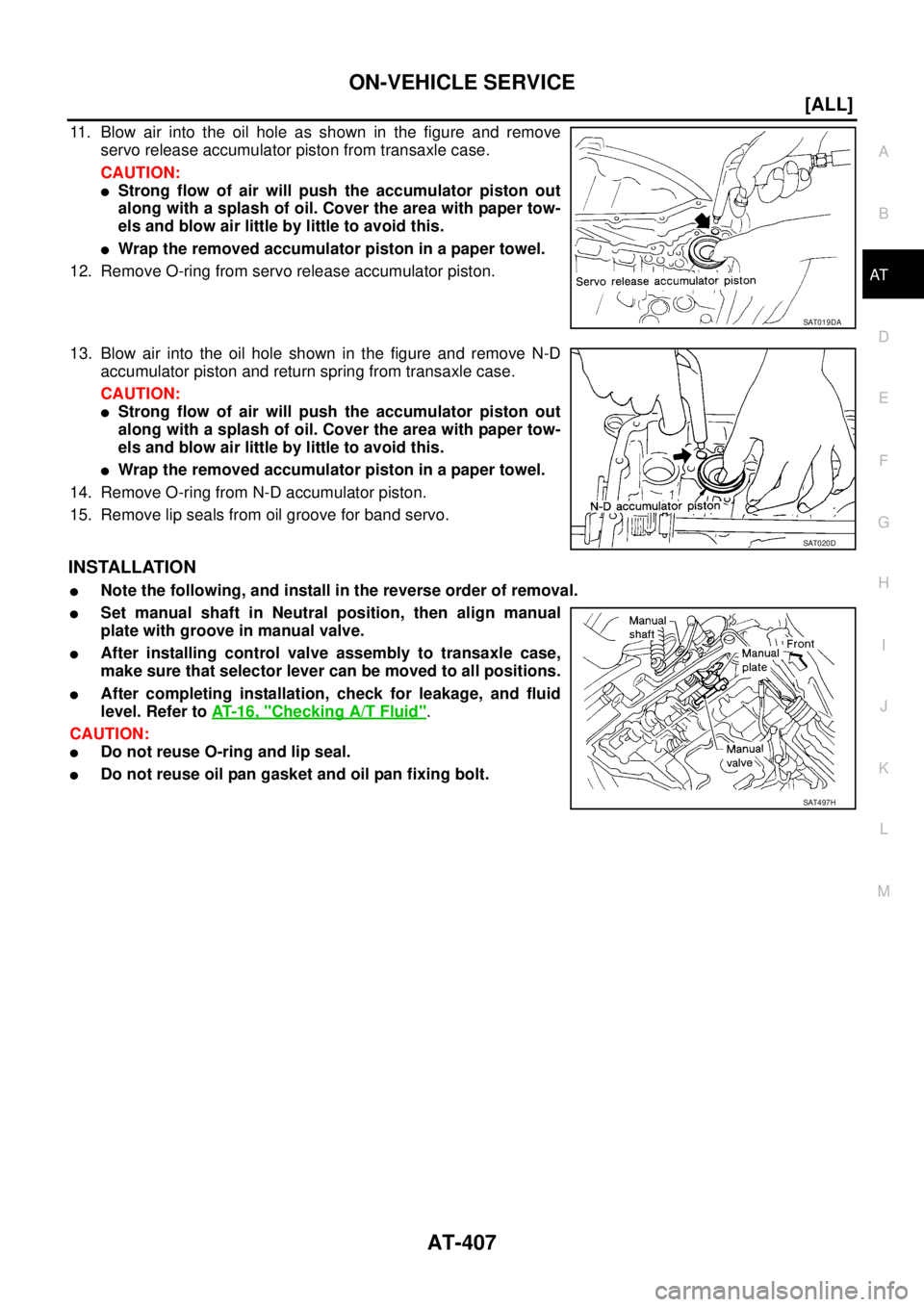

11. Blow air into the oil hole as shown in the figure and remove
servo release accumulator piston from transaxle case.
CAUTION:

Strong flow of air will push the accumulator piston out
along with a splash of oil. Cover the area with paper tow-
els and blow air little by little to avoid this.

Wrap the removed accumulator piston in a paper towel.
12. Remove O-ring from servo release accumulator piston.
13. Blow air into the oil hole shown in the figure and remove N-D
accumulator piston and return spring from transaxle case.
CAUTION:

Strong flow of air will push the accumulator piston out
along with a splash of oil. Cover the area with paper tow-
els and blow air little by little to avoid this.

Wrap the removed accumulator piston in a paper towel.
14. Remove O-ring from N-D accumulator piston.
15. Remove lip seals from oil groove for band servo.
INSTALLATION

Note the following, and install in the reverse order of removal.

Set manual shaft in Neutral position, then align manual
plate with groove in manual valve.

After installing control valve assembly to transaxle case,
make sure that selector lever can be moved to all positions.

After completing installation, check for leakage, and fluid
level. Refer to AT- 1 6 , "
Checking A/T Fluid".
CAUTION:

Do not reuse O-ring and lip seal.

Do not reuse oil pan gasket and oil pan fixing bolt.
SAT019DA
SAT020D
SAT497H

DISASSEMBLY
AT-427
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

16. Remove servo release accumulator piston with compressed air.
CAUTION:

Strong flow of air will push the accumulator piston out
along with a splash of oil.Cover the area with paper tow-
els and blow air little by little to avoid this.

Wrap the removed accumulator piston in a paper towel.
17. Remove O-rings from servo release accumulator piston.
18. Remove N-D accumulator piston and return spring with com-
pressed air.
CAUTION:

Strong flow of air will push the accumulator piston out
along with a splash of oil.Cover the area with paper tow-
els and blow air little by little to avoid this.

Wrap the removed accumulator piston in a paper towel.
19. Remove O-rings from N-D accumulator piston.
20. Check accumulator pistons and contact surface of transaxle
case for damage.
21. Check accumulator return springs for damage and free length.
22. Remove lip seals.
23. Remove low & reverse brake tube and oil sleeve.
SAT019DA
SAT020D
SAT023DA
SCIA4867E
SCIA3478E

TF-4
PRECAUTIONS

Service NoticeEDS001V7

After overhaul refill the transfer with new transfer oil.

Check the oil level or replace the oil only with the vehicle parked on level ground.

During removal or installation, keep inside of transfer clear of dust or dirt.

Replace all tires at the same time. Always use tires of the proper size and the same brand and pattern.
Fitting improper size and unusual wear tires applies excessive force to vehicle mechanism and can cause
longitudinal vibration.

Disassembly should be done in a clean work area.

Before proceeding with disassembly, thoroughly clean the transfer. It is important to prevent the internal
parts from becoming contaminated by dirt or other foreign matter.

Check for the correct installation status prior to removal or disassembly. If matching marks are required,
be certain they do not interfere with the function of the parts when applied.

All parts should be carefully cleaned with a general purpose, non-flammable solvent before inspection or
reassembly.

Check appearance of the disassembled parts for damage, deformation, and unusual wear. Replace them
with a new ones if necessary.

Gaskets, seals, O-rings and lock nuts should be replaced any time when the transfer is disassembled.

In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to outside. If
tightening sequence is specified, use it.

Observe the specified torque when assembling.

Clean and flush the parts sufficiently and blow-dry them.

Be careful not to damage sliding surfaces and mating surfaces.

Use lint-free cloth or towels for wiping parts clean. Common shop rags can leave fibers that could interfere
with the operation of the transfer.
Wiring Diagrams and Trouble DiagnosisEDS001V8
When reading wiring diagrams, refer to the following:

GI-14, "How to Read Wiring Diagrams".

PG-2, "POWER SUPPLY ROUTING".
When performing trouble diagnosis, refer to the following:

GI-10, "How to Follow Trouble Diagnoses".

GI-23, "How to Perform Efficient Diagnosis for an Electrical Incident".

FAX-14
FRONT DRIVE SHAFT

Wheel Side
1. As shown in the figure, use a bearing replacer (suitable tool) and
puller (suitable tool) to remove sensor rotor from drive shaft.
2. Press shaft in a vise.
CAUTION:
When retaining shaft in a vise, always use copper or alumi-
num plates between vise and shaft.
3. Remove boot bands. Then remove boot from joint sub-assem-
bly.
4. Screw a drive shaft puller (suitable tool) 30 mm (1.18 in) or more
into threaded part of joint sub-assembly. Pull joint sub-assembly
out of shaft.
CAUTION:

If joint sub-assembly cannot be removed after five or
more unsuccessful attempts, replace the entire drive
shaft assembly.

Align sliding hammer and drive shaft and remove them
by pulling directly.
5. Remove boot from shaft.
6. Remove circular clip from shaft.
7. While rotating ball cage, remove old grease on joint sub-assembly with paper towels.
INSPECTION AFTER DISASSEMBLY
Shaft

Replace shaft if there is any runout, cracking or other damage.
Joint Sub-Assembly

Make sure there is no rough rotation or unusual axial looseness.

Make sure there is no foreign material inside joint sub-assembly.

Check joint sub-assembly for compression scars, cracks or fractures.
CAUTION:
If there are any irregular conditions of joint sub-assembly components, replace the entire joint
sub-assembly.
Slide Joint Side
Housing and spider assembly

If roller or roller surface of spider assembly has scratch or wear, replace housing and spider assembly.

If there is circumferential looseness or rough rotation of spider roller, replace spider assembly.
NOTE:
Housing and spider assembly are components which are used as a set.
SDIA0595E
SDIA0606E
