2005 NISSAN X-TRAIL display

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-71
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

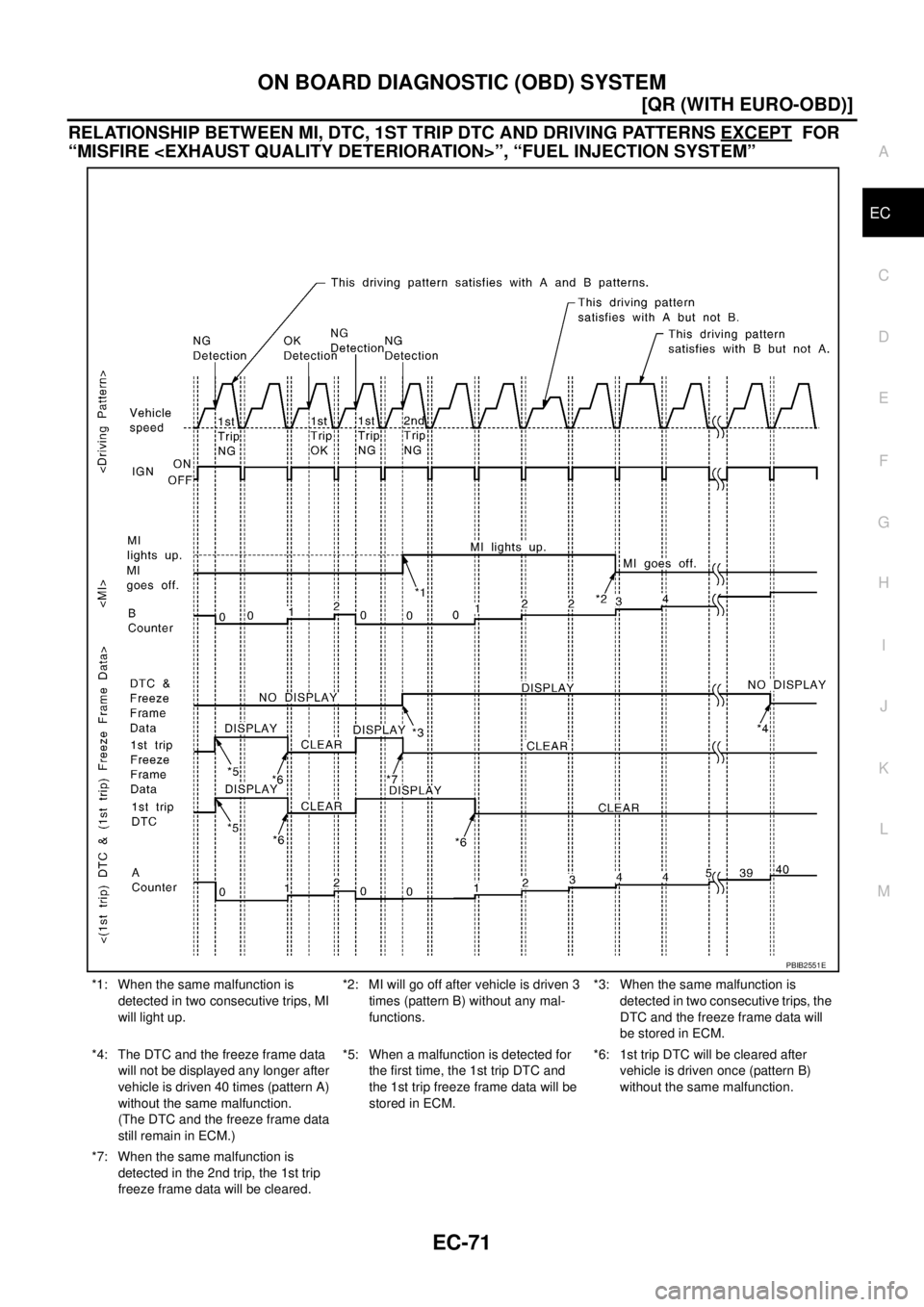

RELATIONSHIP BETWEEN MI, DTC, 1ST TRIP DTC AND DRIVING PATTERNS EXCEPT FOR
“MISFIRE ”, “FUEL INJECTION SYSTEM”
*1: When the same malfunction is
detected in two consecutive trips, MI
will light up.*2: MI will go off after vehicle is driven 3
times (pattern B) without any mal-
functions.*3: When the same malfunction is
detected in two consecutive trips, the
DTC and the freeze frame data will
be stored in ECM.
*4: The DTC and the freeze frame data
will not be displayed any longer after
vehicle is driven 40 times (pattern A)
without the same malfunction.
(The DTC and the freeze frame data
still remain in ECM.)*5: When a malfunction is detected for
the first time, the 1st trip DTC and
the 1st trip freeze frame data will be
stored in ECM.*6: 1st trip DTC will be cleared after
vehicle is driven once (pattern B)
without the same malfunction.
*7: When the same malfunction is
detected in the 2nd trip, the 1st trip
freeze frame data will be cleared.
PBIB2551E

EC-72
[QR (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

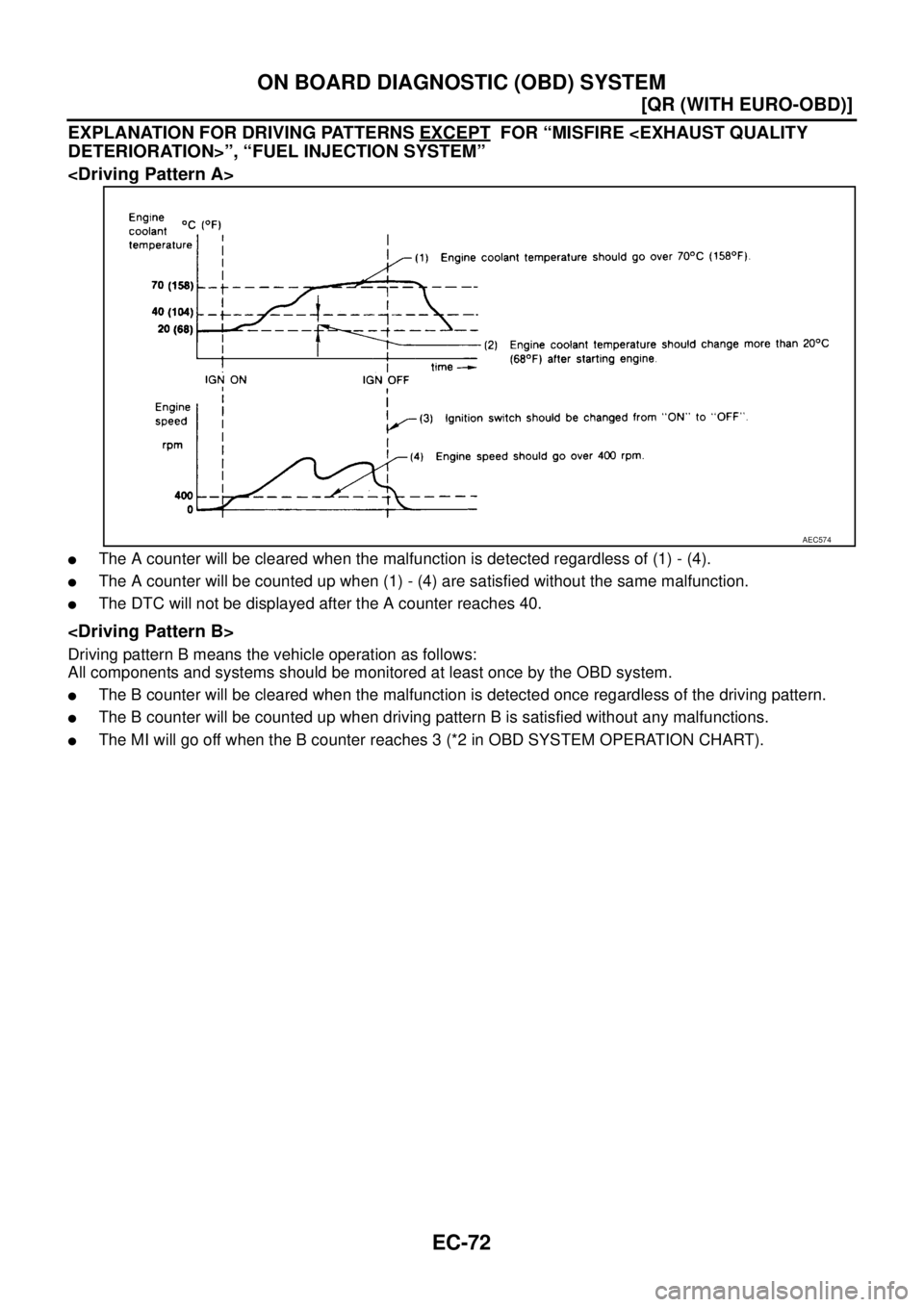

EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR “MISFIRE DETERIORATION>”, “FUEL INJECTION SYSTEM”


The A counter will be cleared when the malfunction is detected regardless of (1) - (4).

The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.

The DTC will not be displayed after the A counter reaches 40.

Driving pattern B means the vehicle operation as follows:
All components and systems should be monitored at least once by the OBD system.

The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.

The B counter will be counted up when driving pattern B is satisfied without any malfunctions.

The MI will go off when the B counter reaches 3 (*2 in OBD SYSTEM OPERATION CHART).
AEC574

TROUBLE DIAGNOSIS
EC-75
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Description for Work Flow
STEP DESCRIPTION
STEP IGet detailed information about the conditions and the environment when the incident/symptom occurred using EC-76,
"DIAGNOSTIC WORKSHEET" .
STEP IIBefore confirming the concern, check and write down (print out using CONSULT-II or GST) the (1st trip) DTC and the
(1st trip) freeze frame data, then erase the DTC and the data. (Refer to EC-63, "
HOW TO ERASE EMISSION-
RELATED DIAGNOSTIC INFORMATION" .) The (1st trip) DTC and the (1st trip) freeze frame data can be used when
duplicating the incident at STEP III & IV.
If the incident cannot be verified, perform EC-124, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
Study the relationship between the cause, specified by (1st trip) DTC, and the symptom described by the customer.
(The Symptom Matrix Chart will be useful. See EC-84, "
Symptom Matrix Chart" .)
Also check related service bulletins for information.
STEP IIITry to confirm the symptom and under what conditions the incident occurs.
The DIAGNOSTIC WORK SHEET and the freeze frame data are useful to verify the incident. Connect CONSULT-II
to the vehicle in “DATA MONITOR (AUTO TRIG)” mode and check real time diagnosis results.
If the incident cannot be verified, perform EC-124, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
If the malfunction code is detected, skip STEP IV and perform STEP V.
STEP IVTry to detect the (1st trip) DTC by driving in (or performing) the DTC Confirmation Procedure. Check and read the (1st
trip) DTC and (1st trip) freeze frame data by using CONSULT-II or GST.
During the (1st trip) DTC verification, be sure to connect CONSULT-II to the vehicle in “DATA MONITOR (AUTO
TRIG)” mode and check real time diagnosis results.
If the incident cannot be verified, perform EC-124, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
In case the DTC Confirmation Procedure is not available, perform the Overall Function Check instead. The (1st trip)
DTC cannot be displayed by this check, however, this simplified check is an effective alternative.
The NG result of the Overall Function Check is the same as the (1st trip) DTC detection.
STEP VTake the appropriate action based on the results of STEP I through IV.
If the malfunction code is indicated, proceed to TROUBLE DIAGNOSIS FOR DTC PXXXX.
If the normal code is indicated, proceed to the BASIC INSPECTION. (Refer to EC-79, "
Basic Inspection" .)Then per-
form inspections according to the Symptom Matrix Chart. (Refer to EC-84, "
Symptom Matrix Chart" .)
STEP VIIdentify where to begin diagnosis based on the relationship study between symptom and possible causes. Inspect the
system for mechanical binding, loose connectors or wiring damage using (tracing) Harness Layouts.
Gently shake the related connectors, components or wiring harness with CONSULT-II set in “DATA MONITOR
(AUTO TRIG)” mode.
Check the voltage of the related ECM terminals or monitor the output data from the related sensors with CONSULT-II.
Refer to EC-95, "
ECM Terminals and Reference Value" , EC-115, "CONSULT-II Reference Value in Data Monitor
Mode" .
The Diagnostic Procedure in EC section contains a description based on open circuit inspection. A short circuit
inspection is also required for the circuit check in the Diagnostic Procedure. For details, refer to Circuit Inspection in
GI-23, "
How to Perform Efficient Diagnosis for an Electrical Incident" .
Repair or replace the malfunction parts.
If malfunctioning part cannot be detected, perform EC-124, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCI-
DENT" .
STEP VIIOnce you have repaired the circuit or replaced a component, you need to run the engine in the same conditions and
circumstances which resulted in the customer's initial complaint.
Perform the DTC Confirmation Procedure and confirm the normal code [DTC No. P0000] is detected. If the incident is
still detected in the final check, perform STEP VI by using a method different from the previous one.
Before returning the vehicle to the customer, be sure to erase the unnecessary (already fixed) (1st trip) DTC in ECM
and TCM (Transmission control module). (Refer to EC-63, "
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC
INFORMATION" and AT-42, "HOW TO ERASE DTC" .)

TROUBLE DIAGNOSIS
EC-77
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC Inspection Priority ChartEBS010LQ
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If DTC U1000 and/or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC
U1000 and U1001. Refer to EC-133, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
*: For QR25DE engine modelsPriority Detected items (DTC)
1

U1000 U1001 CAN communication line

P0102 P0103 Mass air flow sensor

P0112 P0113 Intake air temperature sensor

P0117 P0118 Engine coolant temperature sensor

P0122 P0123 P0222 P0223 P1225 P1226 P2135 Throttle position sensor

P0327 P0328 Knock sensor

P0335 Crankshaft position sensor (POS)

P0340 Camshaft position sensor (PHASE)

P0500 Vehicle speed sensor

P0605 ECM

P0705 Park/Neutral position (PNP) sensor

P1229 Sensor power supply

P1610-P1615 NATS

P1706 Park/Neutral position (PNP) switch

P2122 P2123 P2127 P2128 P2138 Accelerator pedal position sensor
2

P0031 P0032 Heated oxygen sensor 1 heater

P0037 P0038 Heated oxygen sensor 2 heater

P0132 P0133 P0134 P1143 P1144 Heated oxygen sensor 1

P0138 P0139 P1146 P1147 Heated oxygen sensor 2

P0444 EVAP canister purge volume control solenoid valve

P0550 Power steering pressure sensor

P0710 P0720 P725 P0740 P0745 P0750 P0755 P1705 P1760 A/T related sensors and solenoid valves

P1065 ECM power supply

P 1111 I n ta k e v a l v e t i m i n g c o n t r o l s o l e n o i d v a l v e

P1122 Electric throttle control function

P1124 P1126 Throttle control motor relay

P1128 Throttle control mother

P1211 TCS control unit

P1212 TCS communication line

P1720 Vehicle speed sensor

P1805 Brake switch
3

P0011 Intake valve timing control

P0171 P0172 Fuel injection system function

P0300 - P0304 Misfire

P0420 Three way catalyst function

P0731 - P0734 A/T function

P1121 Electric throttle control actuator

P1217 Engine over temperature (OVERHEAT)

P1564 ASCD steering switch*

P1572 ASCD brake switch*

P1574 ASCD vehicle speed sensor*

EC-78
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

Fail-Safe ChartEBS010LR
When the DTC listed bellow is detected, the ECM enters fail-safe mode and the MI lights up.
When there is an open circuit on MI circuit, the ECM can not warn the driver by lighting up MI when there is
trouble on engine control system.
Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously detected as
NG for 5 trips, ECM warns the driver that engine control system has trouble and MI circuit is open by means of
operating fail-safe function.
The fail-safe function also operates when above diagnoses except MI circuit are detected and demands the
driver to repair the trouble.
DTC No. Detected items Engine operating condition in fail-safe mode
P0102
P0103Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
P0117
P0118Engine coolant tempera-
ture sensor circuitEngine coolant temperature will be determined by ECM based on the time after turning
ignition switch ON or START.
CONSULT-II displays the engine coolant temperature decided by ECM.
ConditionEngine coolant temperature decided
(CONSULT-II display)
Just as ignition switch is turned ON or START 40°C (104°F)
More than approx. 4 minutes after ignition ON
or START80°C (176°F)
Except as shown above40 - 80°C (104 - 176°F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cooling
fan operates while engine is running.
P0122
P0123
P0221
P0222
P2135Throttle position sensor The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
P1121 Electric throttle control
actuator(When electric throttle control actuator does not function properly due to the return spring
malfunction:)
ECM controls the electric throttle actuator by regulating the throttle opening around the
idle position. The engine speed will not rise more than 2,000 rpm.
(When throttle valve opening angle in fail-safe mode is not in specified range:)
ECM controls the electric throttle control actuator by regulating the throttle opening to 20
degrees or less.
(ECM detect the throttle valve is stuck open:)
While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the
engine stalls.
The engine can restart in N or P position (A/T), neutral position (M/T) and engine speed
will not exceed 1,000 rpm or more.
P1122 Electric throttle control
functionECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1124
P1126Throttle control motor relay ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1128 Throttle control motor ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1229 Sensor power supply ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P2122
P2123
P2127
P2128
P2138Accelerator pedal position
sensorThe ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut

TROUBLE DIAGNOSIS
EC-79
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Basic InspectionEBS010LS
1. INSPECTION START
1. Check service records for any recent repairs that may indicate a related malfunction, or a current need for
scheduled maintenance.
2. Open engine hood and check the following:
–Harness connectors for improper connections
–Wiring harness for improper connections, pinches and cut
–Vacuum hoses for splits, kinks and improper connections
–Hoses and ducts for leaks
–Air cleaner clogging
–Gasket
3. Confirm that electrical or mechanical loads are not applied.
–Headlamp switch is OFF.
–Air conditioner switch is OFF.
–Rear window defogger switch is OFF.
–Steering wheel is in the straight-ahead position, etc.
4. Start engine and warm it up until engine coolant temperature
indicator points the middle of gauge.
Ensure engine stays below 1,000 rpm.
5. Run engine at about 2,000 rpm for about 2 minutes under no
load.
6. Make sure that no DTC is displayed with CONSULT-II or GST.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. REPAIR OR REPLACE
Repair or replace components as necessary according to corresponding Diagnostic Procedure.
>> GO TO 3
SEF983U
SEF976U
SEF977U

EC-106
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

WORK SUPPORT MODE
Work Item
*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to EC-19, "INDEX FOR DTC" .
Freeze Frame Data and 1st Trip Freeze Frame Data
*: The items are the same as those of 1st trip freeze frame data.WORK ITEM CONDITION USAGE
FUEL PRESSURE RELEASE

FUEL PUMP WILL STOP BY TOUCHING “START” DUR-
ING IDLING.
CRANK A FEW TIMES AFTER ENGINE STALLS.When releasing fuel pressure
from fuel line
IDLE AIR VOL LEARN

THE IDLE AIR VOLUME THAT KEEPS THE ENGINE
WITHIN THE SPECIFIED RANGE IS MEMORIZED IN
ECM.When learning the idle air volume
SELF-LEARNING CONT

THE COEFFICIENT OF SELF-LEARNING CONTROL
MIXTURE RATIO RETURNS TO THE ORIGINAL COEF-
FICIENT.When clearing the coefficient of
self-learning control value
TARGET IDLE RPM ADJ*

IDLE CONDITION When setting target idle speed
TARGET IGN TIM ADJ*

IDLE CONDITION When adjusting target ignition tim-
ing
Freeze frame data
item*Description
DIAG TROUBLE
CODE
[PXXXX]

The engine control component part/control system has a trouble code, it is displayed as PXXXX. (Refer to
EC-19, "
INDEX FOR DTC" .)
FUEL SYS-B1

“Fuel injection system status” at the moment a malfunction is detected is displayed.

One mode in the following is displayed.
Mode2: Open loop due to detected system malfunction
Mode3: Open loop due to driving conditions (power enrichment, deceleration enleanment)
Mode4: Closed loop - using oxygen sensor(s) as feedback for fuel control
Mode5: Open loop - has not yet satisfied condition to go to closed loop
CAL/LD VALUE [%]

The calculated load value at the moment a malfunction is detected is displayed.
COOLANT TEMP
[°C] or [°F]

The engine coolant temperature at the moment a malfunction is detected is displayed.
L-FUEL TRM-B1 [%]

“Long-term fuel trim” at the moment a malfunction is detected is displayed.

The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule
than short-term fuel trim.
S-FUEL TRM-B1 [%]

“Short-term fuel trim” at the moment a malfunction is detected is displayed.

The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel
schedule.
ENGINE SPEED
[rpm]

The engine speed at the moment a malfunction is detected is displayed.
VEHICL SPEED
[km/h] or [mph]

The vehicle speed at the moment a malfunction is detected is displayed.
B/FUEL SCHDL
[msec]

The base fuel schedule at the moment a malfunction is detected is displayed.
INT/A TEMP SE
[°C] or [°F]

The intake air temperature at the moment a malfunction is detected is displayed.

TROUBLE DIAGNOSIS
EC-107
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DATA MONITOR MODE
Monitored Item
×: Applicable
Monitored item
[Unit]ECM
INPUT
SIGNALSMAIN
SIG-
NALSDescription Remarks
ENG SPEED [rpm]××

Indicates the engine speed computed from the
signals of the crankshaft position sensor
(POS) and camshaft position sensor (PHASE).

Accuracy becomes poor if engine
speed drops below the idle rpm.

If the signal is interrupted while
the engine is running, an abnor-
mal value may be indicated.
MAS A/F SE-B1 [V]××

The signal voltage of the mass air flow sensor
is displayed.
When the engine is stopped, a
certain value is indicated.
B/FUEL SCHDL
[msec]×

“Base fuel schedule” indicates the fuel injec-
tion pulse width programmed into ECM, prior
to any learned on board correction.
A/F ALPHA-B1 [%]×

The mean value of the air-fuel ratio feedback
correction factor per cycle is indicated.

When the engine is stopped, a
certain value is indicated.

This data also includes the data
for the air-fuel ratio learning con-
trol.
COOLAN TEMP/S
[°C] or [°F]××

The engine coolant temperature (determined
by the signal voltage of the engine coolant
temperature sensor) is displayed.

When the engine coolant temper-
ature sensor is open or short-cir-
cuited, ECM enters fail-safe
mode. The engine coolant tem-
perature determined by the ECM
is displayed.
HO2S1 (B1) [V]××

The signal voltage of the heated oxygen sen-
sor 1 is displayed.
HO2S2 (B1) [V]×

The signal voltage of the heated oxygen sen-
sor 2 is displayed.
HO2S1 MNTR (B1)
[RICH/LEAN]××

Display of heated oxygen sensor 1 signal dur-
ing air-fuel ratio feedback control:
RICH: means the mixture became “rich”, and
control is being affected toward a leaner mix-
ture.
LEAN: means the mixture became “lean”, and
control is being affected toward a rich mixture.
After turning ON the ignition
switch, “RICH” is displayed until
air-fuel mixture ratio feedback
control begins.

When the air-fuel ratio feedback
is clamped, the value just before
the clamping is displayed contin-
uously.
HO2S2 MNTR (B1)
[RICH/LEAN]×

Display of heated oxygen sensor 2 signal:
RICH: means the amount of oxygen after three
way catalyst is relatively small.
LEAN: means the amount of oxygen after
three way catalyst is relatively large.

When the engine is stopped, a
certain value is indicated.
VHCL SPEED SE
[km/h] or [mph]××

The vehicle speed computed from the vehicle
speed signal is displayed.
BATTERY VOLT [V]××

The power supply voltage of ECM is dis-
played.
ACCEL SEN 1 [V]××

The accelerator pedal position sensor signal
voltage is displayed.

ACCEL SEN 2 signal is con-
verted by ECM internally. Thus, it
differs from ECM terminal voltage
signal. ACCEL SEN 2 [V]×
THRTL SEN 1 [V]××

The throttle position sensor signal voltage is
displayed.

THRTL SEN 2 signal is con-
verted by ECM internally. Thus, it
differs from ECM terminal voltage
signal. THRTL SEN 2 [V]×
