2005 NISSAN X-TRAIL pulley

EM-48
[QR]
TIMING CHAIN

14. Set No. 1 cylinder at TDC on its compression stroke with the following procedure:
a. Rotate crankshaft pulley clockwise and align TDC mark to timing
indicator on front cover.
b. At the same time, make sure that the mating marks on camshaft
sprockets are located as shown in the figure.

If not, rotate crankshaft pulley one more turn to align mating
marks to the positions in the figure.
15. Remove crankshaft pulley with the following procedure:
a. Fix crankshaft pulley with a pulley holder (commercial service
tool), loosen crankshaft pulley bolt, and locate bolt seating sur-
face at 10 mm (0.39 in) from its original position.
b. Attach a pulley puller (special service tool) in the M 6 thread hole
on crankshaft pulley, and remove crankshaft pulley.
16. Remove front cover with the following procedure:
KBIA0190E
PBIC2351E
PBIC2434E
PBIC2413E

EM-54
[QR]
TIMING CHAIN

d. Apply a continuous bead of liquid gasket with a tube presser
(special service tool: WS39930000) to intake valve timing con-
trol cover as shown in the figure.
Use Genuine Liquid Gasket or equivalent.
e. Tighten mounting bolts in numerical order as shown in the fig-
ure.
10. Insert crankshaft pulley by aligning with crankshaft key.

When inserting crankshaft pulley with a plastic hammer, tap on its center portion (not circumference).
CAUTION:
Install protecting front oil seal lip section from any damage.
11. Tighten crankshaft pulley bolt.

Secure crankshaft pulley with a pulley holder (commercial service tool), and tighten crankshaft pulley
bolt.

Perform angle tightening with the following procedure:
a. Apply new engine oil to thread and seat surfaces of crankshaft pulley bolt.
b. Tighten crankshaft pulley bolt.
c. Put a paint mark on crankshaft pulley, mating with any one of six
easy to recognize angle marks on bolt flange.
d. Turn another 60 degrees clockwise (angle tightening).

Check the tightening angle with movement of one angle mark.
12. Install all removed parts in the reverse order of removal.
SBIA0260E
KBIA0085E
: 42.1 N·m (4.3 kg-m, 31 ft-lb)
SEM751G

CAMSHAFT
EM-57
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

CAUTION:
To avoid power steering fluid leakage, temporarily fix power steering reservoir tank vertically.
4. Remove intake valve timing control cover with the following procedure:
a. Disconnect intake valve timing control solenoid valve harness connector.
b. Remove intake valve timing control solenoid valve, if necessary.
c. Disconnect ground cables.
d. Loosen bolts in reverse order as shown in the figure.
e . U s e a s e a l c u t t e r ( s p e c i a l s e r v i c e t o o l : K V 1 0 1111 0 0 ) o r e q u i v a -
lent tool to cut liquid gasket for removal.
5. Pull chain guide between camshaft sprockets out through front cover.
6. Set No. 1 cylinder at TDC on its compression stroke with the following procedure:
a. Open splash guard on RH undercover.
b. Rotate crankshaft pulley clockwise and align TDC mark to timing
indicator on front cover.
c. At the same time, make sure that the mating marks on camshaft
sprockets are located as shown in the figure.

If not, rotate crankshaft pulley one more turn to align mating
marks to the positions in the figure.
7. Remove camshaft sprockets with the following procedure:
a. Line up the mating marks on camshaft sprockets, and paint indelible mating marks on timing chain link
plate.
KBIA0085E
KBIA0190E
PBIC2351E

EM-64
[QR]
CAMSHAFT

e. Tighten mounting bolts in numerical order as shown in the fig-
ure.
10. Inspect and adjust valve clearance. Refer to EM-64, "
Valve Clearance" .
11. Install in the reverse order of removal after this step.
Valve ClearanceEBS00LS3
INSPECTION
Perform inspection as follows after removal, installation or replacement of camshaft or valve-related parts, or if
there is unusual engine conditions regarding valve clearance.
1. Remove rocker cover. Refer to EM-44, "
ROCKER COVER" .
2. Open splash guard on RH undercover.
3. Measure the valve clearance with the following procedure:
a. Set No. 1 cylinder at TDC of its compression stroke.

Rotate crankshaft pulley clockwise and align TDC mark to
timing indicator on front cover.

At the same time, make sure that both intake and exhaust
cam noses of No. 1 cylinder face outside as shown in the fig-
ure.

If they do not face outside, rotate crankshaft pulley once more
(360 degrees) and align as shown in the figure.
b. Use a feeler gauge, measure the clearance between valve lifter
and camshaft.
KBIA0085E
KBIA0190E
KBIA0400J
SEM139D

CAMSHAFT

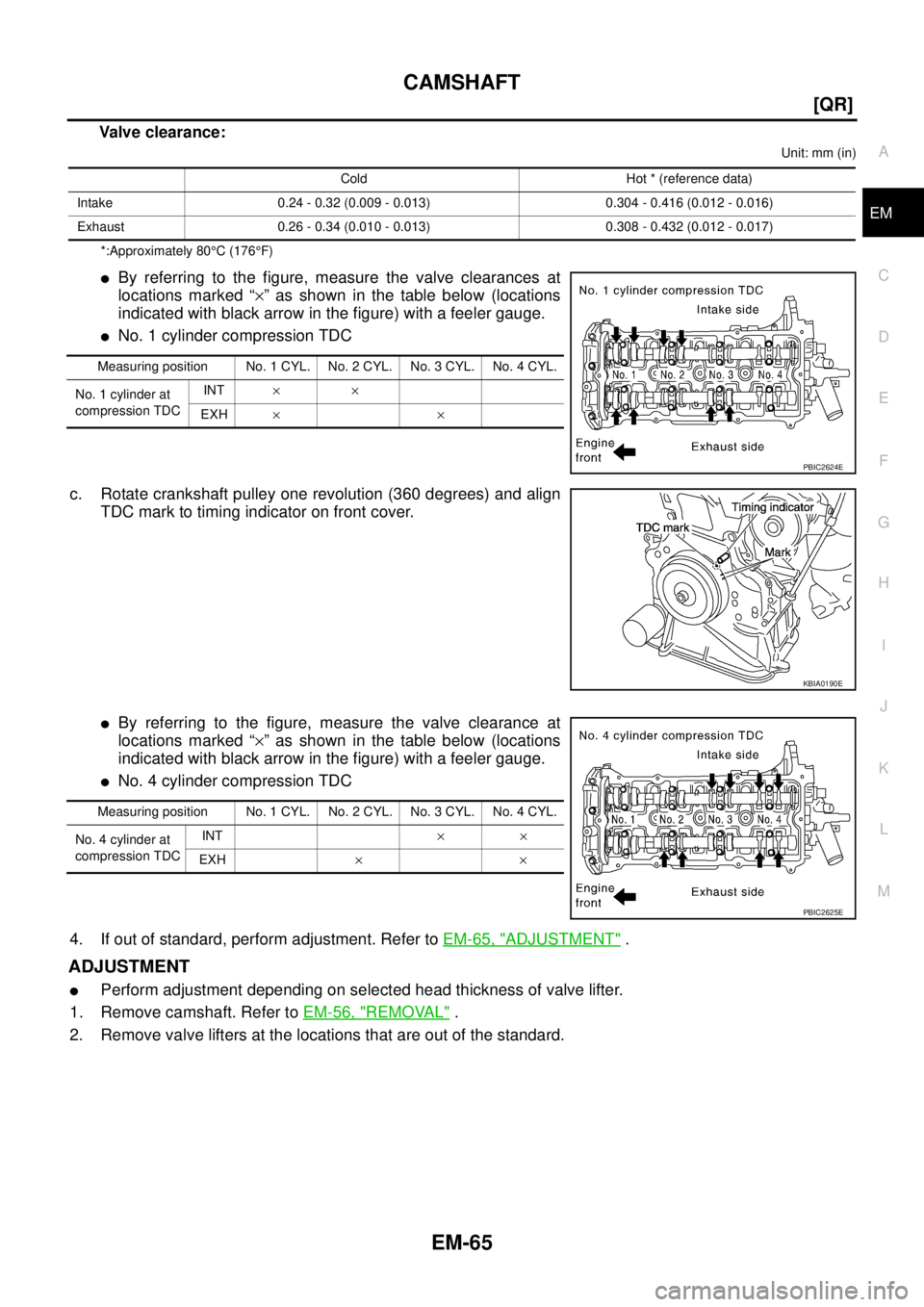

EM-65
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Valve clearance:
Unit: mm (in)
*:Approximately 80°C (176°F)

By referring to the figure, measure the valve clearances at
locations marked “×” as shown in the table below (locations
indicated with black arrow in the figure) with a feeler gauge.

No. 1 cylinder compression TDC
c. Rotate crankshaft pulley one revolution (360 degrees) and align
TDC mark to timing indicator on front cover.

By referring to the figure, measure the valve clearance at
locations marked “×” as shown in the table below (locations
indicated with black arrow in the figure) with a feeler gauge.

No. 4 cylinder compression TDC
4. If out of standard, perform adjustment. Refer to EM-65, "
ADJUSTMENT" .
ADJUSTMENT

Perform adjustment depending on selected head thickness of valve lifter.
1. Remove camshaft. Refer to EM-56, "
REMOVAL" .
2. Remove valve lifters at the locations that are out of the standard.
Cold Hot * (reference data)
Intake 0.24 - 0.32 (0.009 - 0.013) 0.304 - 0.416 (0.012 - 0.016)
Exhaust 0.26 - 0.34 (0.010 - 0.013) 0.308 - 0.432 (0.012 - 0.017)
Measuring position No. 1 CYL. No. 2 CYL. No. 3 CYL. No. 4 CYL.
No. 1 cylinder at
compression TDCINT × ×
EXH × ×
PBIC2624E
KBIA0190E
Measuring position No. 1 CYL. No. 2 CYL. No. 3 CYL. No. 4 CYL.
No. 4 cylinder at
compression TDCINT × ×
EXH × ×
PBIC2625E

EM-66
[QR]
CAMSHAFT

3. Measure the center thickness of the removed valve lifters with a
micrometer.
4. Use the equation below to calculate valve lifter thickness for replacement.

Thickness of new valve lifter can be identified by stamp mark
on the reverse side (inside the cylinder).
Stamp mark “696” indicates 6.96 mm (0.2740 in) in thickness.
NOTE:
Available thickness of valve lifter: 26 sizes range 6.96 to 7.46 mm (0.2740 to 0.2937 in) in steps of 0.02
mm (0.0008 in) (when manufactured at factory). Refer to EM-119, "
Available Valve Lifter" .
5. Install the selected valve lifter.
6. Install camshaft. Refer to EM-61, "
INSTALLATION" .
7. Manually rotate crankshaft pulley a few rotations.
8. Make sure that valve clearances for cold engine are within specifications by referring to the specified val-
ues. Refer to EM-64, "
INSPECTION" .
9. Install all removed parts in the reverse order of removal. Refer to EM-61, "
INSTALLATION" .
10. Warm up the engine, and check for unusual noise and vibration.
KBIA0057E
Valve lifter thickness calculation: t = t1 + (C1 – C2 )
t = Valve lifter thickness to be replaced
t
1 = Removed valve lifter thickness
C
1= Measured valve clearance
C
2= Standard valve clearance:
Intake : 0.28 mm (0.011 in)
Exhaust : 0.30 mm (0.012 in)
KBIA0119E

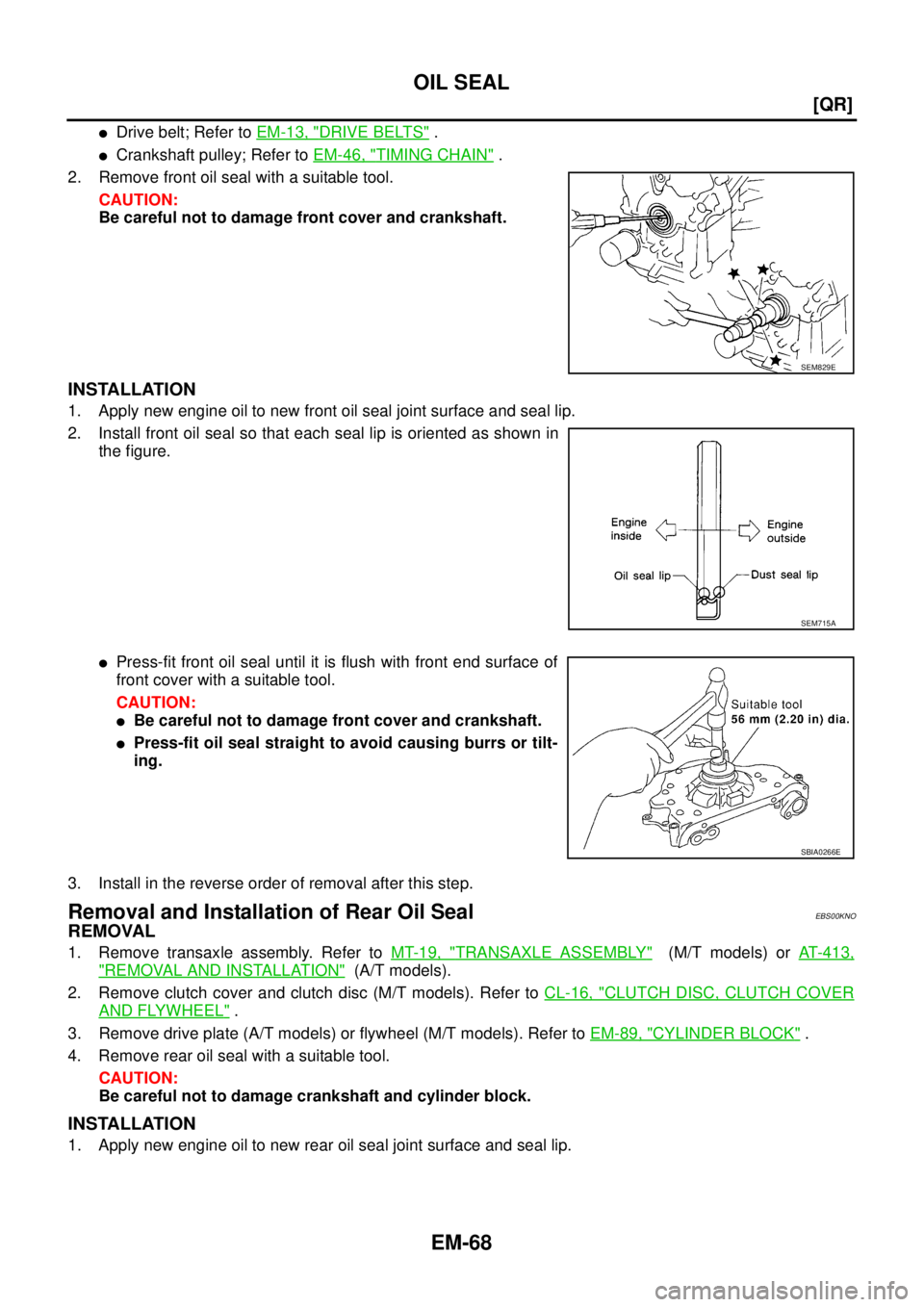

EM-68
[QR]
OIL SEAL


Drive belt; Refer to EM-13, "DRIVE BELTS" .

Crankshaft pulley; Refer to EM-46, "TIMING CHAIN" .
2. Remove front oil seal with a suitable tool.
CAUTION:
Be careful not to damage front cover and crankshaft.
INSTALLATION
1. Apply new engine oil to new front oil seal joint surface and seal lip.
2. Install front oil seal so that each seal lip is oriented as shown in
the figure.

Press-fit front oil seal until it is flush with front end surface of
front cover with a suitable tool.
CAUTION:

Be careful not to damage front cover and crankshaft.

Press-fit oil seal straight to avoid causing burrs or tilt-
ing.
3. Install in the reverse order of removal after this step.
Removal and Installation of Rear Oil SealEBS00KNO
REMOVAL
1. Remove transaxle assembly. Refer to MT-19, "TRANSAXLE ASSEMBLY" (M/T models) or AT- 4 1 3 ,
"REMOVAL AND INSTALLATION" (A/T models).
2. Remove clutch cover and clutch disc (M/T models). Refer to CL-16, "
CLUTCH DISC, CLUTCH COVER
AND FLYWHEEL" .
3. Remove drive plate (A/T models) or flywheel (M/T models). Refer to EM-89, "
CYLINDER BLOCK" .
4. Remove rear oil seal with a suitable tool.
CAUTION:
Be careful not to damage crankshaft and cylinder block.
INSTALLATION
1. Apply new engine oil to new rear oil seal joint surface and seal lip.
SEM829E
SEM715A
SBIA0266E

EM-128
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)

Oil strainer M6 bolt
8.8 (0.90, 78) *2
M8 bolt 21.6 (2.2, 16)
Ignition coil
6.4 (0.65, 57) *
2
Spark plug24.5 (2.5, 18)
*1 Fuel tube1) 10.1 (1.0, 7)
2) 23.6 (2.4, 17)
*1 Rocker cover 1)
2.0 (0.20, 18) *
2
2)
8.3 (0.85, 73) *2
PCV valve
2.5 (0.26, 22) *2
Intake valve timing control solenoid valve
6.4 (0.65, 57) *2
*1 Intake valve timing control cover 12.8 (1.3, 9)
Camshaft position sensor (PHASE)
6.4 (0.65, 57) *
2
Camshaft sprockets (Intake and Exhaust) 142 (14, 105)
Chain tensioner
7.0 (0.71, 62) *
2
*1 Camshaft bracket 1) 2.0 (0.2, 1)
2) 5.9 (0.6, 4)
3) 10.4 (1.1, 8)
Crankshaft pulley 1) 42.1 (4.3, 31)
2) 60° (Angle tightening)
*1 Front cover 12.8 (1.3, 9)
Timing chain slack guide 16.7 (1.7, 12)
Timing chain tension guide 16.7 (1.7, 12)
Balancer unit timing chain tensioner
7.0 (0.71, 62) *
2
*1 Balancer unit 1) 48.1 (4.9, 35)
2) 90° (Angle tightening)
3) 0 (0, 0)
4) 48.1 (4.9, 35)
5) 90° (Angle tightening)
*1 Cylinder head 1) 50 (5.1, 37)
2) 60° (Angle tightening)
3) 0 (0.0, 0)
3) 39.2 (4.0, 29)
4) 75° (Angle tightening)
5) 75° (Angle tightening)
Flywheel (M/T)108 (11, 80)
Drive plate (A/T)108 (11, 80)
Connecting rod bearing cap 1) 19.6 (2.0, 14)
2) 90° (Angle tightening)
*1 Lower cylinder block M8 bolt 1) 25.1 (2.6, 19)
M10 bolt 2) 39.2 (4.0, 29)
M10 bolt 3) 60° (Angle tightening)
Signal plate18.5 (1.9, 14)
Water drain plug
9.8 (1.0, 87) *
2
