TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

Sharp shock in shifting from “N” to
“D” position.ON vehicle1. Engine idling rpmEC-45
2. Accelerator pedal position (APP) sensorAT-173
3. Line pressure testAT- 6 8
4. A/T fluid temperature sensorAT-184
5. Engine speed signalAT- 11 9
6. Line pressure solenoid valveAT-154
7. Control valve assemblyAT-404
8. Accumulator N-DAT-404
OFF vehicle 9. Forward clutchAT-475
Vehicle will not run in “D” and “2”
positions (but runs in “1” and “R”
positions).ON vehicle 1. Control cable adjustmentAT-409
OFF vehicle 2. Low one-way clutchAT-416, AT- 4 2 3
Vehicle will not run in “D”, “1”, “2”
positions (but runs in “R” position).
Clutch slips. Very poor acceleration.
AT- 2 1 2
ON vehicle1. Fluid levelAT- 6 4
2. Stall testAT- 6 5
3. Line pressure testAT- 6 8
4. Line pressure solenoid valveAT-154
5. Control valve assemblyAT-404
6. Accumulator N-DAT-404
Vehicle will not run in “D”, “1”, “2”
positions (but runs in “R” position).
Clutch slips. Very poor acceleration.
AT- 2 1 2
OFF vehicle7. Reverse clutchAT-464
8. High clutchAT-469
9. Forward clutchAT-475
10. Forward one-way clutchAT-416
11. Low one-way clutchAT-416, AT- 4 2 3
Clutches or brakes slip somewhat in
starting.ON vehicle1. Fluid levelAT- 6 4
2. Control cable adjustmentAT-409
3. Accelerator pedal position (APP) sensorAT-173
4. Line pressure testAT- 6 8
5. Line pressure solenoid valveAT-154
6. Control valve assemblyAT-404
7. Accumulator N-DAT-404
8. Shift solenoid valve AAT-161
9. Shift solenoid valve BAT-167
10. Overrun clutch solenoid valveAT-178
11. Torque converter clutch solenoid valveAT-148
OFF vehicle12. Forward clutchAT-475
13. Reverse clutchAT-464
14. Low & reverse brakeAT-483
15. Oil pumpAT-443
16. Torque converterAT-423
Excessive creep. ON vehicle 1. Engine idling rpm EC-45
Symptom Condition Diagnostic Item Reference Page

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-87
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

No creep at all.
AT- 2 1 0
and AT-212
ON vehicle1. Fluid levelAT- 6 42. Line pressure testAT-387
3. Control valve assemblyAT-404
OFF vehicle4. Forward clutchAT-4755. Oil pumpAT-443
6. Torque converterAT-423
Failure to change gear from “D1 ” to
“D
2 ”.ON vehicle1. Control cable adjustmentAT-409
2. Shift solenoid valve AAT-161
3. Control valve assemblyAT-404
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT- 11 2, AT- 1 9 2
5. Accelerator pedal position (APP) sensorAT-173
OFF vehicle 6. Brake bandAT-497
Failure to change gear from “D2 ” to
“D
3 ”.ON vehicle1. Control cable adjustmentAT-409
2. Shift solenoid valve BAT-167
3. Control valve assemblyAT-404
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT- 11 2, AT- 1 9 2
5. Accelerator pedal position (APP) sensorAT-173
OFF vehicle6. High clutchAT-4697. Brake bandAT-497
Failure to change gear from “D3 ” to
“D
4 ”.ON vehicle1. PNP switchAT-100
2. Overdrive control switchAT-237
3. Shift solenoid valve AAT-161
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT- 11 2, AT- 1 9 2
5. A/T fluid temperature sensorAT-184
OFF vehicle 6. Brake bandAT-497
Too high a gear change point from
“D
1 ” to “D2 ”, from “D2 ” to “D3 ”,
from “D
3 ” to “D4 ”.
AT- 2 1 7
, AT- 2 2 0 and AT-222
ON vehicle1. Accelerator pedal position (APP) sensorAT-173
2. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT- 11 2, AT- 1 9 2
3. Shift solenoid valve AAT-161
4. Shift solenoid valve BAT-167
Gear change directly from “D1 ” to
“D
3 ” occurs.ON vehicle1. Fluid levelAT- 6 42. Accumulator servo releaseAT-404
OFF vehicle 3. Brake bandAT-497
Engine stops when shifting lever
into “R”, “D”, “2” and “1”.ON vehicle1. Engine idling rpm EC-45
2. Fluid levelAT- 6 4
3. Torque converter clutch solenoid valveAT-148
4. Control valve assemblyAT-404
OFF vehicle 5. Torque converterAT-423
Symptom Condition Diagnostic Item Reference Page

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-89
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

Vehicle braked by gear change from
“D
3 ” to “D4 ”.ON vehicle 1. Fluid levelAT- 6 4OFF vehicle2. Overrun clutchAT-3623. Forward one-way clutchAT-416
4. Reverse clutchAT-464
Maximum speed not attained.
Acceleration poor.ON vehicle1. Fluid levelAT- 6 4
2. PNP switchAT-100
3. Overdrive control switchAT-237
4. Accelerator pedal position (APP) sensorAT-173
5. Shift solenoid valve AAT-161
6. Shift solenoid valve BAT-167
7. Control valve assemblyAT-404
OFF vehicle8. Reverse clutchAT-464
9. High clutchAT-469
10. Brake bandAT-497
11. Low & reverse brakeAT-483
12. Oil pumpAT-443
13. Torque converterAT-423
Failure to change gear from “D4 ” to
“D
3 ”.ON vehicle1. Fluid levelAT- 6 4
2. Accelerator pedal position (APP) sensorAT-173
3. Overrun clutch solenoid valveAT-178
4. Shift solenoid valve AAT-161
5. Line pressure solenoid valveAT-154
6. Control valve assemblyAT-404
OFF vehicle7. Brake bandAT-4978. Overrun clutchAT-475
Failure to change gear from “D3 ” to
“D
2 ” or from “D4 ” to “D2 ”.ON vehicle1. Fluid levelAT- 6 4
2. Accelerator pedal position (APP) sensorAT-173
3. Shift solenoid valve AAT-161
4. Shift solenoid valve BAT-167
5. Control valve assemblyAT-404
OFF vehicle6. High clutchAT-4697. Brake bandAT-497
Failure to change gear from “D2 ” to
“D
1 ” or from “D3 ” to “D1 ”.ON vehicle1. Fluid levelAT- 6 4
2. Accelerator pedal position (APP) sensorAT-173
3. Shift solenoid valve AAT-161
4. Shift solenoid valve BAT-167
5. Control valve assemblyAT-404
OFF vehicle6. Low one-way clutchAT- 4 1 6
, AT-423
7. High clutchAT-469
8. Brake bandAT-497
Gear change shock felt during
deceleration by releasing accelera-
tor pedal.ON vehicle1. Accelerator pedal position (APP) sensorAT-1732. Line pressure testAT- 6 8
3. Overrun clutch solenoid valveAT-178
4. Control valve assemblyAT-404
Symptom Condition Diagnostic Item Reference Page

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-91
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

Races extremely fast or slips in
changing from “D
4 ” or “D3 ” to “D1 ”
when depressing pedal.ON vehicle1. Fluid levelAT- 6 4
2. Accelerator pedal position (APP) sensorAT-173
3. Line pressure testAT- 6 8
4. Line pressure solenoid valveAT-154
5. Shift solenoid valve AAT-161
6. Shift solenoid valve BAT-167
7. Control valve assemblyAT-404
OFF vehicle8. Forward clutchAT-4759. Forward one-way clutchAT-416
10. Low one-way clutchAT- 4 1 6, AT-423
Vehicle will not run in any position.ON vehicle1. Fluid levelAT- 6 4
2. Control cable adjustmentAT-409
3. Line pressure testAT- 6 8
4. Line pressure solenoid valveAT-154
OFF vehicle5. Oil pumpAT-4436. Torque converterAT-423
7. Parking componentsAT-416
Transaxle noise in “D”, “2”, “1” and
“R” positions.ON vehicle 1. Fluid levelAT- 6 4
OFF vehicle 2. Torque converterAT-423
Failure to change from “D3 ” to “22 ”
when changing lever into “2” posi-
tion.
AT- 2 3 2
ON vehicle1. Accelerator pedal position (APP) sensorAT-1732. Shift solenoid valve BAT-167
3. Control valve assemblyAT-404
4. Control cable adjustmentAT-409
Failure to change from “D3 ” to “22 ”
when changing lever into “2” posi-
tion.
AT- 2 3 2
OFF vehicle 5. Brake bandAT-497
Gear change from “22 ” to “23 ” in “2”
position.ON vehicle1. PNP switchAT-100
2. Control cable adjustmentAT-409
Engine brake does not operate in
“1” position.
AT- 2 3 0ON vehicle1. PNP switchAT-100
2. Control cable adjustmentAT-409
3. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT- 11 2, AT- 1 9 2
4. Control valve assemblyAT-404
5. Overrun clutch solenoid valveAT-178
OFF vehicle6. Overrun clutchAT-4757. Low & reverse brakeAT-483
Gear change from “11 ” to “12 ” in “1”
position.ON vehicle1. PNP switchAT-100
2. Control cable adjustmentAT-409
Symptom Condition Diagnostic Item Reference Page

AT-92
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

Does not change from “12 ” to “11 ”
in “1” position.ON vehicle1. PNP switchAT-100
2. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT- 11 2, AT- 1 9 2
3. Shift solenoid valve AAT-161
4. Control valve assemblyAT-404
OFF vehicle5. Low one-way clutchAT-416
, AT- 4 2 3
6. Brake bandAT-497
7. Low & reverse brakeAT-483
Large shock changing from “12 ” to
“1
1 ” in “1” position.ON vehicle 1. Control valve assemblyAT-404OFF vehicle 2. Low & reverse brakeAT-483
Transaxle overheats. ON vehicle1. Fluid levelAT- 6 4
2. Engine idling rpm EC-45
3. Accelerator pedal position (APP) sensorAT-173
4. Line pressure testAT- 6 8
5. Line pressure solenoid valveAT-154
6. Control valve assemblyAT-404
Transaxle overheats. OFF vehicle7. Oil pumpAT-443
8. Reverse clutchAT-464
9. High clutchAT-469
10. Brake bandAT-497
11. Forward clutchAT-475
12. Overrun clutchAT-475
13. Low & reverse brakeAT-483
14. Torque converterAT-423
ATF shoots out during operation.
White smoke emitted from exhaust
pipe during operation.ON vehicle 1. Fluid levelAT- 6 4
OFF vehicle2. Reverse clutchAT-464
3. High clutchAT-469
4. Brake bandAT-497
5. Forward clutchAT-475
6. Overrun clutchAT-475
7. Low & reverse brakeAT-483
Offensive smell at fluid charging
pipe.ON vehicle 1. Fluid levelAT- 6 4
OFF vehicle2. Torque converterAT-423
3. Oil pumpAT-443
4. Reverse clutchAT-464
5. High clutchAT-469
6. Brake bandAT-497
7. Forward clutchAT-475
8. Overrun clutchAT-475
9. Low & reverse brakeAT-483
Symptom Condition Diagnostic Item Reference Page

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-93
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

Torque converter is not locked up. ON vehicle1. Accelerator pedal position (APP) sensorAT-173
2. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT- 11 2, AT- 1 9 2
3. Engine speed signalAT- 11 9
4. A/T fluid temperature sensorAT-184
5. Line pressure testAT- 6 8
6. Torque converter clutch solenoid valveAT-148
7. Control valve assemblyAT-404
Torque converter is not locked up. OFF vehicle 8. Torque converterAT-423
Torque converter clutch piston slip.ON vehicle1. Fluid levelAT- 6 4
2. Accelerator pedal position (APP) sensorAT-173
3. Line pressure testAT- 6 8
4. Torque converter clutch solenoid valveAT-148
5. Line pressure solenoid valveAT-154
6. Control valve assemblyAT-404
OFF vehicle 7. Torque converterAT-423
Lock-up point is extremely high or
low.
AT- 2 2 4
ON vehicle1. Accelerator pedal position (APP) sensorAT-173
2. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT- 11 2, AT- 1 9 2
3. Torque converter clutch solenoid valveAT-148
4. Control valve assemblyAT-404
A/T does not shift to “D4 ” when driv-
ing with overdrive control switch
“ON”.ON vehicle1. Accelerator pedal position (APP) sensorAT-173
2. PNP switchAT-100
3. Overdrive control switchAT-237
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT- 11 2, AT- 1 9 2
5. Shift solenoid valve AAT-161
6. Overrun clutch solenoid valveAT-178
7. Control valve assemblyAT-404
8. A/T fluid temperature sensorAT-184
9. Line pressure testAT- 6 8
A/T does not shift to “D4 ” when driv-
ing with overdrive control switch
“ON”.OFF vehicle10. Brake bandAT-497
11. Overrun clutchAT-475
Engine is stopped at “R”, “D”, “2”
and “1” positions.ON vehicle1. Fluid levelAT- 6 4
2. Torque converter clutch solenoid valveAT-148
3. Shift solenoid valve AAT-161
4. Shift solenoid valve BAT-167
5. Control valve assemblyAT-404
Symptom Condition Diagnostic Item Reference Page

AT-94
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

TCM Terminals and Reference ValueECS004QV
PREPARATION

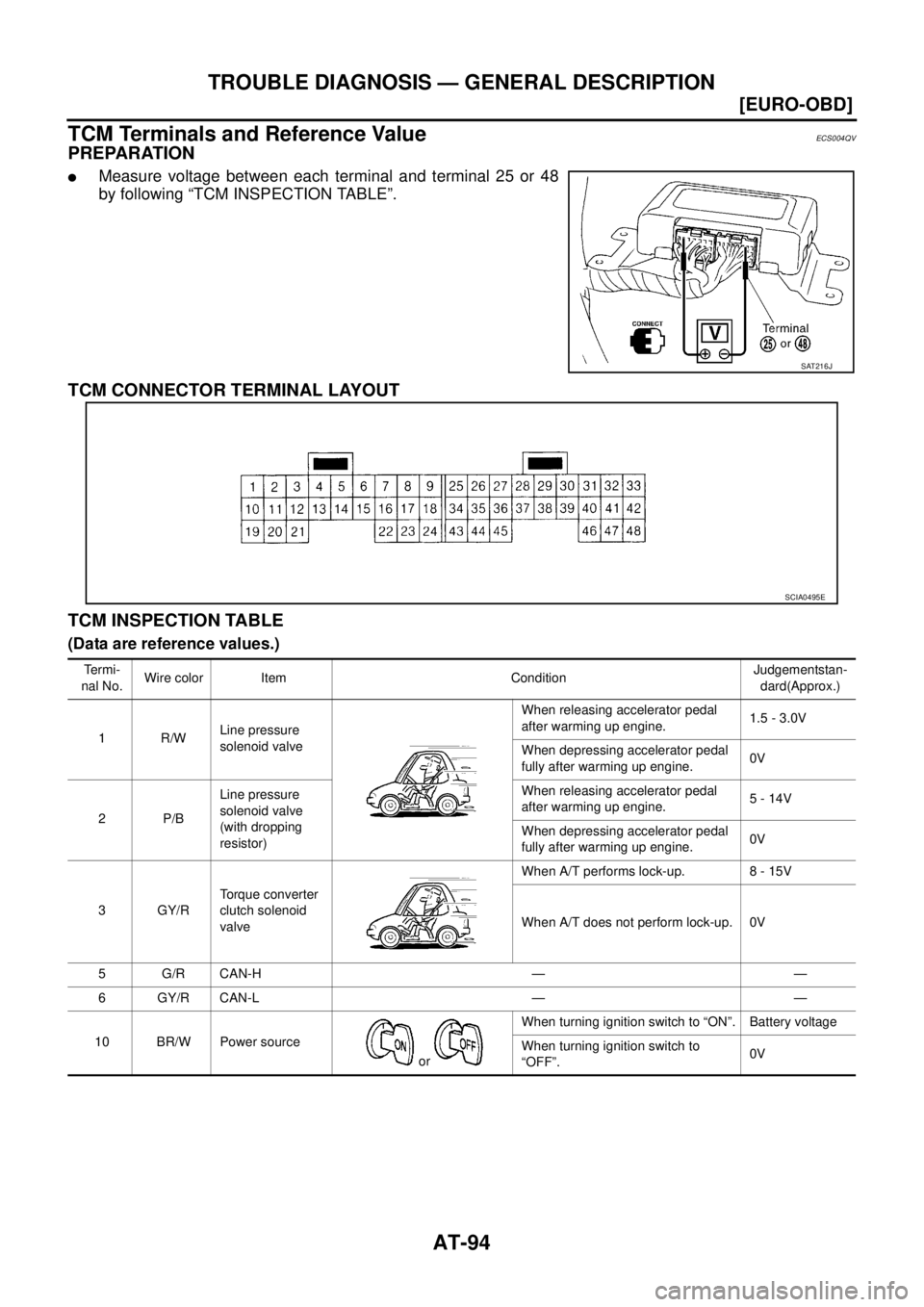

Measure voltage between each terminal and terminal 25 or 48
by following “TCM INSPECTION TABLE”.
TCM CONNECTOR TERMINAL LAYOUT
TCM INSPECTION TABLE
(Data are reference values.)
SAT216J
SCIA0495E
Te r m i -
nal No.Wire color Item ConditionJudgementstan-
dard(Approx.)
1R/WLine pressure
solenoid valveWhen releasing accelerator pedal
after warming up engine.1.5 - 3.0V
When depressing accelerator pedal
fully after warming up engine.0V
2P/BLine pressure
solenoid valve
(with dropping
resistor)When releasing accelerator pedal
after warming up engine.5 - 14V
When depressing accelerator pedal
fully after warming up engine.0V
3GY/RTorque converter
clutch solenoid
valveWhen A/T performs lock-up. 8 - 15V
When A/T does not perform lock-up. 0V
5 G/R CAN-H — —
6 GY/R CAN-L — —
10 BR/W Power source
or When turning ignition switch to “ON”. Battery voltage
When turning ignition switch to
“OFF”.0V

DTC P0731 A/T 1ST GEAR FUNCTION
AT-125
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

DTC P0731 A/T 1ST GEAR FUNCTIONPFP:31940
DescriptionECS004RA

This malfunction will not be detected while the O/D OFF indicator lamp is indicating another self-diagnosis
malfunction.

This malfunction is detected when the A/T does not shift into first gear position as instructed by the TCM.
This is not caused by electrical malfunction (circuits open or shorted) but by mechanical malfunction such
as control valve sticking, improper solenoid valve operation, etc.
On Board Diagnostic LogicECS00CTS
This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM as
follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (1st) supposed by TCM, the slip ratio will be more than
normal. In case the ratio exceeds the specified value, TCM judges this diagnosis malfunction.
This malfunction will be caused when either shift solenoid valve A is stuck open or shift solenoid valve B is
stuck open.
*: P0731 is detected.
Possible CauseECS00CTT
Check the following items.

Shift solenoid valve A

Shift solenoid valve B

Each clutch

Hydraulic control circuit
DTC Confirmation ProcedureECS00CTU
CAUTION:

Always drive vehicle at a safe speed.

Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF”
and wait at least 5 seconds before conducting the next test.
TESTING CONDITION:
Always drive vehicle on a level road to improve the accuracy of test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Gear position supposed by TCM 1 2 3 4
In case of gear position with no malfunctions 1 2 3 4
In case of gear position with shift solenoid valve A stuck open 2* 2 3 3
In case of gear position with shift solenoid valve B stuck open 4* 3 3 4
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: A/T 1ST GR FNCTN
A/T cannot be shifted to the 1st gear posi-
tion even if electrical circuit is good.

Shift solenoid valve A

Shift solenoid valve B

Each clutch

Hydraulic control circuit : P0731
