2005 NISSAN X-TRAIL warning

BR-32
REAR DISC BRAKE

REAR DISC BRAKEPFP:44000
ComponentEFS0017X
WARNING:

Clean dust on brake caliper and pad with a vacuum dust collector. Do not blow with compressed
air.
CAUTION:

Never depress brake pedal while removing cylinder body because piston will pop out.

Do not remove brake hose and torque member mounting bolts unless disassembling or replacing
caliper assembly. Hang the cylinder body with a wire so that the brake hose is not under tension.

Be careful not to damage piston boot. Do not allow brake fluid to get the rotor.

When replacing brake pads, always replace inner shims, outer shims, and shim covers as a set.
InspectionEFS0017Y
PAD WEAR INSPECTION
Check pad thickness by lifting vehicle, removing tyre and wheel, and
looking through check hole on cylinder body. If necessary, use a
scale.

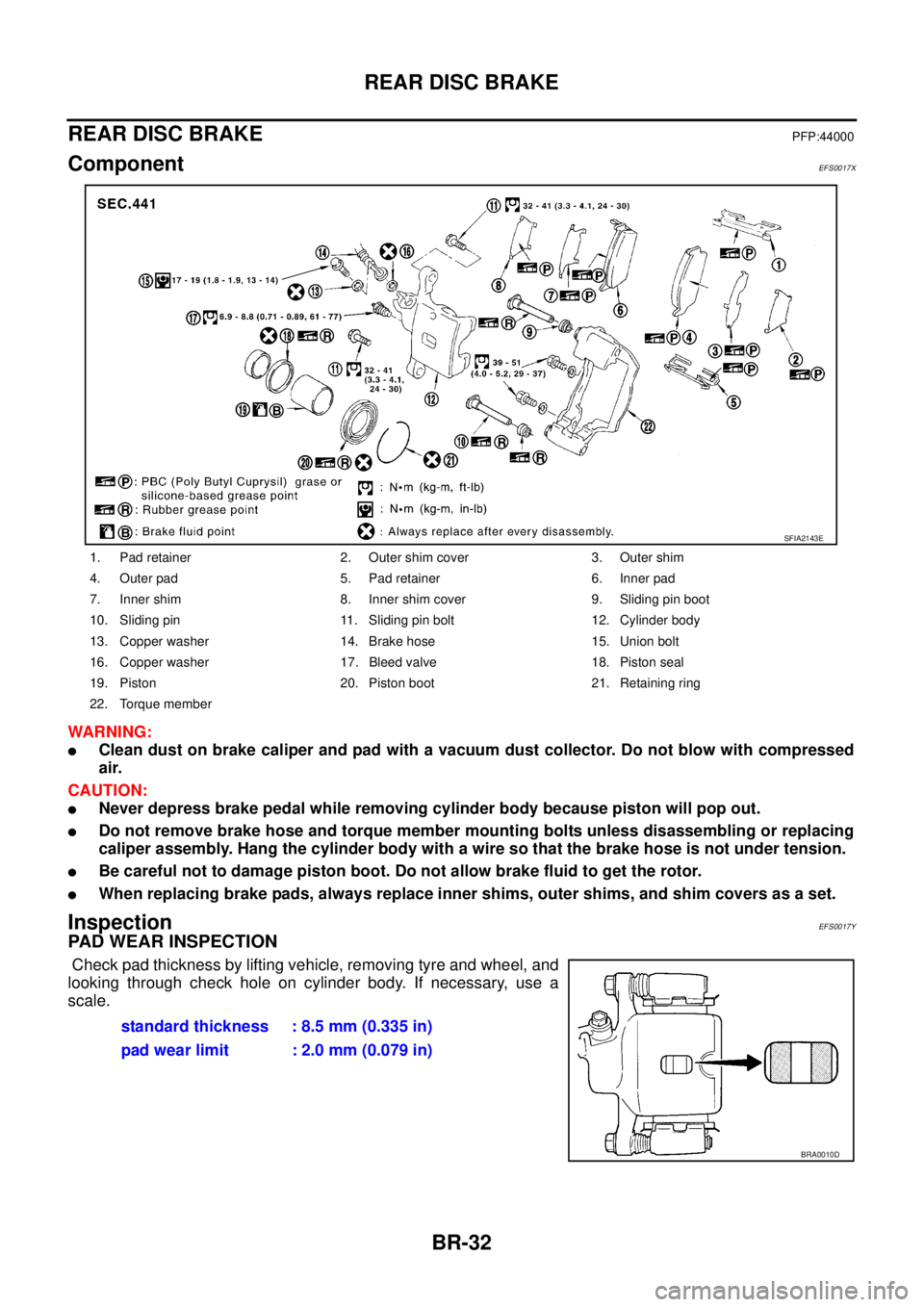

1. Pad retainer 2. Outer shim cover 3. Outer shim
4. Outer pad 5. Pad retainer 6. Inner pad
7. Inner shim 8. Inner shim cover 9. Sliding pin boot
10. Sliding pin 11. Sliding pin bolt 12. Cylinder body
13. Copper washer 14. Brake hose 15. Union bolt
16. Copper washer 17. Bleed valve 18. Piston seal
19. Piston 20. Piston boot 21. Retaining ring
22. Torque member
SFIA2143E
standard thickness : 8.5 mm (0.335 in)
pad wear limit : 2.0 mm (0.079 in)
BRA0010D

BR-34
REAR DISC BRAKE

Caliper Removal and InstallationEFS00180
REMOVAL
1. Connect a vinyl tube to bleed valve.
2. Drain brake fluid gradually from bleed valve while depressing
brake pedal.
3. Remove union bolt and remove brake hose from caliper assem-
bly.
4. Remove union bolts and torque member mounting bolts, and
remove caliper assembly.
5. Remove disc rotor.
INSTALLATION
CAUTION:

Refill with new brake fluid “DOT 3 or DOT 4”.

Never reuse drained brake fluid.
1. Install disc rotor.
2. Install caliper assembly. Tighten mounting bolts to the specified torque.
CAUTION:
Wipe brake fluid and grease on axle assembly washer seats and caliper assembly mounting sur-
face. Install caliper assembly.
3. Connect brake hose to caliper assembly and tighten union bolts to the specified torque.
CAUTION:

Do not reuse the copper washer for union bolts.

Securely assemble brake hose to protrusions on cylinder body.
4. Bleed air. Refer to BR-9, "
Bleeding Brake System" .
Caliper Disassembly and AssemblyEFS00181
DISASSEMBLY
WARNING:
Be careful not to pinch your fingers in the piston.
CAUTION:
Be careful not to damage the cylinder inner wall.
1. Remove caliper assembly from vehicle.
2. Remove sliding pin from cylinder body. Then remove pads, shims, shim covers, and pad retainers from
caliper assembly.
3. Remove sliding pin boots from torque member.
4. Using flat-bladed screwdriver (as shown in the figure), remove
retaining ring.
SFIA0143E
SBR028A

PB-2
PARKING BRAKE CONTROL

PARKING BRAKE CONTROLPFP:36010
Components EFS0017I
NOTE:
In regard to the notation of torque in the illustration, “NEW” shows an ISO standard, “OLD” shows a conven-
tional standard, and the measurements of hexagonal width across flats are in parentheses.
Removal and InstallationEFS0017J
REMOVAL
1. Remove center console.
2. Disconnect parking brake warning lamp switch connector.
3. Remove cable mounting bolt. Loosen cable and remove adjust-
ing nut.
4. Remove cable from toggle lever of disc brake.
INSTALLATION
CAUTION:
Do not reuse adjusting nut.
1. Operate parking brake lever with a force of 196 N (20 kg, 44 lb). Check a stroke is within specified number
of notches. (Check it by hearing clicks of ratchet.)
1. Control lever assembly 2. Cap 3. Parking brake warning lamp switch
4. Screw 5. Adjusting nut 6. Front cable
7. RH rear cable 8. LH rear cable :Multi-purpose grease
SFIA3052E
SFIA2453E
Lever stroke : 6 - 7 notches

PARKING BRAKE CONTROL
PB-3
C
D
E
G
H
I
J
K
L
MA
B
PB

2. Check control lever assembly for bend, damage and cracks, and replace if there is.
3. Check cables and equalizer for wear and damage. If a malfunction is detected, replace the applicable
part.
4. Check parking brake warning lamp switch. If a malfunction is detected, replace the applicable part.
5. Check each part for deformation, or damage by contact with other parts. If a malfunction is detected,
replace the applicable part.
AdjustmentEFS0017M

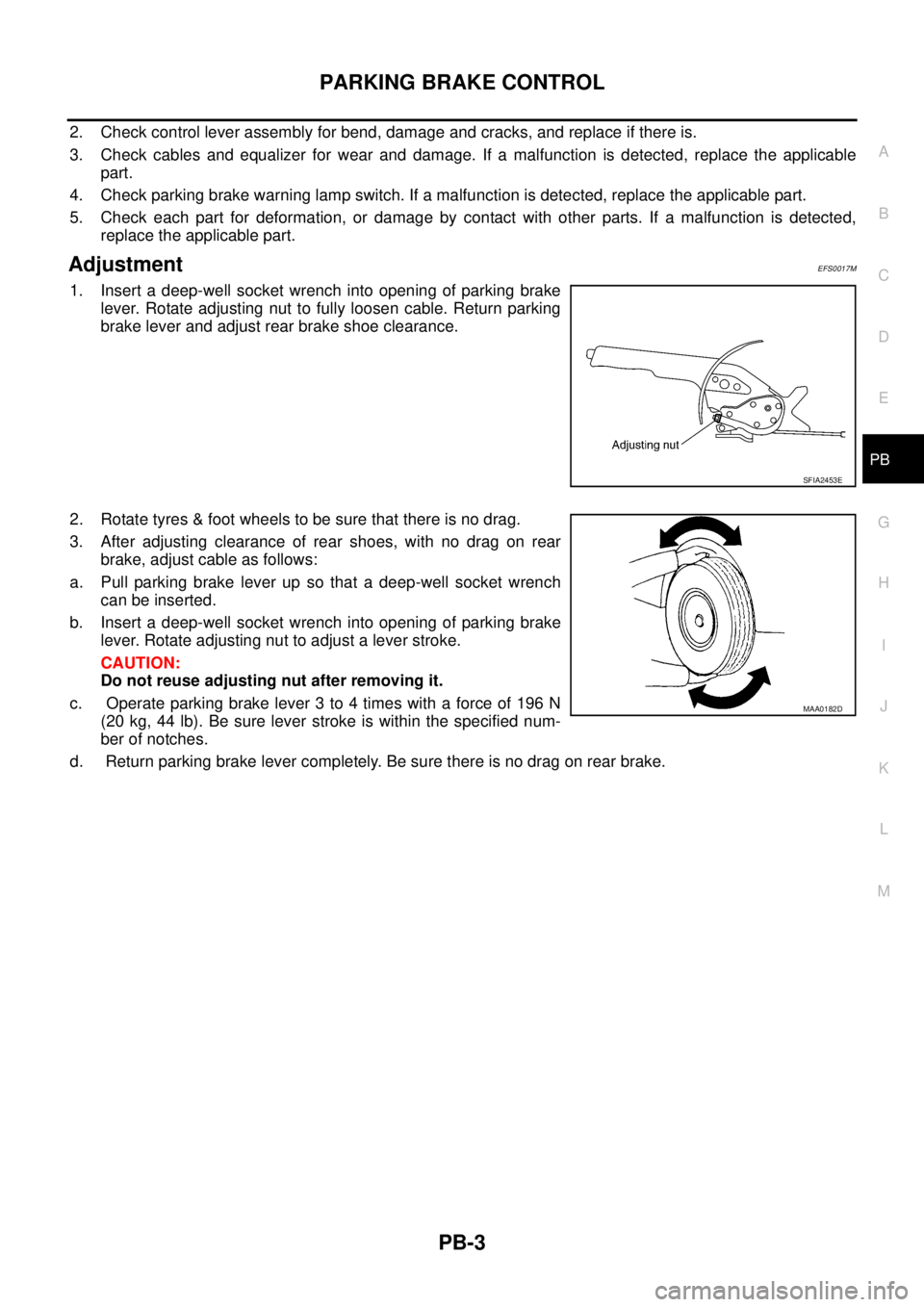

1. Insert a deep-well socket wrench into opening of parking brake
lever. Rotate adjusting nut to fully loosen cable. Return parking
brake lever and adjust rear brake shoe clearance.
2. Rotate tyres & foot wheels to be sure that there is no drag.
3. After adjusting clearance of rear shoes, with no drag on rear
brake, adjust cable as follows:
a. Pull parking brake lever up so that a deep-well socket wrench
can be inserted.
b. Insert a deep-well socket wrench into opening of parking brake
lever. Rotate adjusting nut to adjust a lever stroke.
CAUTION:
Do not reuse adjusting nut after removing it.
c. Operate parking brake lever 3 to 4 times with a force of 196 N
(20 kg, 44 lb). Be sure lever stroke is within the specified num-
ber of notches.
d. Return parking brake lever completely. Be sure there is no drag on rear brake.
SFIA2453E
MAA0182D

SERVICE DATA AND SPECIFICATIONS (SDS)
PB-9
C
D
E
G
H
I
J
K
L
MA
B
PB

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Parking BrakeEFS000D2
TypeDS17H
Brake liningStandard thickness (new) 3.5 mm (0.138 in)
Repair limit thickness 1.5 mm (0.059 in)
Drum (disc)Standard inner diameter (new) 172 mm (6.77 in)
Wear limit of inner diameter 173 mm (6.81 in)
Lever stroke [operating force 196 N (20 kg,44 lb)] 6 to 7 notches
Brake warning lamp strokeWithin 1 notch
