2005 NISSAN X-TRAIL warning

BRC-6
[ABS]
SYSTEM DESCRIPTION

SYSTEM DESCRIPTIONPFP:00000

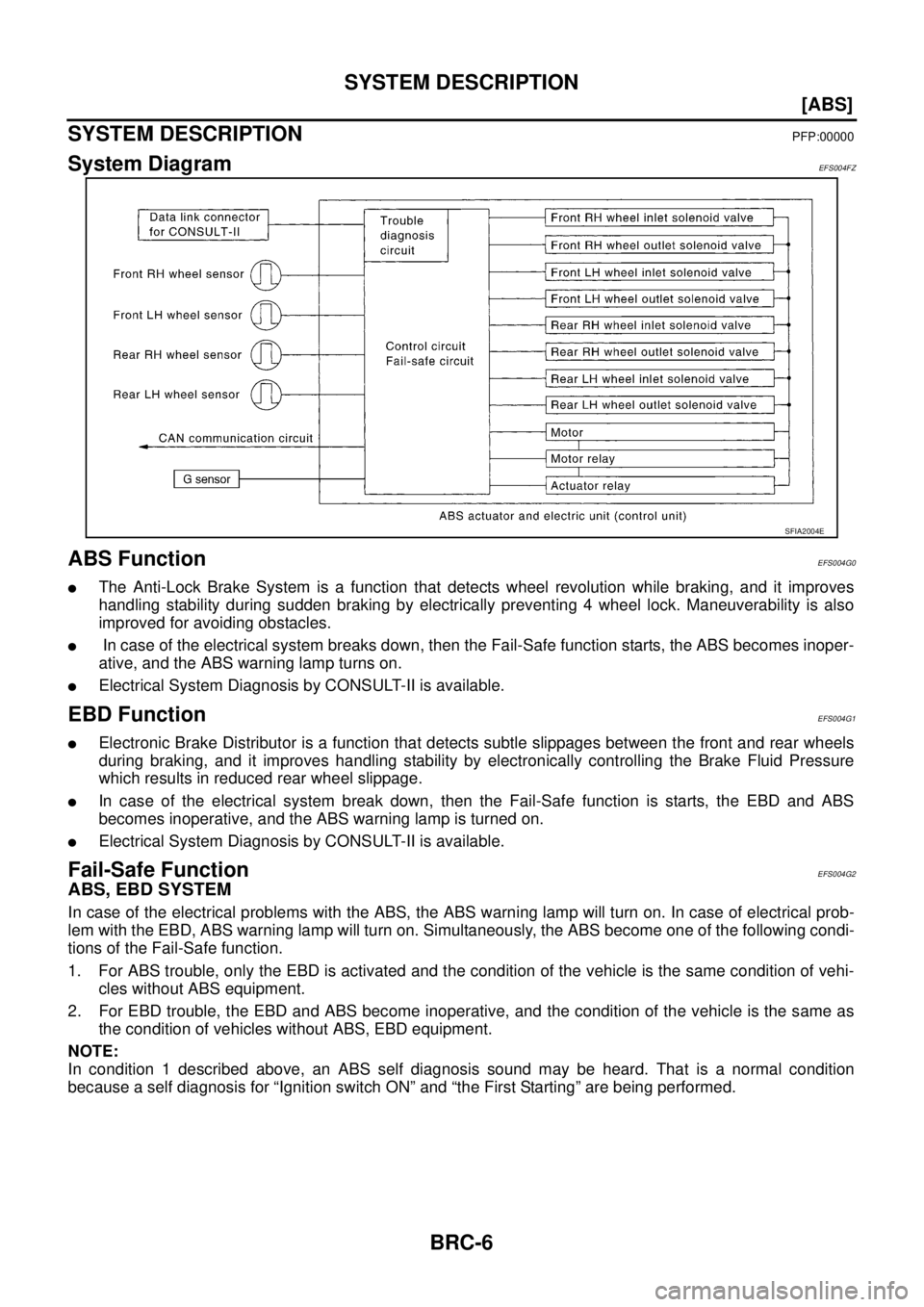

System DiagramEFS004FZ
ABS FunctionEFS004G0

The Anti-Lock Brake System is a function that detects wheel revolution while braking, and it improves
handling stability during sudden braking by electrically preventing 4 wheel lock. Maneuverability is also
improved for avoiding obstacles.

In case of the electrical system breaks down, then the Fail-Safe function starts, the ABS becomes inoper-
ative, and the ABS warning lamp turns on.

Electrical System Diagnosis by CONSULT-II is available.
EBD FunctionEFS004G1

Electronic Brake Distributor is a function that detects subtle slippages between the front and rear wheels
during braking, and it improves handling stability by electronically controlling the Brake Fluid Pressure
which results in reduced rear wheel slippage.

In case of the electrical system break down, then the Fail-Safe function is starts, the EBD and ABS
becomes inoperative, and the ABS warning lamp is turned on.

Electrical System Diagnosis by CONSULT-II is available.
Fail-Safe FunctionEFS004G2
ABS, EBD SYSTEM
In case of the electrical problems with the ABS, the ABS warning lamp will turn on. In case of electrical prob-
lem with the EBD, ABS warning lamp will turn on. Simultaneously, the ABS become one of the following condi-
tions of the Fail-Safe function.
1. For ABS trouble, only the EBD is activated and the condition of the vehicle is the same condition of vehi-
cles without ABS equipment.
2. For EBD trouble, the EBD and ABS become inoperative, and the condition of the vehicle is the same as
the condition of vehicles without ABS, EBD equipment.
NOTE:
In condition 1 described above, an ABS self diagnosis sound may be heard. That is a normal condition
because a self diagnosis for “Ignition switch ON” and “the First Starting” are being performed.
SFIA2004E

BRC-8
[ABS]
CAN COMMUNICATION

CAN COMMUNICATIONPFP:23710
System DescriptionEFS0067G
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitEFS0067H
TYPE 1/TYPE 2
System diagram
Input/output signal chart
T: Transmit R: Receive Body typeWagon
Axle 4WD 2WD
Engine YD22DDTi QR20DE/QR25DE QR20DE YD22DDTi
Transmission M/T A/T M/T
Brake controlABS
CAN system type 1 2 3 7 8
ECM×××××
TCM×
ESP/TCS/ABS control unit
ABS actuator and electric unit (control unit)×××××
Steering angle sensor
4WD control unit×××
Combination meter×××××
PKIA6458E
Signals ECMABS actuator and
electric unit
(control unit)4WD control unit Combination meter
4WD mode indicator lamp signal T R
4WD warning lamp signalTR

CAN COMMUNICATION
BRC-9
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

*: YD engine models only
TYPE 3
System diagram
Input/output signal chart
T: Transmit R: Receive A/C compressor feedback signal T R
ABS warning lamp signal T R
Accelerator pedal position signal T R
Engine coolant temperature signal T R
Engine speed signal T R R
MI signal T R
Parking brake switch signalRT
Stop lamp switch signal T R
Vehicle speed signalTRR
RT
ASCD SET lamp signal T R
ASCD CRUISE lamp signal T R
Stop lamp switch signal T R
Glow indicator lamp signal* T R
A/C switch signal* R TSignals ECMABS actuator and
electric unit
(control unit)4WD control unit Combination meter
PKIA6457E
Signals ECM TCMABS actuator
and electric unit
(control unit)4WD control
unitCombination
meter
4WD mode indicator lamp signalTR
4WD warning lamp signalTR
A/C compressor feedback signal TR
A/T position indicator lamp signal T R
A/T self-diagnosis signal R T
ABS warning lamp signal T R

BRC-10
[ABS]
CAN COMMUNICATION

TYPE 7/TYPE 8
System diagram
Input/output signal chart
T: Transmit R: Receive Accelerator pedal position signal T R
Closed throttle position signal T R
Engine A/T integrated control signalTR
RT
Engine coolant temperature signal TR
Engine speed signal T R R
MI signal TR
O/D OFF indicator signal T R
Output shaft revolution signal R T
Overdrive control switch signal R T
P·N range signal R T
Parking brake switch signalRT
Stop lamp switch signalRT
TR
Vehicle speed signalTRR
RT
Wide open throttle position signal T R
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR Signals ECM TCMABS actuator
and electric unit
(control unit)4WD control
unitCombination
meter
SKIA9999E
Signals ECM ABS actuator and electric unit (control unit) Combination meter
A/C compressor feedback signal T R
ABS warning lamp signal T R
Engine coolant temperature signal T R
Engine speed signal T R

TROUBLE DIAGNOSIS
BRC-25
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

Control Unit Input/Output Signal StandardEFS004GA
REFERENCE VALUE FROM CONSULT-II
CAUTION:
The display shows the control unit calculation data, so a normal value might be displayed even in the
event the output circuit (harness) is open or short - circulated.
Note 1: Confirm tyre pressure is normal.
Note 2: ABS warning lamp ON/OFF timing
ON: For approximately 1 second after the ignition switch is turned on or when an malfunction is detected.
OFF: Approximately 1 second after the ignition switch is turned on (when system is normal).Monitor item Display ContentData monitor
Reference: Inspection
checklist
ConditionReference values
for normal opera-
tion
FR LH SENSOR
FR RH SENSOR
RR LH SENSOR
RR RH SENSORWheel speed calcu-
lated using signals
from all four wheel
sensorsVehicle stopped 0 km/h (0 MPH)
BRC-36, "
Inspection 1:
Wheel Sensor System"While driving (Note 1)Nearly matches
the speedometer
display (± 10% or
less)
DOCILE G-SEN. 1
DOCILE G-SEN. 2
(4WD model)Fore-and-aft G
detected by G sensorWhen vehicle is stopped on
level groundOFF
BRC-41, "
Inspection 6: G
Sensor System"When G sensor is tilted toward
the front with G sensor mount-
ing bolt removedON
ABS IN SOL
ABS OUT SOLOperation status of all
solenoidsWhen the actuator solenoid
operates or during a fail-safeON
BRC-39, "
Inspection 4:
ABS Actuator Relay or
ABS Motor Relay Power
System"
When the actuator relay oper-
ates and the actuator solenoid
does not operateOFF
STOP LAMP SW Brake pedal operationBrake pedal depressed ON
Stop lamp switch circuit
Brake pedal not depressed OFF
MOTOR RELAYMotor and motor relay
operation statusWhen the motor relay and
motor are operatingON
BRC-39, "
Inspection 4:
ABS Actuator Relay or
ABS Motor Relay Power
System"
When the motor relay and
motor are not operatingOFF
ACTUATOR RELAYActuator relay opera-
tion statusWhen the actuator relay is
operatingOFF
When the actuator relay is not
operatingON
ABS WARN LAMPABS warning lamp on
condition (Note 2)ABS warning lamp ON ONBRC-35, "
BASIC
INSPECTION 3 ABS
WARNING LAMP"ABS warning lamp OFF OFF
BATTERY VOLTBattery voltage sup-
plied to ABS actuator
and electric unit (con-
trol unit) Ignition switch ON 10 - 16VBRC-38, "
Inspection 3:
ABS Actuator and Elec-
tric Unit (Control Unit)
Power Supply and
Ground Circuit"
EBD FAIL SIG
ABS FAIL SIGFail signal statusEBD Fail
ABS FailON
EBD system
ABS system EBD normal
ABS normalOFF
EBD SIGNAL
ABS SIGNALEBD operation
ABS operationEBD active
ABS activeON
EBD not active
ABS not activeOFF

BRC-28
[ABS]
TROUBLE DIAGNOSIS

SELF-DIAGNOSIS
Description
If an malfunction is detected in the system, ABS warning lamp on the combination meter turn on. In this case,
perform self-diagnosis as follows:
Operation Procedure
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
3. Turn ignition switch ON.
4. Start engine and drive at 30 km/h (19 MPH) or more for approximately 1 minute.
5. After stopping the vehicle, with the engine running, touch “START (NISSAN BASED VHCL)”, “ABS”,
“SELF-DIAG RESULTS” in order on the CONSULT-II screen.
CAUTION:
If “START (NISSAN BASED VHCL)” is touched immediately after starting the engine or turning on
the ignition switch, “ABS” might not be displayed in the System Selection screen. In this case,
repeat the operation from step 1.
6. The self-diagnostic results are displayed. (If necessary, the self-diagnostic results can be printed out by
touching “PRINT”.)

When “NO FAILURE” is displayed, check the ABS warning lamp.
7. Conduct the appropriate inspection from the display item list, and repair or replace the malfunctioning
component.
8. Start engine and drive at 30 km/h (19 MPH) or more for approximately 1 minute.
CAUTION:

When a wheel sensor “short-circuit” is detected, if the vehicle is not driven at 30 km/h (19 MPH)
for at least 1 minute, the ABS warning lamp will not turn off even if everything is normal.
9. Turn ignition switch OFF to prepare for erasing the memory.
10. Start the engine and touch “START (NISSAN BASED VHCL)”, “ABS”, “SELF-DIAG RESULTS”, “ERASE
MEMORY” in order on the CONSULT-II screen to erase the diagnostic memory.
CAUTION:
If the diagnostic memory is not erased, re-conduct the operation from step 4.
11. For the final inspection, drive at 30 km/h (19 MPH) or more for approximately 1 minute and confirm that
the ABS warning lamp a off.

BRC-30
[ABS]
TROUBLE DIAGNOSIS

Note 1: After completing repairs of shorted sensor circuit, when ignition switch is turned ON, ABS warning
lamp turns on. Check that ABS warning lamp turns off while driving vehicle at 30 km/h (19 MPH) or more for
approximately 1 minute according to self-diagnosis procedure. In addition, if wheel sensor 2 is displayed for
wheels, check wheel sensor circuit and also check control unit power voltage.
Note 2: When malfunctions are detected in several systems, including CAN communication system [U1000],
troubleshoot CAN communication system.
DATA MONITOR
Operation Procedure
1. Touch “ABS”, “DATA MONITOR” in order on the CONSULT-II screen.
2. Return to the Monitor Item Selection screen, and touch “ECU INPUT SIGNALS”, “MAIN SIGNALS” or
“SELECTION FROM MENU”. Refer to the following information.
3. When “START” is touched, the data monitor screen is displayed.
Display Item List
CAN COMM CIRCUIT When there is an malfunction in the CAN communication system.
BRC-43, "Inspection 7:
CAN Communication
System" (Note 2)
PUMP MOTOR During actuator motor operation with ON, when actuator motor
turns OFF or when control line for actuator motor relay is open.BRC-39, "
Inspection 4:
ABS Actuator Relay or
ABS Motor Relay Power
System"
G - SENSOR
(4WD model)Decel G-sensor is malfunctioning, or signal line of Decel G-sen-
sor is open or shorted. BRC-41, "Inspection 6:
G Sensor System"
Suspect Systems Malfunction detecting condition Inspection system
Item (Unit)SELECT MONITOR ITEM
Remarks
ECU INPUT
SIGNALSMAIN SIGNALSSELECTION
FROM MENU
FR LH SENSOR
[km/h]×××Wheel speed calculated by front
LH wheel sensor signal is dis-
played.
FR RH SENSOR
[(km/h]×××Wheel speed calculated by front
RH wheel sensor signal is dis-
played.
RR LH SENSOR
[km/h]×××Wheel speed calculated by Rear
LH wheel sensor signal is dis-
played.
RR RH SENSOR
[km/h]×××Wheel speed calculated by Rear
RH wheel sensor signal is dis-
played.
DECEL G-SEN 1
(ON/OFF) (4WD model)×××Decel G-sensor 1 (ON/OFF) status
is displayed.
DECEL G-SEN 2
(ON/OFF) (4WD model)×××Decel G-sensor 2 (ON/OFF) status
is displayed.
FR LH IN SOL
(ON/OFF)–××Front left inlet ABS solenoid valve
(ON/OFF) status is displayed.
FR LH OUT SOL
(ON/OFF)–××Front left outlet ABS solenoid
valve (ON/OFF) status is dis-
played.
RR RH IN SOL
(ON/OFF)–××Rear right inlet ABS solenoid valve
(ON/OFF) status is displayed.
RR RH OUT SOL
(ON/OFF)–××Rear right outlet ABS solenoid
valve (ON/OFF) status is dis-
played.

TROUBLE DIAGNOSIS
BRC-31
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

×: Applicable
–: Not applicable FR RH IN SOL
(ON/OFF)–××Front right inlet ABS solenoid
valve (ON/OFF) status is dis-
played.
FR RH OUT SOL
(ON/OFF)–××Front right outlet ABS solenoid
valve (ON/OFF) status is dis-
played.
RR LH IN SOL
(ON/OFF)–××Rear left rear inlet ABS solenoid
valve (ON/OFF) status is dis-
played.
RR LH OUT SOL
(ON/OFF)–××Rear left outlet ABS solenoid valve
(ON/OFF) status is displayed.
STOP LAMP SW
(ON/OFF)×××Stop lamp switch (ON/OFF) status
is displayed.
MOTOR RELAY
(ON/OFF)–××ABS motor relay (ON/OFF) condi-
tion is displayed.
ACTUATOR RLY
(ON/OFF)–××ABS actuator relay (ON/OFF) sta-
tus is displayed.
ABS WARN LAMP
(ON/OFF)–××ABS warning lamp (ON/OFF) sta-
tus is displayed.
BATTERY VOLT
(V )×××The voltage supplied to the ABS
control unit is displayed.
EBD SIGNAL
(ON/OFF)––×EBD operation (ON/OFF) status is
displayed.
ABS SIGNAL
(ON/OFF)––×ABS operation (ON/OFF) status is
displayed.
EBD FAIL SIG
(ON/OFF)––×EBD fail-safe signal (ON/OFF) sta-
tus is displayed.
ABS FAIL SIG
(ON/OFF)––×ABS fail-safe signal (ON/OFF) sta-
tus is displayed. Item (Unit)SELECT MONITOR ITEM
Remarks
ECU INPUT
SIGNALSMAIN SIGNALSSELECTION
FROM MENU
