PSP SWITCH

2. Check continuity between power steering pressure switch termi-
nal 1 and 2 under the following conditions.
Removal and InstallationEBS0128B
Refer to PS-37, "HYDRAULIC LINE" .
Conditions Continuity
Steering wheel is being fully turned. Yes
Steering wheel is not being turned. No
MBIB0624E

EC-1334
[YD (WITH EURO-OBD)]
FUEL TRANSPORT PUMP

Specification data are reference values, and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS011PG

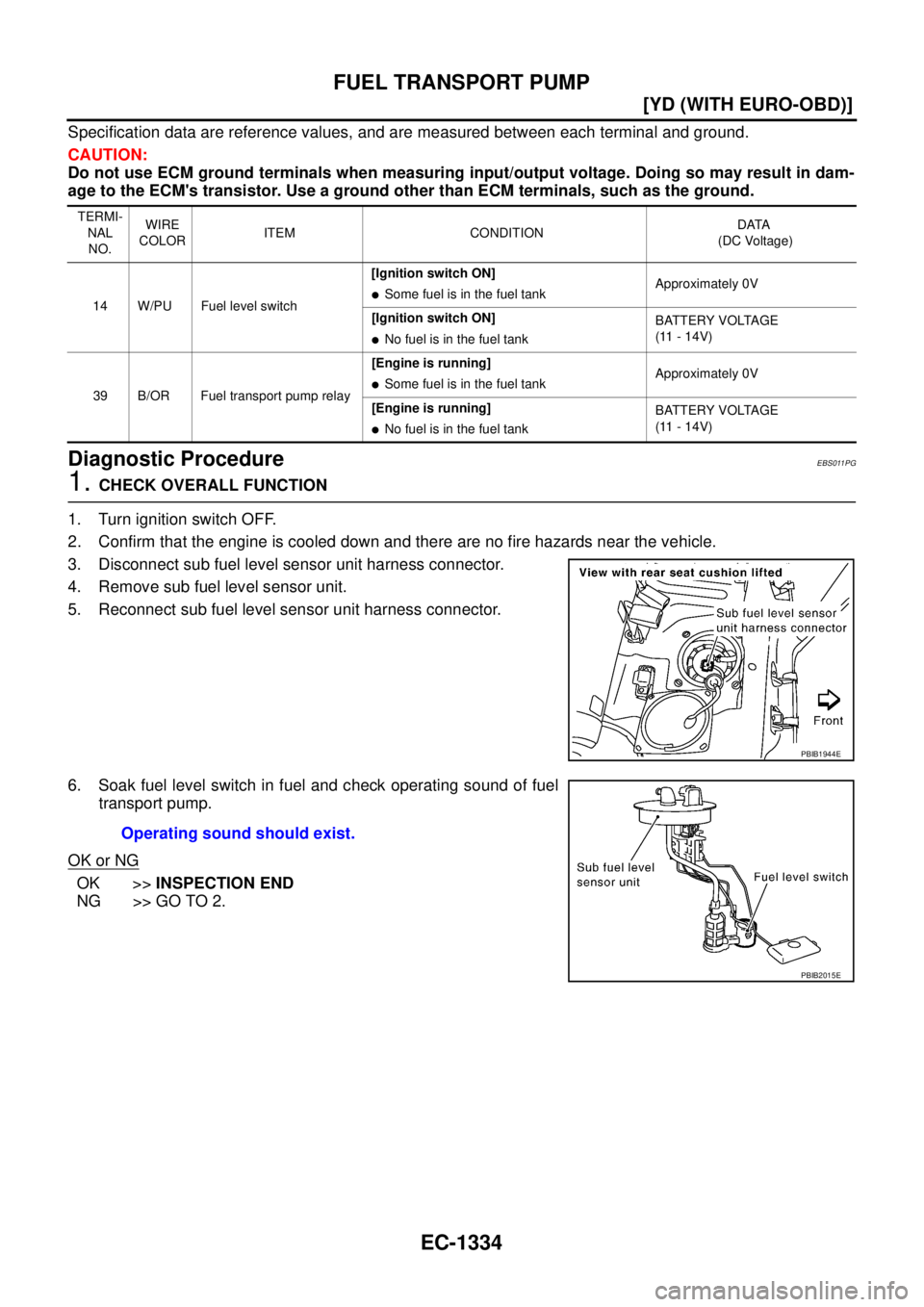

1. CHECK OVERALL FUNCTION
1. Turn ignition switch OFF.
2. Confirm that the engine is cooled down and there are no fire hazards near the vehicle.
3. Disconnect sub fuel level sensor unit harness connector.
4. Remove sub fuel level sensor unit.
5. Reconnect sub fuel level sensor unit harness connector.
6. Soak fuel level switch in fuel and check operating sound of fuel
transport pump.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage)
14 W/PU Fuel level switch[Ignition switch ON]

Some fuel is in the fuel tankApproximately 0V
[Ignition switch ON]

No fuel is in the fuel tankBATTERY VOLTAGE
(11 - 14V)
39 B/OR Fuel transport pump relay[Engine is running]

Some fuel is in the fuel tankApproximately 0V
[Engine is running]

No fuel is in the fuel tankBATTERY VOLTAGE
(11 - 14V)
PBIB1944E
Operating sound should exist.
PBIB2015E

FUEL TRANSPORT PUMP
EC-1335
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

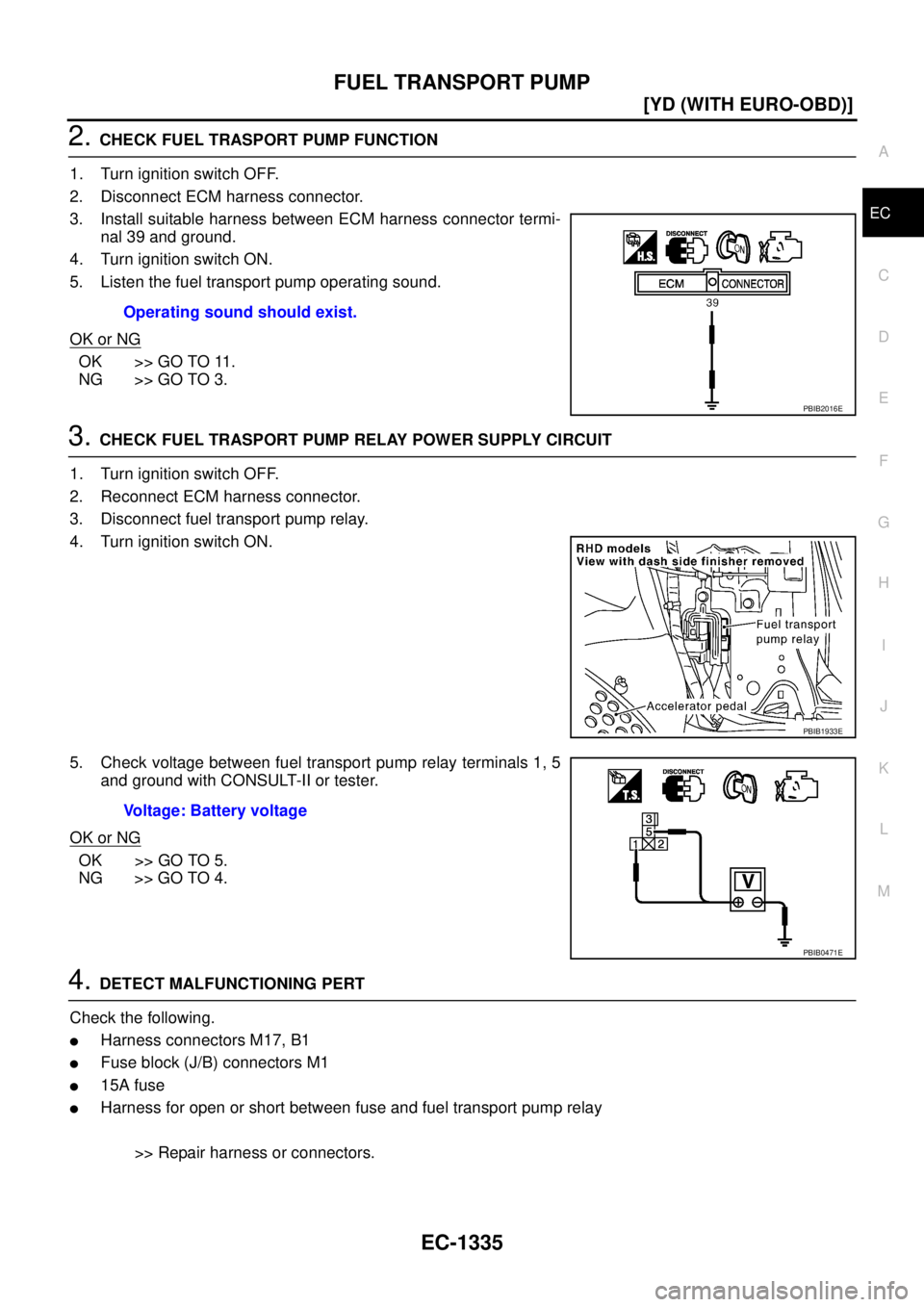

2. CHECK FUEL TRASPORT PUMP FUNCTION
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Install suitable harness between ECM harness connector termi-
nal 39 and ground.
4. Turn ignition switch ON.
5. Listen the fuel transport pump operating sound.
OK or NG
OK >> GO TO 11.
NG >> GO TO 3.
3. CHECK FUEL TRASPORT PUMP RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Reconnect ECM harness connector.
3. Disconnect fuel transport pump relay.
4. Turn ignition switch ON.
5. Check voltage between fuel transport pump relay terminals 1, 5
and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PERT
Check the following.

Harness connectors M17, B1

Fuse block (J/B) connectors M1

15A fuse

Harness for open or short between fuse and fuel transport pump relay
>> Repair harness or connectors. Operating sound should exist.
PBIB2016E
PBIB1933E
Voltage: Battery voltage
PBIB0471E

EC-1336
[YD (WITH EURO-OBD)]
FUEL TRANSPORT PUMP

5. CHECK FUEL TRANSPORT PUMP POWER SUPPLY AND GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Disconnect fuel transport pump harness connector.
3. Check harness continuity between fuel transport pump relay ter-
minal 3 and fuel transport pump terminal 1 and between fuel
transport pump terminal 2 and ground. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connector B22, B128

Harness for open or short between fuel transport pump relay and fuel transport pump

Harness for open or short between fuel transport pump and ground
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK FUEL TRANSPORT PUMP RELAY OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 39 and fuel transport pump relay terminal 2. Refer to
Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNSTIONING PART
Check the following.

Harness connector M17, B1 (LHD models)

Harness connector M18, B2 (RHD models)

Harness connector M63, F30

Harness for open or short between ECM and fuel transport pump relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK FUEL TRANSPORT PUMP RELAY
Refer to EC-1338, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace fuel transport pump relay.Continuity should exist.
PBIB1931E
Continuity should exist.

FUEL TRANSPORT PUMP
EC-1337
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

10. CHECK TRANSPORT PUMP
Refer to EC-1338, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace fuel transport pump.
11 . CHECK FUEL LEVEL SWITCH POWER SUPPLY AND GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect sub fuel level sensor unit harness connector.
4. Check harness continuity between ECM terminal 14 and sub
fuel level sensor unit terminal 2, between sub fuel level sensor
unit terminal 4 and ground. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 13.
NG >> GO TO 12.
12. DETECT MALFUNCTIONING PART
Check the following.

Harness connector F30, M63

Harness connector M78, B105 (LHD models)

Harness connectors M18, B2 (RHD models)

Harness for open or short between ECM and sub fuel level sensor unit

Harness for open or short between sub fuel level sensor unit and ground.
>> Repair open circuit or short to ground or short to power in harness or connectors.
13. CHECK FUEL LEVEL SWITCH
Refer to EC-1338, "
Component Inspection"
OK or NG
OK >> GO TO 14.
NG >> Replace sub fuel level sensor unit.
14. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"
>>INSPECTION END Continuity should exist.
PBIB1944E

EC-1338
[YD (WITH EURO-OBD)]
FUEL TRANSPORT PUMP

Component InspectionEBS011PH
FUEL TRANSPORT PUMP RELAY
Check continuity between terminals 3 and 5 under the following coni-
tions.
FUEL TRANSPORT PUMP
1. Remove fuel transport pump.
2. Apply battery voltage between fuel transport pump terminal 1 and 2.
3. Check operating sound of fuel transport pump under the following conditions.
4. Listen fuel transport pump operating sound.
FUEL LEVEL SWITCH
1. Confirm that the engine is cooled down and there are no fire hazards near the vehicle.
2. Check continuity between sub fuel level sensor unit terminal 2
and 4 under the following conditions.
Removal and InstallationEBS011PI
FUEL TRANSPORT PUMP
Refer to FL-23, "FUEL TANK" .
SUB FUEL LEVEL SENSOR UNIT
Refer to FL-19, "FUEL LEVEL SENSOR UNIT" .
Conditions Continuity
12V direct current supply between terminals 1 and 2 Yes
No current supply No
PBIB0098E
Conditions Operating sound
12V direct current supply between fuel transport pump
terminals 1 and 2Ye s
No current supply No
Conditions Continuity
Fuel level switch is soaked in fuel. Yes
Fuel level switch is not soaked in fuel. No
PBIB2015E

EC-1344
[YD (WITH EURO-OBD)]
ASCD INDICATOR

Diagnostic ProcedureEBS01F8H
1. CHECK OVERALL FUNCTION
Check ASCD indicator under the following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK DTC
Check that DTC U1000 is not displayed.
OK or NG
OK >> Perform trouble diagnoses for DTC U1000. Refer to EC-1056, "DTC U1000 CAN COMMUNICA-
TION LINE" .
NG >> GO TO 3.
3. CHECK COMBINATION METER OPERATION
Does combination meter operate normally?
Ye s o r N o
Yes >> GO TO 4.
No >> Check combination meter circuit. Refer to DI-4, "
COMBINATION METERS" .
4. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
ASCD INDICATOR CONDITION SPECIFICATION
CRUISE LAMP

Ignition switch: ON
MAIN switch: Pressed at the
first time→at the 2nd timeON→OFF
SET LAMP

MAIN switch: ON

When vehicle speed is
between 40 km/h (25 MPH)
and 185 km/h (115 MPH)

COAST/SET switch pressed ON

COAST/SET switch released OFF

EC-1346
[YD (WITH EURO-OBD)]
START SIGNAL

Diagnostic ProcedureEBS011GH
1. CHECK START SIGNAL OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch ON.
2. Check “START SIGNAL” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.
Without CONSULT-II
Check voltage between ECM terminal 99 and ground under the fol-
lowing conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK START SIGNAL INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector and ignition switch harness connector.
3. Check harness continuity between ECM terminal 99 and ignition switch terminal 6.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

10A fuse

Fuse block (J/B) connectors M1, E102

Harness for open or short between ECM and ignition switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
Condition START SIGNAL
Ignition switch ON OFF
Ignition switch START ON
PBIB0433E
Condition Voltage
Ignition switch ON Approximately 0V
Ignition switch START Battery voltage
PBIB1949E
Continuity should exist.
