2005 MERCEDES-BENZ SLR CLASS Owners Manual

296 Practical hintsWhat to do if ...Lamps in instrument clusterGeneral information:
If any of the following lamps in the instru-
ment cluster fails to come on during the bulb self-check when switching on the igni-
tion, have the respective bulb checked and
replaced if necessary.Problem
Possible cause
Suggested solutions
v
The yellow ABS/ESP warning
lamp comes on while driving.
The ESP is deactivated.
Risk of accident!
Adapt your speed and driving to the pre-
vailing road and weather conditions.

Switch the ESP back on (
page 83).
If the ESP cannot be switched back on, have the
system checked at an authorized
Mercedes-Benz Center as soon as possible.
Failure to follow these instructions increases
the risk of an accident.
v
The yellow ABS/ESP warning
lamp flashes while driving.
The ESP, ABS, or traction control has
come into operation because of detected
traction loss in at least one tire.

When driving off, apply as little throttle as
possible.

While driving, ease up on the accelerator.

Adapt your speed and driving to the prevail-
ing road and weather conditions.

Do not deactivate ESP. Exceptions:
(page 83).
Failure to follow these instructions increases
the risk of an accident.

297 Practical hints
What to do if ...
Problem
Possible cause
Suggested solutions
-
The yellow ABS indicator
lamp comes on while driving.
The ABS has detected a malfunction and
has switched off. The BAS and the ESP are
also switched off (see messages in dis-
play).
The SBC brake system is still functioning
normally but without ABS available.
If the ABS control unit is malfunctioning
the automatic transmission may also be
malfunctioning.

Continue driving with added caution. Wheels
may lock during hard braking, reducing
steering capability.

Read and observe messages in the display
(page 304).

Have the system checked at an authorized
Mercedes-Benz Center immediately.
Failure to follow these instructions increases
the risk of an accident.
The charging voltage has fallen below
10 volts and the ABS was switched off.
When the voltage is above this value again, the
ABS is operational again.
If necessary, have the generator and battery
checked.

298 Practical hintsWhat to do if ...Problem
Possible cause
Suggested solutions
3
(Canada only)
;
(USA only)The red brake warning lamp
comes on while driving and
you hear a warning sound.
You are driving with the parking brake on.

Release the parking brake (
page 49).
There is a malfunction in the SBC brake
system.

Read and observe messages in the display
(page 304).
3
(Canada only)
;
(USA only)
The red brake warning lamp
comes on while driving
There is insufficient brake fluid in the
reservoir.

Risk of accident! Carefully stop the vehicle
and notify an authorized Mercedes-Benz
Center. Do not add brake fluid! This will not
solve the problem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Do not add
brake fluid before checking the brake sys-
tem.
Overfilling the brake fluid reservoir can re-
sult in spilling brake fluid on hot engine
parts and the brake fluid catching fire. You
can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.

299 Practical hints
What to do if ...
Problem
Possible cause
Suggested solutions
ú
(USA only)
±
(Canada only)
The yellow engine malfunc-
tion indicator lamp comes on
while driving.
There is a malfunction in:

The fuel injection system


The ignition system


The emission control system


Systems which effect emissions
Such malfunctions may result in excessive
emissions values and may switch the en-
gine to its limp-home (emergency opera-
tion) mode.

Have the vehicle checked as soon as possi-
ble by an authorized Mercedes-Benz Center.
An on-board diagnostic connector is used by
the service station to link the vehicle to the
shop diagnostics system. It allows the accu-
rate identification of system malfunctions
through the readout of diagnostic trouble
codes. It is located in the front left area of
the footwell next to the parking brake.
Your gas tank is empty.

After refuelling, start, turn off and restart the
engine three or four times in succession.
The limp-home mode is canceled. You do not
need to have your vehicle checked.
The fuel cap is not closed tightly.

Check the fuel cap.

300 Practical hintsWhat to do if ...Problem
Possible cause
Suggested solution
D
The red coolant warning lamp
comes on when the engine is
running.
There is insufficient coolant in the reservoir.

Immediately add coolant to prevent
engine from overheating
(page 249).
If this warning lamp comes on frequently,
there is a leak in the cooling system.

Have the cooling system checked by
an authorized Mercedes-Benz Center.
If the coolant level is correct, the electric
radiator fan may be broken.

If the coolant temperature is below
248°F (120°C), you can continue
driving to the nearest authorized
Mercedes-Benz Center.

Avoid high engine loads (e.g. driving
uphill) and stop-and-go driving.
D
The red coolant warning lamp
comes on while driving and you
hear a warning sound.
The coolant temperature has exceeded
248°F (120°C).

Stop as soon as possible and allow
the engine and coolant to cool down.
Warning!
G
Driving when your engine is badly overheat-
ed can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns and can occur just by opening
the engine hood. Stay away from the engine
if you see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.

301 Practical hints
What to do if ...
Problem
Possible cause
Suggested solutions
<
The red Airbrake warning
lamp comes on while driving
and you hear a warning
sound.
The Airbrake or the central locking system
is malfunctioning.

Notify an authorized Mercedes-Benz Center
immeditaly.
>
The red gearshift indicator
lamp comes on while you are
driving.
You are driving with the manual shift pro-
gram. The engine is in the overrevving
range.

Shift to the next higher gear. Otherwise the
fuel supply will be interrupted to prevent the
engine from overrevving.
A
The yellow reserve fuel warn-
ing lamp lights up while you
are driving.
The fuel level has fallen into the reserve
range.

Refuel at the nearest gas station
(page 240).
=
The engine oil temperature
symbol comes on in the
tachometer while you are
driving.
The engine oil has not yet reached its
operating temperature.

Warm up the engine and do not drive at full
power until the operating temperature has
been reached.
The symbol will go out as soon as the engine
oil has reached its operating temperature.

302 Practical hintsWhat to do if ...Problem
Possible cause
Suggested solution
<
The red seat belt telltale comes
on briefly after starting the
engine.
The telltale reminds you and your passenger
to fasten your seat belts.

Fasten your seat belt.
The telltale goes out.
1
The red SRS indicator lamp
comes on while driving.
There is a malfunction in the restraint sys-
tems. The airbags or emergency tensioning
device (ETD) could deploy unexpectedly or
fail to activate in an accident.

Drive with added caution to the
nearest authorized
Mercedes-Benz Center.
Warning!
G
In the event that a malfunction of the SRS is
indicated as outlined above, the SRS may
not be operational. For your safety, we
strongly recommend that you visit an
authorized Mercedes-Benz Center immedi-
ately to have the system checked, otherwise
the SRS may not be activated when needed
in an accident, which could result in serious
or fatal injury, or it might deploy
unexpectedly and unnecessarily which
could also result in an accident and/or
injury to you or to others.

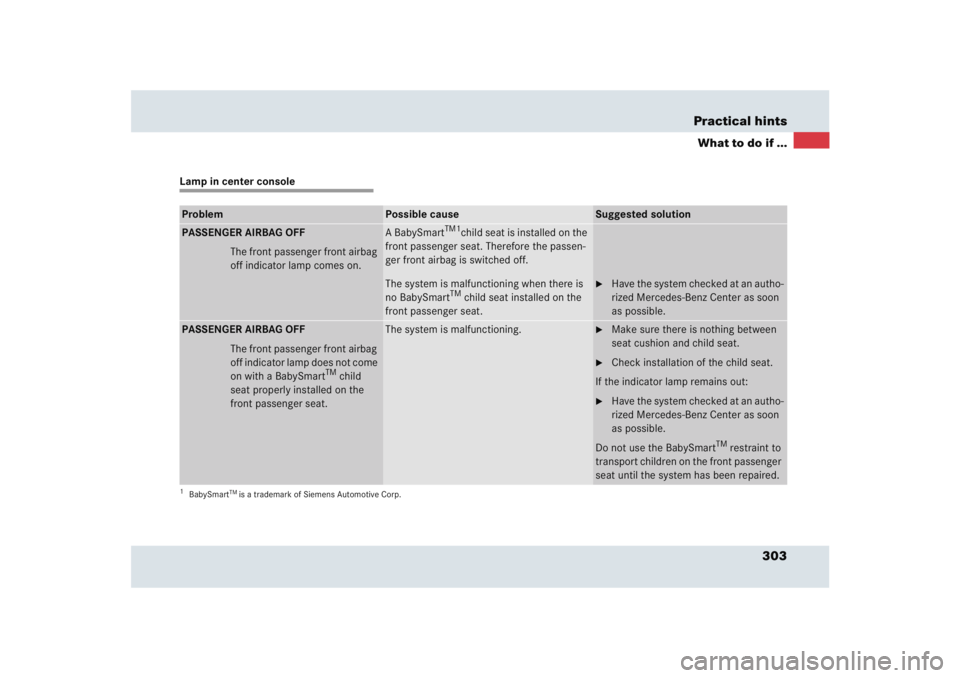

303 Practical hints
What to do if ...
Lamp in center consoleProblem
Possible cause
Suggested solution
PASSENGER AIRBAG OFF
The front passenger front airbag
off indicator lamp comes on.
A BabySmart
TM1
child seat is installed on the
front passenger seat. Therefore the passen-
ger front airbag is switched off.
1BabySmart
TM is a trademark of Siemens Automotive Corp.
The system is malfunctioning when there is
no BabySmart
TM child seat installed on the
front passenger seat.

Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
PASSENGER AIRBAG OFF
The front passenger front airbag
off indicator lamp does not come
on with a BabySmart
TM child
seat properly installed on the
front passenger seat.
The system is malfunctioning.

Make sure there is nothing between
seat cushion and child seat.

Check installation of the child seat.
If the indicator lamp remains out:

Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Do not use the BabySmart
TM restraint to
transport children on the front passenger
seat until the system has been repaired.
