2005 MERCEDES-BENZ SLR CLASS Owners Manual

184 Controls in detailAutomatic climate controlAutomatic climate control panel
Function
1
Air distribution, left (automatic or
manual operation)
2
Defrosting the windshield
3
Air recirculation
4
Rear window defroster (
page 181)
5
Air distribution, right (automatic or
manual operation)
Function
6
Temperature control, right
7
Automatic climate control on/off
(complete system)
8
Residual heat/ventilation
9
Air volume control (automatic or
manual operation)
a
AC cooling on/off
b
Temperature control, left

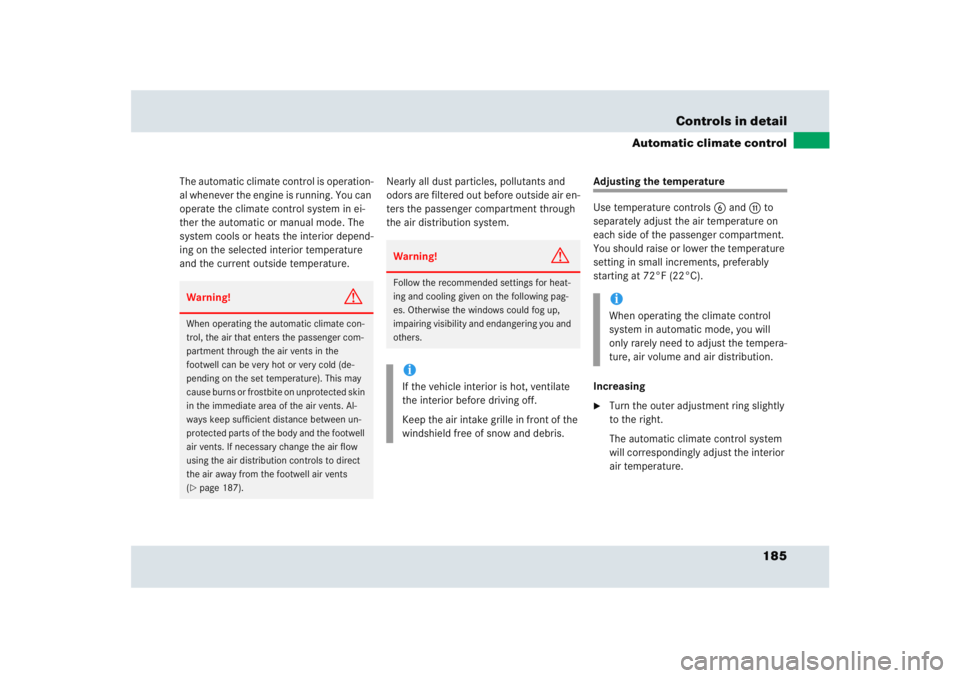

185 Controls in detail
Automatic climate control
The automatic climate control is operation-
al whenever the engine is running. You can
operate the climate control system in ei-
ther the automatic or manual mode. The
system cools or heats the interior depend-
ing on the selected interior temperature
and the current outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
Adjusting the temperature
Use temperature controls6 andb to
separately adjust the air temperature on
each side of the passenger compartment.
You should raise or lower the temperature
setting in small increments, preferably
starting at 72°F (22°C).
Increasing
Turn the outer adjustment ring slightly
to the right.
The automatic climate control system
will correspondingly adjust the interior
air temperature.
Warning!
G
When operating the automatic climate con-
trol, the air that enters the passenger com-
partment through the air vents in the
footwell can be very hot or very cold (de-
pending on the set temperature). This may
cause burns or frostbite on unprotected skin
in the immediate area of the air vents. Al-
ways keep sufficient distance between un-
protected parts of the body and the footwell
air vents. If necessary change the air flow
using the air distribution controls to direct
the air away from the footwell air vents
(page 187).
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.iIf the vehicle interior is hot, ventilate
the interior before driving off.
Keep the air intake grille in front of the
windshield free of snow and debris.
iWhen operating the climate control
system in automatic mode, you will
only rarely need to adjust the tempera-
ture, air volume and air distribution.

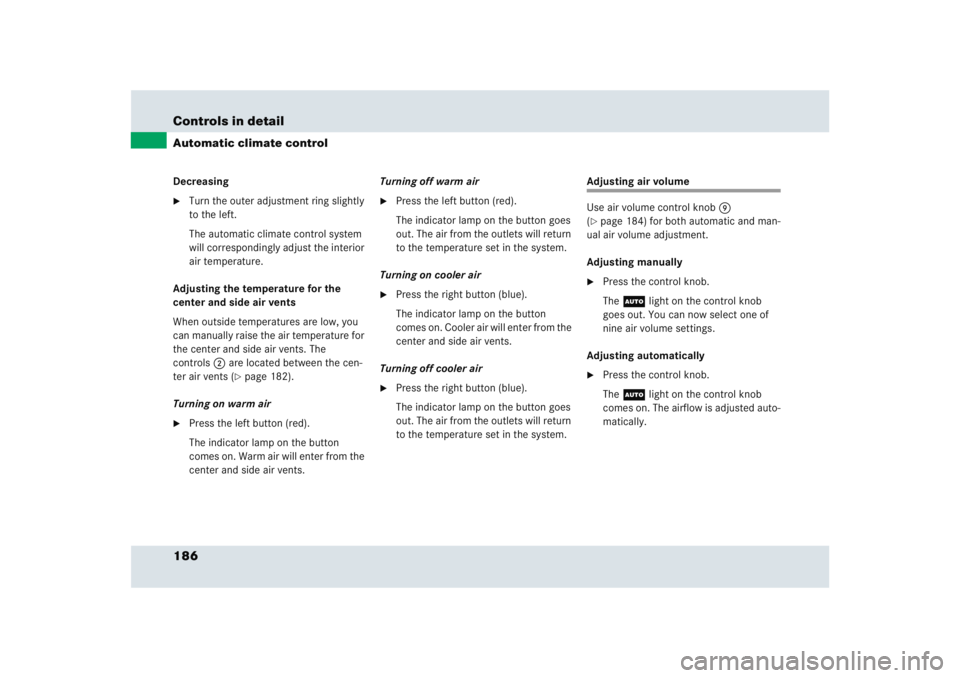

186 Controls in detailAutomatic climate controlDecreasing
Turn the outer adjustment ring slightly
to the left.
The automatic climate control system
will correspondingly adjust the interior
air temperature.
Adjusting the temperature for the
center and side air vents
When outside temperatures are low, you
can manually raise the air temperature for
the center and side air vents. The
controls2 are located between the cen-
ter air vents (
page 182).
Turning on warm air

Press the left button (red).
The indicator lamp on the button
comes on. Warm air will enter from the
center and side air vents.Turning off warm air

Press the left button (red).
The indicator lamp on the button goes
out. The air from the outlets will return
to the temperature set in the system.
Turning on cooler air

Press the right button (blue).
The indicator lamp on the button
comes on. Cooler air will enter from the
center and side air vents.
Turning off cooler air

Press the right button (blue).
The indicator lamp on the button goes
out. The air from the outlets will return
to the temperature set in the system.
Adjusting air volume
Use air volume control knob9
(page 184) for both automatic and man-
ual air volume adjustment.
Adjusting manually

Press the control knob.
The U light on the control knob
goes out. You can now select one of
nine air volume settings.
Adjusting automatically

Press the control knob.
The U light on the control knob
comes on. The airflow is adjusted auto-
matically.

187 Controls in detail
Automatic climate control
Adjusting air distribution
Use air distribution control knobs1
and5 (
page 184) to separately adjust
the air distribution on each side of the pas-
senger compartment. The following sym-
bols are found on the controls:Adjusting manually

Press the control knob.
The U light on the control knob
goes out. The air distribution can be ad-
justed manually.
Adjusting automatically

Press the control knob.
The U light on the control knob
comes on. The air distribution is adjust-
ed automatically.
Windshield fogged on the outside

Switch the windshield wipers on.

Turn the air distribution control to h
or k.
Maximum cooling MAXCOOL
If the left and right air distribution controls
as well as the airflow volume control are
set to U and there is a high need for
cooling, MAXCOOL is activated.
This provides the fastest possible cooling
of the vehicle interior.
Symbol
Function
h
Directs air through the cen-
ter air vents
j
Directs air to the windows
V
Directs air into the entire
vehicle interior
k
Directs air to the footwells

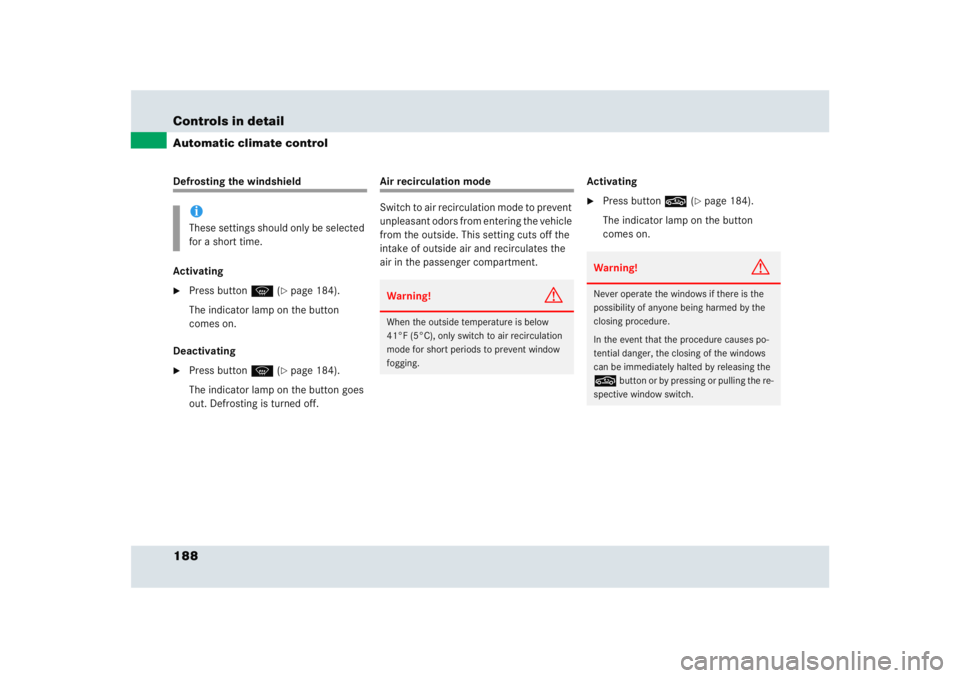

188 Controls in detailAutomatic climate controlDefrosting the windshield
Activating
Press button P (
page 184).
The indicator lamp on the button
comes on.
Deactivating

Press button P (
page 184).
The indicator lamp on the button goes
out. Defrosting is turned off.
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside. This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.Activating

Press button , (
page 184).
The indicator lamp on the button
comes on.
iThese settings should only be selected
for a short time.
Warning!
G
When the outside temperature is below
41°F (5°C), only switch to air recirculation
mode for short periods to prevent window
fogging.
Warning!
G
Never operate the windows if there is the
possibility of anyone being harmed by the
closing procedure.
In the event that the procedure causes po-
tential danger, the closing of the windows
can be immediately halted by releasing the ,
button or by pressing or pulling the re-
spective window switch.

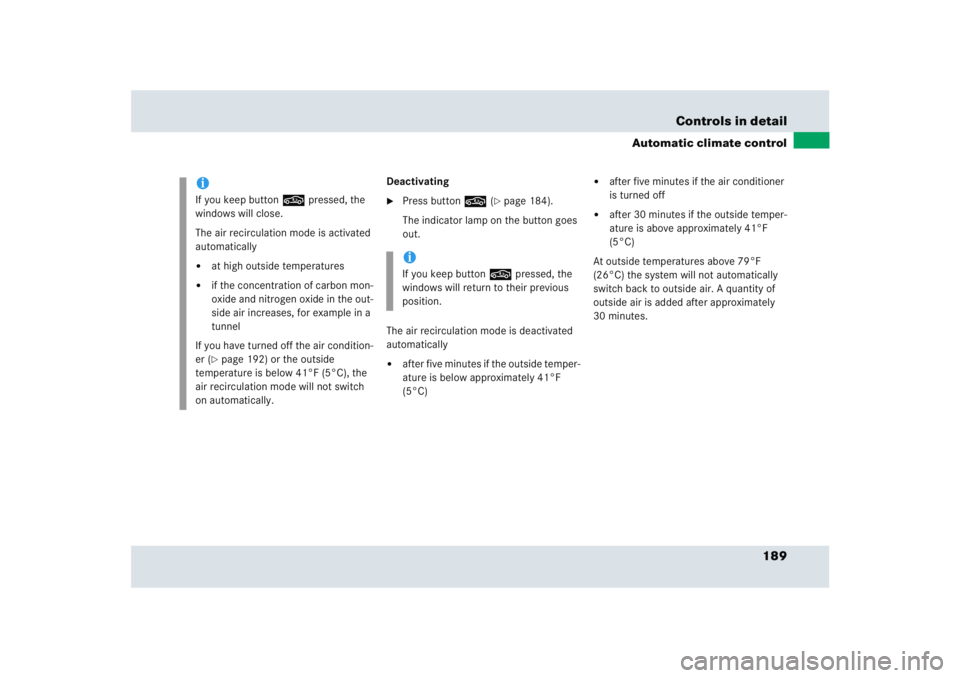

189 Controls in detail
Automatic climate control
Deactivating
Press button , (
page 184).
The indicator lamp on the button goes
out.
The air recirculation mode is deactivated
automatically


after five minutes if the outside temper-
ature is below approximately 41°F
(5°C)


after five minutes if the air conditioner
is turned off


after 30 minutes if the outside temper-
ature is above approximately 41°F
(5°C)
At outside temperatures above 79°F
(26°C) the system will not automatically
switch back to outside air. A quantity of
outside air is added after approximately
30 minutes.
iIf you keep button , pressed, the
windows will close.
The air recirculation mode is activated
automatically

at high outside temperatures


if the concentration of carbon mon-
oxide and nitrogen oxide in the out-
side air increases, for example in a
tunnel
If you have turned off the air condition-
er (page 192) or the outside
temperature is below 41°F (5°C), the
air recirculation mode will not switch
on automatically.
iIf you keep button , pressed, the
windows will return to their previous
position.

190 Controls in detailAutomatic climate controlResidual heat and ventilation
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.Activating

Turn the SmartKey in the starter switch
to position1 or0 o r r e m o v e i t f r o m t h e
starter switch.

Press button T (
page 184).
The indicator lamp on button T
comes on.Deactivating

Press button T (
page 184).
The indicator lamp on button T
goes out.
The residual heat is automatically turned
off:


when the ignition is switched on


after about 30 minutes


if the battery voltage drops
iHow long the system will provide heat-
ing depends on the coolant tempera-
ture and the temperature set by the
operator. The blower will run at speed
setting1 regardless of the air distribu-
tion control setting.

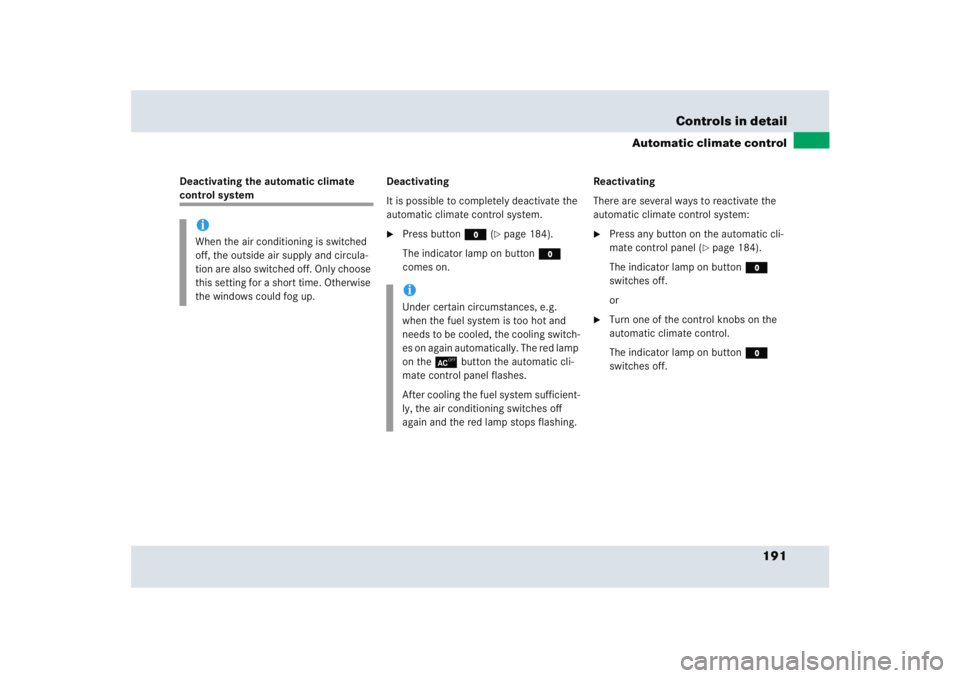

191 Controls in detail
Automatic climate control
Deactivating the automatic climate control systemDeactivating
It is possible to completely deactivate the
automatic climate control system.

Press button M (
page 184).
The indicator lamp on button M
comes on.Reactivating
There are several ways to reactivate the
automatic climate control system:

Press any button on the automatic cli-
mate control panel (
page 184).
The indicator lamp on button M
switches off.
or

Turn one of the control knobs on the
automatic climate control.
The indicator lamp on button M
switches off.
iWhen the air conditioning is switched
off, the outside air supply and circula-
tion are also switched off. Only choose
this setting for a short time. Otherwise
the windows could fog up.
iUnder certain circumstances, e.g.
when the fuel system is too hot and
needs to be cooled, the cooling switch-
es on again automatically. The red lamp
on the ± button the automatic cli-
mate control panel flashes.
After cooling the fuel system sufficient-
ly, the air conditioning switches off
again and the red lamp stops flashing.
