At a glanceCockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Control panel on the door sill

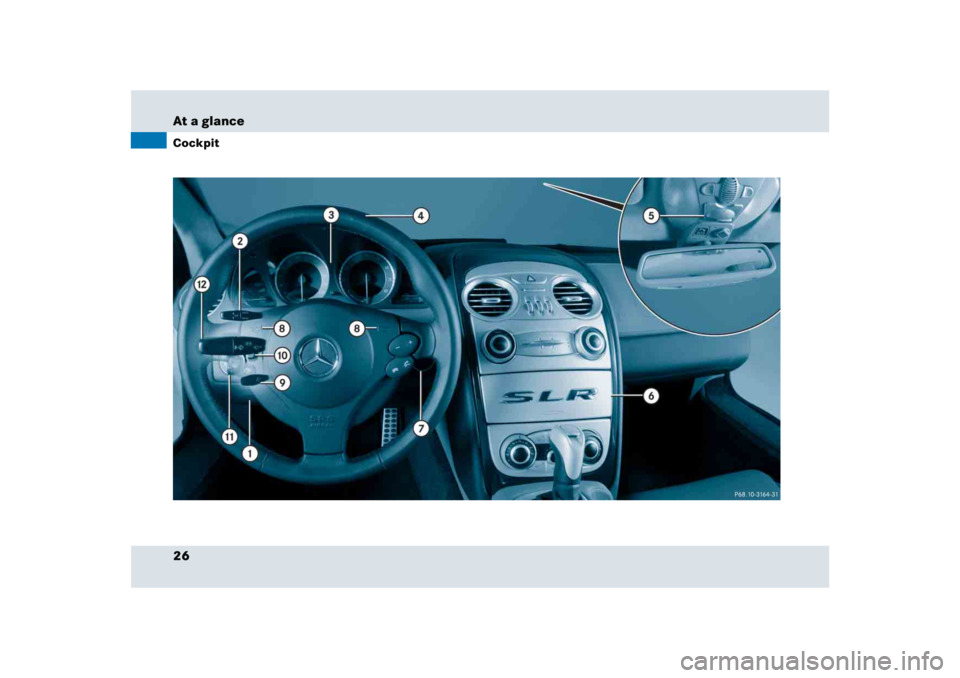

26 At a glanceCockpit

27 At a glance
Cockpit
Item
Page
1
Hood lock release
243
2
Cruise control lever
197
3
Instrument cluster
28,
113
4
Multifunction steering wheel
30,
118
5
Overhead control panel
33
6
Center console
31, 32
7
Starter switch
40
8
Horn
Item
Page
9
Steering wheel adjustment
stalk
42
a
Headlamp washer button
178
b
Exterior lamp switch
51,
105
c
Combination switch

Turn signals


Windshield wipers


High beam
52
53
109

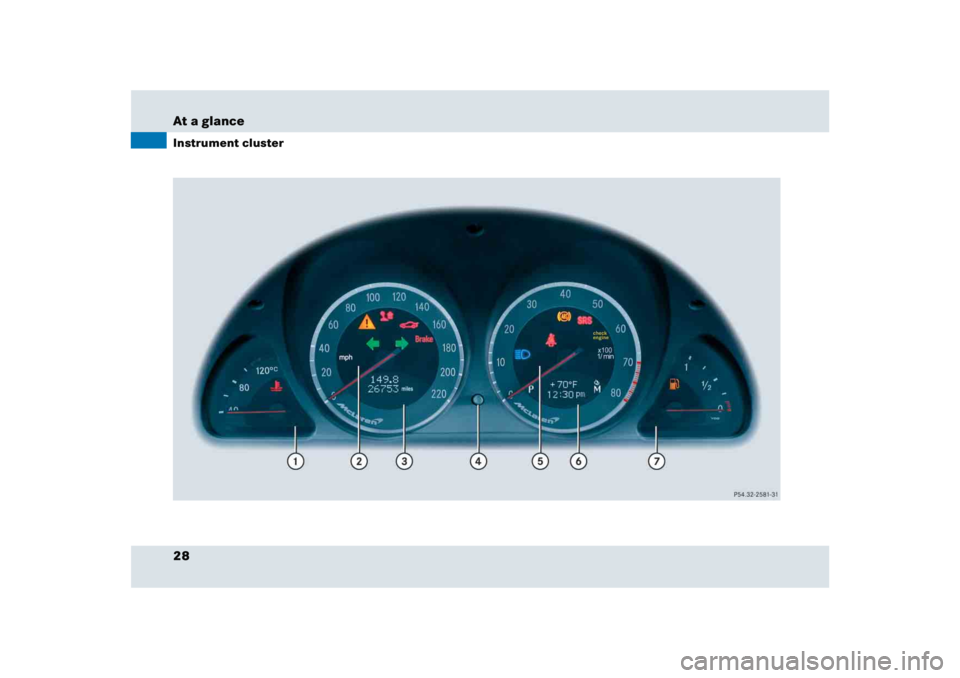

28 At a glanceInstrument cluster

29 At a glance
Instrument cluster
Item
Page
1
Coolant temperature gauge
withDCoolant temperature
warning lamp
300
2
Speedometer with;Brake warning lamp,
USA only
298
3Brake warning lamp,
Canada only
298
vABS/ESP warning
lamp
296
>Gearshift indicator
lamp
301
301
LLeft turn signal indica-
tor lampKTurn signal indicator
lamp, right
Item
Page
3
Left multifunction display
with

Trip odometer
117


Main odometer
117
4
Reset button
113
5
Tachometer with
115
AHigh beam headlamp
indicator
109
?Engine malfunction in-
dicator lamp, USA only
299
±Engine malfunction in-
dicator lamp, Canada
only
299
-Antilock Brake System
(ABS) indicator lamp
297
Item
Page
1Supplemental restraint
system indicator lamp
302
302
6
Right multifunction display

Current gear selector lever
position/gear range
117,
170,
171


Outside temperature
115


Automatic transmission
shift program mode
117,
173


Clock
129
=Engine oil temperature
symbol
301
7
Fuel gauge withAFuel reserve warning
lamp
301

30 At a glanceMultifunction steering wheel
Item
Page
1
Left multifunction display in
the speedometer
117
2
Right multifunction display in
the tachometer
117
Operating control system
3
Selecting the submenu or set-
ting the volume:
Press button
æup/to increase
çdown/to decrease
118
4
Telephone:
Press button
íto take a call
ìto end a call
118
Item
Page
5
Menu systems:
Press button
èfor next system
ÿfor previous system
118
6
Moving within a menu:
Press button
jfor next display
kfor previous display
118

31 At a glance
Center console
Center console
Upper part
Item
Page
1
Central locking switch
103
2
Hazard warning flasher
on/off switch
110
3
Central unlocking switch
104
4
Center and side air vent ad-
justment
182
5
Selects the shift program
mode
173
Item
Page
6
Selects the Airbrake mode
87
7
Selects the manual shift pro-
gram mode
175
8
Audio system
120
143
9
Automatic climate control
182
a
Engine start button
48
