55 Getting started
Parking and locking
Parking and locking
You have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows:
Parking brake
1Release handle
2Parking brake pedal
Step firmly on parking brake pedal2.
When the engine is running, the indica-
tor lamp ;(USA only)
or3(Canada only) in the instru-
ment cluster will be illuminated.
Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the
vehicle.Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
Warning!
G
To reduce the risk of personal injury as a re-
sult of inadvertent vehicle movement, be-
fore turning off the engine and leaving the
vehicle always:

Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Move the gear selector lever to
positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheel towards the road curb.


Turn the SmartKey to starter switch
position0 and remove, or press
start / stop button (vehicles with
KEYLESS-GO*).


Take the SmartKey or the SmartKey with
KEYLESS-GO* and lock vehicle when
leaving.

56 Getting startedParking and locking
Switching off headlamps
Turn the exterior lamp switch toM
(page 50).
For more information, see “Lighting”
(
page 124).
Turning off the engine
Place the gear selector lever in
positionP.
Turning off the engine with the
SmartKey

Turn the SmartKey in the starter switch
(page 34) to position0 and remove
it.
The immobilizer is activated.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Children could release the
parking brake and/or move the gear selec-
tor lever from positionP, either of which
could result in an accident and/or serious
personal injury.
Warning!
G
Getting out of your vehicle with the gear se-
lector lever not fully engaged in positionP is
dangerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP (
page 169).
When parked on an incline, turn front wheels
towards the road curb.
iAlways set the parking brake in addi-
tion to shifting to positionP.
On slopes, turn the front wheels to-
wards the curb.iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.

57 Getting started
Parking and locking

Press the seat belt release button
(page 45).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.

After exiting the vehicle, press the lock
button‹ on the SmartKey
(page 32).
All turn signal lamps flash three times.
The locking knobs in the doors move
down.
For more information, see “Locking and
unlocking” (
page 94).Turning off the engine with
KEYLESS-GO*

Place the gear selector lever inP.

Press the KEYLESS-GO start/stop but-
ton to shut off the engine.
With the driver’s door closed, the start-
er switch is now in position1. With the
driver’s door opened, the starter switch
is set to position0, same as SmartKey
removed from starter switch
(page 34).

Press the seat belt release button
(page 45).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
iWith the SmartKey removed and the
driver’s door open, a warning sounds if
the vehicle’s exterior lamps are not
switched off.Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
iOpening a door causes the windows on
that side of the car to open slightly.
They will return to the up position when
the door is closed.Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.


58 Getting startedParking and locking
1Lock button on the door handle

After exiting the vehicle, press lock
button1 on the door handle or on the
trunk lid.
All turn signal lamps flash three times.
The locking knobs in the doors move
down.
For more information, see “Locking and
unlocking” (
page 94).
!If you hear a warning signal you have
either

forgotten to switch off the vehi-
cles’s exterior lamps before open-
ing the driver’s door, or


tried to turn off the engine while the
gear selector lever is not inP.
Turn off the lights or place the gear se-
lector lever inP.
iOpening a door causes the windows on
that side of the car to open slightly.
They will return to the up position when
the door is closed.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.

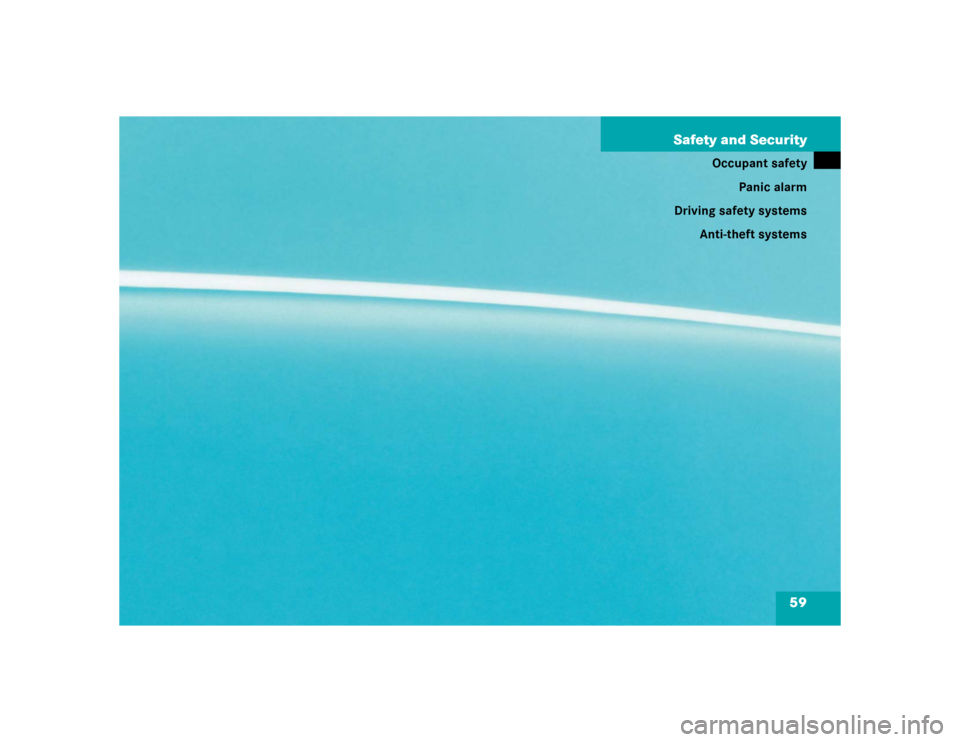

59 Safety and Security
Occupant safety
Panic alarm
Driving safety systems
Anti-theft systems

60 Safety and SecurityOccupant safetyIn this section you will learn the most im-
portant facts about the restraint system
components of the vehicle.

Seat belts (
page 67)


Child restraints (
page 79)


Lower anchors and tethers for children
(LATCH) (
page 80)
Supplemental Restraint System (SRS) with


Air bags (
page 61)


Air bag control unit (with crash sen-
sors)


Emergency tensioning device (ETD) for
seat belts (
page 69)Air bag system components with


Front passenger front air bag off indica-
tor lamp (
page 77)


Front passenger seat with Occupant
Classification System (OCS)
(page 73)
As independent systems, their protective
functions work in conjunction with each
other.The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates early detection of malfunctions.
The
1
indicator lamp in the instrument
cluster comes on when the ignition is
switched on and goes out no later than a
few seconds after the engine has been
started.
The SRS components are in operational
readiness if the
1
indicator lamp is not
lit when the engine is running.
A malfunction in the system has been
detected if the
1
indicator lamp:


fails to go out after approximately four
seconds after the engine was started


does not come on at all


comes on after the engine was started
or while driving
iFor information on infants and children
traveling with you in the vehicle and
restraint systems for infants and chil-
dren, see “Children in the vehicle”
(page 70).

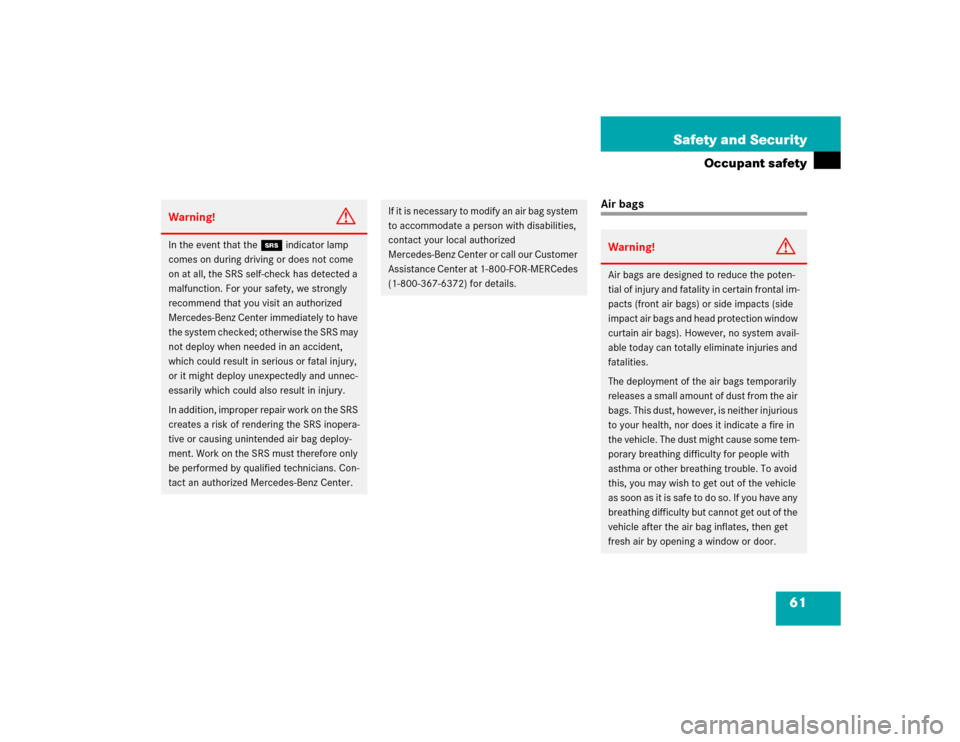

61 Safety and Security
Occupant safety
Air bags
Warning!
G
In the event that the 1indicator lamp
comes on during driving or does not come
on at all, the SRS self-check has detected a
malfunction. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not deploy when needed in an accident,
which could result in serious or fatal injury,
or it might deploy unexpectedly and unnec-
essarily which could also result in injury.
In addition, improper repair work on the SRS
creates a risk of rendering the SRS inopera-
tive or causing unintended air bag deploy-
ment. Work on the SRS must therefore only
be performed by qualified technicians. Con-
tact an authorized Mercedes-Benz Center.
If it is necessary to modify an air bag system
to accommodate a person with disabilities,
contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.
Warning!
G
Air bags are designed to reduce the poten-
tial of injury and fatality in certain frontal im-
pacts (front air bags) or side impacts (side
impact air bags and head protection window
curtain air bags). However, no system avail-
able today can totally eliminate injuries and
fatalities.
The deployment of the air bags temporarily
releases a small amount of dust from the air
bags. This dust, however, is neither injurious
to your health, nor does it indicate a fire in
the vehicle. The dust might cause some tem-
porary breathing difficulty for people with
asthma or other breathing trouble. To avoid
this, you may wish to get out of the vehicle
as soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the air bag inflates, then get
fresh air by opening a window or door.

62 Safety and SecurityOccupant safetyWarning!
G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear their
respective seat belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and make sure that it is prop-
erly positioned on your body.
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured by an air bag as it inflates with great
force in the blink of an eye:

Sit properly belted in a nearly upright
position with your back against the seat
backrest.


Adjust the driver seat as far as possible
rearward, still permitting proper opera-
tion of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
ten inches (25 cm) or more. You should
be able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see an authorized
Mercedes-Benz Center.


Do not lean your head or chest close to
the steering wheel or dashboard.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver front air bag inflates.


Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.


Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door or the rear
side trim panel where the side impact air
bag inflates. This could result in serious
injuries or death should the air bag be
triggered. Always sit nearly upright,
properly use the seat belts and use an
appropriately sized infant or toddler re-
straint or booster seat recommended
for the size and weight of the child.
Failure to follow these instructions can re-
sult in severe injuries to you or other occu-
pants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety in-
formation. Be sure to give the buyer this Op-
erator’s Manual.
