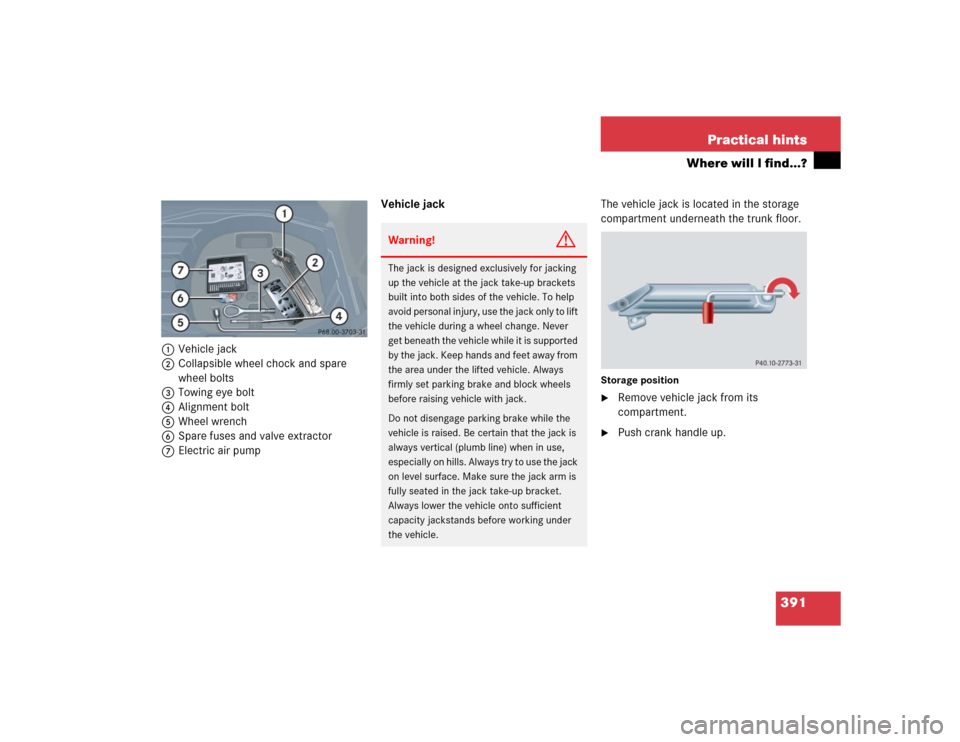

Where will I find...?
1Vehicle jack
2Collapsible wheel chock and spare
wheel bolts
3Towing eye bolt
4Alignment bolt
5Wheel wrench
6Spare fuses and valve extractor
7Electric air pumpVehicle jackThe vehicle jack is located in the storage
compartment underneath the trunk floor.
Storage position
Remove vehicle jack from its
compartment.

Push crank handle up.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket.
Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.

392 Practical hintsWhere will I find...?Operational position
Turn crank handle clockwise until it
engages (operational position).
Before storing the vehicle jack in its
compartment:


It should be fully collapsed.


The handle must be folded in (storage
position).Setting up the collapsible wheel chock

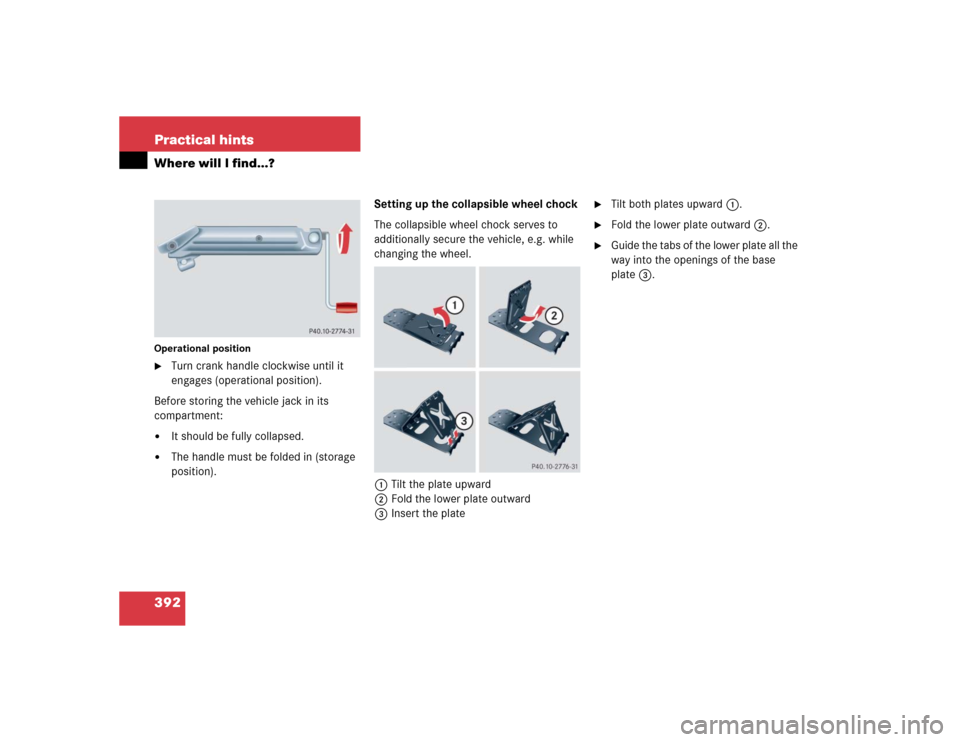

The collapsible wheel chock serves to
additionally secure the vehicle, e.g. while
changing the wheel.
1Tilt the plate upward
2Fold the lower plate outward
3Insert the plate

Tilt both plates upward1.

Fold the lower plate outward2.

Guide the tabs of the lower plate all the
way into the openings of the base
plate3.

393 Practical hints
Where will I find...?
Minispare wheel (except CLK 55 AMG)
The Minispare wheel is located in the
storage compartment underneath the
trunk floor.
Removing the Minispare wheel
Lift up trunk floor cover and engage
trunk floor handle in upper edge of
trunk.

Loosen the retaining screw in the mid-
dle of storage well casing by turning it
counterclockwise (
page 389).

Remove the storage well casing

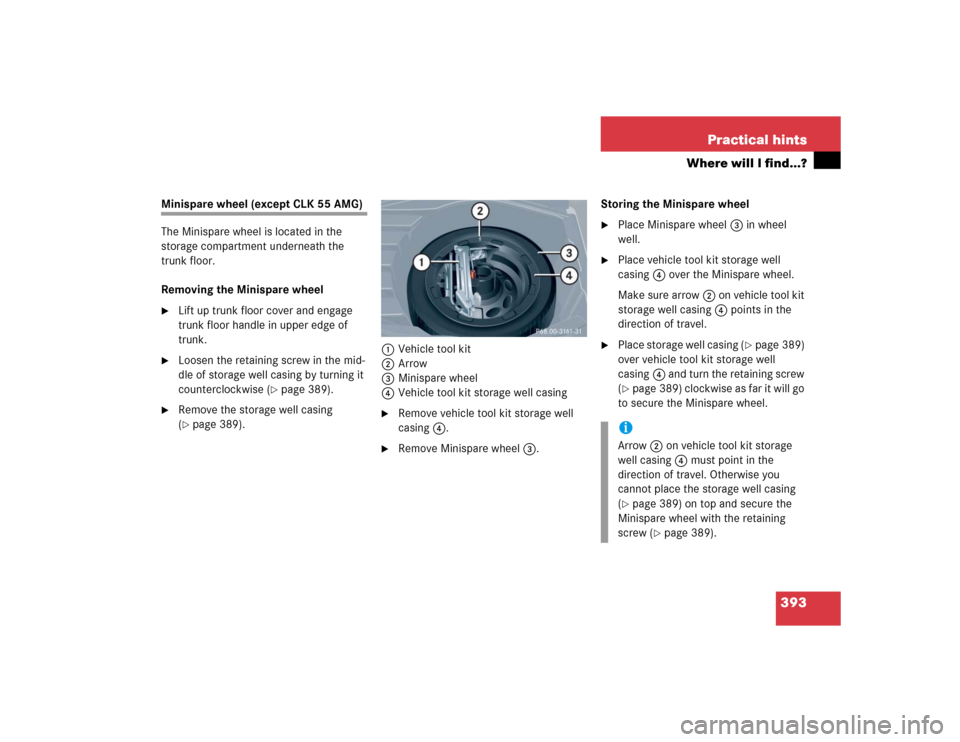

(page 389).1Vehicle tool kit
2Arrow
3Minispare wheel
4Vehicle tool kit storage well casing

Remove vehicle tool kit storage well
casing4.

Remove Minispare wheel3.Storing the Minispare wheel

Place Minispare wheel3 in wheel
well.

Place vehicle tool kit storage well
casing4 over the Minispare wheel.
Make sure arrow2 on vehicle tool kit
storage well casing4 points in the
direction of travel.

Place storage well casing (
page 389)
over vehicle tool kit storage well
casing4 and turn the retaining screw
(
page 389) clockwise as far it will go
to secure the Minispare wheel.
iArrow2 on vehicle tool kit storage
well casing4 must point in the
direction of travel. Otherwise you
cannot place the storage well casing
(page 389) on top and secure the
Minispare wheel with the retaining
screw (
page 389).

394 Practical hintsWhere will I find...?
In the case of a flat tire, you may
temporarily use the Minispare wheel when
observing the following restrictions:

Do not exceed a vehicle speed of
50 mph (80 km/h).


Drive to the nearest tire repair facility
to have the flat tire repaired or
replaced as appropriate.


Do not operate vehicle with more than
one Minispare wheel mounted.
For more information, see “Rims and tires”
(
page 439).
Collapsible tire (CLK 55 AMG only)
The collapsible tire is located in the
storage compartment underneath the
trunk floor.
Removing the collapsible tire
Lift up trunk floor cover and engage
trunk floor handle in upper edge of
trunk.
1Collapsible tire
2Vehicle tool kit (under collapsible tire)
3Retaining screw
!To prevent damage, always disengage
trunk floor handle from upper edge of
trunk and lower trunk floor before
closing the trunk lid.Warning!
G
The dimensions of the Minispare wheel are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a Minispare wheel
mounted.
The Minispare wheel should only be used
temporarily, and should be replaced with a
regular road wheel as quickly as possible.

395 Practical hints
Where will I find...?

Loosen retaining screw3 by turning it
counterclockwise.

Remove collapsible tire1.
Storing the collapsible tire
If you wish to store the collapsible tire after
use, carry out the following steps.
Otherwise the collapsible tire will not fit
the storage compartment.

Unscrew the valve cap from the valve
of the collapsible tire.

Take the valve extractor from the
vehicle tool kit (
page 391).

Unscrew the valve insert from the valve
and allow the air to escape.

Screw the valve insert back into the
valve.

Screw the valve cap back on the valve.

Pull the protective wrap provided with
the vehicle tool kit over the collapsible
tire.

Store the collapsible tire and the valve
extractor in the storage compartment
underneath the trunk floor.

Pierce the protective wrap with
retaining screw3.

Secure the collapsible tire by turning
retaining screw3clockwise.
!Make sure the collapsible tire is dry
when storing it.
iIt may take a few minutes for the col-
lapsible tire to deflate completely.
!To prevent damage, always disengage
trunk floor handle from upper edge of
trunk and lower trunk floor before
closing the trunk lid.Warning!
G
The dimensions of the collapsible tire are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a collapsible tire
mounted.
The collapsible tire should only be used tem-
porarily, and should be replaced with a reg-
ular road wheel as quickly as possible.

396 Practical hintsWhere will I find...?In the case of a flat tire, you may
temporarily use the collapsible tire when
observing the following restrictions:

Do not exceed a vehicle speed of
50 mph (80 km/h).


Drive to the nearest tire repair facility
to have the flat tire repaired or
replaced as appropriate.


Do not operate vehicle with more than
one collapsible tire mounted.
For more information, see “Rims and tires”
(
page 439).

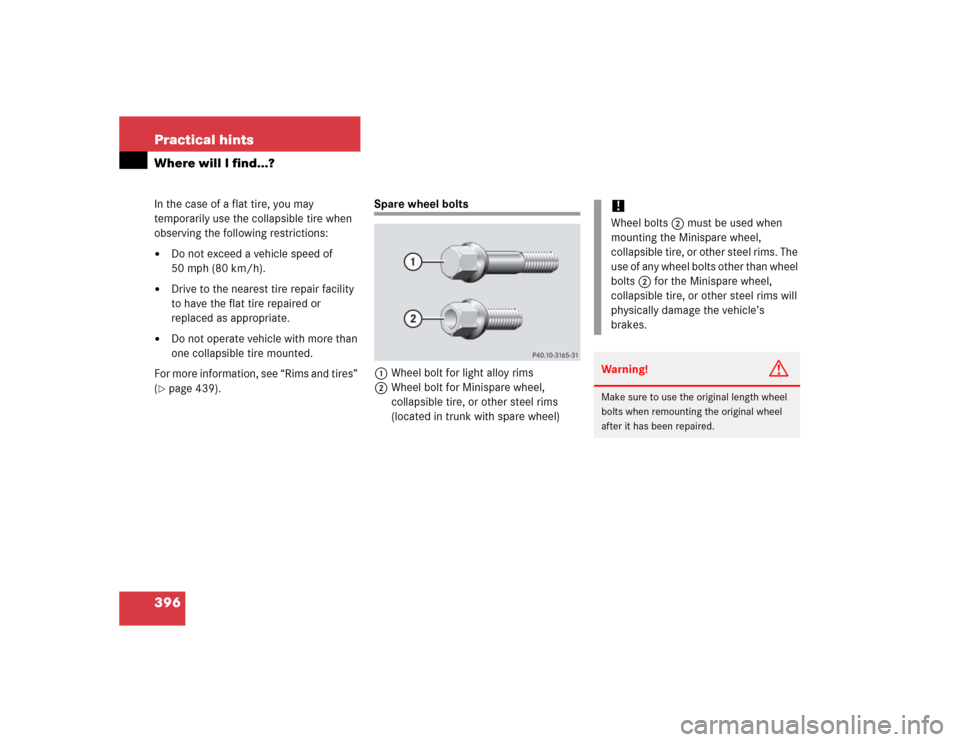

Spare wheel bolts
1Wheel bolt for light alloy rims
2Wheel bolt for Minispare wheel,
collapsible tire, or other steel rims
(located in trunk with spare wheel)
!Wheel bolts2 must be used when
mounting the Minispare wheel,
collapsible tire, or other steel rims. The
use of any wheel bolts other than wheel
bolts2 for the Minispare wheel,
collapsible tire, or other steel rims will
physically damage the vehicle’s
brakes. Warning!
G
Make sure to use the original length wheel
bolts when remounting the original wheel
after it has been repaired.

397 Practical hints
Unlocking/locking in an emergency
Unlocking/locking in an emergency
Unlocking the vehicle
If you are unable to unlock the vehicle with
the SmartKey or KEYLESS-GO*, open the
driver’s door and the trunk using the
mechanical key.

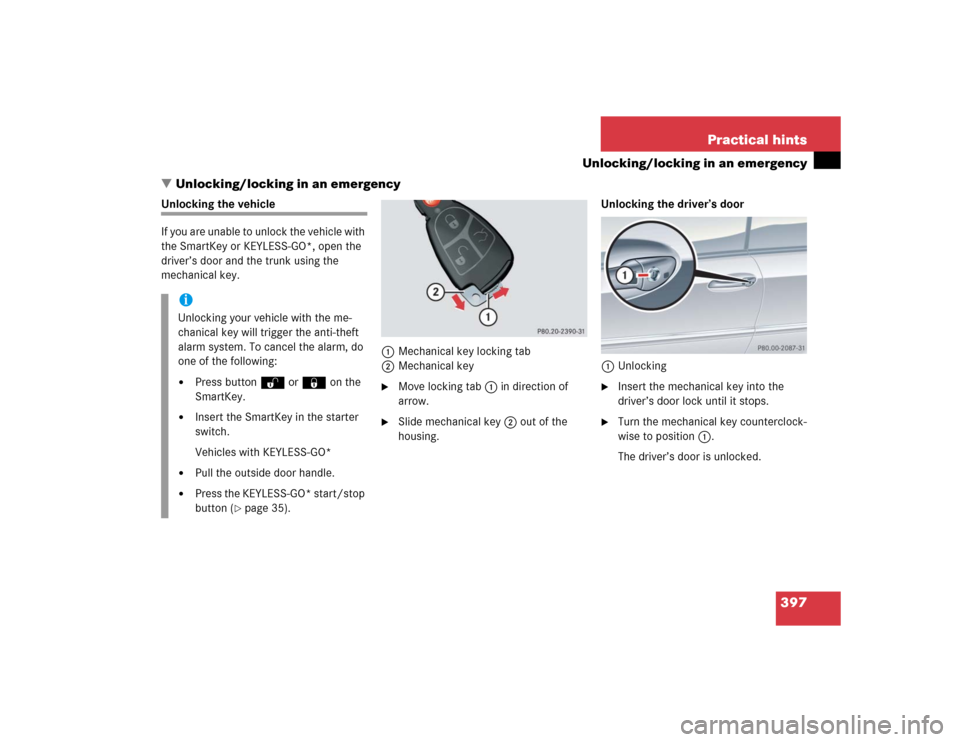

1Mechanical key locking tab
2Mechanical key

Move locking tab1 in direction of
arrow.

Slide mechanical key2 out of the
housing.Unlocking the driver’s door
1Unlocking

Insert the mechanical key into the
driver’s door lock until it stops.

Turn the mechanical key counterclock-
wise to position1.
The driver’s door is unlocked.
iUnlocking your vehicle with the me-
chanical key will trigger the anti-theft
alarm system. To cancel the alarm, do
one of the following:

Press button Œ or ‹ on the
SmartKey.


Insert the SmartKey in the starter
switch.
Vehicles with KEYLESS-GO*


Pull the outside door handle.


Press the KEYLESS-GO* start/stop
button (
page 35).

398 Practical hintsUnlocking/locking in an emergencyUnlocking the trunk
A minimum height clearance of 5.71 ft
(1.74 m) is required to open the trunk lid.
The trunk lid lock is located next to the
handle above the rear license plate recess.
1Unlocking in an emergency
2Handle

Insert the mechanical key into the
trunk lid lock until it stops.

Turn the mechanical key
counterclockwise to position1 and
hold it in this position.

Pull the trunk lid handle2 and lift the
trunk lid.
The trunk opens.

Turn the mechanical key back and
remove it from the trunk lid lock.
Locking the vehicle
If you are unable to lock the vehicle with
the SmartKey, do the following:
Close the passenger door and the
trunk lid.

Press the central locking switch in the
center console (
page 110).

Check to see whether the locking knob
on the passenger door have moved
down.

If necessary push it down manually.
Except for the driver’s door, the vehicle
should now be locked.
! Always make sure there is sufficient
overhead clearance.
