2005 MERCEDES-BENZ CLK320 COUPE Owner's Manual

71 Safety and Security
Occupant safety
iInformation on child seats with anchor
fittings for tether anchorages
(page 79).
For information on LATCH-type child
seat anchors (
page 80).
!The use of infant or child restraints is
required by law in all 50 states, the Dis-
trict of Columbia, the U.S. territories,
and all Canadian provinces.
Infants and small children should be
seated in an appropriate infant or child
restraint system, properly secured by a
lap / shoulder belt or, if so equipped, a
top tether anchorage point and a child
restraint lower anchorage system that
complies with U.S. Federal Motor Vehi-
cle Safety Standards 213 and 225 and
Canadian Motor Vehicle Safety Stan-
dards 213 and 210.2.
Warning!
G
Never release the seat belt buckle while the
vehicle is in motion, since the special seat
belt retractor will be deactivated.!A statement by the child restraint man-
ufacturer of compliance with this stan-
dard can be found on the instruction
label on the restraint and in the instruc-
tion manual provided with the restraint.
When using any infant or child restraint
system, be sure to carefully read and
follow all manufacturer’s instructions
for installation and use.
Please read and observe warning labels
affixed to the inside of the vehicle and
to infant or child restraints.
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or child restraint
recommended for the size and weight of the
child.
The infant or child restraint must be properly
secured with the vehicle’s seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer’s instruc-
tions.

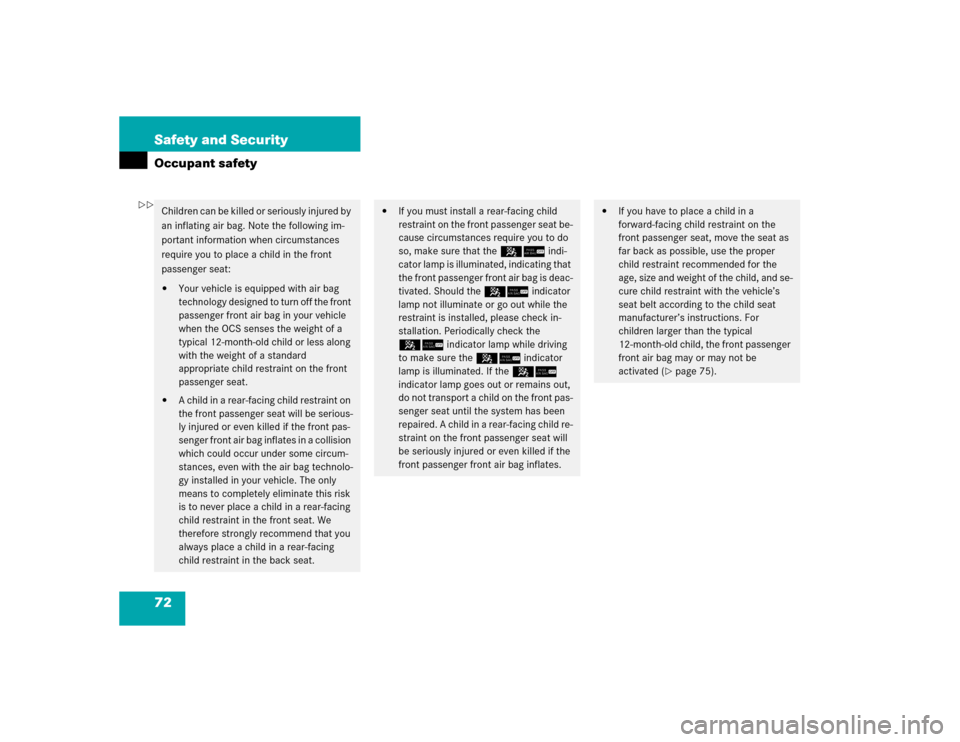

72 Safety and SecurityOccupant safetyChildren can be killed or seriously injured by
an inflating air bag. Note the following im-
portant information when circumstances
require you to place a child in the front
passenger seat:

Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the OCS senses the weight of a
typical 12-month-old child or less along
with the weight of a standard
appropriate child restraint on the front
passenger seat.


A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front pas-
senger front air bag inflates in a collision
which could occur under some circum-
stances, even with the air bag technolo-
gy installed in your vehicle. The only
means to completely eliminate this risk
is to never place a child in a rear-facing
child restraint in the front seat. We
therefore strongly recommend that you
always place a child in a rear-facing
child restraint in the back seat.


If you must install a rear-facing child
restraint on the front passenger seat be-
cause circumstances require you to do
so, make sure that the 56 indi-
cator lamp is illuminated, indicating that
the front passenger front air bag is deac-
tivated. Should the 56 indicator
lamp not illuminate or go out while the
restraint is installed, please check in-
stallation. Periodically check the
56 indicator lamp while driving
to make sure the 56 indicator
lamp is illuminated. If the 56
indicator lamp goes out or remains out,
do not transport a child on the front pas-
senger seat until the system has been
repaired. A child in a rear-facing child re-
straint on the front passenger seat will
be seriously injured or even killed if the
front passenger front air bag inflates.


If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and se-
cure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
front air bag may or may not be
activated (
page 75).


73 Safety and Security
Occupant safety
Occupant Classification System
The O
ccupant C
lassification S
ystem (OCS)
automatically turns the front passenger
front air bag on or off based on the classi-
fied occupant weight category determined
by weight sensor readings from the front
passenger seat.
Occupants must sit properly belted in a
nearly upright position with their back
against the seat backrest and feet on the
floor to be correctly classified. If the occu-
pant's weight is transferred to another
object in the vehicle (e.g. by leaning on
armrests), the OCS may not be able to
properly approximate the occupant’s
weight category.
Warning!
G
Infants and small children should never
share a seat belt with another occupant.
During an accident, they could be crushed
between the occupant and seat belt.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.
Children too big for a toddler restraint must
ride in seats using regular seat belts. Posi-
tion shoulder belt across chest and shoul-
der, not face or neck. A booster seat may be
necessary to achieve proper belt positioning
for children from 41 lbs until they reach a
height where a lap/shoulder belt fits
properly without a booster.
When the child restraint is not in use,
remove it from the vehicle or secure it with
the seat belt to prevent the child restraint
from becoming a projectile in the event of
an accident.
Do not leave children unattended in the
vehicle, even if the children are secured in a
child restraint system. Unsupervised chil-
dren in a child restraint system may use
vehicle equipment and may cause an acci-
dent and/or serious personal injury.
iThe system does not deactivate the
front passenger side impact air bag,
the window curtain air bag and the
emergency tensioning device.

74 Safety and SecurityOccupant safetyBoth driver and the front passenger should
always use the 56 indicator lamp
as an indication of whether or not the front
passenger is properly positioned.
iIf your seat, including your trim cover
and cushion needs to be serviced in
any way, take the vehicle to an autho-
rized Mercedes-Benz Center.
Only seat accessories approved by
Mercedes-Benz may be used.
Warning!
G
If the 56 indicator lamp illuminates
when an adult or someone larger than a
small individual is in the front passenger
seat, have the front passenger re-position
himself or herself in the seat until the
56 indicator lamp goes out.
More information about air bag display mes-
sages (
page 368).
In the event of a collision, the air bag control
unit will not allow front passenger front air
bag deployment when the OCS classified
the front passenger seat occupant as being
up to or less than the weight of a typical
12-month-old child in a standard child
restraint or if the front passenger seat is
sensed as being empty.
When the OCS senses that the front passen-
ger seat occupant is classified as being up
to or less than the weight of a typical
12-month-old child in a standard child
restraint, the 56 indicator lamp will
illuminate when the engine is started and
remain illuminated, indicating that the front
passenger front air bag is deactivated.
When the OCS senses that the front passen-
ger seat is classified as being empty, the
56 indicator lamp will illuminate
when the engine is started and remain illu-
minated, indicating that the front passenger
front air bag is deactivated.

75 Safety and Security
Occupant safety
When the OCS senses that the front passen-
ger seat occupant is classified as being
heavier than the weight of a typical
12-month-old child seated in a standard
child restraint or as being a small individual
(such as a young teenager or a small adult),
the 56 indicator lamp will illuminate
for approximately six seconds when the en-
gine is started and then, depending on
occupant weight sensor readings from the
seat, remain illuminated or go out. With the
56 indicator lamp illuminated, the
front passenger front air bag is deactivated.
With the 56 indicator lamp out, the
front passenger front air bag is activated.
When the OCS senses that the front passen-
g e r s e a t o c c u p a n t i s c l a s s i f i e d a s a n a d u l t o r
someone larger than a small individual, the
56 indicator lamp will illuminate for
approximately six seconds when the engine
is started and then go out, indicating that
the front passenger front air bag is
activated.
If the 56 indicator lamp is illuminat-
ed, the front passenger front air bag is
deactivated and will not be deployed.
If the 56 indicator lamp is not illumi-
nated, the front passenger front air bag is
activated and will be deployed:

in the event of certain frontal impacts


if impact exceeds a preset deployment
threshold


independently of the side impact air
bags.
If the front passenger front air bag is de-
ployed, the rate of inflation will be influ-
enced by:


the rate of relevant vehicle deceleration
as assessed by the air bag control unit


front passenger’s weight category as
identified by the Occupant Classification
System (OCS).
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or child restraint
recommended for the size and weight of the
child.
The infant or child restraint must be properly
secured with the vehicle’s seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer’s instruc-
tions.


76 Safety and SecurityOccupant safetyChildren can be killed or seriously injured by
an inflating air bag. Note the following im-
portant information when circumstances re-
quire you to place a child in the front
passenger seat:

Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the system senses the weight of a
typical 12-month-old child or less along
with the weight of a standard appropri-
ate child restraint on the front passen-
ger seat.


A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front
passenger front air bag inflates in a
collision which could occur under some
circumstances, even with the air bag
technology installed in your vehicle. The
only means to completely eliminate this
risk is to never place a child in a rear-fac-
ing child restraint in the front seat. We
therefore strongly recommend that you
always place a child in a rear-facing
child restraint in the back seat.


If you must install a rear-facing child
restraint on the front passenger seat
because circumstances require you to
do so, make sure that the 56 in-
dicator lamp is illuminated, indicating
that the front passenger front air bag is
deactivated. Should the 56 indi-
cator lamp not illuminate or go out while
the restraint is installed, please check
installation. Periodically check the
56 indicator lamp while driving
to make sure the 56 indicator
lamp is illuminated. If the 56 in-
dicator lamp goes out or remains out, do
not transport a child on the front pas-
senger seat until the system has been
repaired. A child in a rear-facing child re-
straint on the front passenger seat will
be seriously injured or even killed if the
front passenger front air bag inflates.


If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and se-
cure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
front air bag may or may not be
activated (
page 75).


77 Safety and Security
Occupant safety
The 56indicator lamp is located in
the center console.
1Front passenger front air bag off
indicator lamp
The 56indicator lamp1 will be
illuminated, except with the SmartKey
removed or in starter switch position0.
iDeployment of the driver front air bag
does not mean that the front passenger
front air bag also should have de-
ployed.
The Occupant Classification System
(page 73) may have determined:


that the seat was empty or occu-
pied by the weight up to or less than
that of a typical 12-month-old child
seated in a standard child restraint
- both instances where the system
suppresses deployment of the front
passenger front air bag even
though the impact met the criteria
and was of sufficient severity to de-
ploy the driver front air bag.


that the seat was occupied by a
small individual (such as a young
teenager or a small adult) or a child
weighing more than the weight of a
typical 12-month-old child in a stan-
dard child restraint - instances
where the system may suppress
deployment of the front passenger
front air bag even though the
impact met the criteria and was of
sufficient severity to deploy the
driver front air bag.

78 Safety and SecurityOccupant safety
Self-test Occupant Classification
System
After turning the SmartKey in the starter
switch to position1 or2 or pressing the
KEYLESS-GO* start/stop button once or
twice, the 56 indicator lamp1 lo-
cated in the center console illuminates. If
an adult occupant is properly sitting on the
front passenger seat and the system sens-
es the occupant as being an adult, the
56 indicator lamp will illuminate
and go out after approximately six
seconds.
If the seat is not occupied and the system
senses the front passenger seat as being
empty, the 56 indicator lamp will
illuminate and not go out.

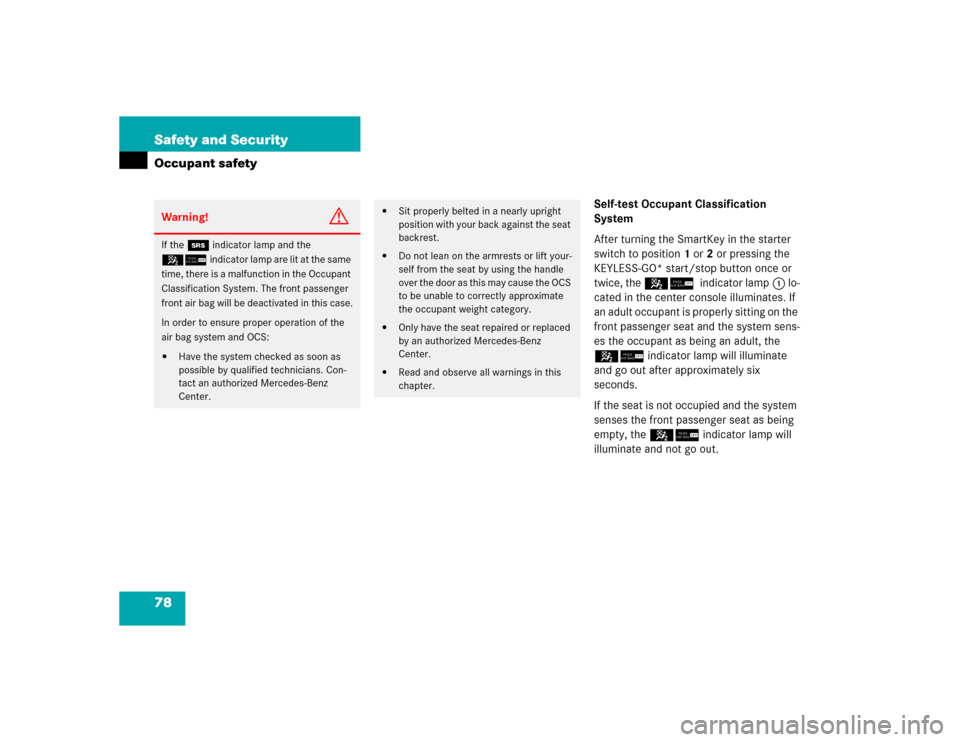

Warning!
G
If the 1indicator lamp and the
56indicator lamp are lit at the same
time, there is a malfunction in the Occupant
Classification System. The front passenger
front air bag will be deactivated in this case.
In order to ensure proper operation of the
air bag system and OCS:

Have the system checked as soon as
possible by qualified technicians. Con-
tact an authorized Mercedes-Benz
Center.


Sit properly belted in a nearly upright
position with your back against the seat
backrest.


Do not lean on the armrests or lift your-
self from the seat by using the handle
over the door as this may cause the OCS
to be unable to correctly approximate
the occupant weight category.


Only have the seat repaired or replaced
by an authorized Mercedes-Benz
Center.


Read and observe all warnings in this
chapter.
