2005 MERCEDES-BENZ CLK320 COUPE Owner's Manual

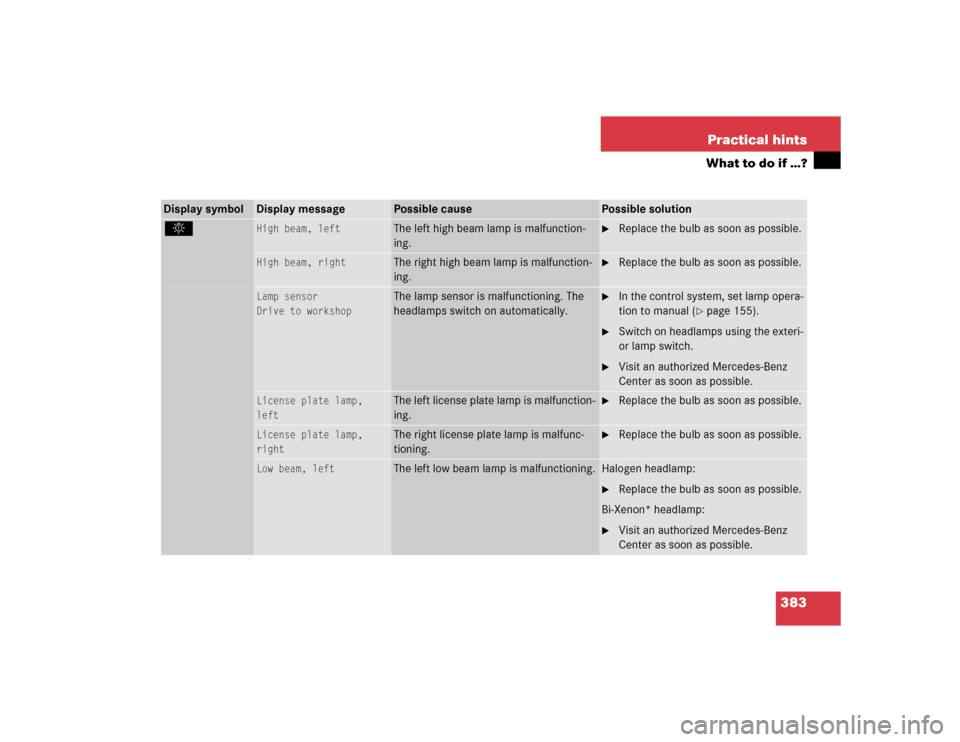

383 Practical hints
What to do if …?
Display symbol
Display message
Possible cause
Possible solution
.
High beam, left
The left high beam lamp is malfunction-
ing.

Replace the bulb as soon as possible.
High beam, right
The right high beam lamp is malfunction-
ing.

Replace the bulb as soon as possible.
Lamp sensor
Drive to workshop
The lamp sensor is malfunctioning. The
headlamps switch on automatically.

In the control system, set lamp opera-
tion to manual (
page 155).

Switch on headlamps using the exteri-
or lamp switch.

Visit an authorized Mercedes-Benz
Center as soon as possible.
License plate lamp,
left
The left license plate lamp is malfunction-
ing.

Replace the bulb as soon as possible.
License plate lamp,
right

The right license plate lamp is malfunc-
tioning.

Replace the bulb as soon as possible.
Low beam, left
The left low beam lamp is malfunctioning.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:

Visit an authorized Mercedes-Benz
Center as soon as possible.

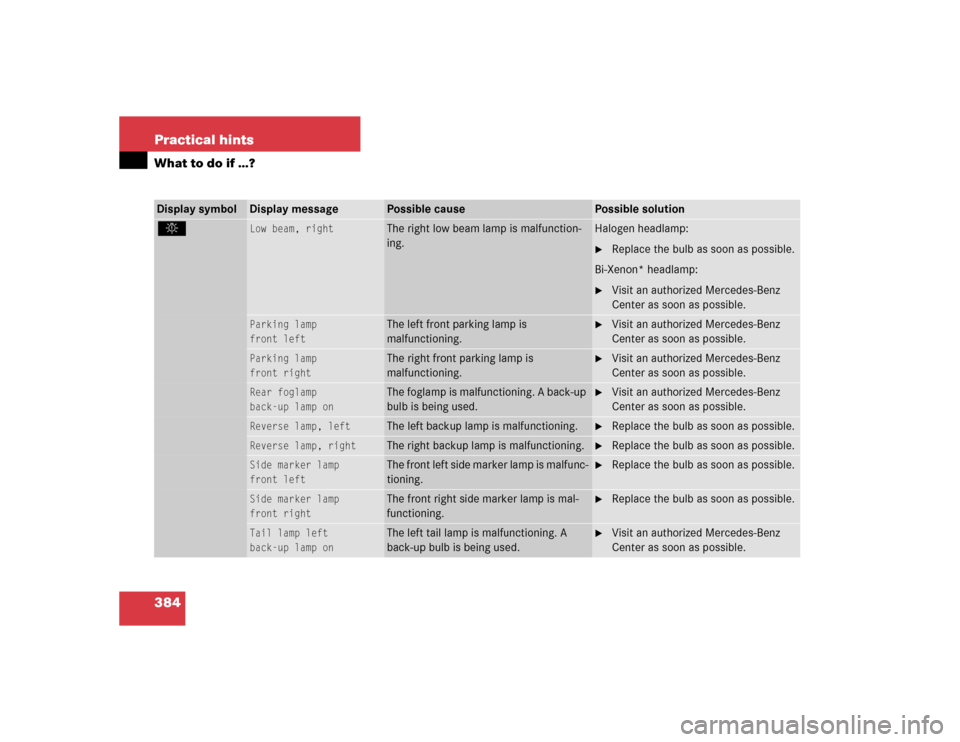

384 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution
.
Low beam, right
The right low beam lamp is malfunction-
ing.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:

Visit an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp
front left

The left front parking lamp is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp
front right

The right front parking lamp is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Rear foglamp
back-up lamp on

The foglamp is malfunctioning. A back-up
bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Reverse lamp, left
The left backup lamp is malfunctioning.

Replace the bulb as soon as possible.
Reverse lamp, right
The right backup lamp is malfunctioning.

Replace the bulb as soon as possible.
Side marker lamp
front left
The front left side marker lamp is malfunc-
tioning.

Replace the bulb as soon as possible.
Side marker lamp
front right
The front right side marker lamp is mal-
functioning.

Replace the bulb as soon as possible.
Tail lamp left
back-up lamp on

The left tail lamp is malfunctioning. A
back-up bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.

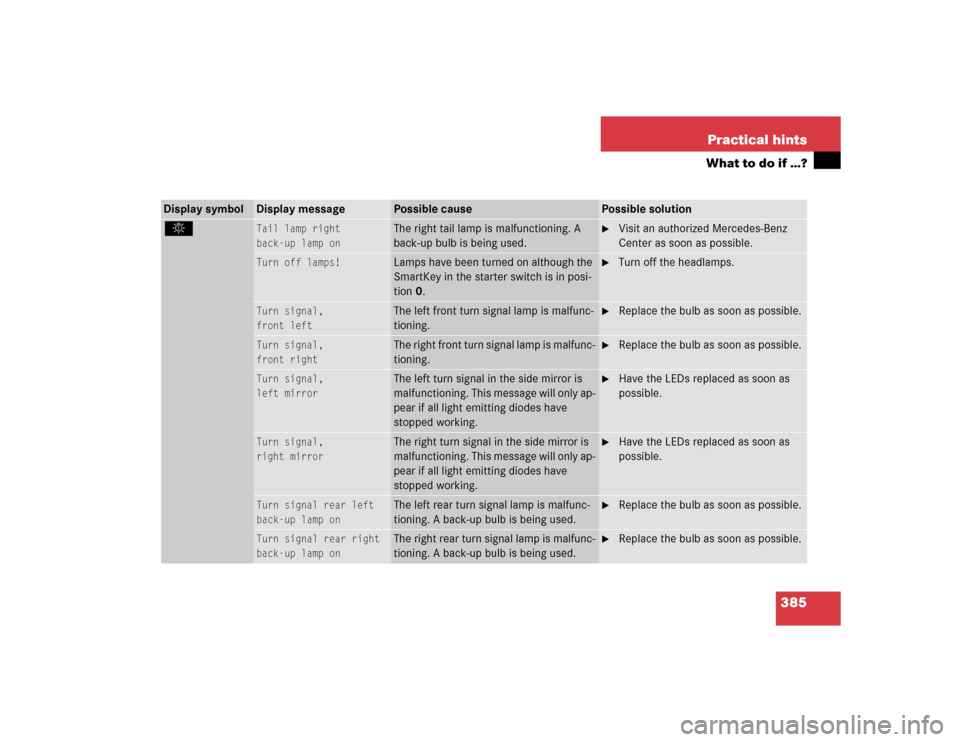

385 Practical hints
What to do if …?
Display symbol
Display message
Possible cause
Possible solution
.
Tail lamp right
back-up lamp on

The right tail lamp is malfunctioning. A
back-up bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Turn off lamps!
Lamps have been turned on although the
SmartKey in the starter switch is in posi-
tion 0.

Turn off the headlamps.
Turn signal,
front left
The left front turn signal lamp is malfunc-
tioning.

Replace the bulb as soon as possible.
Turn signal,
front right

The right front turn signal lamp is malfunc-
tioning.

Replace the bulb as soon as possible.
Turn signal,
left mirror
The left turn signal in the side mirror is
malfunctioning. This message will only ap-
pear if all light emitting diodes have
stopped working.

Have the LEDs replaced as soon as
possible.
Turn signal,
right mirror
The right turn signal in the side mirror is
malfunctioning. This message will only ap-
pear if all light emitting diodes have
stopped working.

Have the LEDs replaced as soon as
possible.
Turn signal rear left
back-up lamp on

The left rear turn signal lamp is malfunc-
tioning. A back-up bulb is being used.

Replace the bulb as soon as possible.
Turn signal rear right
back-up lamp on

The right rear turn signal lamp is malfunc-
tioning. A back-up bulb is being used.

Replace the bulb as soon as possible.

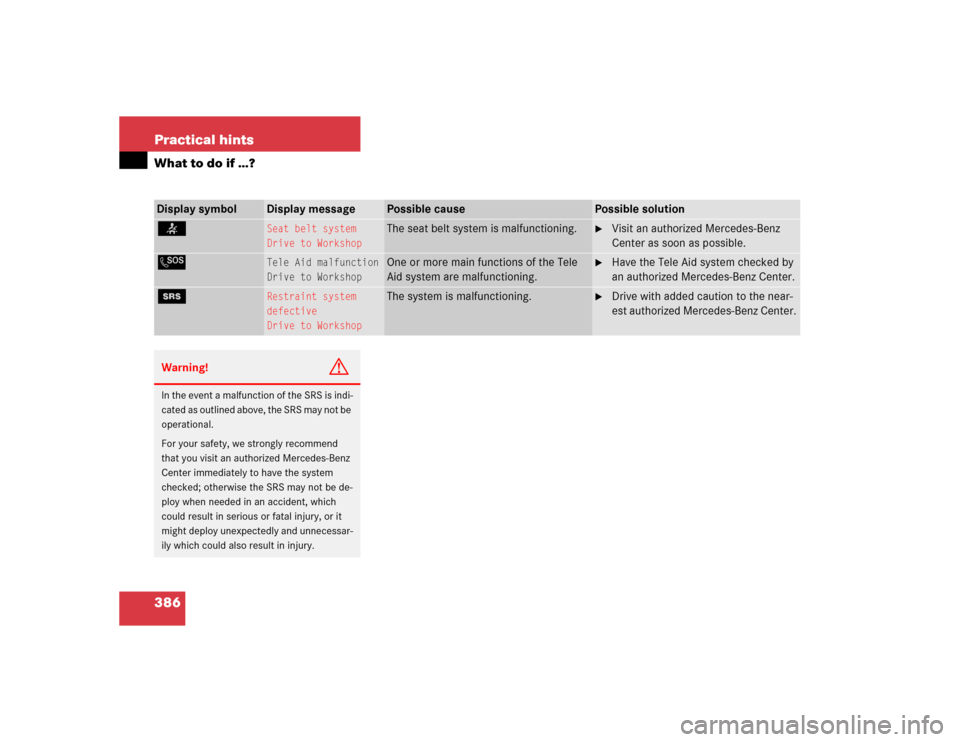

386 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution
<
Seat belt system
Drive to Workshop
The seat belt system is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
L
Tele Aid malfunction
Drive to Workshop
One or more main functions of the Tele
Aid system are malfunctioning.

Have the Tele Aid system checked by
an authorized Mercedes-Benz Center.
1
Restraint system
defective
Drive to Workshop
The system is malfunctioning.

Drive with added caution to the near-
est authorized Mercedes-Benz Center.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational.
For your safety, we strongly recommend
that you visit an authorized Mercedes-Benz
Center immediately to have the system
checked; otherwise the SRS may not be de-
ploy when needed in an accident, which
could result in serious or fatal injury, or it
might deploy unexpectedly and unnecessar-
ily which could also result in injury.

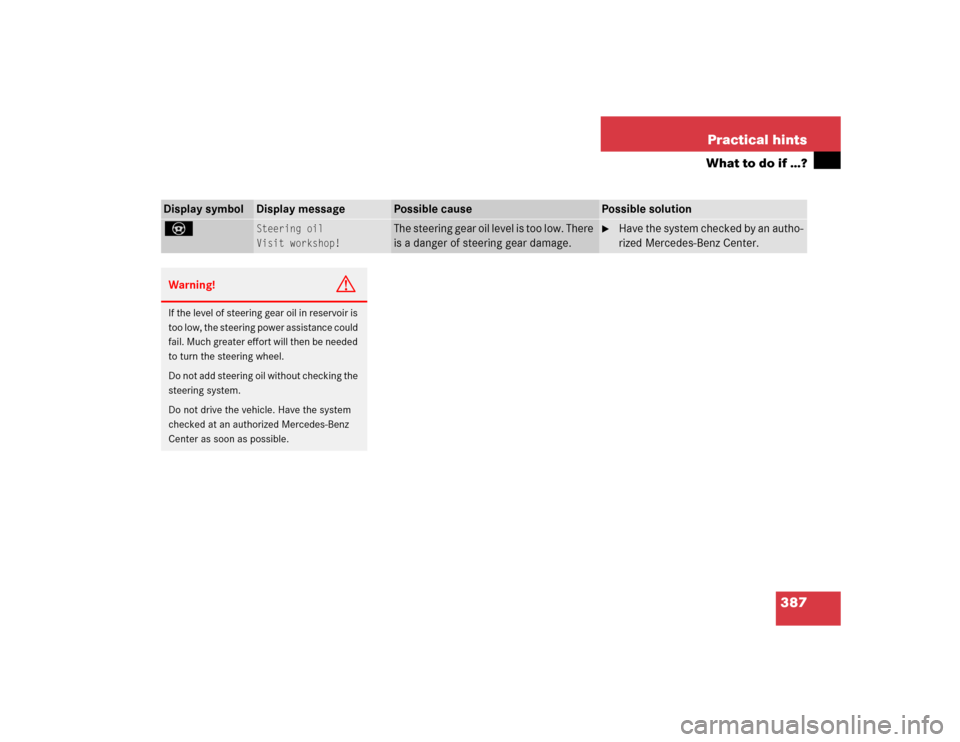

387 Practical hints
What to do if …?
Display symbol
Display message
Possible cause
Possible solution
_
Steering oil
Visit workshop!
The steering gear oil level is too low. There
is a danger of steering gear damage.

Have the system checked by an autho-
rized Mercedes-Benz Center.
Warning!
G
If the level of steering gear oil in reservoir is
too low, the steering power assistance could
fail. Much greater effort will then be needed
to turn the steering wheel.
Do not add steering oil without checking the
steering system.
Do not drive the vehicle. Have the system
checked at an authorized Mercedes-Benz
Center as soon as possible.

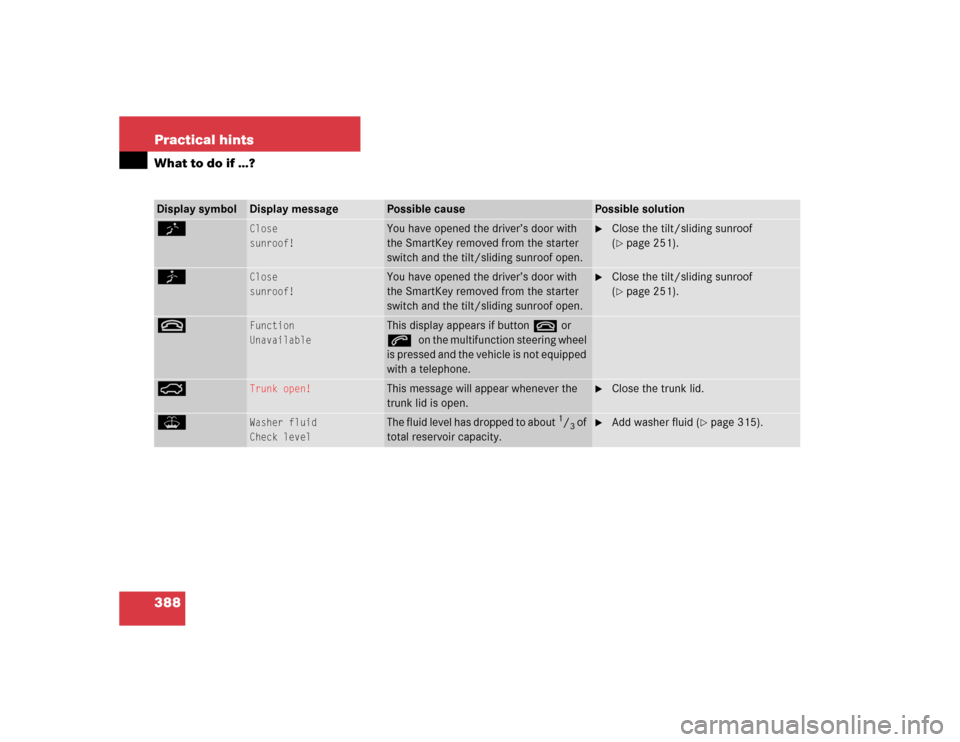

388 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution
K
Close
sunroof!
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the tilt/sliding sunroof open.

Close the tilt/sliding sunroof
(page 251).
J
Close
sunroof!
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the tilt/sliding sunroof open.

Close the tilt/sliding sunroof
(page 251).
t
Function
Unavailable
This display appears if button t or
son the multifunction steering wheel
is pressed and the vehicle is not equipped
with a telephone.
Ê
Trunk open!
This message will appear whenever the
trunk lid is open.

Close the trunk lid.
W
Washer fluid
Check level
The fluid level has dropped to about
1/3 of
total reservoir capacity.

Add washer fluid (
page 315).

389 Practical hints
Where will I find...?
Where will I find...?
First aid kit
The first aid kit is located in the trunk on
the left side secured by a hook and loop
fastener.
Loosen hook and loop fastener.

Remove first aid kit.
Vehicle tool kit
The vehicle tool kit is located in the storage
compartment underneath the trunk floor.
The following is included:

Towing eye bolt


Wheel wrench


Alignment bolt


Vehicle jack


Spare wheel bolts


Spare fuses


Valve extractor (CLK 55 AMG only)


Protective wrap (CLK 55 AMG only)


Collapsible wheel chock


A pair of gloves Removing the vehicle tool kit (except
CLK 55 AMG)

Lift up trunk floor cover and engage
trunk floor handle in upper edge of
trunk.
1Retaining screw
2Storage well casing

Loosen retaining screw1 in the mid-
dle of storage well casing by turning it
counterclockwise.

Remove storage well casing2.
iCheck expiration dates and contents
for completeness at least once a year
and replace missing/expired items.


390 Practical hintsWhere will I find...?3Arrow
4Minispare wheel
5Vehicle tool kit storage well casing
6Vehicle tool kit
Remove vehicle tool kit6.
Storing the vehicle tool kit

Place vehicle tool kit6 in vehicle tool
kit storage well casing5.

Place storage well casing2 over the
vehicle tool kit storage well casing5
and turn retaining screw1 clockwise
as far it will go to secure the Minispare
wheel.

Disengage trunk floor handle in upper
edge of trunk and lower trunk floor
cover.Removing the vehicle tool kit
(CLK 55 AMG only)

Lift up trunk floor cover and engage
trunk floor handle in upper edge of
trunk.
1Collapsible tire
2Vehicle tool kit (under collapsible tire)
3Retaining screw

Loosen retaining screw3 by turning it
counterclockwise.

Remove collapsible tire1.

Remove vehicle tool kit2.
iArrow3 on vehicle tool kit storage
well casing5 must point in the direc-
tion of travel. Otherwise you cannot
place the storage well casing2 on top
and secure the Minispare wheel with
retaining screw1.!To prevent damage, always disengage
trunk floor handle from upper edge of
trunk and lower trunk floor before
closing the trunk lid.
