Your vehicle at a glance2 2
1
2
3
4
5
6
7
8
9

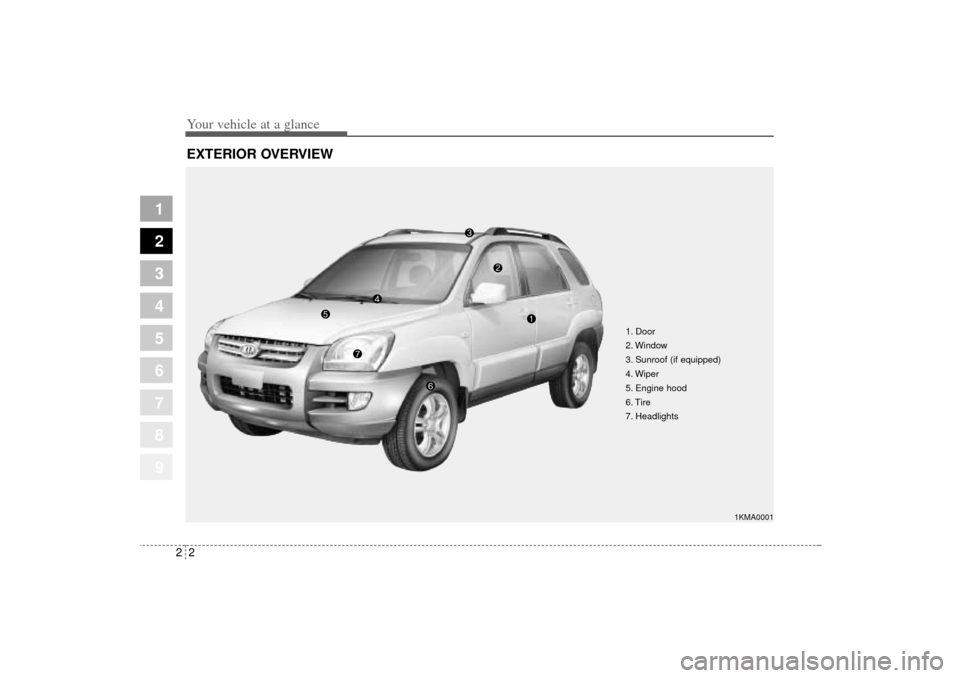

EXTERIOR OVERVIEW
1. Door
2. Window
3. Sunroof (if equipped)
4. Wiper
5. Engine hood
6. Tire
7. Headlights
1KMA0001
KM CAN (ENG) 2.qxd 9/13/2004 4:51 PM Page 2

Your vehicle at a glance4 2
1
2
3
4
5
6
7
8
9

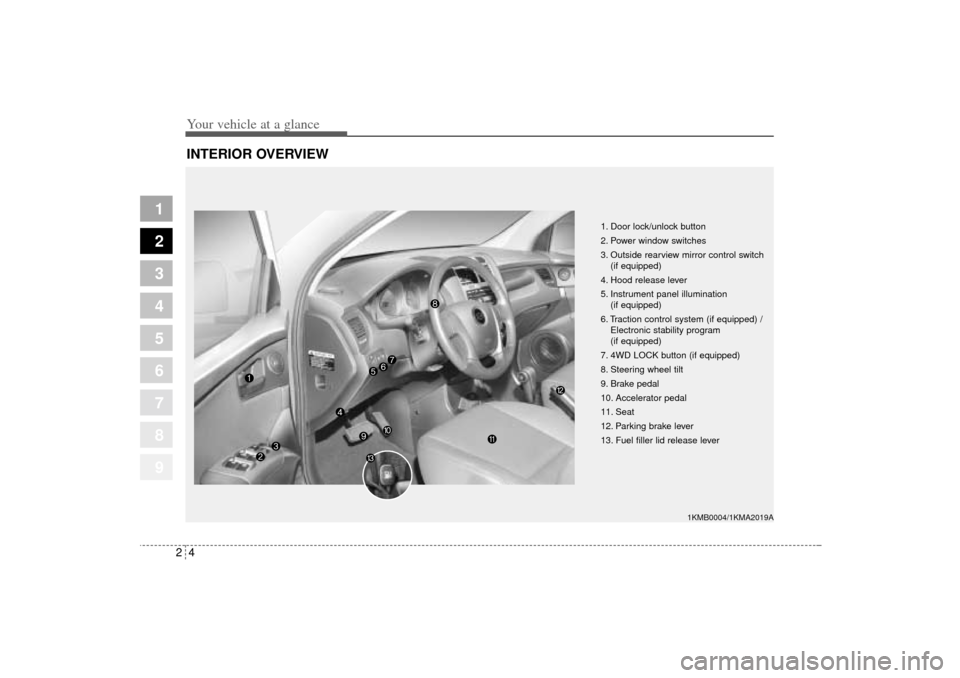

INTERIOR OVERVIEW
1. Door lock/unlock button
2. Power window switches
3. Outside rearview mirror control switch
(if equipped)
4. Hood release lever
5. Instrument panel illumination
(if equipped)
6. Traction control system (if equipped) /
Electronic stability program
(if equipped)
7. 4WD LOCK button (if equipped)
8. Steering wheel tilt
9. Brake pedal
10. Accelerator pedal
11. Seat
12. Parking brake lever
13. Fuel filler lid release lever
1KMB0004/1KMA2019A
KM CAN (ENG) 2.qxd 9/13/2004 4:51 PM Page 4

101
2
3
4
5
6
7
8
9

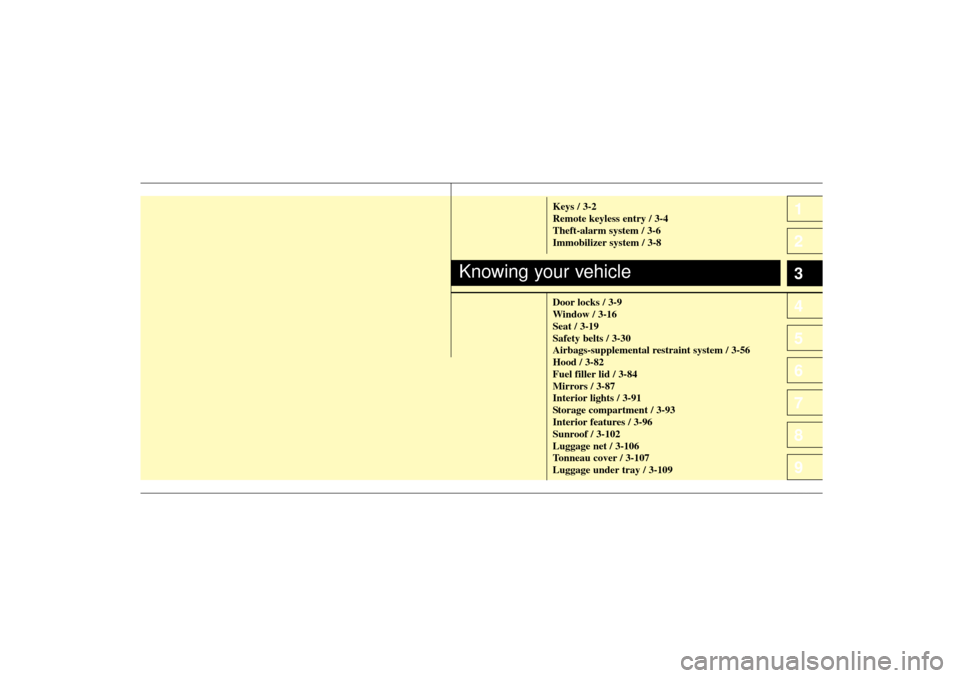

Keys / 3-2
Remote keyless entry / 3-4
Theft-alarm system / 3-6
Immobilizer system / 3-8
Door locks / 3-9
Window / 3-16
Seat / 3-19
Safety belts / 3-30
Airbags-supplemental restraint system / 3-56
Hood / 3-82
Fuel filler lid / 3-84
Mirrors / 3-87
Interior lights / 3-91
Storage compartment / 3-93
Interior features / 3-96
Sunroof / 3-102
Luggage net / 3-106
Tonneau cover / 3-107
Luggage under tray / 3-109
Knowing your vehicle
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 1

33
Knowing your vehicle
1
2
3
4
5
6
7
8
9

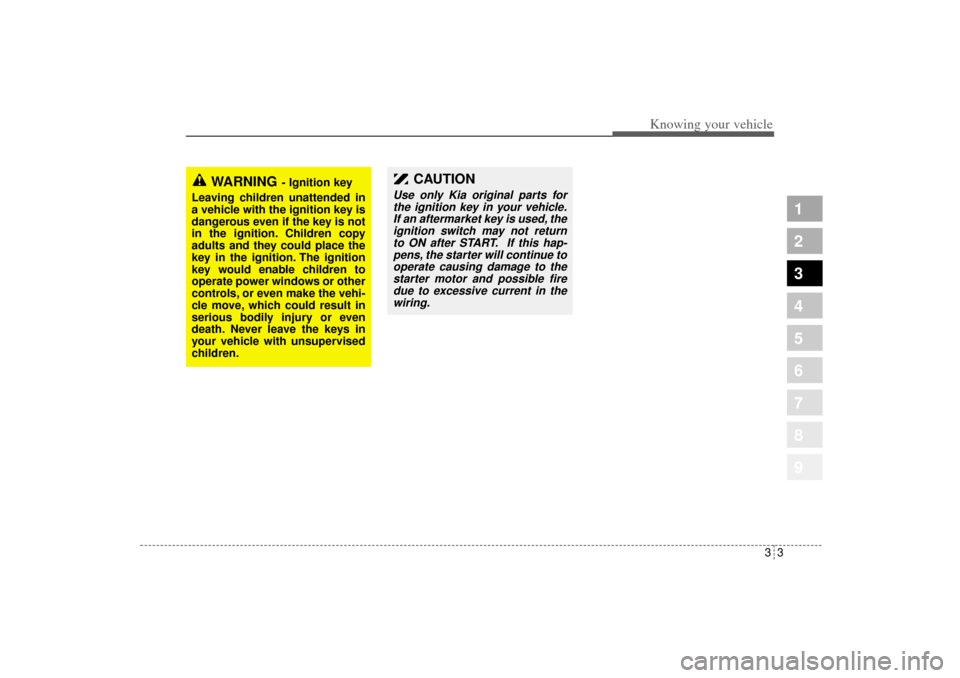

CAUTION
Use only Kia original parts for
the ignition key in your vehicle.
If an aftermarket key is used, the
ignition switch may not return
to ON after START. If this hap-
pens, the starter will continue to
operate causing damage to the
starter motor and possible fire
due to excessive current in the
wiring.
WARNING
- Ignition key
Leaving children unattended in
a vehicle with the ignition key is
dangerous even if the key is not
in the ignition. Children copy
adults and they could place the
key in the ignition. The ignition
key would enable children to
operate power windows or other
controls, or even make the vehi-
cle move, which could result in
serious bodily injury or even
death. Never leave the keys in
your vehicle with unsupervised
children.
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 3

Knowing your vehicle6 3
1
2
3
4
5
6
7
8
9
This system is designed to provide
protection from unauthorized entry
into the car. This system is operated
in three stages: the first is the
"Armed" stage, the second is the
"Alarm" stage, and the third is the
"Disarmed" stage. If triggered, the
system provides an audible alarm
with blinking of the hazard warning
lights.
Armed stagePark the car and stop the engine.
Arm the system as described below.
1. Remove the ignition key from the
ignition switch.
2. Make sure that the engine hood
and rear hatch/window are closed
and latched.
3. Lock the doors using the transmit-
ter of the keyless entry system.
After completion of the steps above,
the hazard warning lights will blink
once to indicate that the system is
armed.
✽ ✽
NOTICE• If any door, rear hatch/window or
engine hood remains open, the sys-
tem will not be armed.
• If this happens, rearm the system
as described previous.
THEFT-ALARM SYSTEM (IF EQUIPPED)
HMR.082
CAUTION
Do not arm the system until all
passengers have left the vehi-
cle. If the system is armed while
a passenger(s) remains in the
vehicle, the alarm may be acti-
vated when the remaining pas-
senger(s) leaves the vehicle.
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 6

37
Knowing your vehicle
1
2
3
4
5
6
7
8
9
Alarm stageThe alarm will be activated if any of
the following occurs while the system
is armed.
 A front or rear door is opened with-
out using the ignition key or trans-
mitter.
 The rear hatch/window is opened
without using the ignition key or
transmitter.
 The engine hood is opened.
The siren will sound and the hazard
warning lights will blink continuously
for 27 seconds, and repeat the alarm
3 times unless the system is dis-
armed. To turn off the system, unlock
the doors with the ignition key or
transmitter.✽ ✽
NOTICEAvoid trying to start the engine
while the alarm is activated. The
vehicle starting motor is disabled
during the alarm stage.
Disarmed stageThe system will be disarmed when
the doors are unlocked by depress-
ing the unlock button on the transmit-
ter or unlocked with the ignition key.
After depressing unlock button, the
hazard warning lights will blink twice
to indicate that the system is dis-
armed.
After depressing unlock button, if any
door is not opened within 30 sec-
onds, the system will be rearmed.
If the system is not disarmed with the
ignition key or transmitter, insert the
key in the ignition switch, turn the key
to the ON position and wait for 30
seconds. Then the system will be dis-
armed.
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 7

Knowing your vehicle10 3
1
2
3
4
5
6
7
8
9

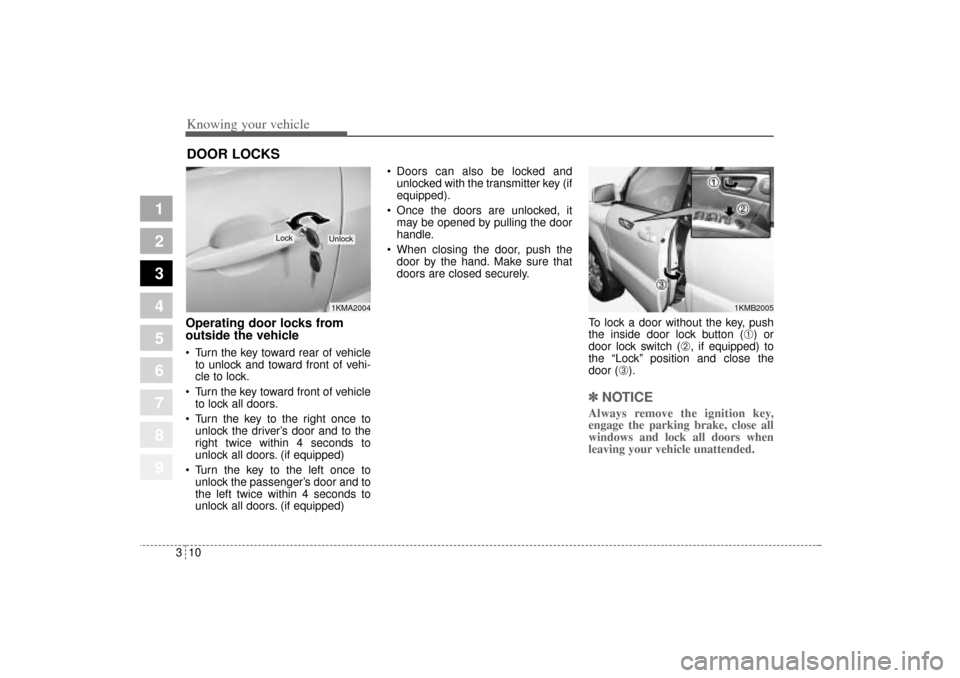

Operating door locks from
outside the vehicle  Turn the key toward rear of vehicle
to unlock and toward front of vehi-
cle to lock.
 Turn the key toward front of vehicle
to lock all doors.
 Turn the key to the right once to
unlock the driver’s door and to the
right twice within 4 seconds to
unlock all doors. (if equipped)
 Turn the key to the left once to
unlock the passenger’s door and to
the left twice within 4 seconds to
unlock all doors. (if equipped) Doors can also be locked and
unlocked with the transmitter key (if
equipped).
 Once the doors are unlocked, it
may be opened by pulling the door
handle.
 When closing the door, push the
door by the hand. Make sure that
doors are closed securely.
To lock a door without the key, push
the inside door lock button (
➀) or
door lock switch (
➁, if equipped) to
the “Lock” position and close the
door (
➂).
✽ ✽
NOTICEAlways remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
DOOR LOCKS
1KMA2004
Lock
Unlock
1KMB2005
KM CAN (ENG) 3 (~57).qxd 9/13/2004 4:49 PM Page 10

313
Knowing your vehicle
1
2
3
4
5
6
7
8
9
Impact sensing door unlock
system (if equipped)All doors will be automatically
unlocked when the Supplemental
Restraint System (SRS) detects a
collision while the ignition switch is
ON.
However, the doors may not be
unlocked when malfunctions exist in
mechanical door lock system or if
electrical power in the vehicle should
fail.

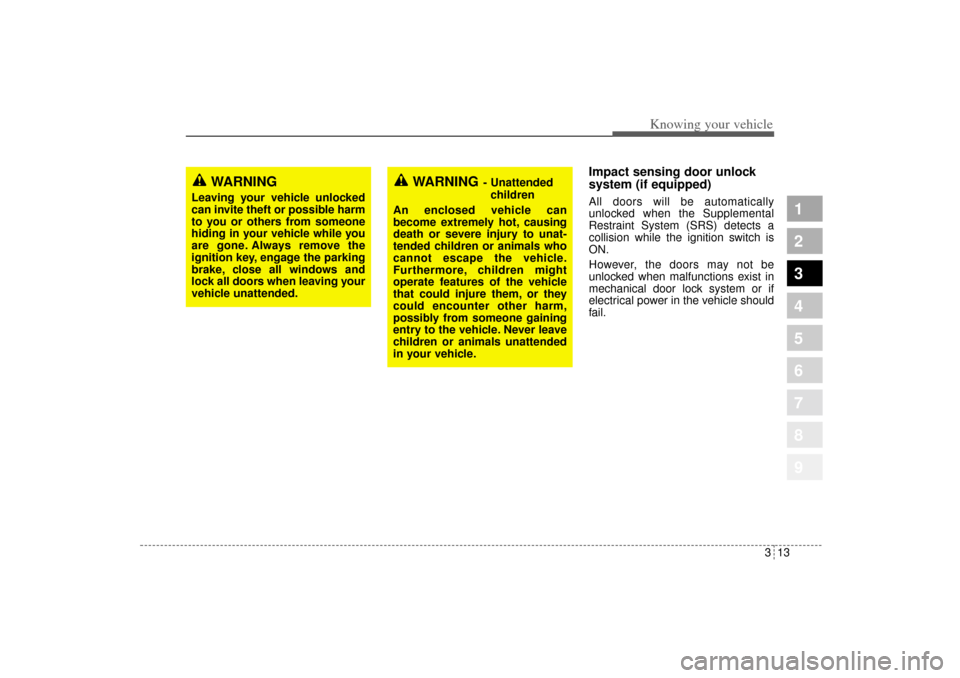

WARNING
Leaving your vehicle unlocked
can invite theft or possible harm
to you or others from someone
hiding in your vehicle while you
are gone. Always remove the
ignition key, engage the parking
brake, close all windows and
lock all doors when leaving your
vehicle unattended.
WARNING
- Unattended
children
An enclosed vehicle can
become extremely hot, causing
death or severe injury to unat-
tended children or animals who
cannot escape the vehicle.
Furthermore, children might
operate features of the vehicle
that could injure them, or they
could encounter other harm,
possibly from someone gaining
entry to the vehicle. Never leave
children or animals unattended
in your vehicle.
