2005 JEEP LIBERTY Owners Manual

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS

Instrument Panel And Interior Controls.......165

Instrument Cluster......................166
▫2.4L/3.7L Engines.....................166
▫2.8L Diesel Engines....................167

Instrument Cluster Description.............168

Electronic Digital Clock..................176
▫Clock Setting Procedure.................176

Radio General Information................177
▫Radio Broadcast Signals.................177▫Two Types Of Signals..................177
▫Electrical Disturbances..................177
▫AM Reception.......................177
▫FM Reception........................177

Sales Code RAZ—AM/ FM Stereo Radio With
Cassette Tape Player, CD Player And CD Changer
Controls.............................178
▫Operating Instructions — Radio...........178
▫Power Switch, Volume Control............178
▫Seek Button (Radio Mode)...............1784

▫Tuning.............................179
▫Radio Data System (RDS)...............179
▫PTY (Program Type) Button..............179
▫Balance............................181
▫Fade..............................181
▫Tone Control........................181
▫AM/FM Selection.....................181
▫Scan Button.........................181
▫To Set The Radio Push-Button Memory......182
▫To Change From Clock To Radio Mode......182
▫Operating Instructions — Tape Player.......182
▫Seek Button.........................182
▫Fast Forward (FF).....................183▫Rewind (RW)........................183
▫Tape Eject...........................183
▫Scan Button.........................183
▫Changing Tape Direction................183
▫Metal Tape Selection...................183
▫Pinch Roller Release...................184
▫Noise Reduction......................184
▫Operating Instructions — CD Player........184
▫Inserting The Compact Disc..............184
▫Seek Button.........................185
▫EJT CD (Eject) Button..................185
▫FF/Tune/RW........................186
▫Program Button 4 (Random Play)..........186
162 UNDERSTANDING YOUR INSTRUMENT PANEL

▫Mode..............................186
▫Tape CD Button......................186
▫Time Button.........................187
▫Scan Button.........................187
▫CD Changer Control Capability —
If Equipped.........................187

Sales Code RBK—AM/ FM Stereo Radio With
CD Player And CD Changer Controls........189
▫Radio Operation......................189
▫CD Player Operation...................191
▫CD Changer Control Capability —
If Equipped.........................193

Sales Code RBQ—AM/FM Stereo Radio With
6 - Disc CD Changer....................195▫Radio Operation......................195
▫CD Player Operation...................198

Sales Code RB1—AM/FM Stereo Radio With
DVD/GPS Navigation System..............203

Satellite Radio — If Equipped..............203
▫System Activation.....................204
▫Electronic Serial Number/Sirius Identification
Number (ENS/SID)....................204
▫Selecting Satellite Mode In RBB, RAH And
RBK Radios.........................205
▫Selecting Satellite Mode In RBP, RBU, RAZ,
RB1 And RBQ Radios..................205
▫Selecting a Channel....................206
▫Storing And Selecting Pre-Set Channels......206
UNDERSTANDING YOUR INSTRUMENT PANEL 163
4

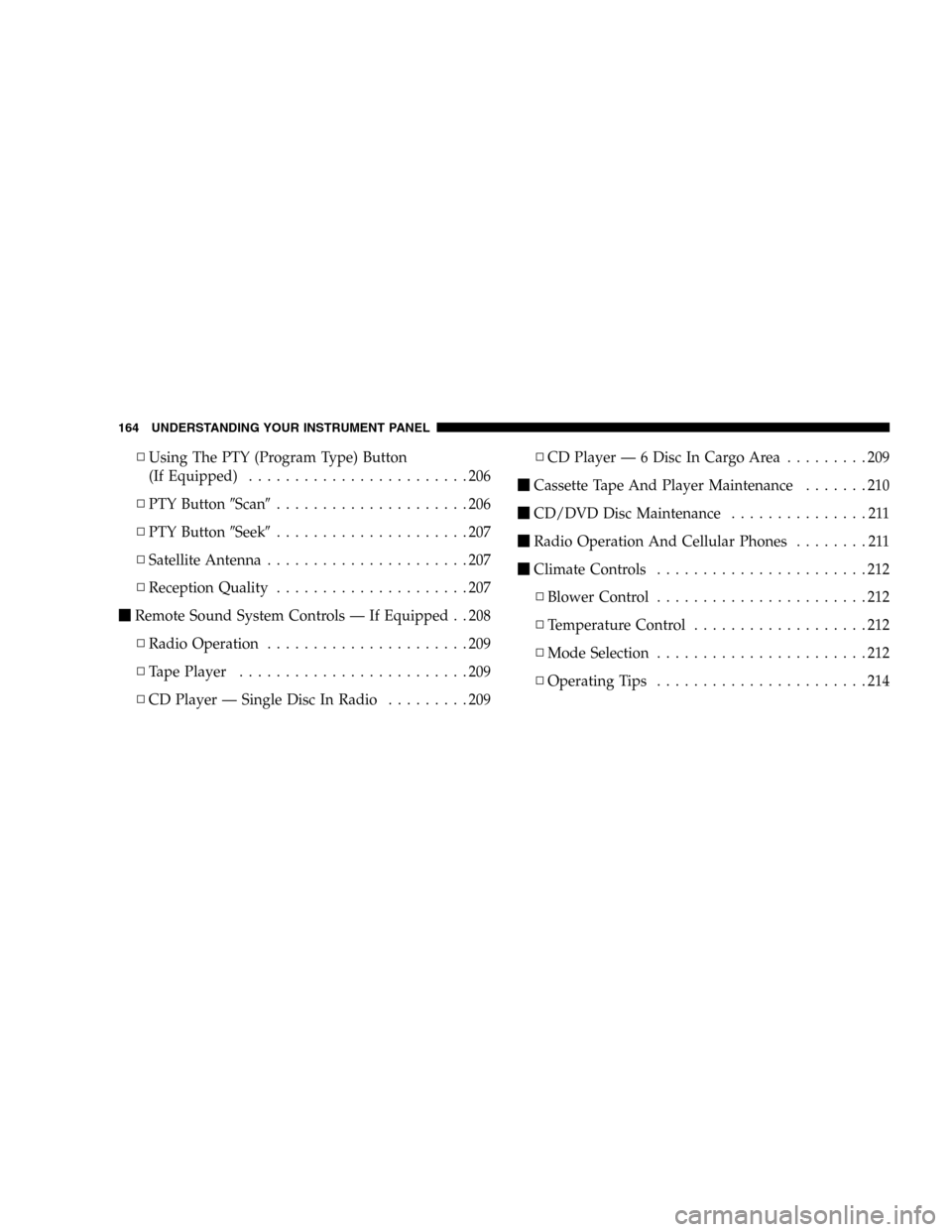

▫Using The PTY (Program Type) Button
(If Equipped)........................206
▫PTY ButtonScan.....................206
▫PTY ButtonSeek.....................207
▫Satellite Antenna......................207
▫Reception Quality.....................207

Remote Sound System Controls — If Equipped . . 208
▫Radio Operation......................209
▫Tape Player.........................209
▫CD Player — Single Disc In Radio.........209▫CD Player — 6 Disc In Cargo Area.........209

Cassette Tape And Player Maintenance.......210

CD/DVD Disc Maintenance...............211

Radio Operation And Cellular Phones........211

Climate Controls.......................212
▫Blower Control.......................212
▫Temperature Control...................212
▫Mode Selection.......................212
▫Operating Tips.......................214
164 UNDERSTANDING YOUR INSTRUMENT PANEL

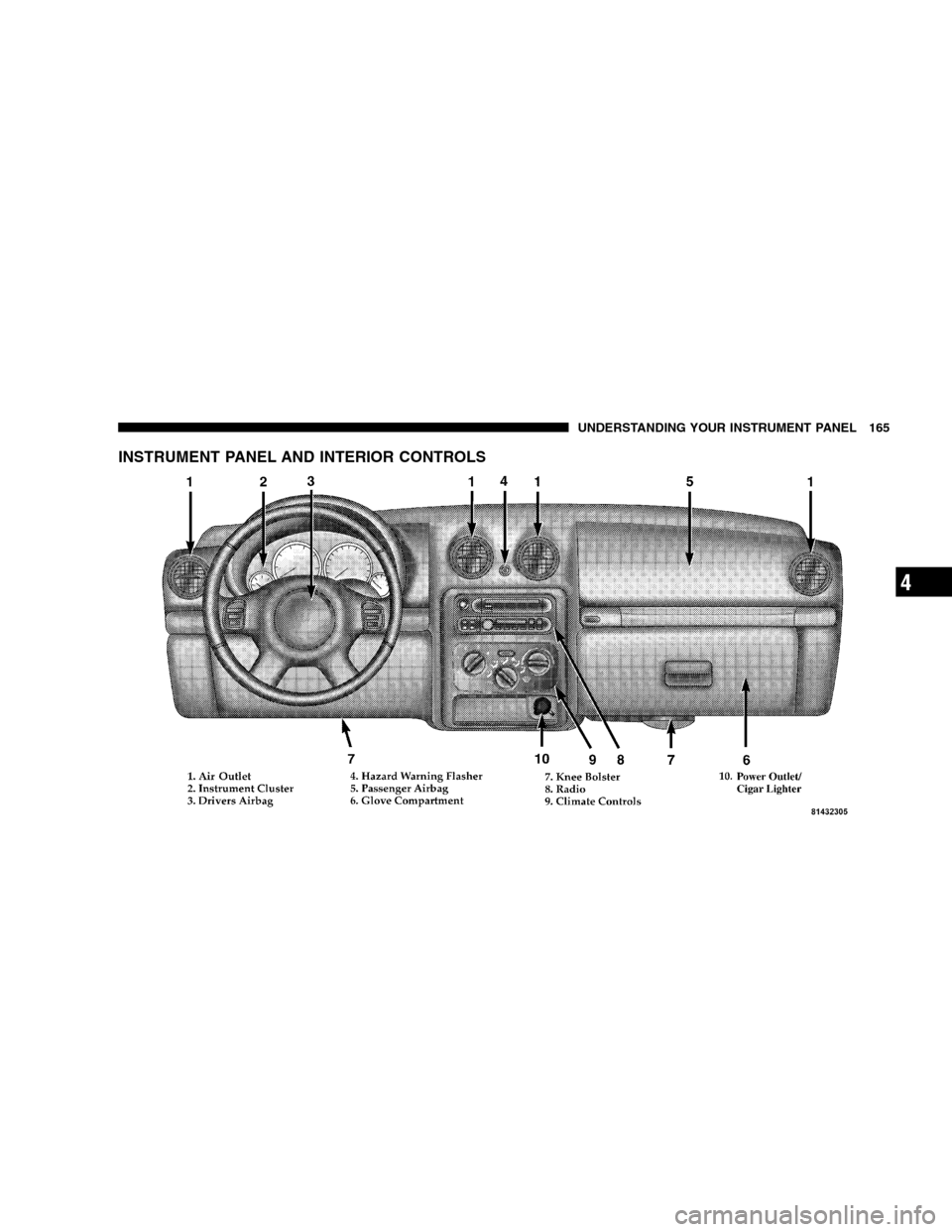

INSTRUMENT PANEL AND INTERIOR CONTROLS
UNDERSTANDING YOUR INSTRUMENT PANEL 165
4

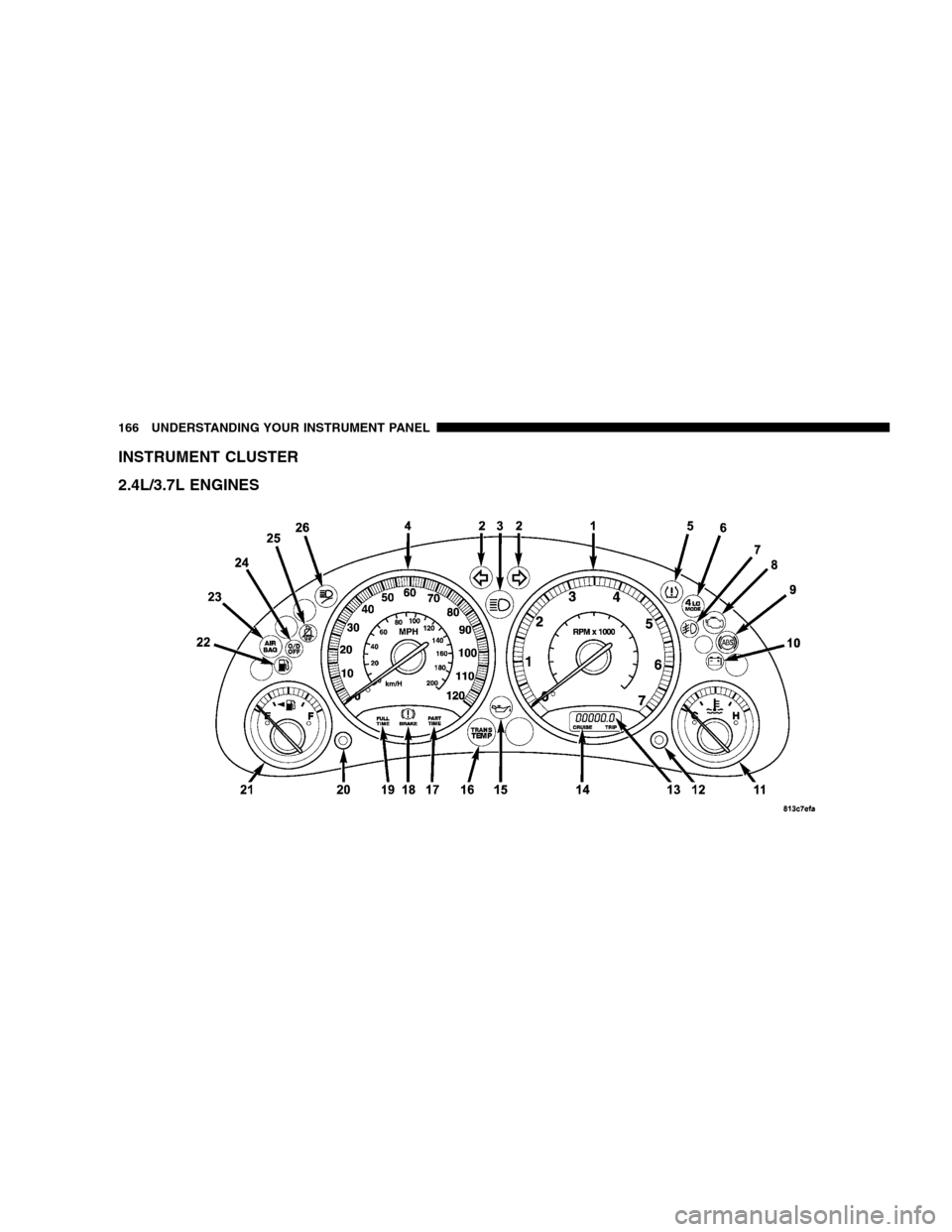

INSTRUMENT CLUSTER
2.4L/3.7L ENGINES
166 UNDERSTANDING YOUR INSTRUMENT PANEL

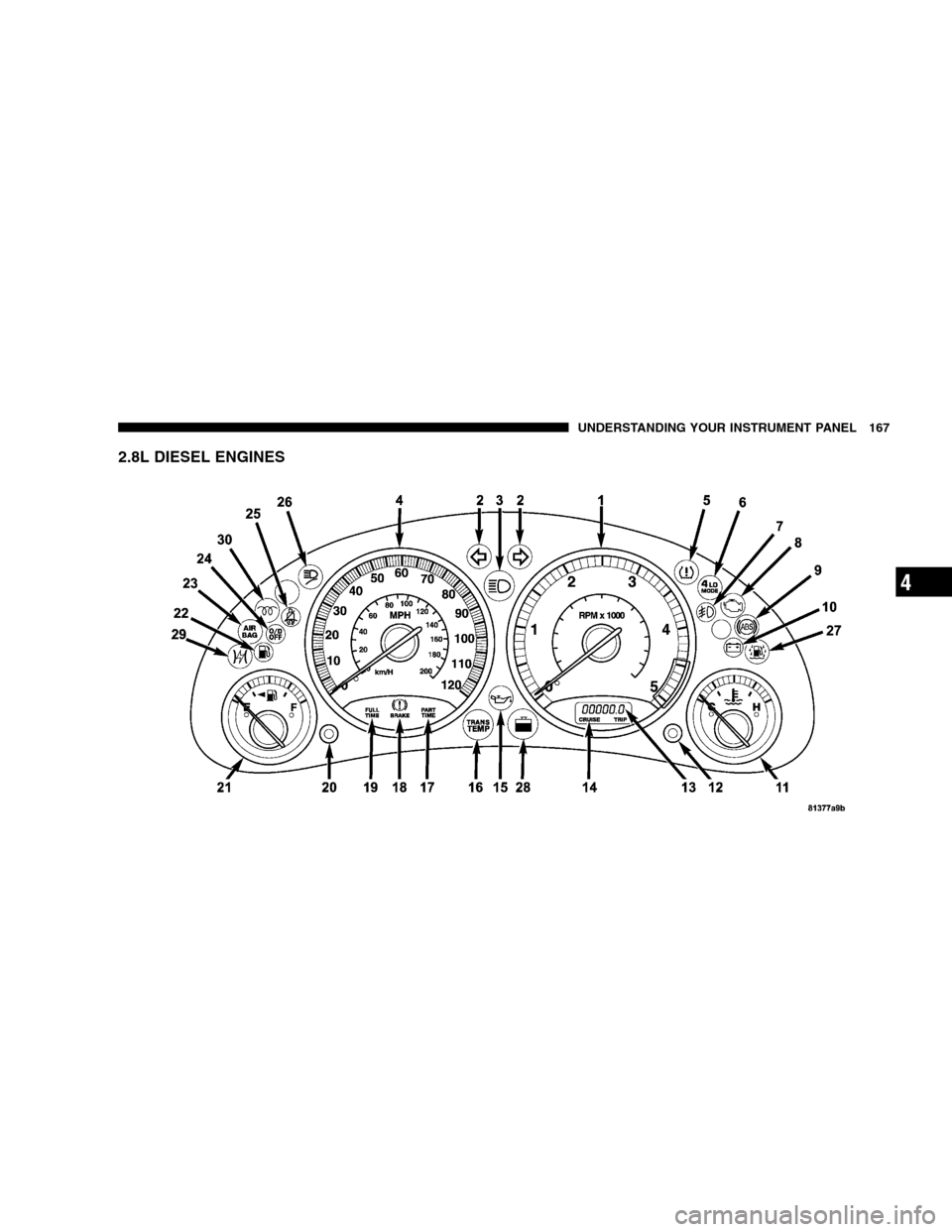

2.8L DIESEL ENGINES
UNDERSTANDING YOUR INSTRUMENT PANEL 167
4

INSTRUMENT CLUSTER DESCRIPTION
1. Tachometer
Indicates the permissible engine revolutions-per-minute
for each gear range. Before reaching the red area, ease up
on the accelerator to prevent engine damage.
2. Turn Signal Indicator Light
The arrows will flash in unison with the exterior
turn signals, when using the multi-function control
lever. A chime will sound if the turn signals are left on
continuously for 2 miles (3 km) until they are deacti-
vated.
3. High Beam Indicator Light
This light shows that the headlights are on high
beam. Pull the multi-function control lever to-
wards the steering wheel to switch the headlights from
high to low beam.4. Speedometer
Indicates vehicle speed.
5. Tire Pressure Monitor Warning Light — If Equipped
This light will turn on when there is a low tire
pressure condition. The light will also turn on
if a problem exist with any tire sensor. The light
will remain on until the tire pressure is prop-
erly set or the problem with the sensor is corrected.
This light will turn on momentarily as a bulb check when
the engine is started.
When the “Tire Pressure Monitor Warning Light” is lit,
one or more of your tires is significantly under-inflated.
You should stop and check your tires as soon as possible,
and inflate them to the proper pressure as indicated on
the vehicle’s tire information placard. Driving on a
significantly under-inflated tire causes the tire to over-
heat and can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life, and may affect
168 UNDERSTANDING YOUR INSTRUMENT PANEL
