2005 JEEP LIBERTY Owners Manual

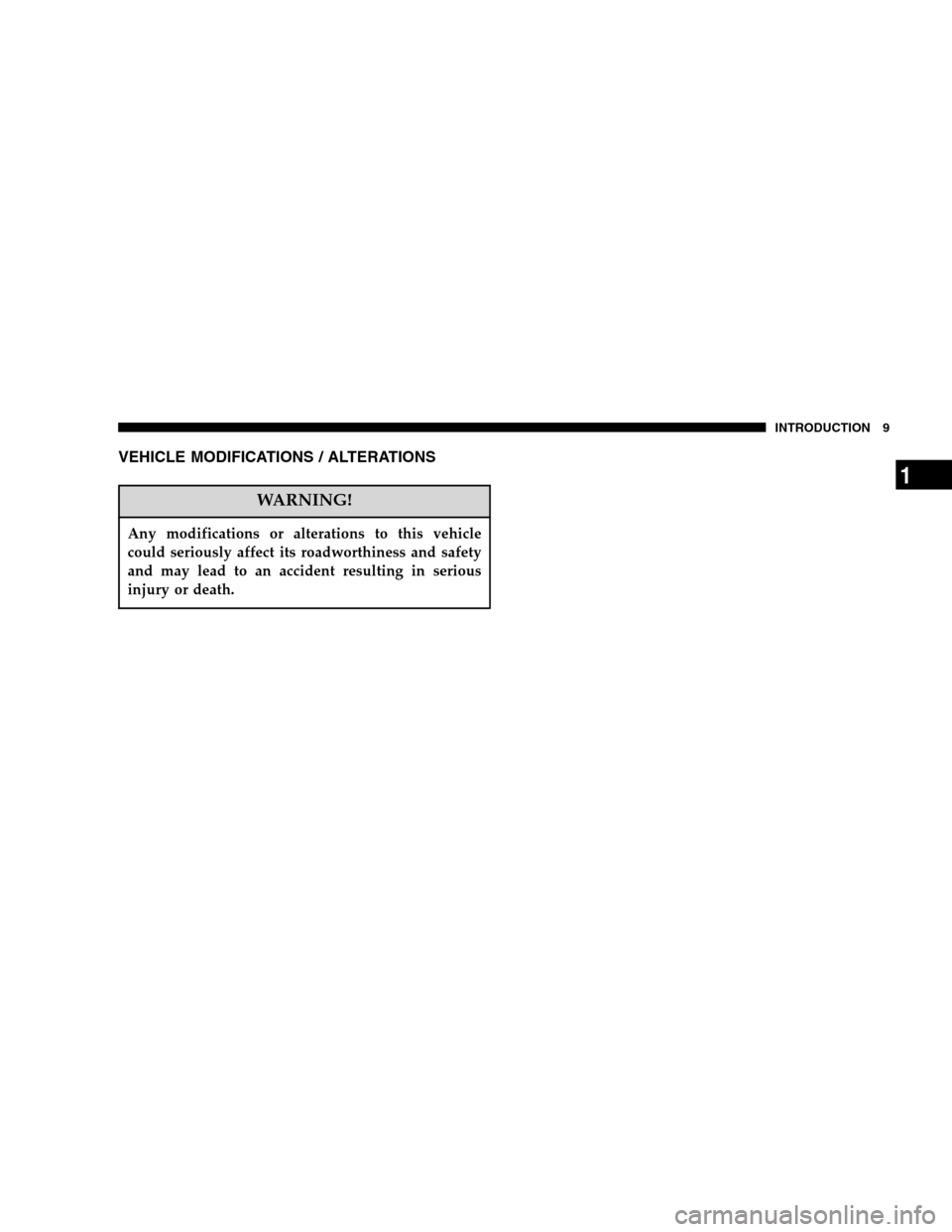

VEHICLE MODIFICATIONS / ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle
could seriously affect its roadworthiness and safety
and may lead to an accident resulting in serious
injury or death.
INTRODUCTION 9
1

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS

A Word About Your Keys..................14
▫Ignition Key..........................14
▫Key-In-Ignition Reminder................16

Sentry Key Immobilizer System..............16
▫Important Note About Service.............17
▫Replacement Keys......................17
▫Customer Key Programming..............18
▫General Information....................18

Steering Wheel Lock — If Equipped..........19▫To Manually Lock The Steering Wheel.......19
▫To Release The Steering Wheel Lock.........19

Illuminated Entry........................19

Doors And Door Locks....................20
▫Manual Door Locks.....................21
▫Power Door Locks — If Equipped..........23
▫Automatic Door Locks — If Equipped.......23
▫Child Protection Locks..................24

Remote Keyless Entry.....................25

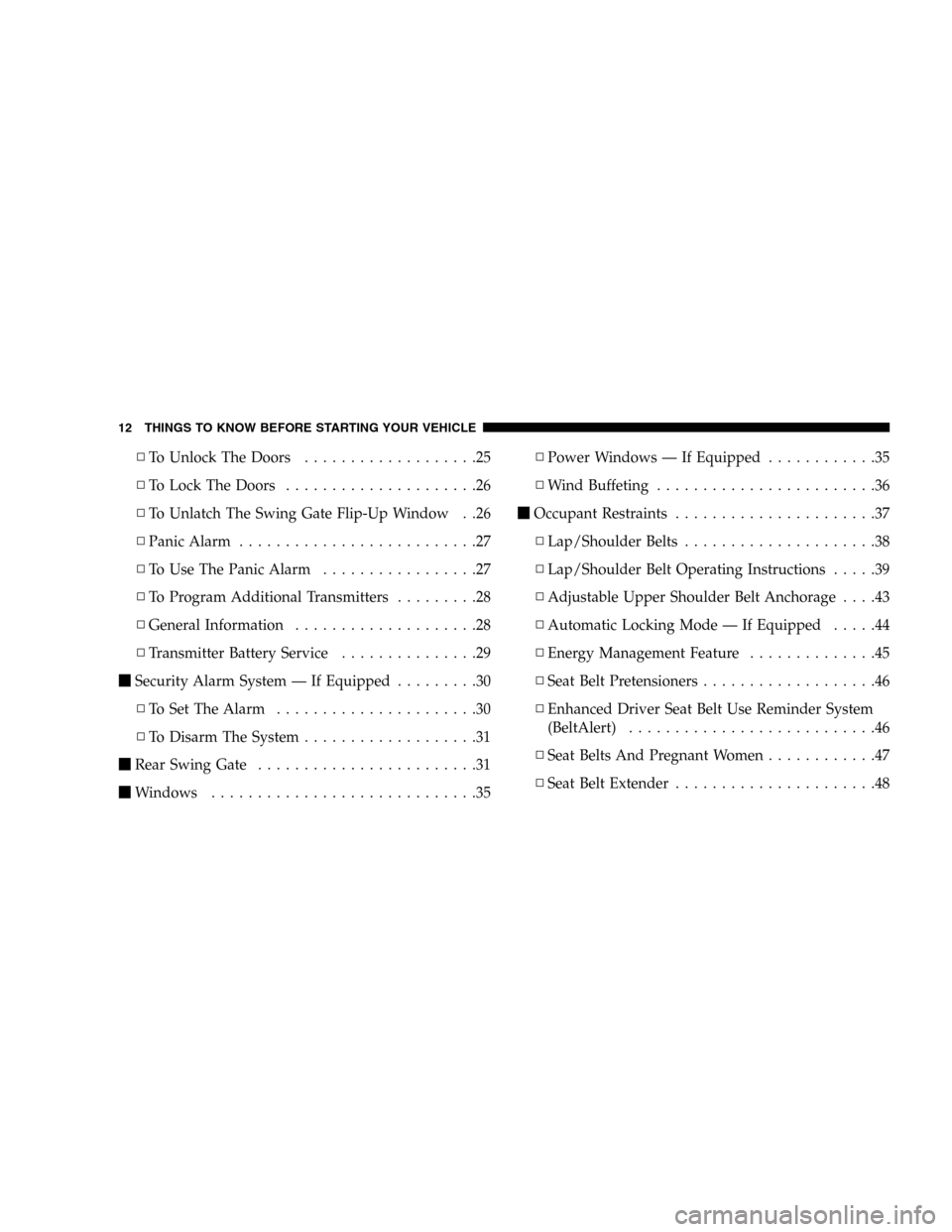

2

▫To Unlock The Doors...................25
▫To Lock The Doors.....................26
▫To Unlatch The Swing Gate Flip-Up Window . .26
▫Panic Alarm..........................27
▫To Use The Panic Alarm.................27
▫To Program Additional Transmitters.........28
▫General Information....................28
▫Transmitter Battery Service...............29

Security Alarm System — If Equipped.........30
▫To Set The Alarm......................30
▫To Disarm The System...................31

Rear Swing Gate........................31

Windows.............................35▫Power Windows — If Equipped............35
▫Wind Buffeting........................36

Occupant Restraints......................37
▫Lap/Shoulder Belts.....................38
▫Lap/Shoulder Belt Operating Instructions.....39
▫Adjustable Upper Shoulder Belt Anchorage....43
▫Automatic Locking Mode — If Equipped.....44
▫Energy Management Feature..............45
▫Seat Belt Pretensioners...................46
▫Enhanced Driver Seat Belt Use Reminder System
(BeltAlert)...........................46
▫Seat Belts And Pregnant Women............47
▫Seat Belt Extender......................48
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Driver And Front Passenger Supplemental
Restraint Systems (SRS) — Airbags..........48
▫Child Restraint........................63

Engine Break-In Recommendations...........73

Safety Tips............................73▫Exhaust Gas..........................73
▫Safety Checks You Should Make Inside
The Vehicle..........................74
▫Safety Checks You Should Make Outside The
Vehicle..............................75
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

A WORD ABOUT YOUR KEYS
The keys for your new vehicle are enclosed in a plastic
bag with the key code number on it. If you received your
keys without the bag, ask your dealer to give you the
number. The key code can also be obtained by the dealer
from your vehicle invoice.
Ignition Key
Insert the key fully, then turn the switch to one of the four
illustrated positions. The key can be inserted or with-
drawn only in the LOCK position. The automatic trans-
mission gear selector must be in the P (Park) position.
To remove the ignition key on models with an automatic
transmission, place the gearshift lever in P (Park), turn
the ignition key to LOCK and remove the key.
Ignition Key Positions
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To remove the ignition key on models with a manual
transmission, depress and hold the key release button,
turn the ignition key to LOCK and remove the key.WARNING!
Leaving children in a vehicle unattended is danger-
ous for a number of reasons. A child or others could
be injured. Children should be warned not to touch
the parking brake, brake pedal, or the gear selector
lever. Do not leave the keys in the ignition. A child
could operate power windows, other controls, or
move the vehicle.
CAUTION!
An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition, and lock
all doors when leaving the vehicle unattended.
Ignition Key Release Button
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

Key-In-Ignition Reminder
If you open the driver’s door and the key is fully inserted
in the ignition switch, a chime will sound to remind you
to remove the key.
SENTRY KEY IMMOBILIZER SYSTEM
The Sentry Key Immobilizer System (SKIS) prevents
unauthorized operation of the vehicle by disabling the
engine. The system will shut the engine down after 2
seconds of running if an invalid key is used to start the
vehicle. This system utilizes ignition keys which have an
electronic chip (transponder) embedded into them. Only
keys that have been programmed to the vehicle can be
used to start and operate the vehicle for longer than the
2 second validation time period.
The Sentry Key Immobilizer System does not need to be
armed or activated. Operation of the system is automatic
regardless of whether or not the vehicle is locked or
unlocked. During normal operation, the “Sentry Key/Security Alarm Indicator Light” (located in the instru-
ment cluster) will come on for 3 seconds immediately
after the ignition switch is turned on for a bulb check.
Afterwards, if the bulb remains on, this indicates a
malfunction in the electronics. If the bulb begins to flash
immediately after the ignition switch is turned on, this
indicates that an invalid key is being used to start the
vehicle. Both of these conditions will result in the engine
being shut down after 2 seconds of running. Keep in
mind that a key which has not been programmed is also
considered an invalid key even if it is cut to fit the
ignition for that vehicle.
If the “Sentry Key/Security Alarm Indicator Light”
comes on during normal vehicle operation (it has been
running for longer than 10 seconds) a fault has been
detected in the electronics and the vehicle should be
serviced as soon as possible.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
