2005 JEEP LIBERTY Owners Manual

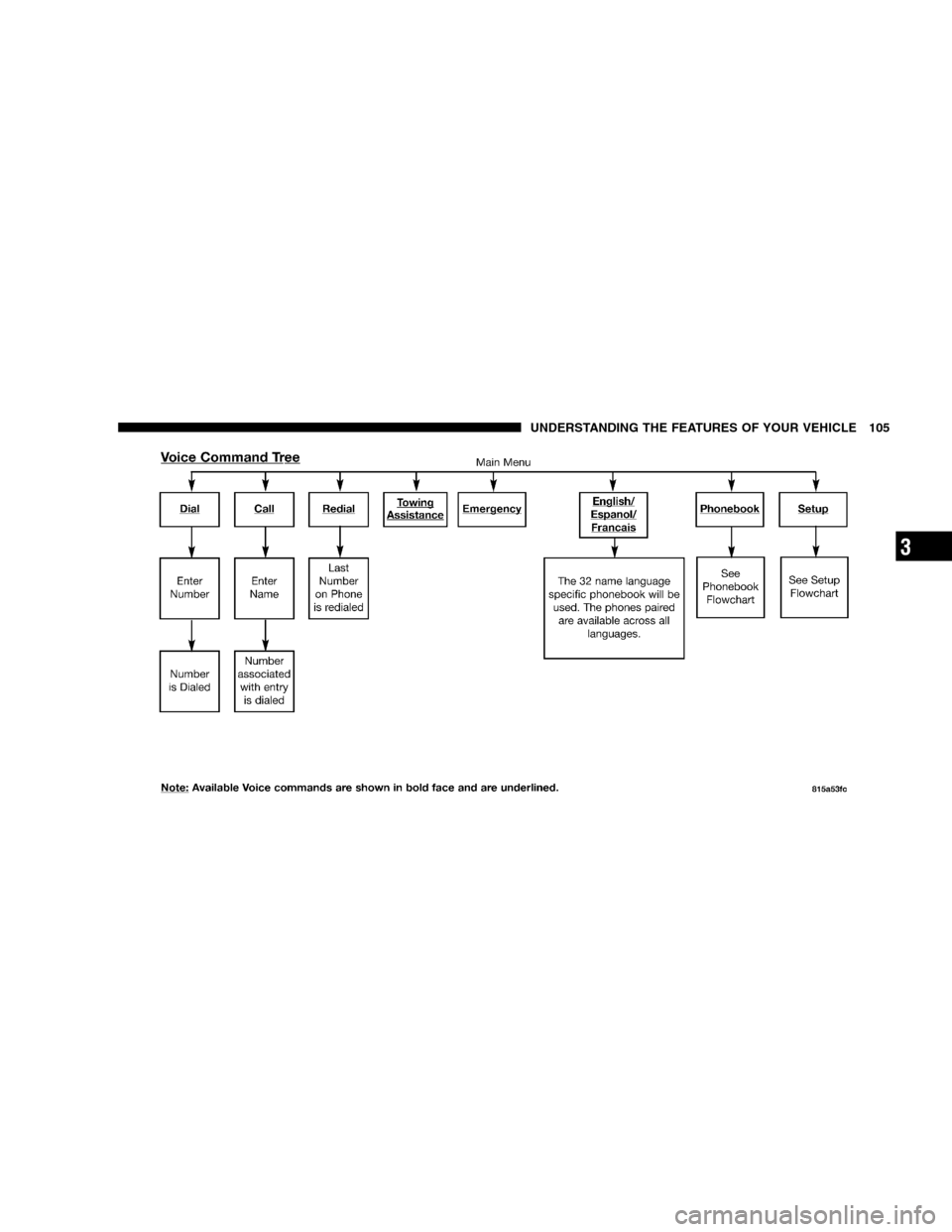

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105
3

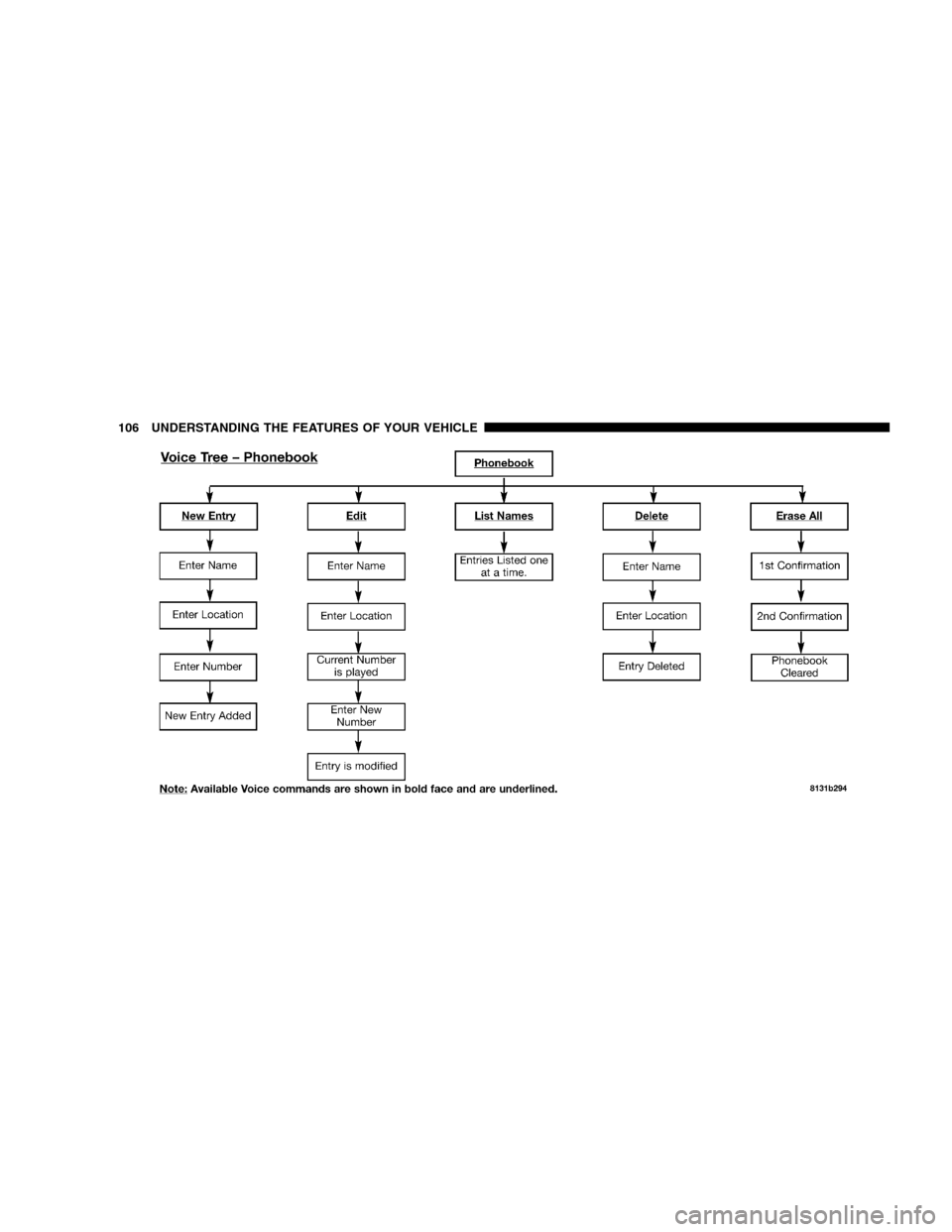

106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

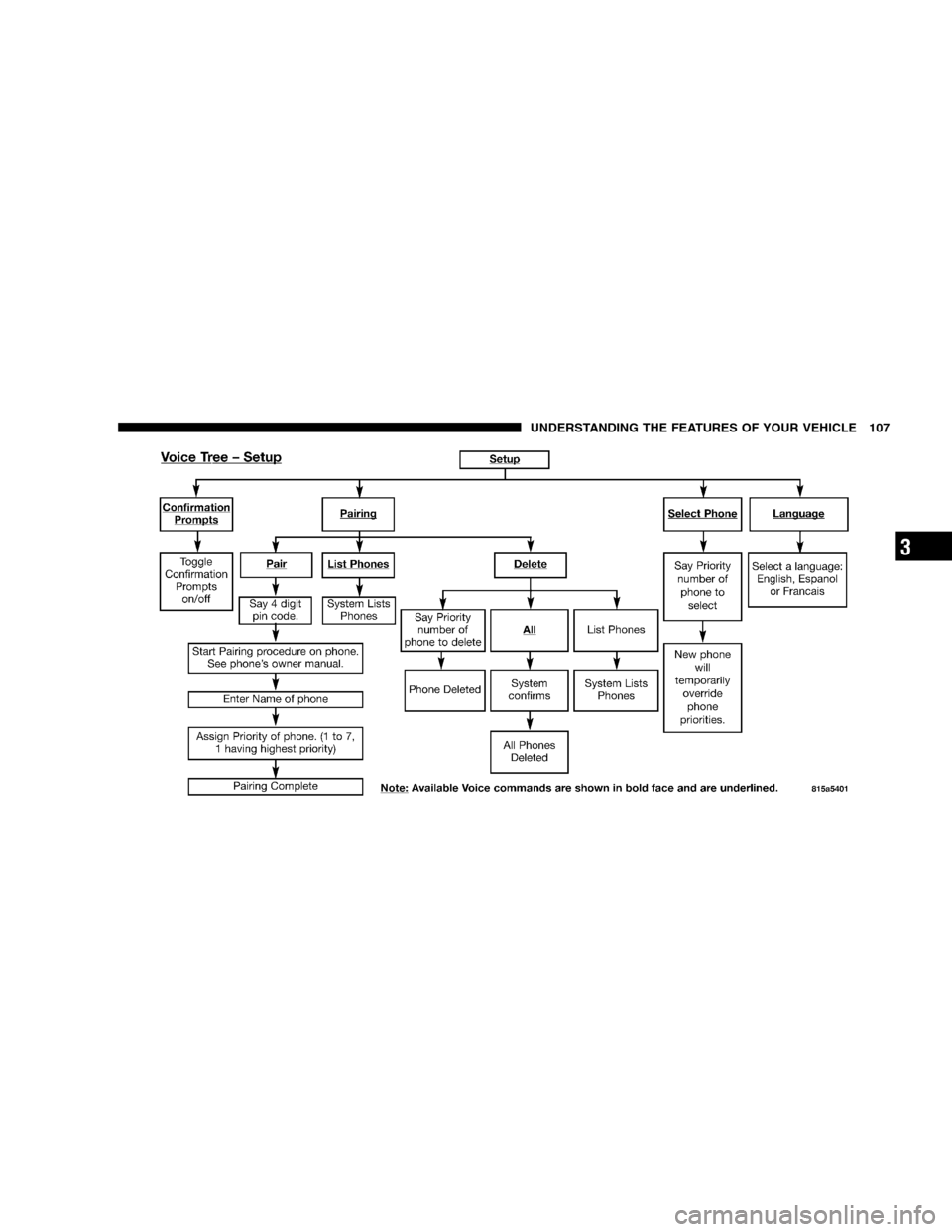

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107
3

North American English
Primary Alternate(s)
Zero Oh
Add location Add new
All All of them
Confirmation prompts Confirmations prompts
Delete a name Delete
Language Select language
List names List all
List paired phones List phones
Pager Beeper
Phone pairing Pairing
Phonebook Phone book
Return to main menu Return. Main menu
Select phone select
Set up Phone settings phone set
upSEATS

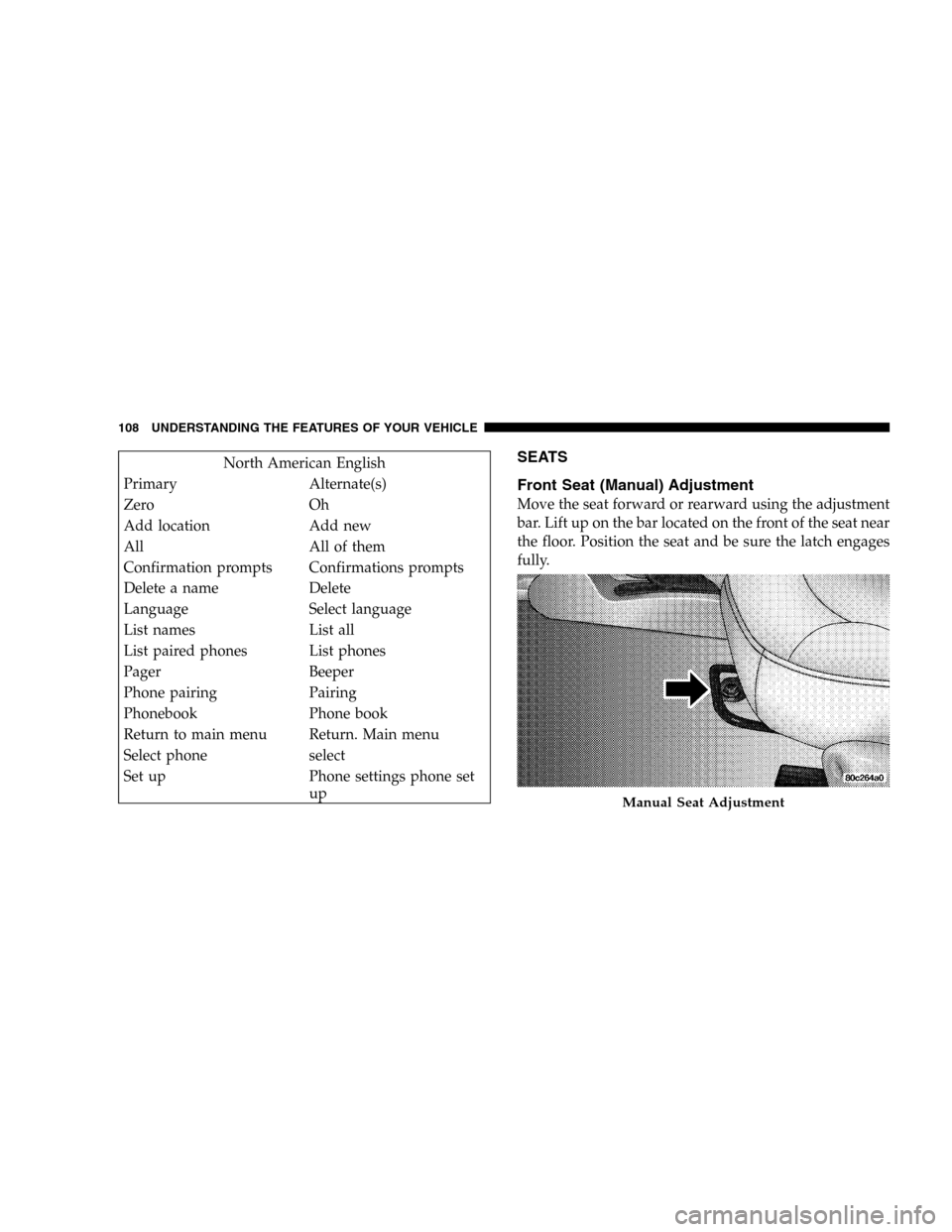

Front Seat (Manual) Adjustment
Move the seat forward or rearward using the adjustment
bar. Lift up on the bar located on the front of the seat near
the floor. Position the seat and be sure the latch engages
fully.
Manual Seat Adjustment
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Using body pressure, move forward and rearward on the
seat to be sure the seat adjusters have latched.
WARNING!
•Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat
could cause you to lose control. The seat belt
might not be properly adjusted and you could be
injured. Adjust any seat only while the vehicle is
parked.
•Do not ride with the seatback reclined so that the
seat belt is no longer resting against your chest. In
a collision you could slide under the seat belt and
be seriously or even fatally injured. Use the re-
cliner only when the vehicle is parked.

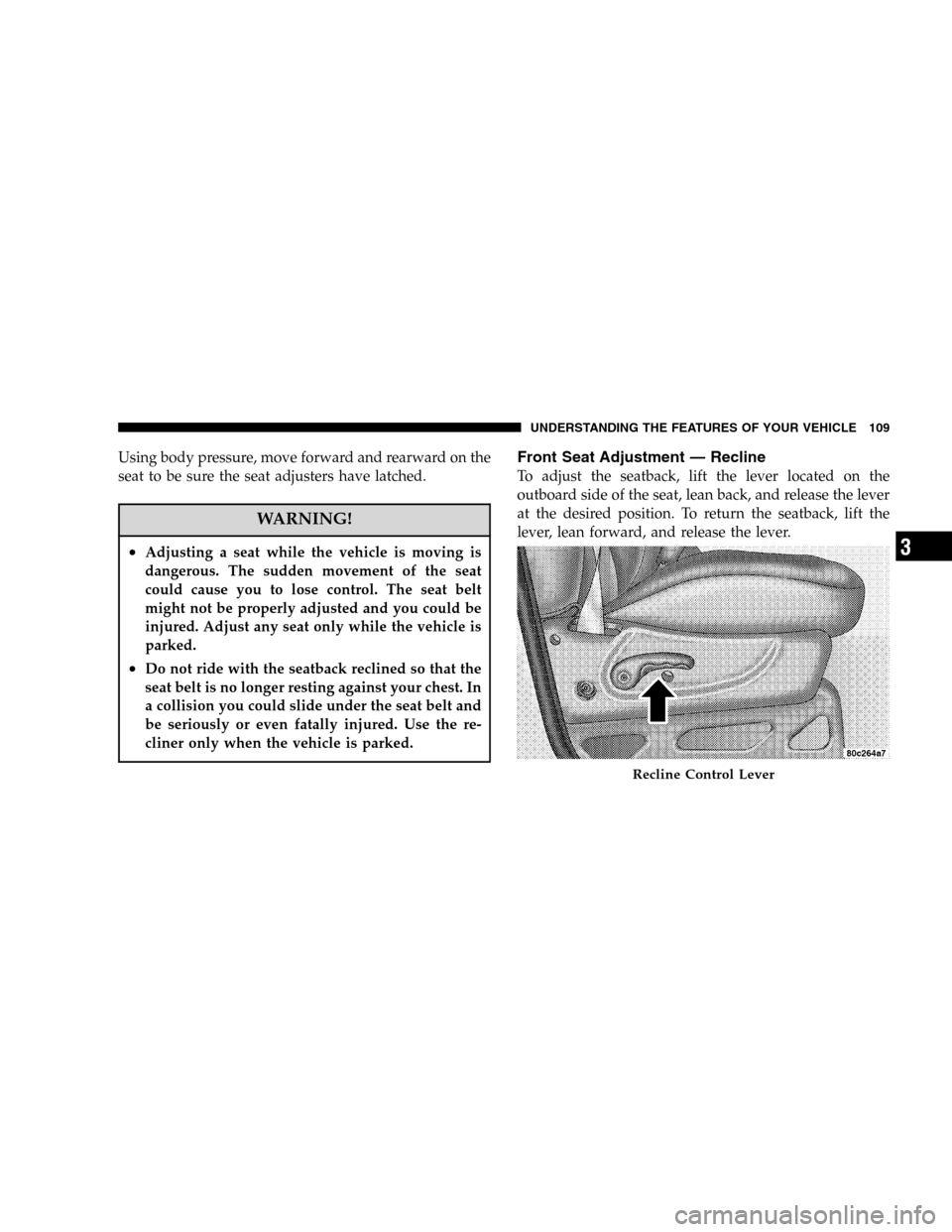

Front Seat Adjustment — Recline
To adjust the seatback, lift the lever located on the
outboard side of the seat, lean back, and release the lever
at the desired position. To return the seatback, lift the
lever, lean forward, and release the lever.
Recline Control Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109
3

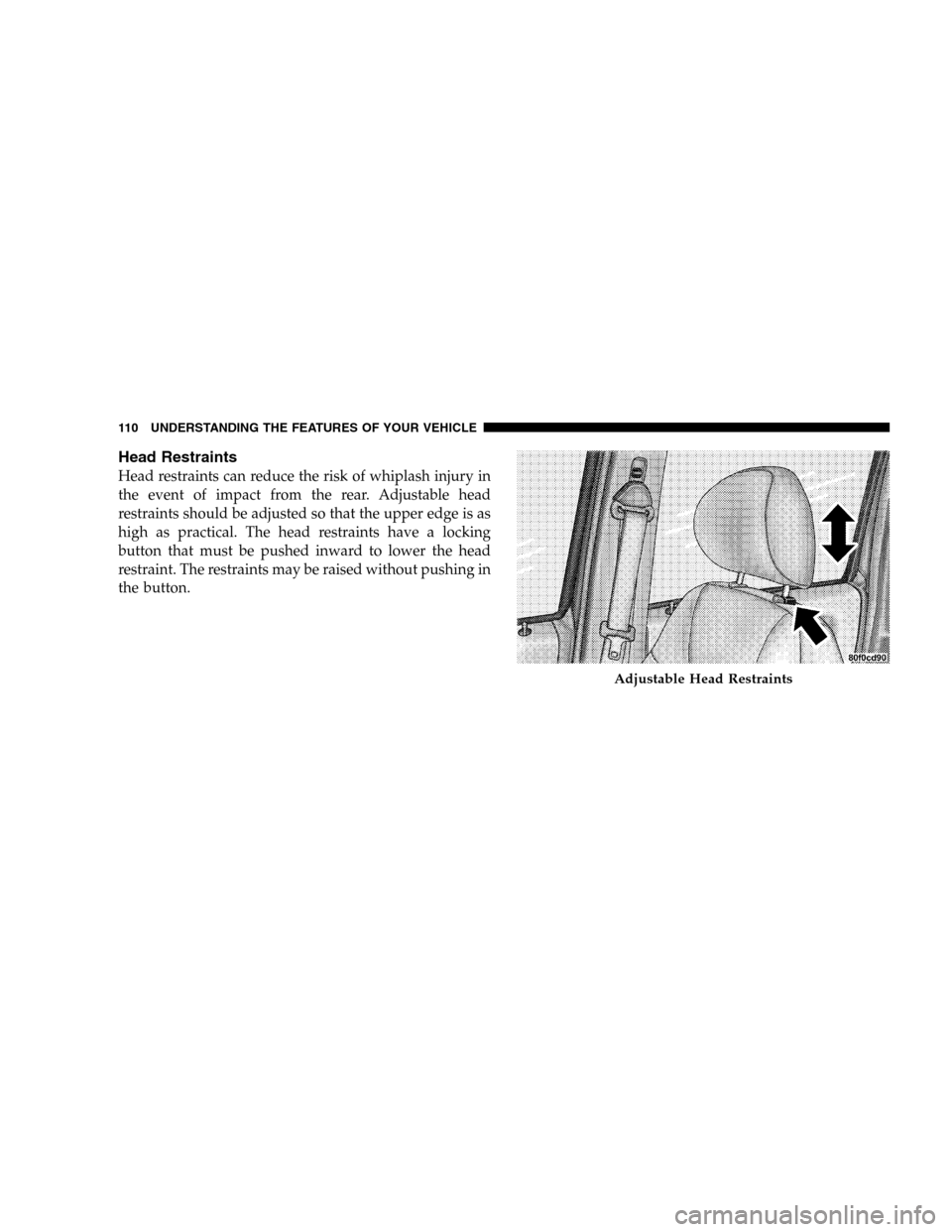

Head Restraints
Head restraints can reduce the risk of whiplash injury in
the event of impact from the rear. Adjustable head
restraints should be adjusted so that the upper edge is as
high as practical. The head restraints have a locking
button that must be pushed inward to lower the head
restraint. The restraints may be raised without pushing in
the button.
Adjustable Head Restraints
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

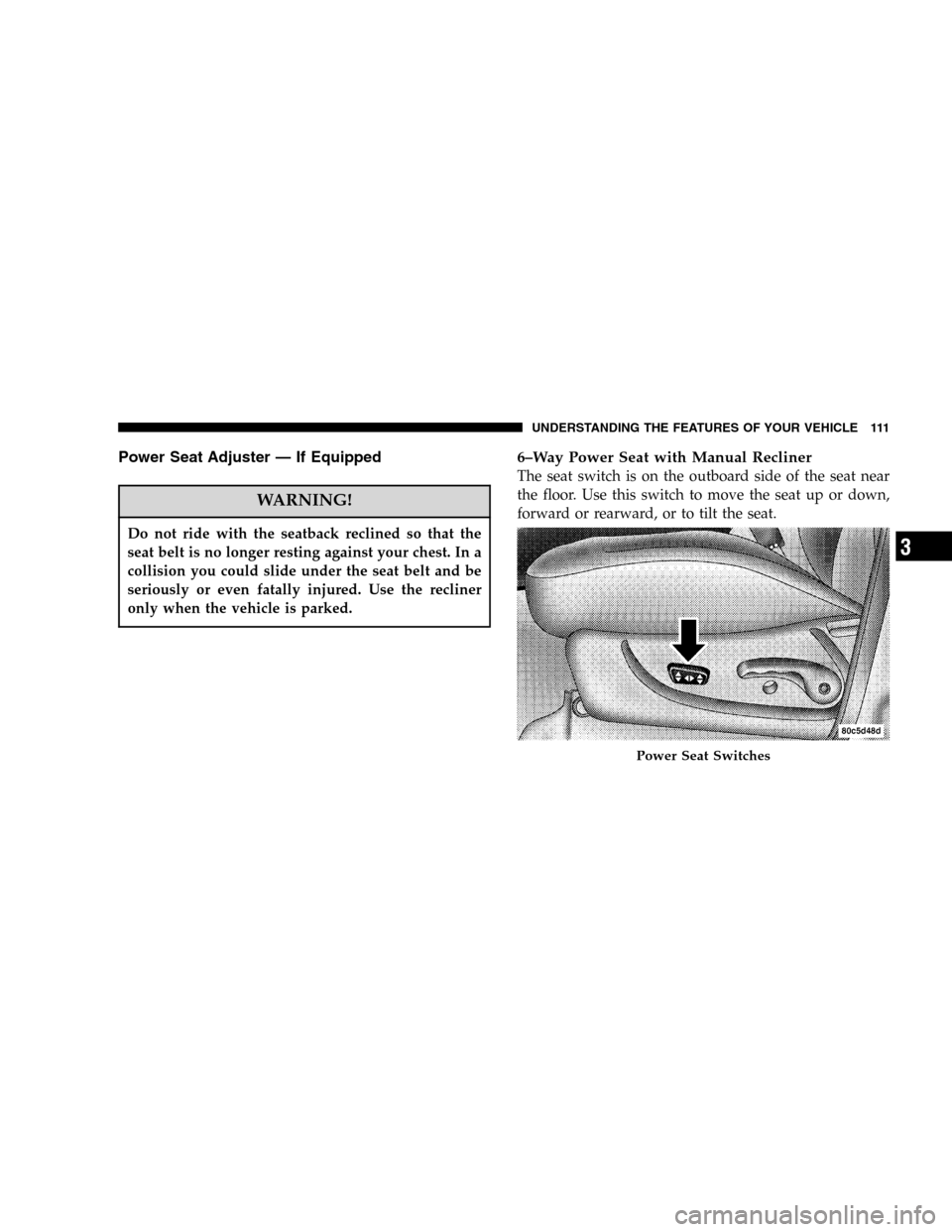

Power Seat Adjuster — If Equipped
WARNING!
Do not ride with the seatback reclined so that the
seat belt is no longer resting against your chest. In a
collision you could slide under the seat belt and be
seriously or even fatally injured. Use the recliner
only when the vehicle is parked.
6–Way Power Seat with Manual Recliner
The seat switch is on the outboard side of the seat near
the floor. Use this switch to move the seat up or down,
forward or rearward, or to tilt the seat.
Power Seat Switches
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111
3

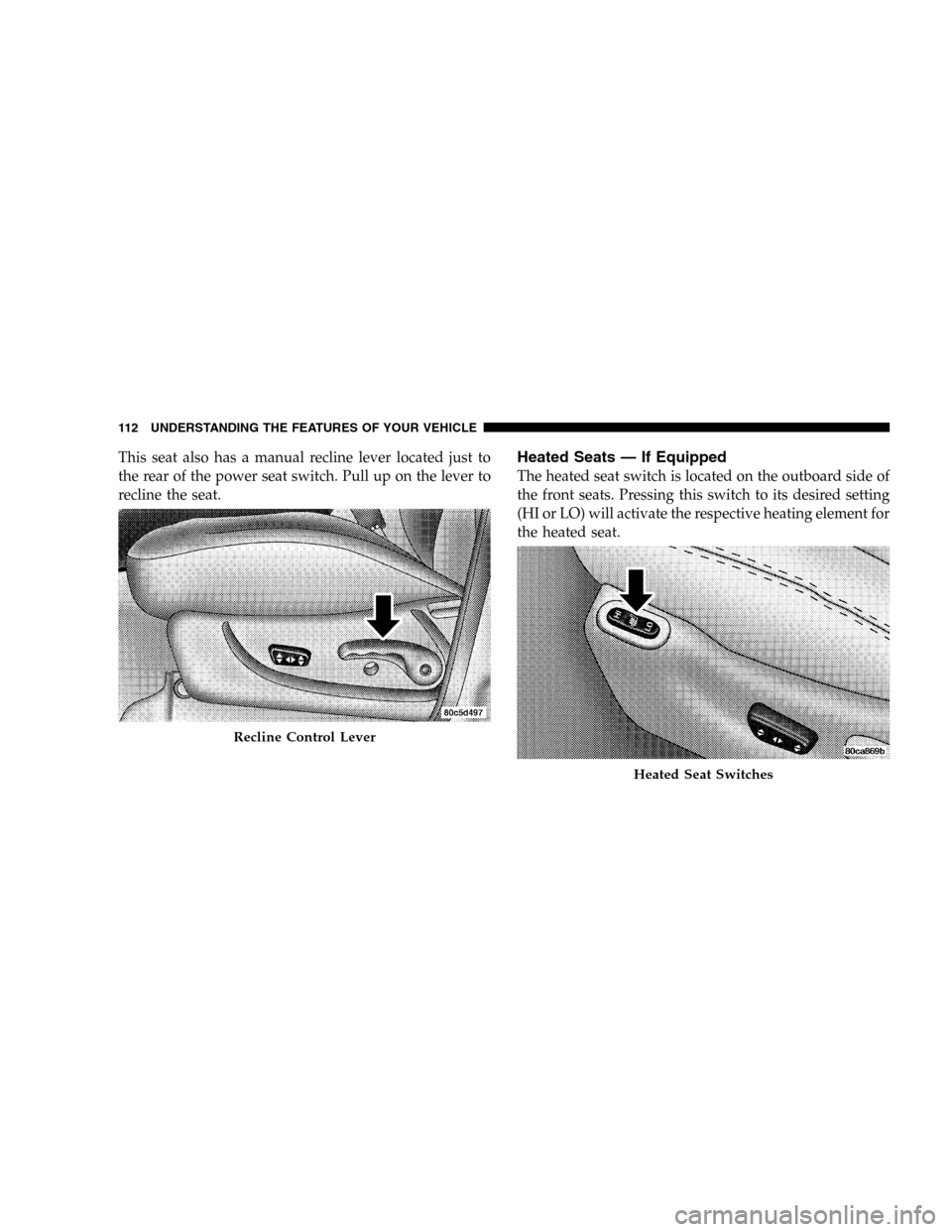

This seat also has a manual recline lever located just to
the rear of the power seat switch. Pull up on the lever to
recline the seat.Heated Seats — If Equipped
The heated seat switch is located on the outboard side of
the front seats. Pressing this switch to its desired setting
(HI or LO) will activate the respective heating element for
the heated seat.
Recline Control Lever
Heated Seat Switches
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
