2005 INFINITI QX4 display

CAN SYSTEM (TYPE 1)
LAN-21
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56
Work FlowUKS0018G
1. When there are no indications of “AUTO DRIVE POS.”, “BCM”, “HVAC” or “IPDM E/R” on “SELECT SYS-
TEM” display of CONSULT-II, print the “SELECT SYSTEM”.
2. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “AUTO DRIVE POS.”, “BCM”, “HVAC”,
“ABS” and “IPDM E/R” displayed on CONSULT-II.
3. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “AUTO DRIVE POS.”, “BCM”,
“HVAC”, “ABS” and “IPDM E/R” displayed on CONSULT-II.
4. Attach the printed sheet of “SELECT SYSTEM”, “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT
MNTR” onto the check sheet. Refer to LAN-23, "
CHECK SHEET" .
5. Based on the indications of “SELECT SYSTEM” and the results of “CAN DIAG SUPPORT MNTR”, put
marks “v” onto the items with “No indication”, “NG” or “UNKWN” in the check sheet table. Refer to LAN-23,
"CHECK SHEET" .
NOTE:

If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” as “CAN DIAG SUPPORT MNTR” for the diag-
nosed control unit, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
6. Check CAN communication line of the navigation system. Refer to AV-131, "
CAN Communication Line
Check" .
7. Attach the CAN DIAG SUPPORT MONITOR check sheet onto the check sheet. Refer to LAN-23,
"CHECK SHEET" .
PKIA2093E
PKIA8260E
PKIA8343E

LAN-22
[CAN]
CAN SYSTEM (TYPE 1)
Revision: October 20052005 QX56
8. Mark the “NG” or “UNKWN” item of the check sheet table with “v” from the result of CAN DIAG SUPPORT
MONITOR check sheet. Refer to LAN-23, "
CHECK SHEET" .
NOTE:
If “NG” is displayed on “CAN COMM” as “CAN DIAG SUPPORT MONITOR” for the diagnosed control
unit, replace the control unit. Refer to AV- 1 3 1 , "
CAN Communication Line Check" .
9. According to the check sheet results (example), start inspection. Refer to LAN-25, "
CHECK SHEET
RESULTS (EXAMPLE)" .

CAN SYSTEM (TYPE 1)
LAN-23
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56

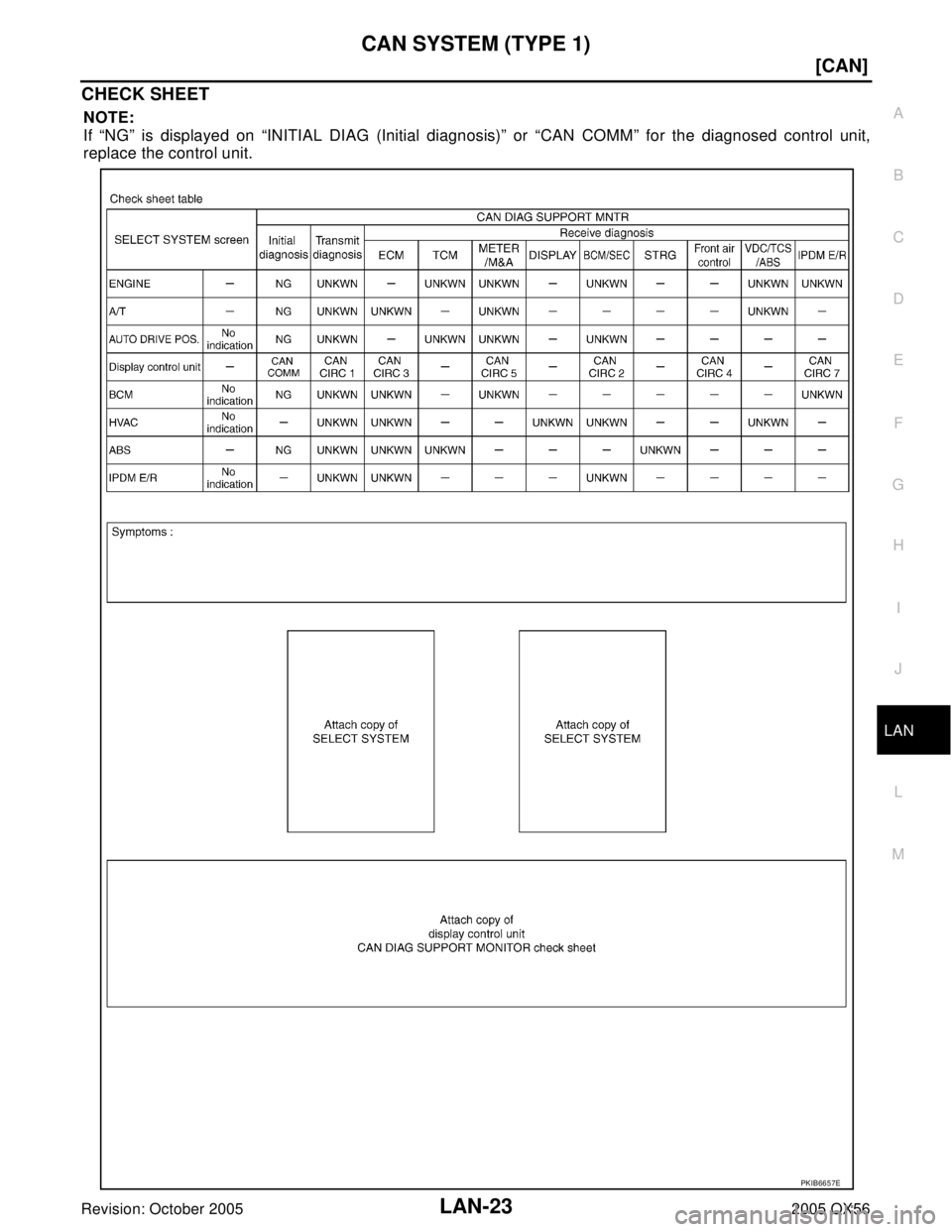

CHECK SHEET
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control unit,
replace the control unit.
PKIB6657E

CAN SYSTEM (TYPE 1)
LAN-25
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56

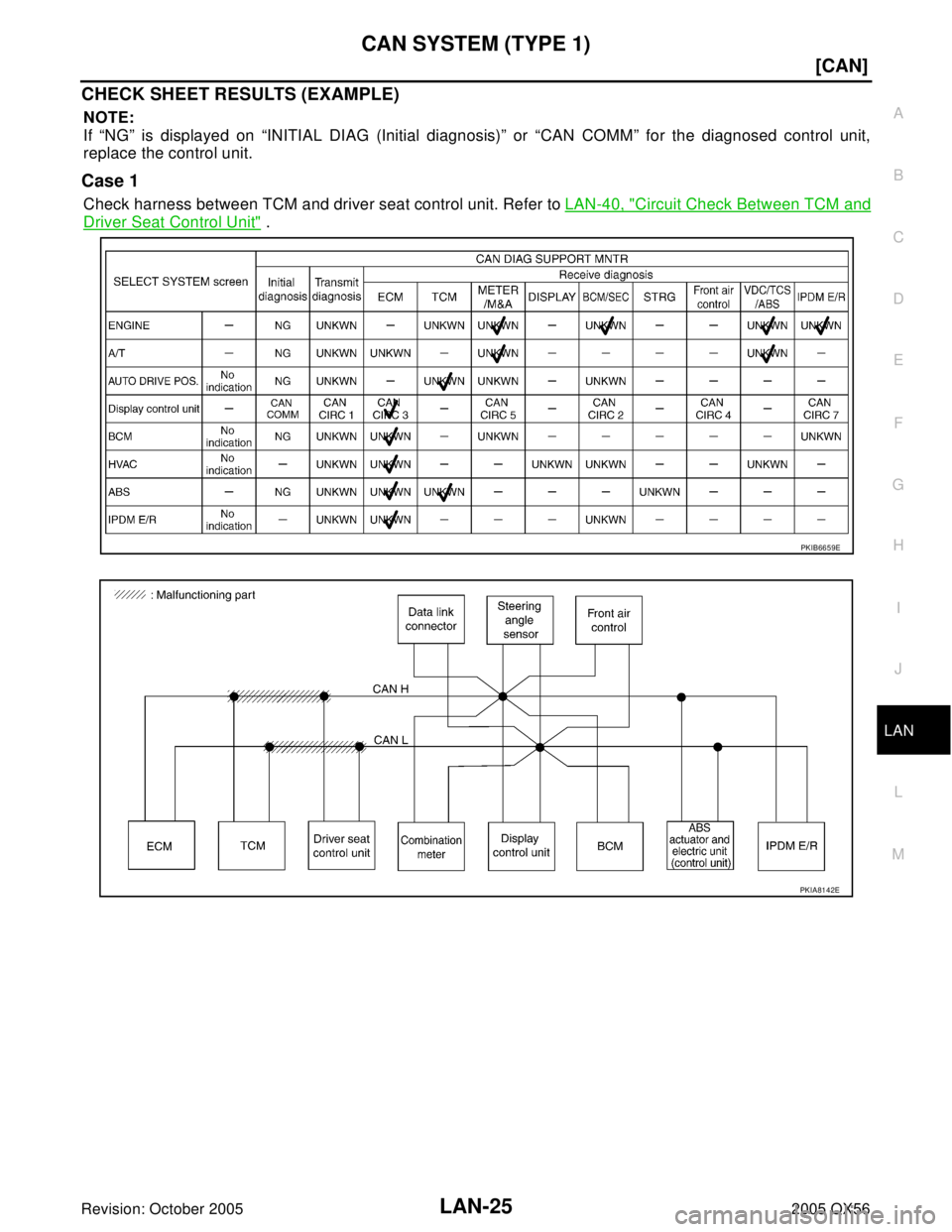

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control unit,
replace the control unit.
Case 1
Check harness between TCM and driver seat control unit. Refer to LAN-40, "Circuit Check Between TCM and
Driver Seat Control Unit" .
PKIB6659E
PKIA8142E

LAN-32
[CAN]
CAN SYSTEM (TYPE 1)
Revision: October 20052005 QX56
Case 8
Check display control unit circuit. Refer to LAN-45, "Display Control Unit Circuit Check" .
PKIB6666E
PKIA8149E

CAN SYSTEM (TYPE 1)
LAN-45
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56
Display Control Unit Circuit CheckUKS0018P
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of display control unit for damage, bend and loose connection (control unit
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect display control unit connector.
2. Check resistance between display control unit harness connec-
tor M95 terminals 25 (L) and 26 (P).
OK or NG
OK >> Replace display control unit.
NG >> Repair harness between display control unit and data
link connector.
BCM Circuit CheckUKS0018Q
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of BCM for damage, bend and loose connection (control module side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect BCM connector.
2. Check resistance between BCM harness connector M18 termi-
nals 39 (L) and 40 (P).
OK or NG
OK >> Replace BCM. Refer to BCS-20, "Removal and Installa-
tion of BCM" .
NG >> Repair harness between BCM and data link connector.25 (L) - 26 (P) : Approx. 54 - 66 Ω
SKIA6884E
39 (L) - 40 (P) : Approx. 54 - 66 Ω
SKIA6869E

LAN-48
[CAN]
CAN SYSTEM (TYPE 1)
Revision: October 20052005 QX56
IPDM E/R Circuit CheckUKS0018V
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of IPDM E/R for damage, bend and loose connection (control module side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM E/R harness connector E122
terminals 39 (L) and 40 (P).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness between IPDM E/R and harness con-
nector E152.
CAN Communication Circuit CheckUKS0018W
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect the following module and control unit connectors and check terminals for deformation, discon-
nection, looseness or damage.
–ECM
–A/T assembly
–Driver seat control unit
–Combination meter
–Display control unit
–BCM
–Steering angle sensor
–Front air control
–ABS actuator and electric unit (control unit)
–IPDM E/R
OK or NG
OK >> GO TO 2.
NG >> Repair or replace as necessary.39 (L) - 40 (P) : Approx. 108 - 132 Ω
PKIA8141E

CAN SYSTEM (TYPE 2)
LAN-55
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56
Work FlowUKS001N7
1. When there are no indications of “AUTO DRIVE POS.”, “BCM”, “HVAC” or “IPDM E/R” on “SELECT SYS-
TEM” display of CONSULT-II, print the “SELECT SYSTEM”.
2. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ICC”, “AUTO DRIVE POS.”, “BCM”,
“HVAC”, “ABS” and “IPDM E/R” displayed on CONSULT-II.
3. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “ICC”, “AUTO DRIVE POS.”,
“BCM”, “HVAC”, “ABS” and “IPDM E/R” displayed on CONSULT-II.
4. Attach the printed sheet of “SELECT SYSTEM”, “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT
MNTR” onto the check sheet. Refer to LAN-57, "
CHECK SHEET" .
5. Based on the indications of “SELECT SYSTEM” and the results of “CAN DIAG SUPPORT MNTR”, put
marks “v” onto the items with “No indication”, “NG” or “UNKWN” in the check sheet table. Refer to LAN-57,
"CHECK SHEET" .
NOTE:

If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” as “CAN DIAG SUPPORT MNTR” for the diag-
nosed control unit, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
6. Check CAN communication line of the navigation system. Refer to AV-131, "
CAN Communication Line
Check" .
7. Attach the CAN DIAG SUPPORT MONITOR check sheet onto the check sheet. Refer to LAN-57,
"CHECK SHEET" .
PKIA2093E
PKIA8260E
PKIA8343E
