DI-36
WARNING LAMPS
Revision: October 20052005 QX56

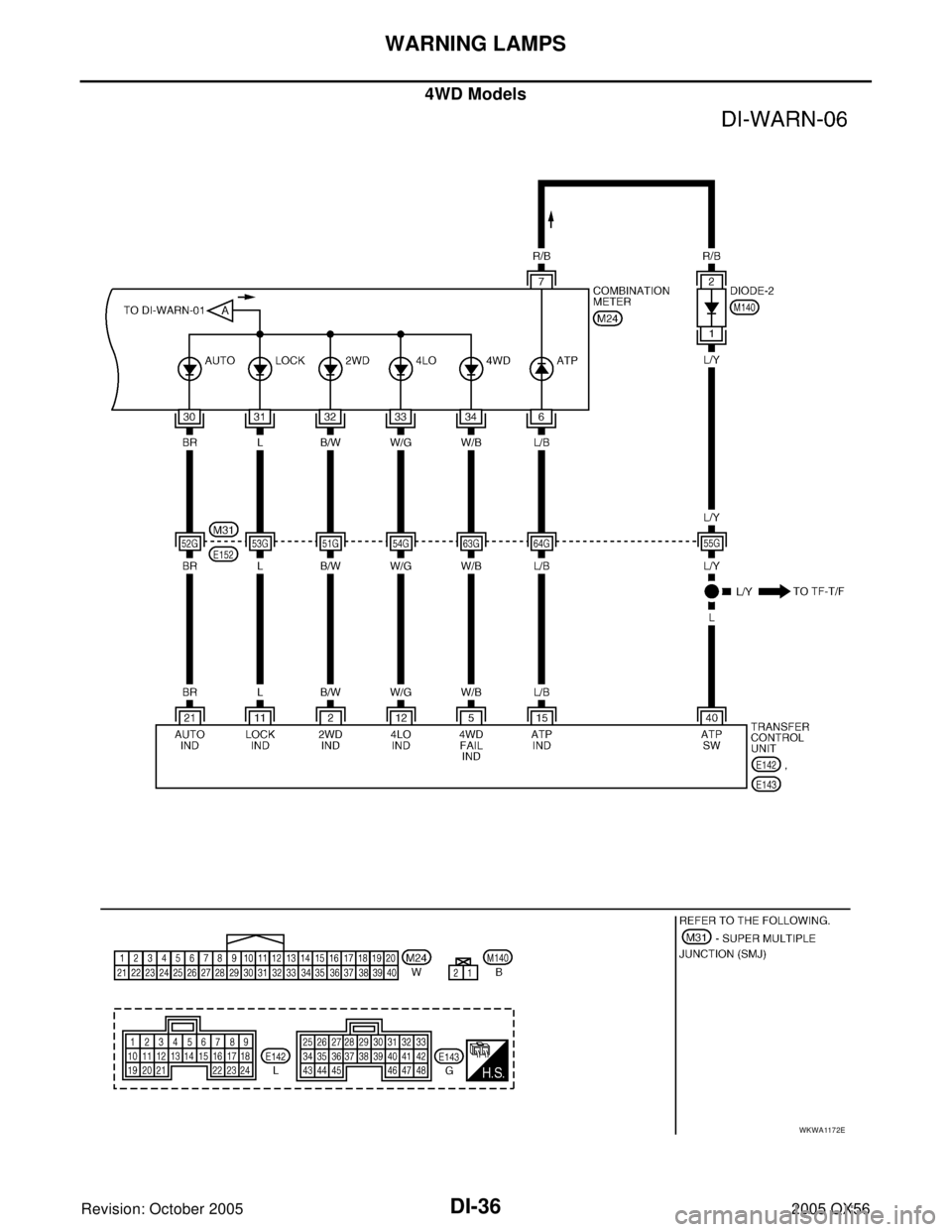

4WD Models
WKWA1172E

WARNING LAMPS
DI-37
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
Oil Pressure Warning Lamp Stays Off (Ignition Switch ON)EKS00BCK
1. CHECK OIL PRESSURE SENSOR SIGNAL
1. Turn ignition switch ON.
2. Check voltage between combination meter harness connector
M24 terminal 20 (Y) and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK OIL PRESSURE SENSOR GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect combination meter connector M24 and oil pressure
sensor connector F4.
3. Check continuity between combination meter harness connector
M24 terminal 16 (B/P) and oil pressure sensor harness connec-
tor F4 terminal 3 (B/P).
OK or NG
OK >> Replace the combination meter. Refer to IP-13, "Combi-
nation Meter" .
NG >> Repair harness or connector.
3. CHECK OIL PRESSURE SENSOR REFERENCE VOLTAGE
1. Turn ignition switch OFF.
2. Disconnect oil pressure sensor connector F4.
3. Turn ignition switch ON.
4. Check voltage between combination meter harness connector
M24 terminal 22 (GR/L) and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace the combination meter. Refer to IP-13, "
Combi-
nation Meter" .
Te r m i n a l s
Condition Voltage (V) (+)
(–)
ConnectorTe r m i n a l
(Wire color)
M24 20 (Y) GroundWhen ignition switch is in ON
position. (Engine stopped)Ye s
Engine running. (Idle speed) Yes
WKIA1833E
Continuity should exist.
WKIA1837E
Voltage : Approx. 5V
WKIA1834E

DI-38
WARNING LAMPS
Revision: October 20052005 QX56
4. CHECK OIL PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect combination meter connector M24.
3. Check continuity between combination meter harness connector M24 terminal 22 (GR/L) and oil pressure
sensor harness connector F4 terminal 1 (GR/L).
4. Check continuity between combination meter harness connector
M24 terminal 22 (GR/L) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK OIL PRESSURE SENSOR SIGNAL CIRCUIT
1. Check continuity between combination meter harness connector M24 terminal 20 (Y) and oil pressure
sensor harness connector F4 terminal 2 (Y).
2. Check continuity between combination meter harness connector
M24 terminal 20 (Y) and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness or connector.
6. CHECK OIL PRESSURE SENSOR GROUND CIRCUIT
Check continuity between combination meter harness connector
M24 terminal 16 (B/P) and ground.
OK or NG
OK >> Replace oil pressure sensor.
NG >> Repair harness or connector.Continuity should exist.
Continuity should not exist.
WKIA1835E
Continuity should exist.
Continuity should not exist.
WKIA1836E
Continuity should not exist.
WKIA2685E

WARNING LAMPS
DI-39
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
Oil Pressure Warning Lamp Does Not Turn Off (Oil Pressure Is Normal)EKS00BCL
NOTE:
For oil pressure inspection, refer to LU-7, "
OIL PRESSURE CHECK" .
1. CHECK ENGINE OIL PRESSURE GAUGE OPERATION
Observe operation of engine oil pressure gauge.
Does engine oil pressure gauge function properly?
YES >> Replace the combination meter. Refer to IP-13, "Combination Meter" .
NO >> Go to DI-19, "
Engine Oil Pressure Signal Inspection" .

DI-42
WARNING CHIME
Revision: October 20052005 QX56
WARNING CHIMEPFP:24814
Component Parts and Harness Connector LocationEKS00BCO
System DescriptionEKS00BCP
FUNCTION
Power is supplied at all times

through 50A fusible link (letter f , located in the fuse and fusible link box)

to BCM terminal 70, and

through 10A fuse [No. 19, located in the fuse block (J/B)]

to key switch and key lock solenoid terminal 3.
With ignition switch in ON or START position, power is supplied

through 10A fuse (No. 59, located in the fuse and relay box)

to BCM terminal 38.
Ground is supplied

to BCM terminal 67

through body grounds M57, M61, and M79.
NOTE:
When ignition key warning chime, light warning chime, and seat belt warning chime are required at the same
time, the priorities for each chime are the following.
1. Light warning chime
2. Ignition key warning chime
1. Combination meter M24 2. Combination switch (lighting switch)
M283. Steering column (view with instru-
ment lower panel LH removed)
4. BCM M18, M19, M20 5. Front door switch LH B8 6. Key switch and key lock solenoid
M27
7. Seat belt buckle pre-tensioner
assembly (seat belt buckle switch)
LH B74
LKIA0692E

WARNING CHIME
DI-43
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
3. Seat belt warning chime
IGNITION KEY WARNING CHIME
With the key inserted in the ignition switch, the ignition switch in OFF position, and the driver's door open, the
warning chime will sound.
Power is supplied

through key switch and key lock solenoid terminal 4

to BCM terminal 37.
Ground is supplied

to BCM terminal 47

through front door switch LH terminal 2.
Front door switch LH is case grounded.
BCM detects key inserted into the ignition switch, and sends key warning signal to combination meter via CAN
communication lines. When the combination meter receives key warning signal, it sounds warning chime.
LIGHT WARNING CHIME
With the key removed from the ignition switch, the driver's door open, and the lighting switch (part of the com-
bination switch) in 1st or 2nd position, the warning chime will sound. [Except when headlamp battery saver
control operates (5 minutes after ignition switch is turned to OFF or ACC position) and headlamps do not illu-
minate.]
Signal is supplied

from combination switch (lighting switch) terminals 1, 2, 3, 4, 5, 6, 7, 8, 9 and 10

to BCM terminals 2, 3, 4, 5, 6, 32, 33, 34, 35 and 36.
NOTE:
BCM detected lighting switch in 1st or 2nd position. Refer to BCS-3, "
COMBINATION SWITCH READING
FUNCTION" .
Ground is supplied

to BCM terminal 47

through front door switch LH terminal 2.
Front door switch LH is case grounded.
BCM detects headlamps are illuminated, and sends light warning signal to combination meter CAN communi-
cation lines. When the combination meter receives light warning signal, it sounds warning chime.
SEAT BELT WARNING CHIME
When the ignition switch is turned ON with the seat belt unfastened [seat belt buckle pre-tensioner assembly
(seat belt buckle switch) LH unfastened], warning chime will sound for approximately 6 seconds.
Ground is supplied

to combination meter terminal 27

through seat belt buckle pre-tensioner assembly (seat belt buckle switch) LH terminal 1.
Seat belt buckle pre-tensioner assembly (seat belt buckle switch) LH terminal 2 is grounded through body
grounds B7 and B19.
The combination meter sends seat belt buckle switch LH unfastened signal to BCM via CAN communication
line.
BCM receives seat belt buckle pre-tensioner assembly (seat belt buckle switch) LH unfastened signal from
combination meter via CAN communication line, and sends seat belt warning signal to the combination meter
via CAN communication line. When the combination meter receives the seat belt warning signal, it sounds the
warning chime. The BCM controls the (6 second) duration of the seat belt warning chime.
CAN Communication System DescriptionEKS00BCQ
Refer to LAN-5, "CAN COMMUNICATION" .

DI-44
WARNING CHIME
Revision: October 20052005 QX56
Wiring Diagram — CHIME —EKS00BCR
WKWA2372E

WARNING CHIME
DI-45
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
WKWA1175E
