LIGHTING AND TURN SIGNAL SWITCH .............
..110
Removal and Installation ..................................... .. 110
REMOVAL ........................................................ .. 110
INSTALLATION ................................................ .. 110
HAZARD SWITCH ................................................. .. 111
Removal and Installation ..................................... . . 111
REMOVAL ........................................................ . . 111
INSTALLATION ................................................ . . 111
COMBINATION SWITCH ....................................... ..112
Wiring Diagram — COMBSW — ......................... .. 112
Combination Switch Reading Function ............... .. 113
CONSULT-II Functions (BCM) ............................ .. 113
CONSULT-II BASIC OPERATION .................... .. 113
DATA MONITOR .............................................. .. 114
Combination Switch Inspection ........................... .. 115
Removal and Installation ..................................... .. 117
STOP LAMP .......................................................... ..118
Component Parts and Harness Connector Location .. 118
System Description ............................................. .. 118
Schematic ........................................................... .. 119
Wiring Diagram — STOP/L — ............................. . 120
Stop Lamp Does Not Operate ............................. . 123
High-Mounted Stop Lamp ................................... . 125
BULB REPLACEMENT, REMOVAL AND
INSTALLATION ................................................ . 125
Stop Lamp ........................................................... . 125
BULB REPLACEMENT .................................... . 125
REMOVAL AND INSTALLATION ..................... . 125
Rear Combination Lamp Control Unit ................. . 125
REMOVAL AND INSTALLATION ..................... . 125
STEP LAMP ........................................................... . 126
Front Door Step Lamp ......................................... . 126
BULB REPLACEMENT, REMOVAL AND
INSTALLATION ................................................ . 126
Rear Door Step Lamp ......................................... . 126
BULB REPLACEMENT, REMOVAL AND
INSTALLATION ................................................ . 126
BACK-UP LAMP ................................................... . 127
Wiring Diagram — BACK/L — ............................ . 127
Bulb Replacement ............................................... . 128
Removal and Installation ..................................... . 128
PARKING, LICENSE PLATE AND TAIL LAMPS .. . 129
Component Parts and Harness Connector Location . 129
System Description ............................................. . 129
OUT LINE ......................................................... . 129
OPERATION BY LIGHTING SWITCH ............. . 130
COMBINATION SWITCH READING FUNCTION . 131
EXTERIOR LAMP BATTERY SAVER CONTROL . 131
CAN Communication System Description ........... . 131
CAN Communication Unit ................................... . 131
Schematic ........................................................... . 132
Wiring Diagram — TAIL/L — ............................... . 133
Terminals and Reference Values for BCM .......... . 138
Terminals and Reference Values for IPDM E/R .. . 138
How to Proceed With Trouble Diagnosis ............. . 139
Preliminary Check ............................................... . 139
CHECK POWER SUPPLY AND GROUND CIR-
CUIT ................................................................. . 139
CONSULT-II Functions (BCM) ............................ . 140 CONSULT-II Functions (IPDM E/R) .....................
.140
Parking, License Plate and Side Marker Lamps Do
Not Illuminate ....................................................... .140
Tail Lamp Does Not Operate ............................... .146
Parking, License Plate, Side Maker and Tail Lamps
Do Not Turn OFF (After Approx. 10 Minutes) ...... .147
License Plate Lamp ............................................. .147
BULB REPLACEMENT, REMOVAL AND
INSTALLATION ................................................ .147
Front Parking Lamp ............................................. .148
BULB REPLACEMENT .................................... .148
REMOVAL AND INSTALLATION ..................... .148
Tail Lamp ............................................................. .148
BULB REPLACEMENT .................................... .148
REMOVAL AND INSTALLATION ..................... .148
Front Side Marker Lamp ...................................... .148
BULB REPLACEMENT .................................... .148
REMOVAL AND INSTALLATION ..................... .148
Rear Side Marker Lamp ...................................... .148
BULB REPLACEMENT .................................... .148
REMOVAL AND INSTALLATION ..................... .148
Rear Combination Lamp Control Unit .................. .148
REMOVAL AND INSTALLATION ..................... .148
REAR COMBINATION LAMP ................................ .149
Bulb Replacement ............................................... .149
REAR FENDER SIDE (REAR SIDE MARKER
LAMP BULB) .................................................... .149
BACK DOOR SIDE (BACK-UP LAMP) ............ .149
Removal and Installation ..................................... .149
REMOVAL ........................................................ .149
INSTALLATION ................................................ .150
VANITY MIRROR LAMP ........................................ .151
Bulb Replacement ............................................... .151
MAP LAMP ............................................................ .152
Bulb Replacement ............................................... .152
Removal and Installation ..................................... .152
REMOVAL ........................................................ .152
INSTALLATION ................................................ .152
PERSONAL LAMP ................................................ .153
Bulb Replacement ............................................... .153
Removal and Installation ..................................... .153
REMOVAL ........................................................ .153
INSTALLATION ................................................ .153
LUGGAGE ROOM LAMP ...................................... .154
Bulb Replacement ............................................... .154
Removal and Installation ..................................... .154
REMOVAL ........................................................ .154
INSTALLATION ................................................ .154
IGNITION KEY HOLE ILLUMINATION .................. .155
Bulb Replacement, Removal and Installation ...... .155
GLOVE BOX LAMP ............................................... .156
Bulb Replacement, Removal and Installation ...... .156
ASHTRAY ILLUMINATION .................................... .157
Bulb Replacement and Removal and Installation . 157
CIGARETTE LIGHTER ILLUMINATION ................ .158
Bulb Replacement and Removal and Installation . 158
INTERIOR ROOM LAMP ....................................... .159
Component Parts and Harness Connector Location .159
System Description .............................................. .159

LT-4Revision: 2005 July 2005 FX
POWER SUPPLY AND GROUND ....................
.160
SWITCH OPERATION ..................................... .161
ROOM LAMP TIMER OPERATION .................. .162
INTERIOR LAMP BATTERY SAVER CONTROL .163
Schematic ............................................................ .165
Wiring Diagram — ROOM/L — ............................ .167
Terminals and Reference Values for BCM ........... .175
How to Proceed With Trouble Diagnosis ............. .176
Preliminary Check ............................................... .176
CHECK FOR POWER SUPPLY AND GROUND
CIRCUIT ........................................................... .176
CONSULT-II Functions (BCM) ............................. .177
CONSULT-II BASIC OPERATION .................... .177
WORK SUPPORT ............................................ .178
DATA MONITOR ............................................... .178
ACTIVE TEST .................................................. .179
Interior Room Lamp Control Does Not Operate .. .180
Map Lamp Control Does Not Operate ................. .181
Personal Lamp Control Does Not Operate .......... .183
Ignition Key Hole Illumination Control Does Not
Operate ................................................................ .184
All Step Lamps Do Not Operate ........................... .186
All Interior Room Lamps Do Not Operate ............ .187
Bulb Replacement ............................................... .187 INTERIOR ROOM LAMP ..................................
.187
MAP LAMP ....................................................... .187
PERSONAL LAMP ............................................ .187
Removal and Installation ...................................... .188
INTERIOR ROOM LAMP .................................. .188
MAP LAMP ....................................................... .188
PERSONAL LAMP ............................................ .188
ILLUMINATION ....................................................... .189
System Description .............................................. .189
ILLUMINATION OPERATION BY LIGHTING
SWITCH ............................................................ .189
EXTERIOR LAMP BATTERY SAVER CONTROL .190
CAN Communication System Description ........... .190
CAN Communication Unit .................................... .191
Schematic ............................................................ .192
Wiring Diagram — ILL — ..................................... .194
Removal and Installation ...................................... .202
ILLUMINATION CONTROL SWITCH ............... .202
GLOVE BOX LAMP .......................................... .202
FRONT DOOR INSIDE ILLUMINATION ........... .202
BULB SPECIFICATIONS ....................................... .203
Headlamp ............................................................. .203
Exterior Lamp ....................................................... .203
Interior Lamp/Illumination ..................................... .203

HEADLAMP - XENON TYPE - LT-11
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
Wiring Diagram — H/LAMP —AKS007ME
TKWM0815E

LT-16
HEADLAMP - XENON TYPE -
Revision: 2005 July 2005 FX
How to Proceed With Trouble DiagnosisAKS007MH
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 7 , "
System Description" .
3. Perform Preliminary Check. Refer to LT- 1 6 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does headlamp operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckAKS007MI
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES
Check for blown fuses.
Refer to LT- 11 , "
Wiring Diagram — H/LAMP —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
30 GY Headlamp low (LH) ON Lighting switch 2ND
position OFF Approx. 0V
ON Battery voltage
38 B Ground ON — Approx. 0V
48 L CAN − H— — —
49 R CAN − L— — —
60 B Ground ON — Approx. 0V
Terminal
No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
Unit Power source Fuse and fusible link No.
BCM Battery
M
22
Ignition switch ON or START position 1 Ignition switch ACC or ON position 6
IPDM E/R Battery 72
74
76
86

LT-42
DAYTIME LIGHT SYSTEM
Revision: 2005 July 2005 FX
Wiring Diagram — DTRL —AKS007N4
TKWM2046E

DAYTIME LIGHT SYSTEM LT-47
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
Preliminary CheckAKS007N7
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES
Check for blown fuses.
Refer to LT- 4 2 , "
Wiring Diagram — DTRL —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
Unit Power source Fuse and fusible link No.
BCM Battery
M
22
Ignition switch ON or START position 1
Daytime light relay Battery 36
Terminal Ignition switch position
(+) (-) OFF ON
Connec-
tor Terminal (Wire color)
M3 38 (W/L) Ground Approx. 0V Battery voltage
M4 42 (L/R) Battery voltage Battery voltage
55 (G) Battery voltage Battery voltage
PKIB5199E
Terminal Continuity
Connector Terminal (Wire color) Ground Yes
M4 49 (B)
52 (B)
PKIB3545E

LT-58
AUTO LIGHT SYSTEM
Revision: 2005 July 2005 FX

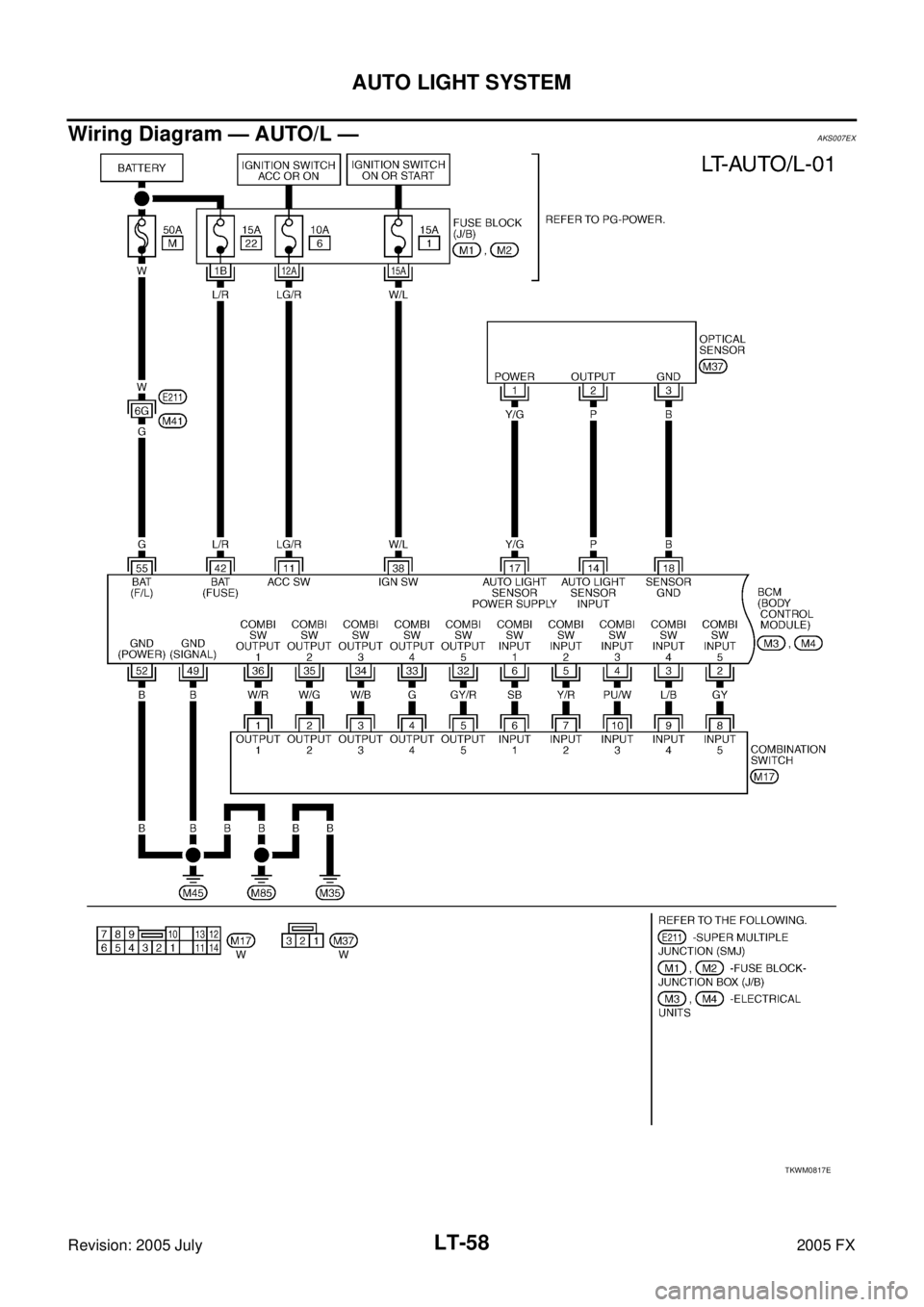

Wiring Diagram — AUTO/L —AKS007EX
TKWM0817E

AUTO LIGHT SYSTEM LT-63
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
Preliminary CheckAKS007F1
SETTING CHANGE FUNCTIONS

Sensitivity of auto light system can be adjusted using CONSULT-II. Refer to LT- 6 6 , "WORK SUPPORT" .
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES

Check for blown fuses.
Refer to LT- 5 8 , "
Wiring Diagram — AUTO/L —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open or short between BCM and fuse.
Unit Power source Fuse and fusible link No.
BCM Battery
M
22
Ignition switch ON or START position 1 Ignition switch ACC or ON position 6
IPDM E/R Battery 71
72
74
76
86
Terminal Ignition switch position
(+) (-) OFF ACC ON
Connector Terminal
(Wire color)
M3 11 (LG/R)
Ground Approx. 0V
Battery
voltage Battery
voltage
38 (W/L) Approx. 0V Approx. 0V Battery
voltage
M4 42 (L/R)
Battery
voltage Battery
voltage Battery
voltage
55 (G) Battery
voltage Battery
voltage Battery
voltage
PKIB5197E
