2005 INFINITI FX35 window

GW-32
POWER WINDOW SYSTEM
Revision: 2005 July 2005 FX

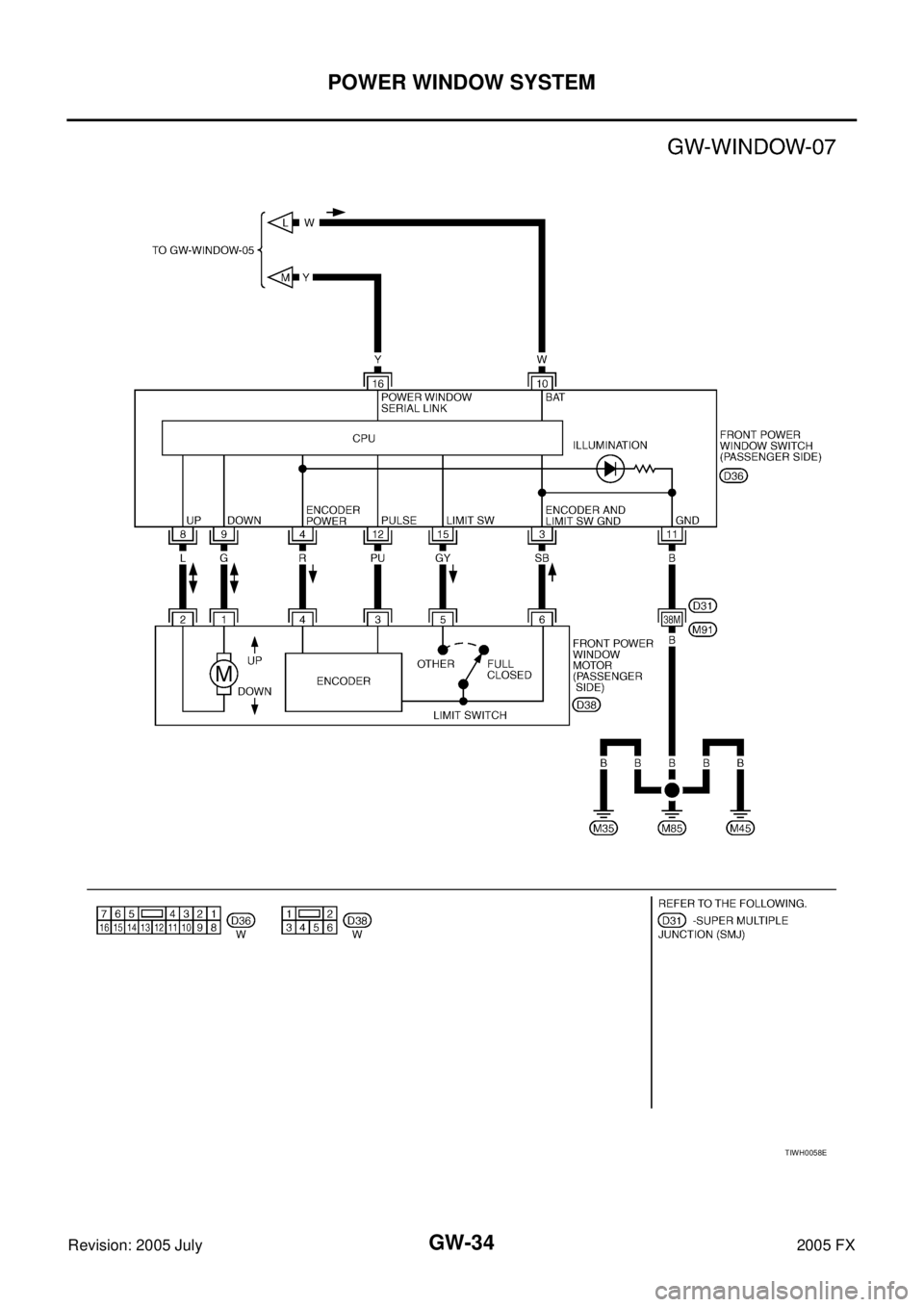

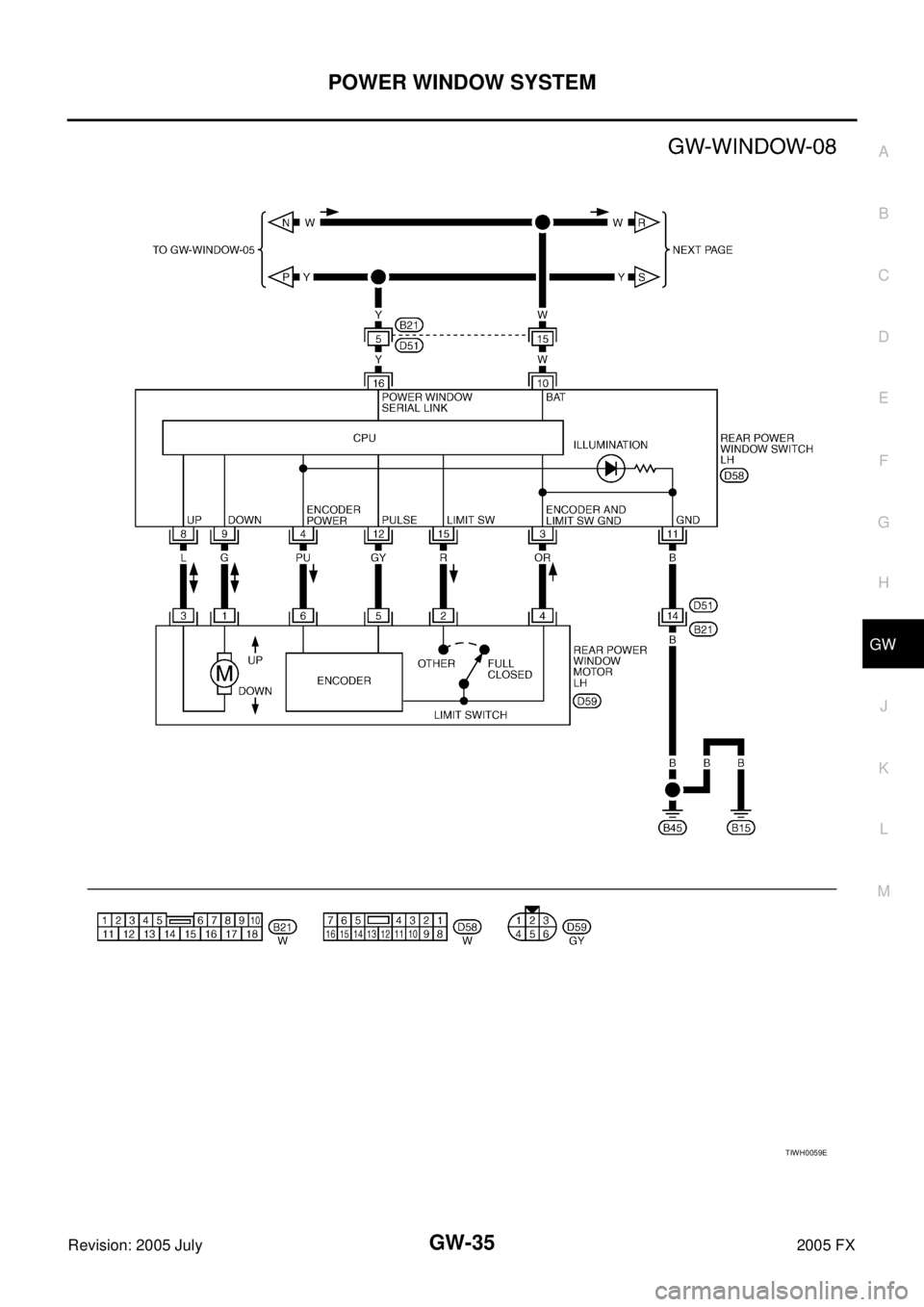

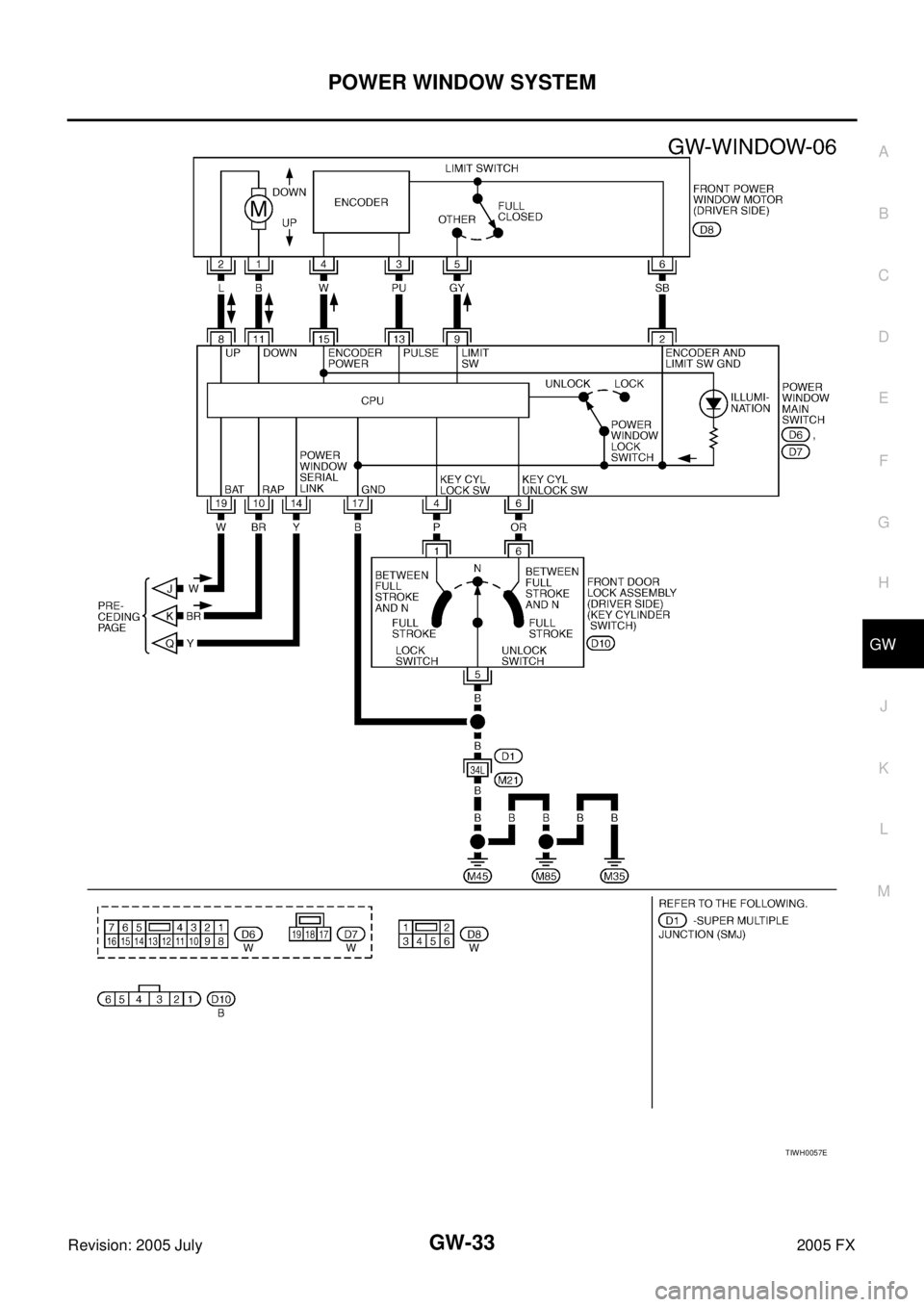

Wiring Diagram — WINDOW —/With Front and Rear Power Window Anti-Pinch
System
AIS004Q6
TIWH0056E

POWER WINDOW SYSTEM GW-33
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
TIWH0057E

GW-34
POWER WINDOW SYSTEM
Revision: 2005 July 2005 FX
TIWH0058E

POWER WINDOW SYSTEM GW-35
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
TIWH0059E

GW-36
POWER WINDOW SYSTEM
Revision: 2005 July 2005 FX
TIWH0060E

POWER WINDOW SYSTEM GW-37
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
Terminal and Reference Value for BCM / With Front and Rear Power Window
Anti-Pinch
AIS004Q7
Terminal Wire color Item Condition Voltage [V]
(Approx.)
12 P/B Front door switch
passenger side signal ON (Open) 0
OFF (Close) Battery voltage
22 OR Power window serial link IGN SW ON or power window
timer operating.
38 W/L Ignition switch (ON or START) Ignition switch
(ON or START position) Battery voltage
39 L CAN - H — 0
40 R CAN - L — 0
42 L/R Power source (Fuse) — Battery voltage
49 B Ground (signal) — 0
52 B Ground (power) — 0
53 Y/B Rap signal IGN SW ON Battery voltage
Within 45 second after ignition
switch is turned to OFF Battery voltage
When driver side or passenger
side door is open in power win-
dow timer is operates 0
54 W Power window power supply — Battery voltage
55 G Power source (Fusible link) — Battery voltage
62 W Front door switch
driver side signal ON (Open) 0
OFF (Close) Battery voltage
PIIA2344J

GW-38
POWER WINDOW SYSTEM
Revision: 2005 July 2005 FX
Terminal and Reference Value for Power Window Main Switch / With Front and
Rear Power Window Anti-pinch System
AIS004Q8
Terminal Wire color Item Condition Voltage [V]
(Approx.)
2 SB Limit switch and encoder ground — 0
4P Door key cylinder switch
LOCK signal Key position
(Neutral → Locked) 5
→ 0
6OR Door key cylinder switch
UNLOCK signal Key position
(Neutral → Unlocked) 5
→ 0
8L Front driver side power window
motor UP signal When front LH switch in
power window main switch is
UP at operated. Battery voltage
9 GY Limit switch signal Driver side door window is between
fully-open and just before fully-
closed position (ON). 0
Driver side door window is between
just before fully-closed position and
fully-closed position (OFF). 5
10 BR Rap signal IGN SW ON Battery voltage
Within 45 second after ignition
switch is turned to OFF Battery voltage
When driver side or passenger side
door is open in power window timer
is operates 0
11 B Front driver side power window
motor DOWN signal When front LH switch in
power window main switch is
DOWN at operated. Battery voltage
13 PU Encoder pulse signal When power window motor oper-
ates.
14 Y Power window serial link IGN SW ON or power window timer
operating.
15 W Encoder power supply When ignition switch ON or power
window timer operates. 10
17 B Ground — 0
19 W Battery power supply — Battery voltage
OCC3383D
PIIA2344J

POWER WINDOW SYSTEM GW-39
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
Terminal and Reference Value for (Front and Rear) Power Window Switch / With
Front and Rear Window Anti-pinch System
AIS004Q9
( ): Rear power window switch (LH or RH)
Terminal Wire color Item Condition Voltage [V]
(Approx.)
3 SB
(OR) Limit switch and encoder ground — 0
4 R
(PU) Encoder power supply
When ignition switch ON or power
window timer operates 10
8L Power window motor
UP signal When power window motor is
UP at operated. Battery voltage
9G Power window motor
DOWN signal When power window motor is
DOWN at operated. Battery voltage
10 W Battery power supply — Battery voltage 11 B G r o u n d — 0
12 PU
(GY) Encoder pulse signal
When power window motor oper-
ates.
15 GY
(R) Limit switch signal Door window is between fully-open
and just before fully-closed position
(ON) 0
Door window is between just before
fully-closed position and fully-closed
position (OFF) 5
16 Y Power window serial link IGN SW ON or power window timer
operating.
OCC3383D
PIIA2344J
