2005 INFINITI FX35 window

GW-24
POWER WINDOW SYSTEM
Revision: 2005 July 2005 FX
Wiring Diagram — WINDOW —/With Front Power Window Anti-Pinch SystemAIS004Q1
TIWH0051E

POWER WINDOW SYSTEM GW-25
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
TIWH0052E

GW-26
POWER WINDOW SYSTEM
Revision: 2005 July 2005 FX
TIWH0053E

POWER WINDOW SYSTEM GW-27
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
TIWH0054E

GW-28
POWER WINDOW SYSTEM
Revision: 2005 July 2005 FX
Terminal and Reference Value for BCM / With Front Power Window Anti-Pinch
System
AIS004Q2
Terminal Wire color Item Condition Voltage [V]
(Approx.)
12 P/B Front door switch
passenger side signal ON (Open) 0
OFF (Close) Battery voltage
22 OR Power window serial link IGN SW ON or power window
timer operating.
38 W/L Ignition switch (ON or START) Ignition switch
(ON or START position) Battery voltage
39 L CAN - H — —
40 R CAN - L — —
42 L/R Power source (Fuse) — Battery voltage
49 B Ground (signal) — 0
52 B Ground (power) — 0
53 Y/B Rap signal IGN SW ON Battery voltage
Within 45 second after ignition
switch is turned to OFF Battery voltage
When driver side or passenger
side door is open in power win-
dow timer is operates 0
54 W Power window power supply — Battery voltage
55 G Power source (Fusible link) — Battery voltage
62 W Front door switch
driver side signal ON (Open) 0
OFF (Close) Battery voltage
PIIA2344J

POWER WINDOW SYSTEM GW-29
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
Terminal and Reference Value for Power Window Main Switch / With Front
Power Window Anti-pinch System
AIS004Q3
Terminal Wire color Item Condition Voltage [V]
(Approx.)
1Y Rear LH power window
UP signal When rear LH switch in
power window main switch is
UP at operated. Battery voltage
2 SB Limit switch and encoder ground — 0
3R Rear LH power window
DOWN signal When rear LH switch in
power window main switch is
DOWN at operated. Battery voltage
4P Door key cylinder switch
LOCK signal Key position
(Neutral → Locked) 5
→ 0
5G Rear RH power window
DOWN signal When rear RH switch in
power window main switch is
DOWN at operated. Battery voltage
6OR Door key cylinder switch
UNLOCK signal Key position
(Neutral → Unlocked) 5
→ 0
7LG Rear RH power window
UP signal When rear RH switch in
power window main switch is
UP at operated. Battery voltage
8L Front driver side
power window motor UP signal When front LH switch in
power window main switch is
UP at operated Battery voltage
9 GY Limit switch signal Driver side door window is
between fully-open and just
before fully-closed position (ON) 0
Driver side door window is
between just before fully-closed
position and fully-closed position
(OFF) 5
10 BR Rap signal IGN SW ON Battery voltage
Within 45 second after ignition
switch is turned to OFF Battery voltage
When driver side or passenger
side door open in power window
timer is operates 0
11 B Front driver side
power window motor DOWN signal When front LH switch in
power window main switch is
DOWN at operated Battery voltage
13 PU Encoder pulse signal When power window motor oper-
ates.
14 Y Power window serial link IGN SW ON or power window
timer operating.
15 W Encoder power supply When ignition switch ON or
power window timer operates 10
OCC3383D
PIIA2344J

GW-30
POWER WINDOW SYSTEM
Revision: 2005 July 2005 FX
Terminal and Reference Value for Front Power Window Switch (Passenger Side)
/ With Front Power Window Anti-pinch System
AIS004Q4
17 B Ground — 0
19 W Battery power supply — Battery voltage
Terminal Wire color Item Condition
Voltage [V]
(Approx.)
Terminal Wire color Item Condition Voltage [V]
(Approx.)
3 SB Limit switch and encoder ground — 0
4 R Encoder power supply When ignition switch ON or
power window timer operates 10
8L Front passenger side
power window motor UP signal When power window motor is
UP at operated. Battery voltage
9G Front passenger side
power window motor DOWN signal When power window motor is
DOWN at operated. Battery voltage
10 W Battery power supply — Battery voltage 11 B Ground — 0
12 PU Encoder pulse signal When power window motor oper-
ates.
15 GY Limit switch signal Passenger side door window is
between fully-open and just
before fully-closed position (ON) 0
Passenger side door window is
between just before fully-closed
position and fully-closed position
(OFF) 5
16 Y Power window serial link IGN SW ON or power window
timer operating.
OCC3383D
PIIA2344J

POWER WINDOW SYSTEM GW-31
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX

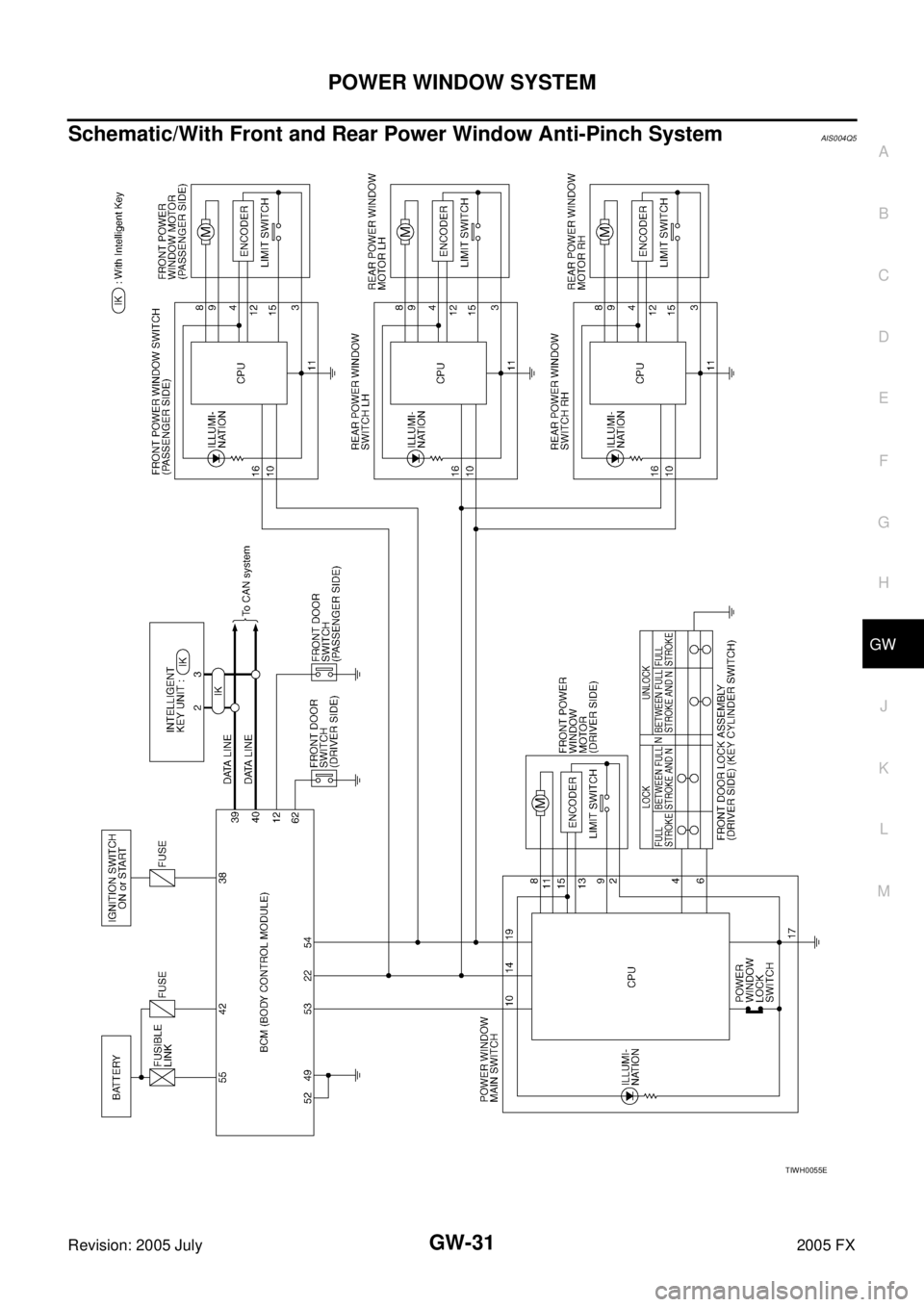

Schematic/With Front and Rear Power Window Anti-Pinch SystemAIS004Q5
TIWH0055E
