2005 FORD SUPER DUTY Owners Manual

Page 49 of 304

FORD SUPER DUTY 2005 1.G Owners Manual Replacing park/turn and sidemarker lamp bulbs (aerodynamic)
1. Make sure that the headlamp control is in the OFF position and open
the hood.
2. Remove the four screws from the
top and bottom front of

Page 50 of 304

FORD SUPER DUTY 2005 1.G Owners Manual Replacing headlamp bulbs (sealed beam)
1. Make sure that the headlamp control is in the OFF position and open
the hood.
2. Remove the four screws from the
top and bottom front of the
headlamp assembly

Page 51 of 304

FORD SUPER DUTY 2005 1.G Owners Manual Replacing park/turn/sidemarker bulbs (sealed beam)
1. Make sure that the headlamp control is in the OFF position and open
the hood.
2. Remove the four screws from the
top and bottom front of the
headl

Page 52 of 304

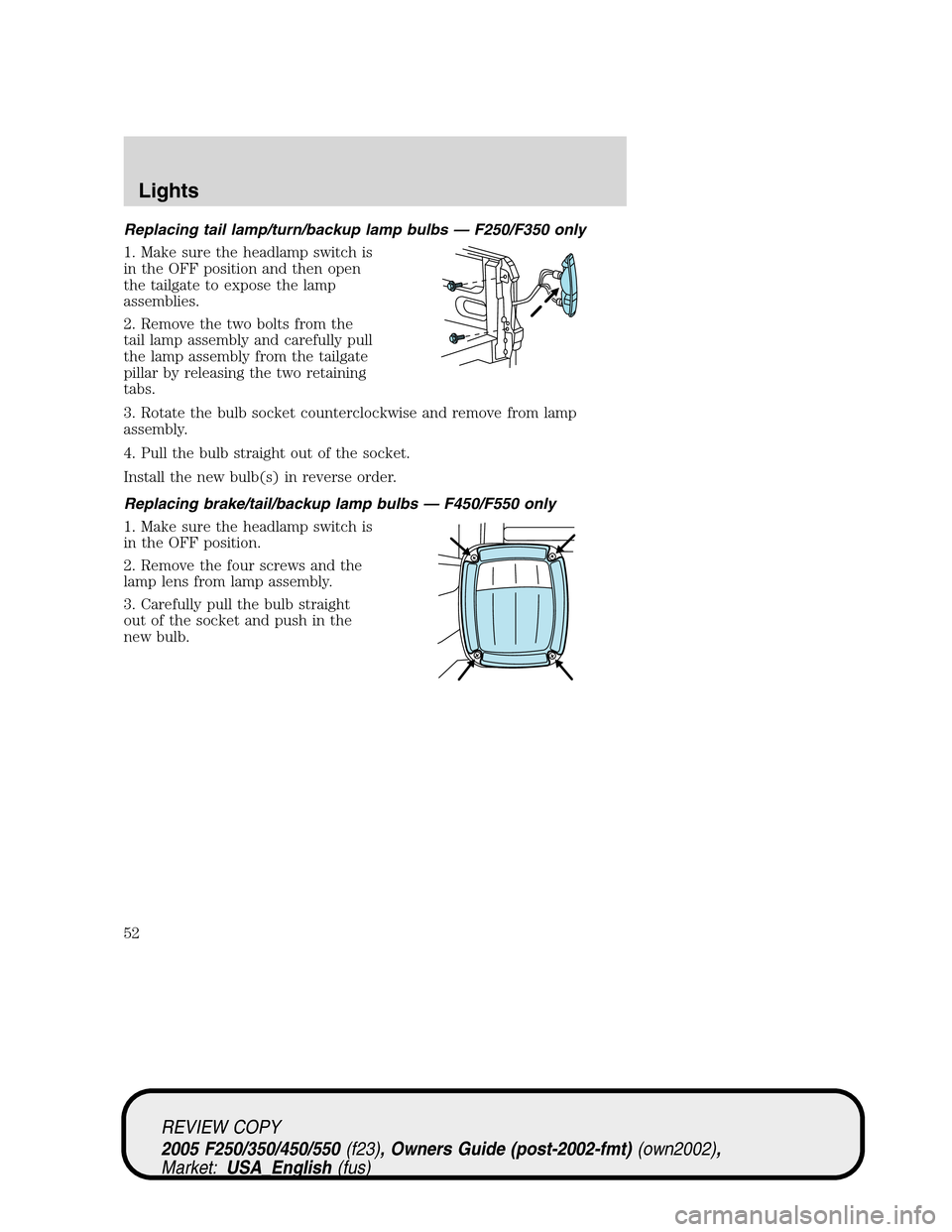

FORD SUPER DUTY 2005 1.G Owners Manual Replacing tail lamp/turn/backup lamp bulbs — F250/F350 only
1. Make sure the headlamp switch is
in the OFF position and then open
the tailgate to expose the lamp
assemblies.
2. Remove the two bolts

Page 53 of 304

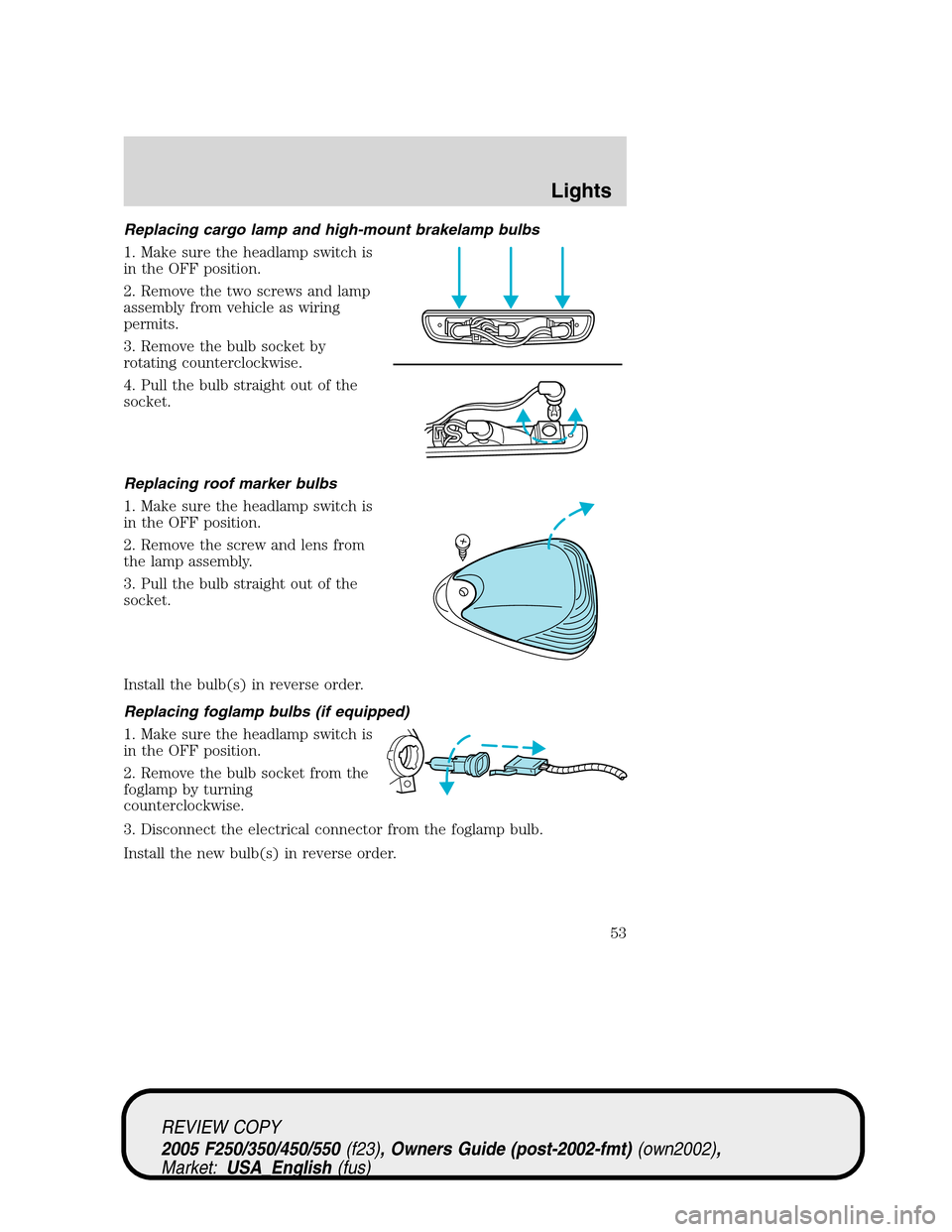

FORD SUPER DUTY 2005 1.G Owners Manual Replacing cargo lamp and high-mount brakelamp bulbs
1. Make sure the headlamp switch is
in the OFF position.
2. Remove the two screws and lamp
assembly from vehicle as wiring
permits.
3. Remove the bu

Page 54 of 304

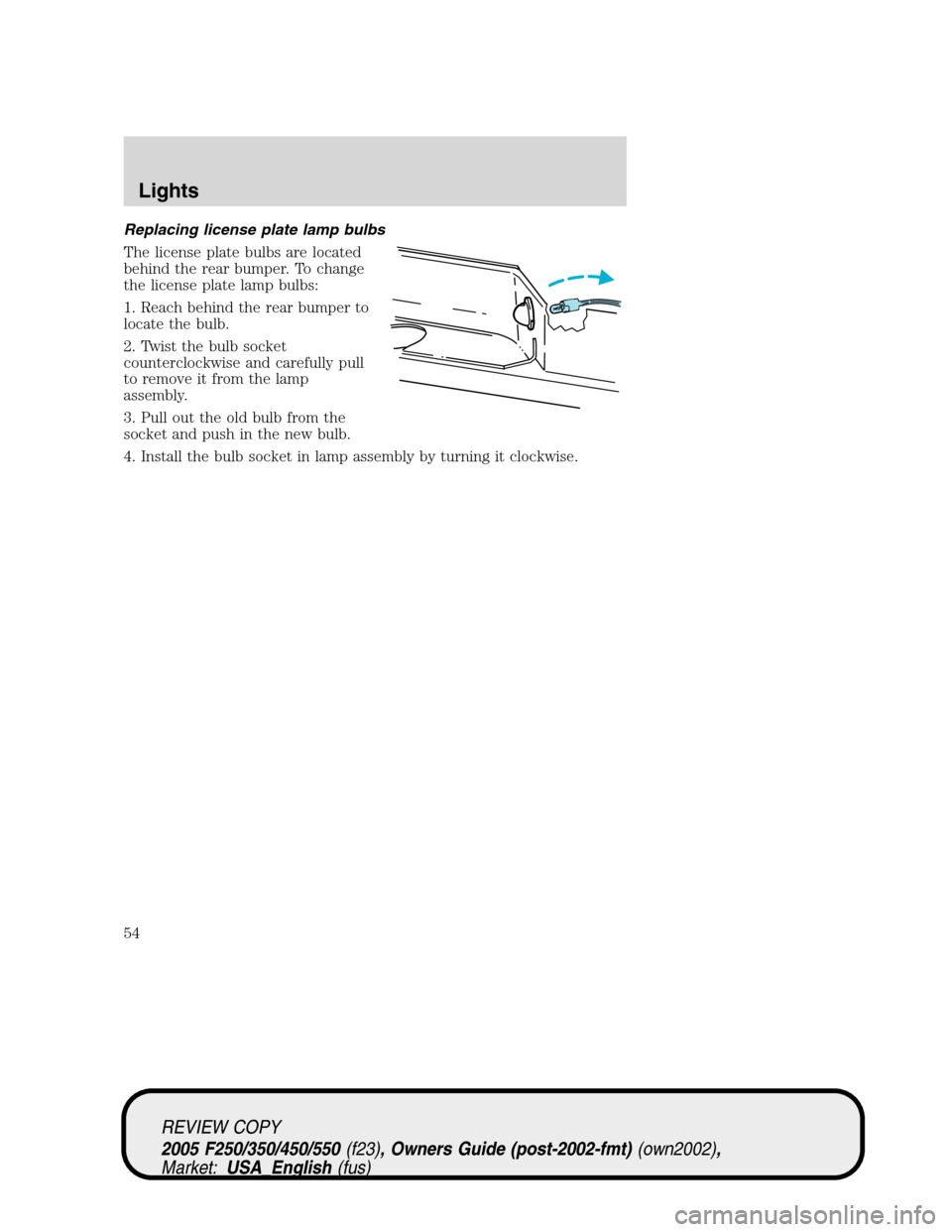

FORD SUPER DUTY 2005 1.G Owners Manual Replacing license plate lamp bulbs
The license plate bulbs are located
behind the rear bumper. To change
the license plate lamp bulbs:
1. Reach behind the rear bumper to
locate the bulb.
2. Twist the

Page 55 of 304

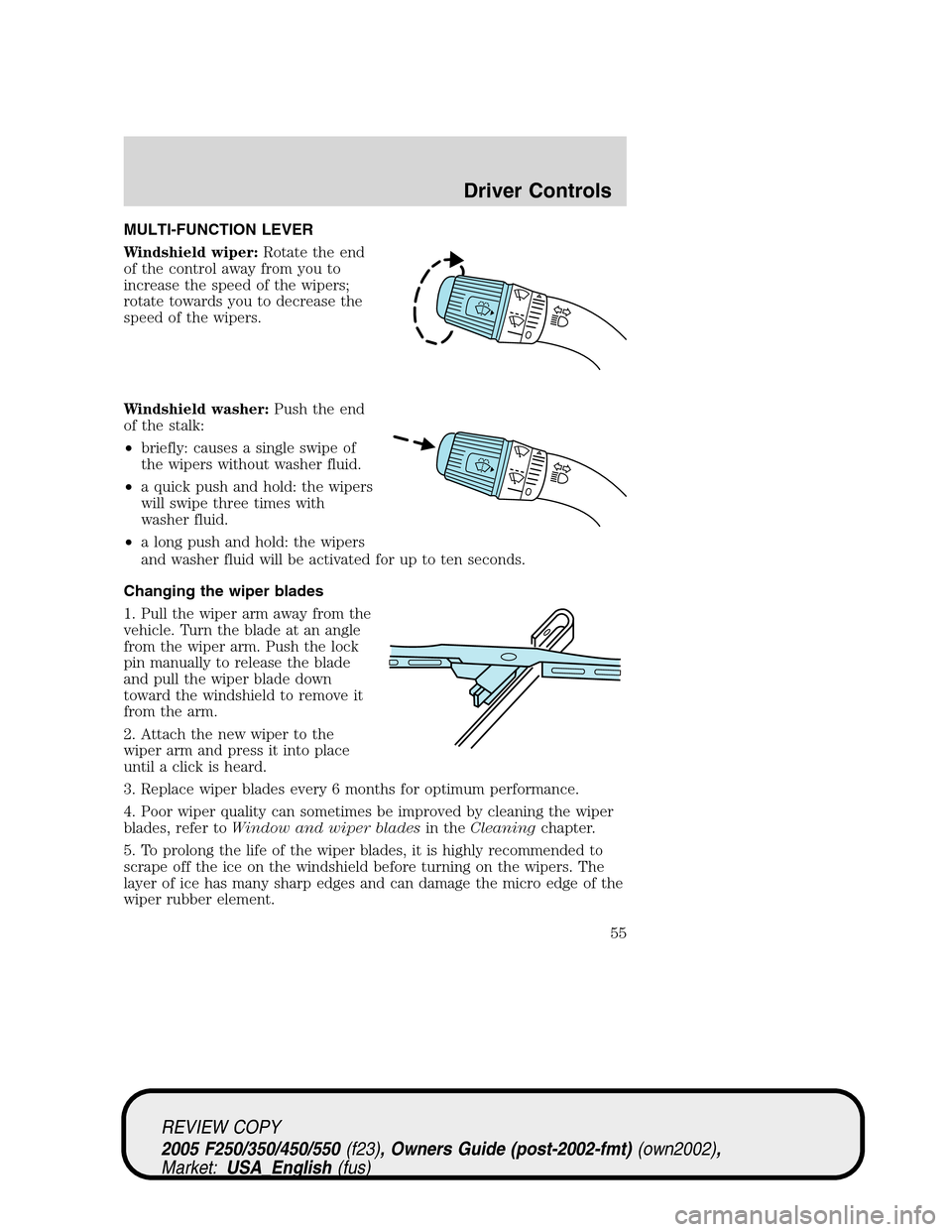

FORD SUPER DUTY 2005 1.G Owners Manual MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Windshield washer:Push th

Page 56 of 304

FORD SUPER DUTY 2005 1.G Owners Manual TILT STEERING WHEEL (IF EQUIPPED)
To adjust the steering wheel:
1. Pull and hold the steering wheel
release control toward you.
2. Move the steering wheel up or
down until you find the desired
locatio
