2005 FORD SUPER DUTY Owners Manual

Page 81 of 304

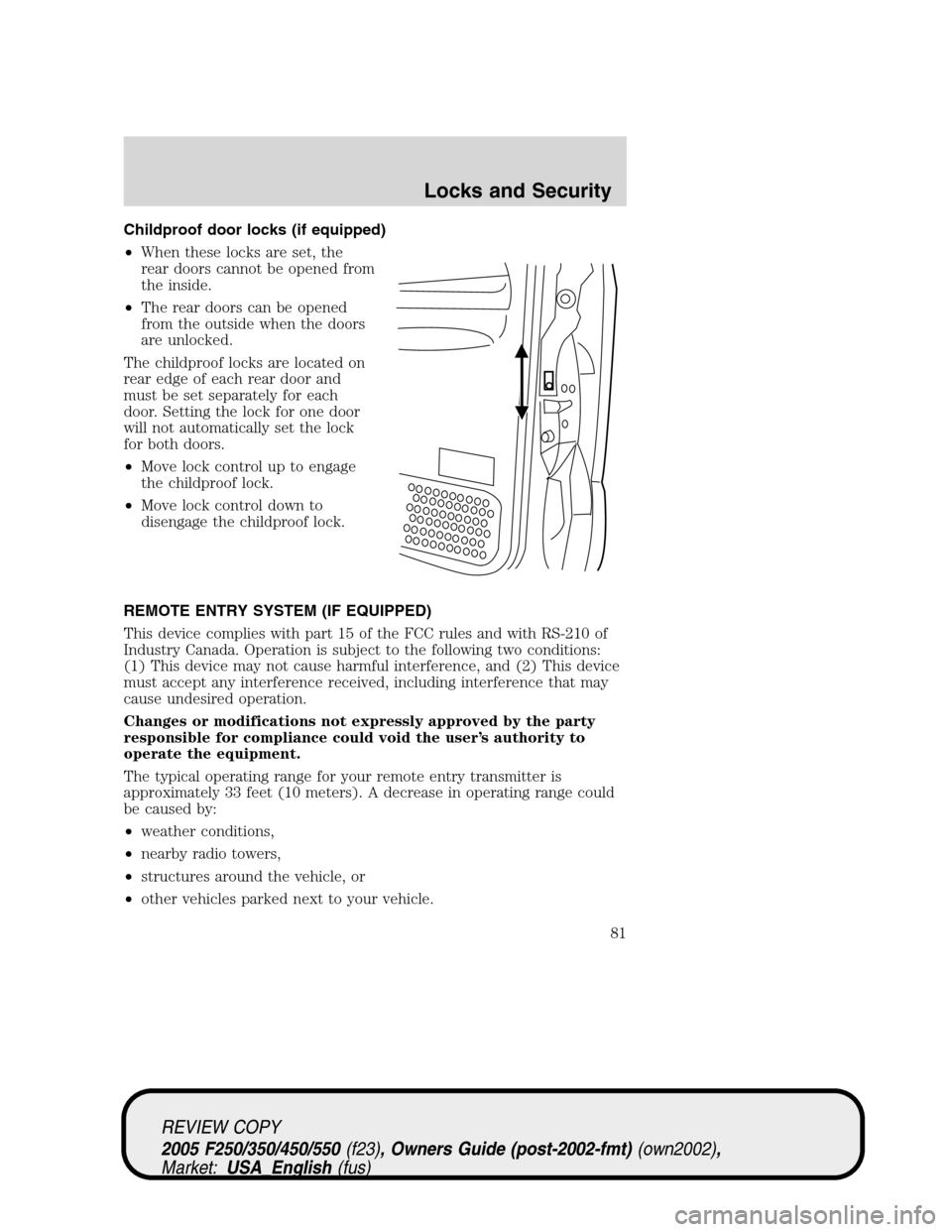

FORD SUPER DUTY 2005 1.G Owners Manual Childproof door locks (if equipped)
•When these locks are set, the
rear doors cannot be opened from
the inside.
•The rear doors can be opened
from the outside when the doors
are unlocked.
The chil

Page 82 of 304

FORD SUPER DUTY 2005 1.G Owners Manual Your vehicle is equipped with a remote entry system which allows you to:
•unlock the vehicle doors without
a key.
•lock all the vehicle doors without
a key.
•activate the personal alarm.
If ther

Page 83 of 304

FORD SUPER DUTY 2005 1.G Owners Manual The UNLOCKfeature will work again after:
•a door has become ajar,
•the ignition is turned to the 4 (ON) position,
•unlocking the vehicle using the keyless entry keypad,
•or using the UNLOCK
co

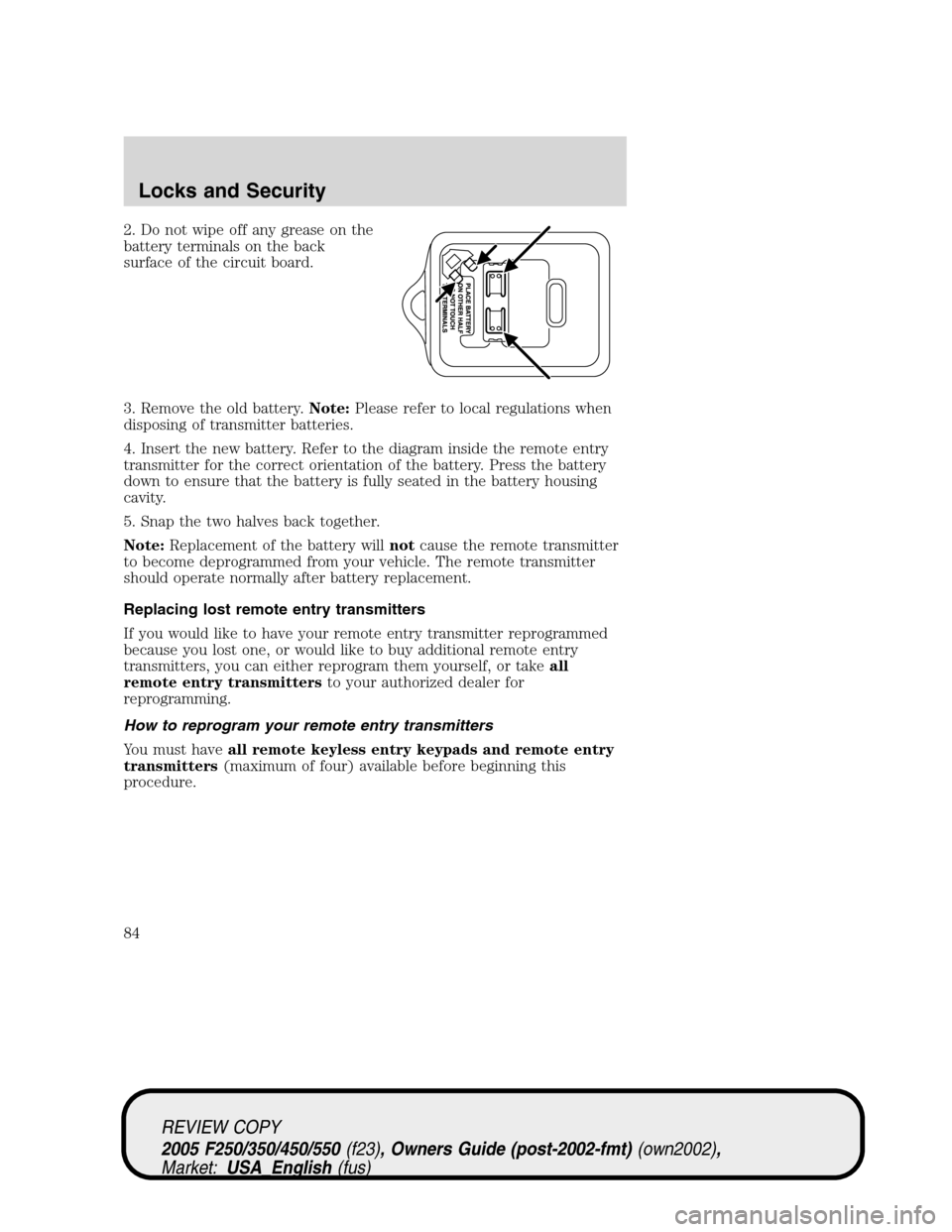

Page 84 of 304

FORD SUPER DUTY 2005 1.G Owners Manual 2. Do not wipe off any grease on the
battery terminals on the back
surface of the circuit board.
3. Remove the old battery.Note:Please refer to local regulations when
disposing of transmitter batterie

Page 85 of 304

FORD SUPER DUTY 2005 1.G Owners Manual To program the keyless entry
keypads remote entry transmitters
yourself:
1. Ensure the vehicle is
electronically unlocked.
2. Put the key in the ignition.
3. Turn the key from the 2 (LOCK)
position to

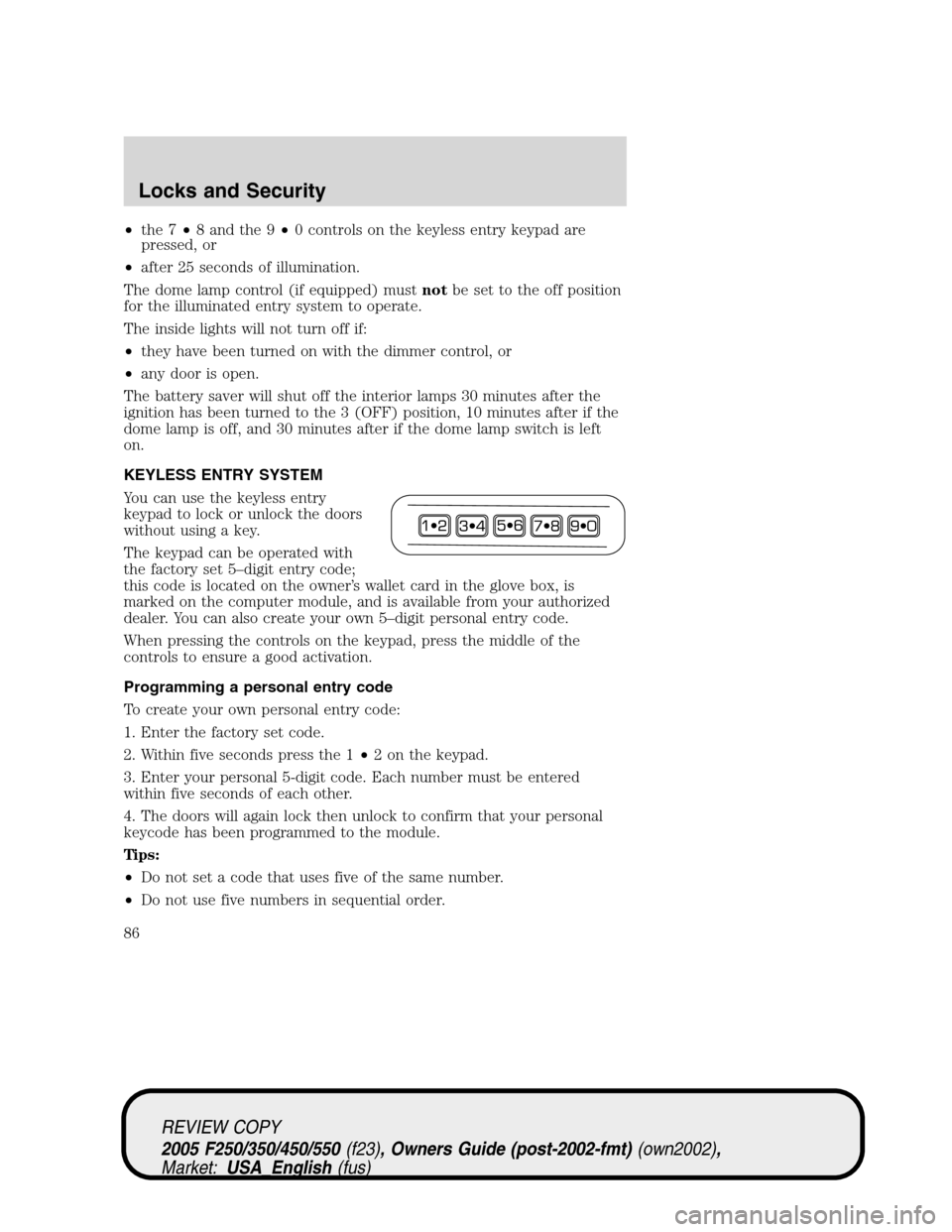

Page 86 of 304

FORD SUPER DUTY 2005 1.G Owners Manual •the 7•8 and the 9•0 controls on the keyless entry keypad are
pressed, or
•after 25 seconds of illumination.
The dome lamp control (if equipped) mustnotbe set to the off position
for the illum

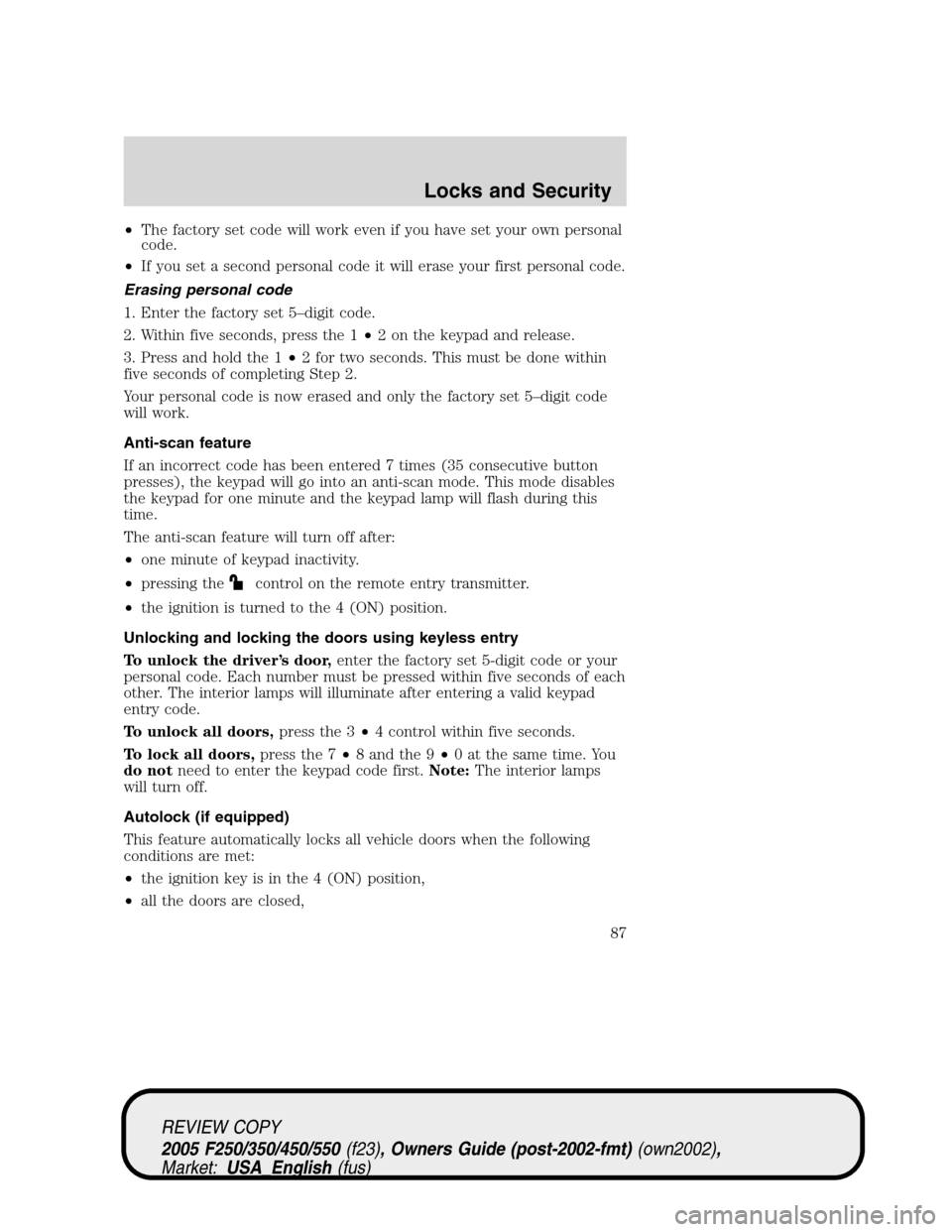

Page 87 of 304

FORD SUPER DUTY 2005 1.G Owners Manual •The factory set code will work even if you have set your own personal
code.
•If you set a second personal code it will erase your first personal code.
Erasing personal code
1. Enter the factory s

Page 88 of 304

FORD SUPER DUTY 2005 1.G Owners Manual •the brake is pressed before reaching 5 mph (8 km/h), and
•the vehicle is traveling more than 5 mph (8 km/h).
Relock
The autolock feature repeats when the following conditions are met:
•the vehi
