F–350 (except Crew Cab)
Dimension Body style
Regular Cab
Chassis Cab
- inches
(mm)SuperCab
Chassis Cab
- inches
(mm)Regular Cab
Style Side -
inches (mm)SuperCab
Style Side -
inches (mm)
(1) Overall
height75.7 (1924)
a
75.2 (1912)b
79.8 (2028)c
80.0 (2031)d
75.9–79.9
(1928-2029)a
76.0 (1931)b
79.5–79.9
(2019-2029)c
79.5 (2019)d
76.3 (1938)a
77.8 (1976)b
80.3 (2041)c
79.4 (2018)d
76.8 (1952)a,e
76.9 (1954)a,f
76.3 (1939)b
80.7 (2051)c,e
80.3 (2039)c,f
79.5 (2019)d
(2a) Track -
Front68.7 (1746) 68.7 (1746) 68.7 (1746) 68.7 (1746)
(2b) Track -
Rear68.1 (1729)
a,c
/
71.0 (1803)b,d
68.1 (1729)a,c
/
71.0 (1803)b,d
68.1 (1729)a,c
/
74.0 (1880)b,d
68.1 (1729)a,c
/
74.0 (1880)b,d
(3) Overall
width79.9 (2031)a,c
/
90.7 (2304)b
91.7 (2329)d
79.9 (2031) 79.9 (2031)a,c
95.5 (2426)b,d79.9 (2031)a,c
95.5 (2426)b,d
(4)
Wheelbase140.8 (3576)
164.8 (4186)161.8 (4110) 137.0 (3480) 141.8
(3602)e/
158.0 (4014)f
(5) Overall
length226.1
(5744)a,b,c,d/
250.2
(6354)
b,d
247.2 (6278) 227.0 (5767) 231.9
(5889)e/
248.0 (6300)f
a
4x2 Single rear wheel (SRW)b4x2 Dual rear wheel (DRW)c4x4 Single rear wheel (SRW)d4x4 Dual rear wheel (DRW)eShort boxfLong box
REVIEW COPY
2005 F250/350/450/550(f23), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
289

F–350 Crew Cab
DimensionBody style
Crew Cab
Chassis Cab -
inches (mm)Crew Cab,
Short box -
inches (mm)Crew Cab,
Long box -
inches (mm)
(1) Overall
height75.9 (1929)
a/
76.4 (1941)b/
79.8 (2026)c/
80.2 (2038)d
77.0 (1955)a/
78.1 (1983)b/
77.1 (1958)c/
80.0 (2033)d
77.3 (1964)a/
77.8 (1976)b/
77.0 (1957)c/
80.0 (2031)d
(2a) Track -
Front68.7 (1746) 68.3 (1736) 68.3 (1736)
(2b) Track -
Rear68.1 (1729)
a,c/
74.0 (1803)b,d68.1 (1729)a,c/
74.0 (1880)b,d68.1 (1729)a,c/
74.0 (1880)b,d
(3) Overall
width79.9 (2031)a,c/
93.7 (2380)b/
94.7 (2405)d
79.9 (2031)a,c
95.5 (2426)b,d79.9 (2031)a,c
95.5 (2426)b,d
(4) Wheelbase 176.2 (4475) 156.2 (3967 172.4 (4379)
(5) Overall
length261.6 (6644) 246.2 (6254) 262.4 (6666)
a4x2 Single Rear Wheel (SRW)b4x2 Dual Rear Wheel (DRW)c4x4 Single Rear Wheel (SRW)d4x4 Dual Rear Wheel (DRW)
REVIEW COPY
2005 F250/350/450/550(f23), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
290

F–450
Dimension Body style
Regular
Cab
Chassis 4x2
– inches
(mm)Regular
Cab
Chassis 4x4
– inches
(mm)SuperCab
Chassis
4x2/4x4 –
inches
(mm)Crew Cab
Chassis
4x2/4x4 –
inches
(mm)
(1) Overall
height80.6 (2048)
a
80.5
(2044)b,c
80.2 (2038)d
80.7 (2051)a
80.5 (2044)b
80.0
(2033)c,d
80.5 (2045) 80.8 (2053) -
4x2
80.9 (2056) -
4x4
(2) Track -
Front / Rear68.7 (1746) /
74.0 (1880)68.7 (1746) /
74.0 (1880)68.7 (1746) /
74.3 (1889)68.7 (1746) /
74.0 (1880)
(3) Overall
width93.6 (2377) 93.6 (2377) 93.6 (2377) 93.6 (2377)
(4)
Wheelbase140.8 (3576)
164.8 (4186)
188.8 (4795)
200.8 (5100)140.8 (3576)
164.8 (4186)
188.8 (4795)
200.8 (5100)161.8 (4110) 176.2 (4475)
200.2 (5085)
(5) Overall
length226.1
(5744)
a
250.2
(6353)b
274.2
(6964)c
286.1
(7268)d
226.1
(5744)a
250.2
(6353)b
274.2
(6964)c
286.1
(7268)d
247.2 (6278) 261.6
(6644)e
285.6
(7254)f
a
140.8” (3576 mm) wheel baseb164.8” (4186 mm) wheel basec188.8” (4795 mm) wheel based200.8” (5100 mm) wheel basee176.2” (4475 mm) wheel basef200.2” (5085 mm) wheel base
REVIEW COPY
2005 F250/350/450/550(f23), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
291

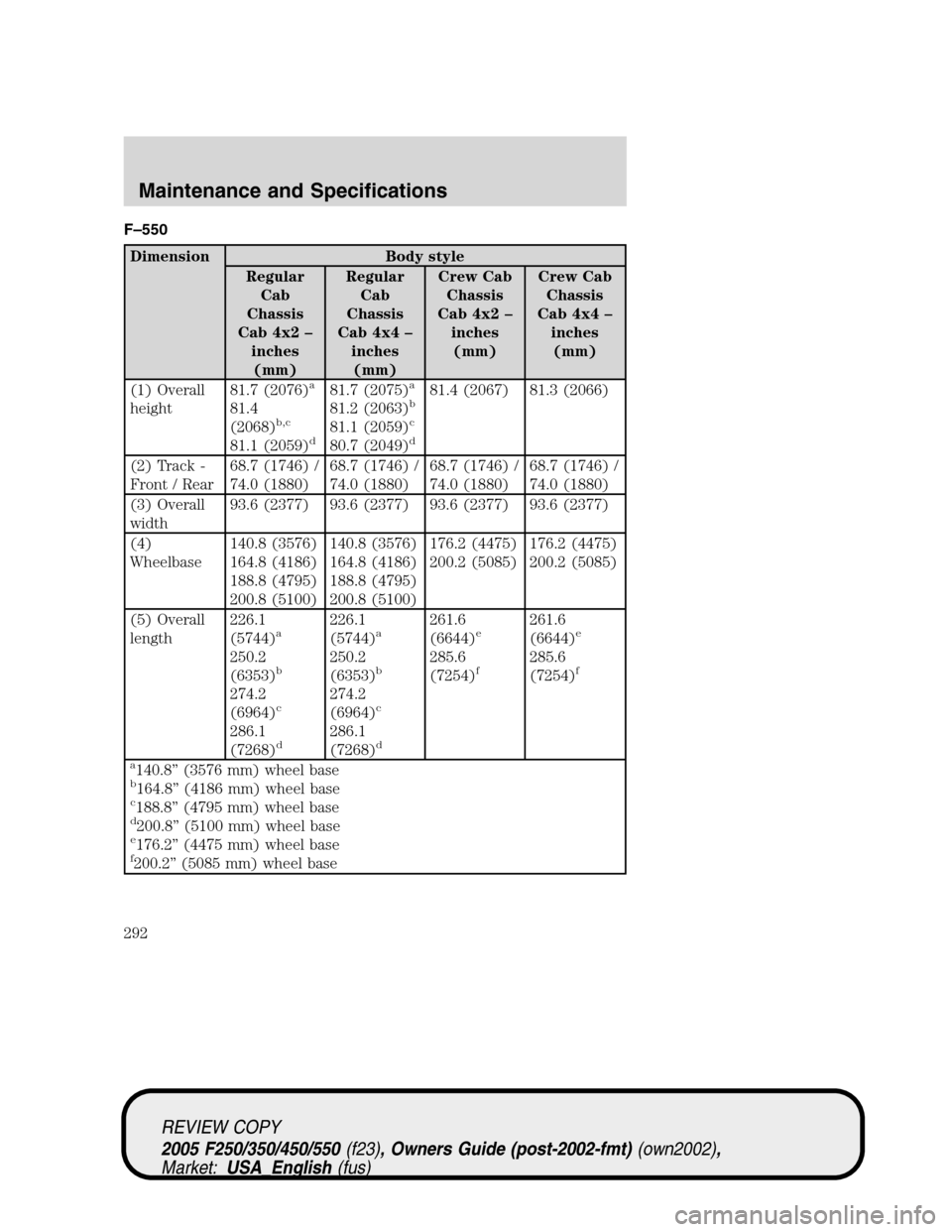

F–550
Dimension Body style
Regular
Cab
Chassis
Cab 4x2 –
inches
(mm)Regular
Cab
Chassis
Cab 4x4 –
inches
(mm)Crew Cab
Chassis
Cab 4x2 –
inches
(mm)Crew Cab
Chassis
Cab 4x4 –
inches
(mm)
(1) Overall
height81.7 (2076)
a
81.4
(2068)b,c
81.1 (2059)d
81.7 (2075)a
81.2 (2063)b
81.1 (2059)c
80.7 (2049)d
81.4 (2067) 81.3 (2066)
(2) Track -
Front / Rear68.7 (1746) /
74.0 (1880)68.7 (1746) /
74.0 (1880)68.7 (1746) /
74.0 (1880)68.7 (1746) /
74.0 (1880)
(3) Overall
width93.6 (2377) 93.6 (2377) 93.6 (2377) 93.6 (2377)
(4)
Wheelbase140.8 (3576)
164.8 (4186)
188.8 (4795)
200.8 (5100)140.8 (3576)
164.8 (4186)
188.8 (4795)
200.8 (5100)176.2 (4475)
200.2 (5085)176.2 (4475)
200.2 (5085)
(5) Overall
length226.1
(5744)
a
250.2
(6353)b
274.2
(6964)c
286.1
(7268)d
226.1
(5744)a
250.2
(6353)b
274.2
(6964)c
286.1
(7268)d
261.6
(6644)e
285.6
(7254)f
261.6
(6644)e
285.6
(7254)f
a
140.8” (3576 mm) wheel baseb164.8” (4186 mm) wheel basec188.8” (4795 mm) wheel based200.8” (5100 mm) wheel basee176.2” (4475 mm) wheel basef200.2” (5085 mm) wheel base
REVIEW COPY
2005 F250/350/450/550(f23), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
292

2
3
1
5
4
REVIEW COPY
2005 F250/350/450/550(f23), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
293

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the structure by the trailing edge of
the driver’s door or the edge of the
driver’s door.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
XXXXXXXXXXXXXXXXX
REVIEW COPY
2005 F250/350/450/550(f23), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
294

1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
REVIEW COPY
2005 F250/350/450/550(f23), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
295

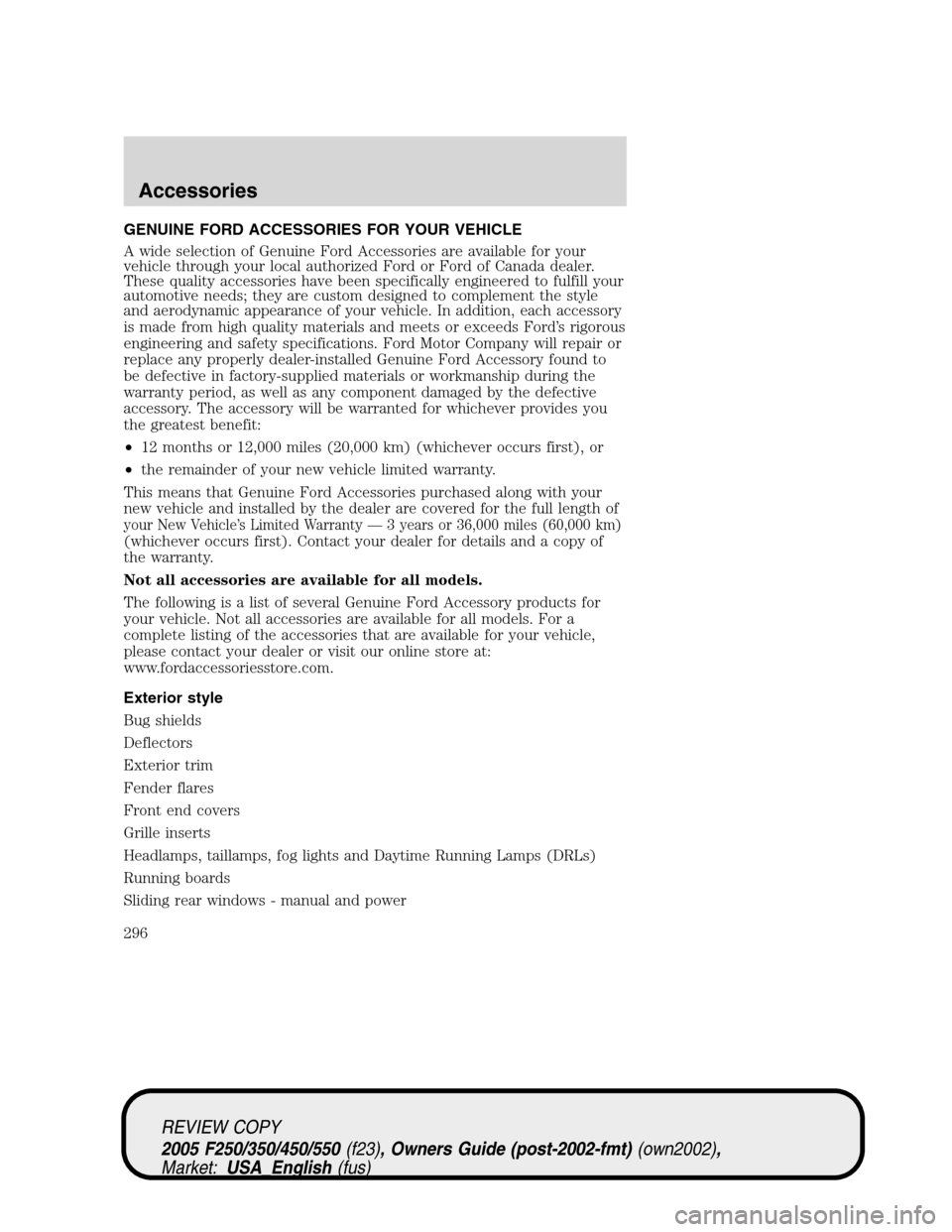

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessory found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 3 years or 36,000 miles (60,000 km)
(whichever occurs first). Contact your dealer for details and a copy of
the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessory products for
your vehicle. Not all accessories are available for all models. For a
complete listing of the accessories that are available for your vehicle,
please contact your dealer or visit our online store at:
www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Exterior trim
Fender flares
Front end covers
Grille inserts
Headlamps, taillamps, fog lights and Daytime Running Lamps (DRLs)
Running boards
Sliding rear windows - manual and power
