2005 FORD SUPER DUTY Owners Manual

Page 73 of 304

FORD SUPER DUTY 2005 1.G Owners Manual •Differences in the automatic shut-off points on the fuel pumps at
service stations
•Variations in top-off procedure from one fill-up to another
•Rounding of the displayed values to the nearest

Page 74 of 304

FORD SUPER DUTY 2005 1.G Owners Manual The sequence of the system check report and how it appears in the
message center is as follows:
1. ENGINE TEMP
2. TRANS TEMP
3. OIL PRESSURE
4. BRAKE FLUID LEVEL
5. DOOR AJAR
6. FUEL CAP
7. AIR FILTER

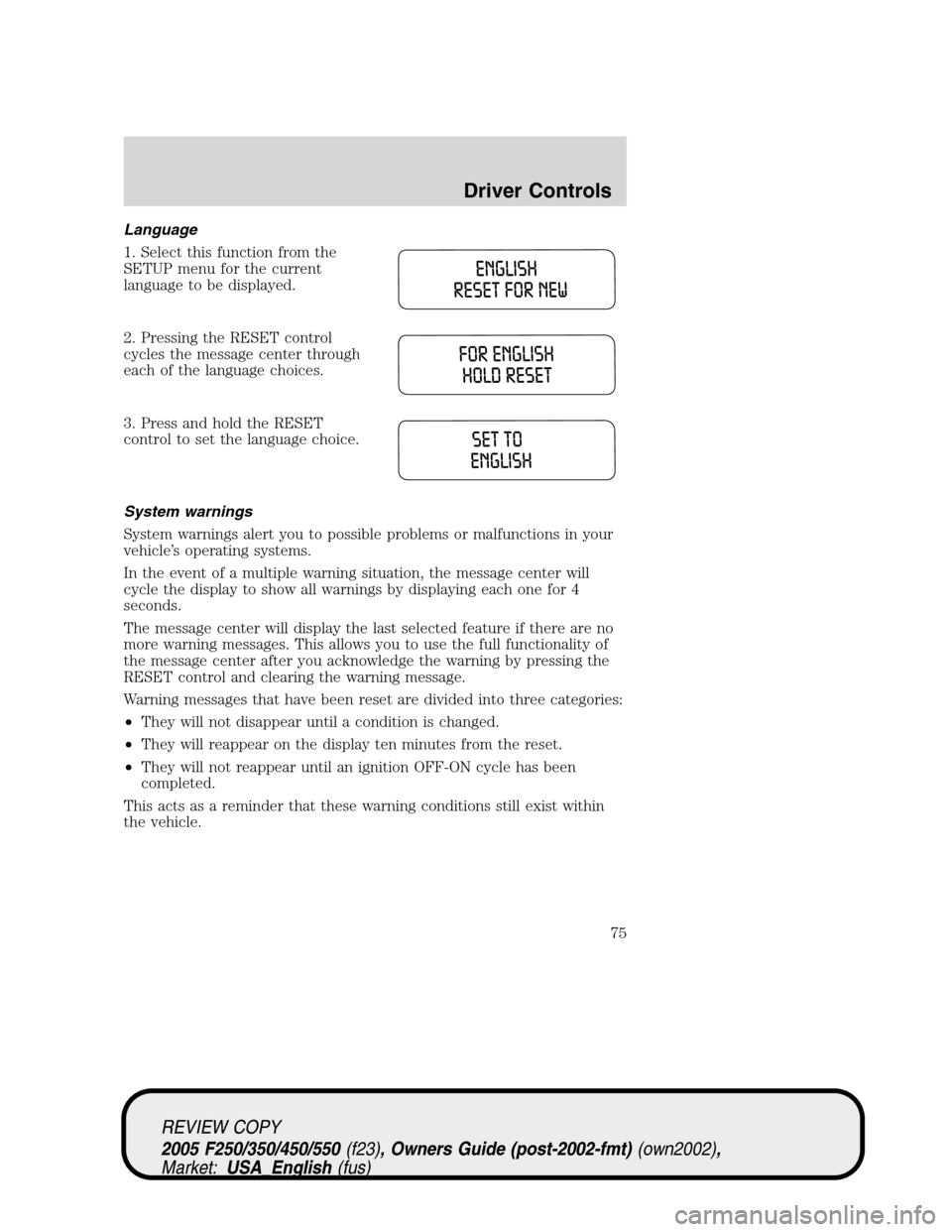

Page 75 of 304

FORD SUPER DUTY 2005 1.G Owners Manual Language
1. Select this function from the
SETUP menu for the current
language to be displayed.
2. Pressing the RESET control
cycles the message center through
each of the language choices.
3. Press an

Page 76 of 304

FORD SUPER DUTY 2005 1.G Owners Manual Warning display Status
Reduced engine power Warning cannot be reset
Stop engine safely
Low fuel level Warning returns after 10 minutes
Low brake fluid level
Low oil pressure
Check engine temperature
T

Page 77 of 304

FORD SUPER DUTY 2005 1.G Owners Manual LOW OIL PRESSURE.Displayed when the engine oil pressure is low. If
this warning message is displayed, check the level of the engine oil.
Refer toEngine oilin theMaintenance and Specificationschapter f

Page 78 of 304

FORD SUPER DUTY 2005 1.G Owners Manual DATA ERR.These messages indicate improper operation of the vehicle
network communication between electronic modules.
•Odometer
•Fuel flow
•Fuel level
•Trans temp
•Fuel cap
•Engine sensor

Page 79 of 304

FORD SUPER DUTY 2005 1.G Owners Manual Tailgate removal
Your tailgate is removable to allow
more room for loading.
1. Lower the tailgate.
2. Use a screwdriver to pry the
spring clip (on each connector) past
the head of the support screw.
D

Page 80 of 304

FORD SUPER DUTY 2005 1.G Owners Manual KEYS
The key operates all locks on your vehicle. You should always carry a
second key with you in a safe place in case you require it in an
emergency.
Your keys are programmed to your vehicle; using a
