2005 FIAT STILO Radio Manual

8 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
8
ButtonRADIO mode
Brief pressing Pressing over 2 sec. Buttons and front panel
Letters or symbol Function
Ä
II MUTE
4
5 RPT
6 RND
>>
SCAN
AF PTY
TA
VOL PUSH ON/OFF
AUDIO DSP
MENU RDSEject/Reverse
Mute
Preset station 4
Preset station 5/track repetition
Preset station 6
RaNDom functions of tracks on CD
Forward/Next
Automatic scanning
Alternative frequency/Programme Type
Traffic information
Radio ON/OFF
Volume adjustment
Sound setting
Menu functionEject Tape (cassette)
Audio Mute
FM/AM:call preset station 4
FM/AM:call preset station 5
FM/AM:call preset station 6
FM: Seek + / MAN +
AM: Seek + / MAN +
PTY: Select programme type
Automatic scanning of stations on the
band in use
AF ON/OFF
TA ON/OFF
ON/OFF: press
volume adjustment:
turn leftwards: to decrease
turn rightwards: to increase
Bass (B)
Treble (T)
Fader (F)
Balance (B)
Manual tuning ON/OFF
NEWS ON/OFF
Function confirmation BEEP ON/OFF
(BEEP)
SENS DX/LO
SVC (SPEED VOLUME)
Loudness ON/OFF
EON TA ONFM/AM: store preset station 4
FM/AM: store preset station 5
FM/AM: store preset station 6
Automatic scanning of stations tunable
on the band in use
Select programme type
PTY: displays selected programme type
Adjusting TA volume
Access to Equalizer function
RDS Clock display
Audio Clip Detect ON/OFF
Setting Radio mode ON
Telephone volume adjustment
ON/OFF
Max. radio volume at switching on 1
2
3
4
5
6
7
8
9
10
11
12
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 8

RADIO WITH CASSETTE PLAYER
9 Nero- Testo 603.46.306 Radio Stilo gb
9
CASSETTE mode
Brief pressing Pressing over 2 sec.CD CHANGERmode
Brief pressing Pressing over 2 sec.
Fast forward (continuous)
Adjusting TA volume
Access to Equalizer function
RDS Clock display
Audio Clip Detect ON/OFF
Setting radio mode ON
Telephone volume adjustment ON/OFF
Max. radio volume at switching on Eject Tape (cassette)/
Reverse/normal
Playing Pause / Audio Mute
Fast forward (to tape end)
Automatic scanning of cassette tracks
TA ON/OFF
ON/OFF: press
volume adjustment:
turn leftwards: to decrease
turn rightwards: to increase
Bass (B)
Treble (T)
Fader (F)
Balance (B)
Dolby B
NEWS ON/OFF
Function confirmation BEEP ON/OFF (BEEP)
SVC (SPEED VOLUME)
Loudness ON/OFF
EON TA ONAMS function enabled, forward
to next track
Adjusting TA volume
Access to Equalizer function
RDS Clock display
Audio Clip Detect ON/OFF
Setting radio mode ON
Telephone volume adjustment ON/OFF
Max. radio volume at switching onEject Tape (cassette)
Playing Pause / Audio Mute
CD track repetition ON/OFF
Random CD track repetition ON/OFF
Select next track
Automatic scanning of CD tracks
TA ON/OFF
ON/OFF: press
volume adjustment:
turn leftwards: to decrease
turn rightwards: to increase
Bass (B)
Treble (T)
Fader (F)
Balance (B)
NEWS ON/OFF
Function confirmation BEEP ON/OFF (BEEP)
SVC (SPEED VOLUME)
Loudness ON/OFF
EON TA ON
CD compression
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 9

10 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
10
ButtonRADIO mode
Brief pressing Pressing over 2 sec. Buttons and front panel
Letters or symbol Function
BAND AS
SRC
<<
1 CD+
2 CD–
313
14
15
16
17
18Choosing frequency band
Select source
Backward/Previous
Preset station 1
Preset station 2
Preset station 3FM1,FM2,FM3,FMAST
LW,MW,AMAST
TAPE (Cassette), RADIO, CD Changer
(if connected)
FM: Seek – / MAN –
AM: Seek – / MAN –
PTY: Select programme type
FM/AM:call preset station 1
FM/AM:call preset station 2
FM/AM:call preset station 3Store automatically in preset
station group.
Exit on FMAST.P1 or AMAST.P1
FM/AM:call preset station 1
FM/AM: store preset station 2
FM/AM: store preset station 3
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 10

RADIO WITH CASSETTE PLAYER
11 Nero- Testo 603.46.306 Radio Stilo gb
11
CASSETTE mode
Brief pressing Pressing over 2 sec.CD CHANGERmode
Brief pressing Pressing over 2 sec.
Exit cassette mode
Insert tuner in last band
TAPE (Cassette), RADIO, CD Changer
(if connected)
Fast rewind (continuous)Exit CD mode
Insert tuner in last band
TAPE (Cassette), RADIO, CD Changer
(if connected)
Select previous track
CD +
CD – AMS function enabled, return to
previous trackFast rewind (continuous)
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 11

12 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
12
– DOLBY B (noise reduction cir-
cuit) (*)
– Powered cassette loading and
eject.
(*) The DOLBY reduction circuit is made
under the licence of Dolby Laboratories
Licensing Corporation. DOLBY and the
(M) symbol with double D are patented
brands of Dolby Laboratories Licensing
Corporation.
COMPACT DISC SECTION
(when the CD-Changer is fit-
ted)
– Disc select (disc no.)
– Track select (forward/backward)
– Fast forward/backward
– Track Repeat function (repetition
of last track)
– Track Scan function (scanning the
tracks on the Compact Disc, lasting
approx. 10 sec. for each track).
GENERAL– Automatic storage (AutoSTore
function) of 6 stations in FM band
and 6 stations in the AM band
– SENS DX/LO function (sensitivity
adjusting in searching radio stations)
– Scan function (scanning stored
stations or scanning on frequency
band in use), lasting approx. 10 sec.
for each station.
– Automatic Stereo/Mono switch-
ing.
CASSETTE SECTION
– Autoreverse
– Tape fast forward/rewind
– CrO
2tape equalizing
– AMS function (Automatic Music
Search)
– Scan function (scan tape tracks),

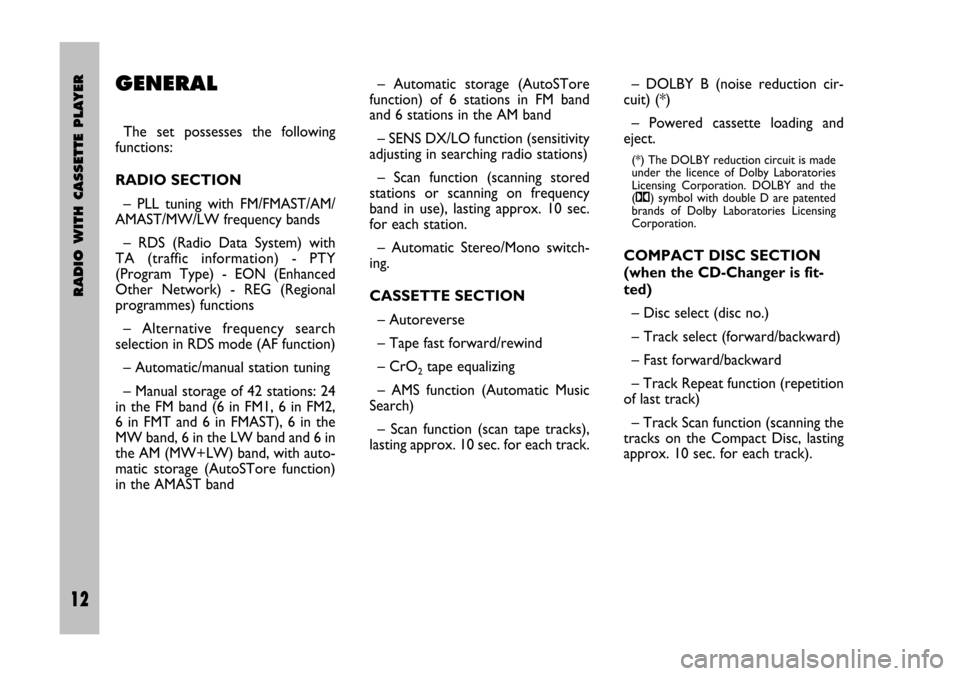

lasting approx. 10 sec. for each track. The set possesses the following
functions:
RADIO SECTION
– PLL tuning with FM/FMAST/AM/
AMAST/MW/LW frequency bands
– RDS (Radio Data System) with
TA (traffic information) - PTY
(Program Type) - EON (Enhanced
Other Network) - REG (Regional
programmes) functions
– Alternative frequency search
selection in RDS mode (AF function)
– Automatic/manual station tuning
– Manual storage of 42 stations: 24
in the FM band (6 in FM1, 6 in FM2,
6 in FMT and 6 in FMAST), 6 in the
MW band, 6 in the LW band and 6 in
the AM (MW+LW) band, with auto-
matic storage (AutoSTore function)
in the AMAST band
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 12

RADIO WITH CASSETTE PLAYER
13 Nero- Testo 603.46.306 Radio Stilo gb
13
ANTITHEFT PROTECTION
The radio is fitted with an antitheft
protection system based on a four-
digit secret code that makes the
radio unusable.
CODE Card
This the document that certifies
possession of the radio. The Code
Card contains the radio model, seri-
al number and secret code.
Keep the Code Card in a safe place,
not in the car.
Secret coding
When the secret coding is activat-
ed and radio is removed from the
car battery (or 30 positive terminal),
the radio is protected electronically.
The radio can only be switched on
entering your personal secret code. For installation and
connection of the CD-
Changer apply only to
Fiat Dealership.– RaNDom function (random play-
ing of tracks).
– Powered CD loading and eject.SOUND SECTION
– Mute/Pause function
– Loudness function
– 5-band graphic equalizer
– Separate bass/treble adjustment
– Right/left and front/rear channel
balancing.
– Audio Clip Detect function
– Soft Mute function
On multimedia CDs in ad-
dition to sound tracks also
data tracks are recorded. Playing
one of these CDs may cause
rustling and such a volume as to
compromise road safety, as well as
causing damage to the final stages
and speakers.
WARNING
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 13

14 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
14
Dolby B
Tape noise limiting device produced
under licence of “Dolby Laboratories
Licensing Corporation”.
EON (Enhanced Other
Network)
Function that allows the radio to
tune automatically on a different sta-
tion that the one being listened to
which broadcasts traffic information.
Fader
Function with which it is possible to
suitably adjust the sound from the
front or rear speakers.
Loudness
Function that emphasises the bass
and treble tones when listening at
low level. It is cut off when the vol-
ume is set to maximum (level 34). Autostore
Function with which it is possible to
store automatically radio stations.
Balance (Channel balancing)
Function with which it is possible to
suitably adjust the sound from the
right or left speakers.
Bass (Bass tones)
This function adjusts the bass
tones.
CD-Changer
Multiple Compact Disc player.
Distant/Local (Sens Dx/Loc)
These are two levels of reception
sensitivity.
1) Distant(maximum sensitivity),
which makes it possible to tune all
the stations that can be received.
2) Local(minimum sensitivity),
which makes it possible to tune only
those stations with sufficiently strong
signals, such as for example local sta-
tions.GLOSSARY
AF (Alternative Frequency)
Function that allows the radio to
stay tuned on the FM station select-
ed also passing through areas served
by transmitters with different fre-
quencies.
The RDS system actually keeps the
intensity and quality of the signal
received under control, automatical-
ly switching tuning on the frequency
of the transmitter that is sending the
strongest signal.
AMS (Automatic Music Search)
This function enables to play auto-
matically the next/previous track
provided that between the two
tracks there is a pause/muting of
about 4 seconds.
Autoreverse
Function that makes it possible to
listen to both sides of the tape with-
out having to turn the cassette over.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 14

RADIO WITH CASSETTE PLAYER
15 Nero- Testo 603.46.306 Radio Stilo gb
15
Mute
This function enables to mute the
active source. This function is acti-
vated automatically, if a cell phone is
connected to the radio, when a
phone call is being received.
Presettings
Number of radio stations that can
be stored manually or automatically.
PTY (Program Type)
This function allows the presetting
of a category of programmes such as
for instance, news bulletins, music,
sport, etc. Scan
Function with which it is possible to
listen, for approx. 10 seconds, to all
the radio stations stored, or the
beginning of all the tracks contained
on a cassette or Compact Disc.
Soft Mute
Function that gradually highers and
lowers the volume when Mute is
turned on or off.
SVC
Function that automatically adjusts
the level of the volume to the speed
of the car to maintain the radio with
the noise level in the passenger com-
partment.
TA (Traffic information)
Function with which it is possible to
receive the traffic information
broadcast by the stations enabled,
also when tuned to another station
or listening to a cassette/CD.
Treble (Treble tones)
This adjusts the treble tones. RDS (Radio Data System)
This is an additional radio informa-
tion system which uses the 57 kHz
subcarrier of normal FM broadcasts.
With this function it is possible to
receive different types of informa-
tion such as station names, alterna-
tive frequencies, automatic tuning to
traffic bulletins or special pro-
grammes selected through the PTY
function.
REG (Regional transmission
reception function)
Function with which it is possible to
tune only to local (regional) stations.
Repeat (Repetition of the
track)
Function with which it is possible to
listen continuously to the last track
played on the Compact Disc.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 15
