2005 DODGE GRAND CARAVAN turn signal

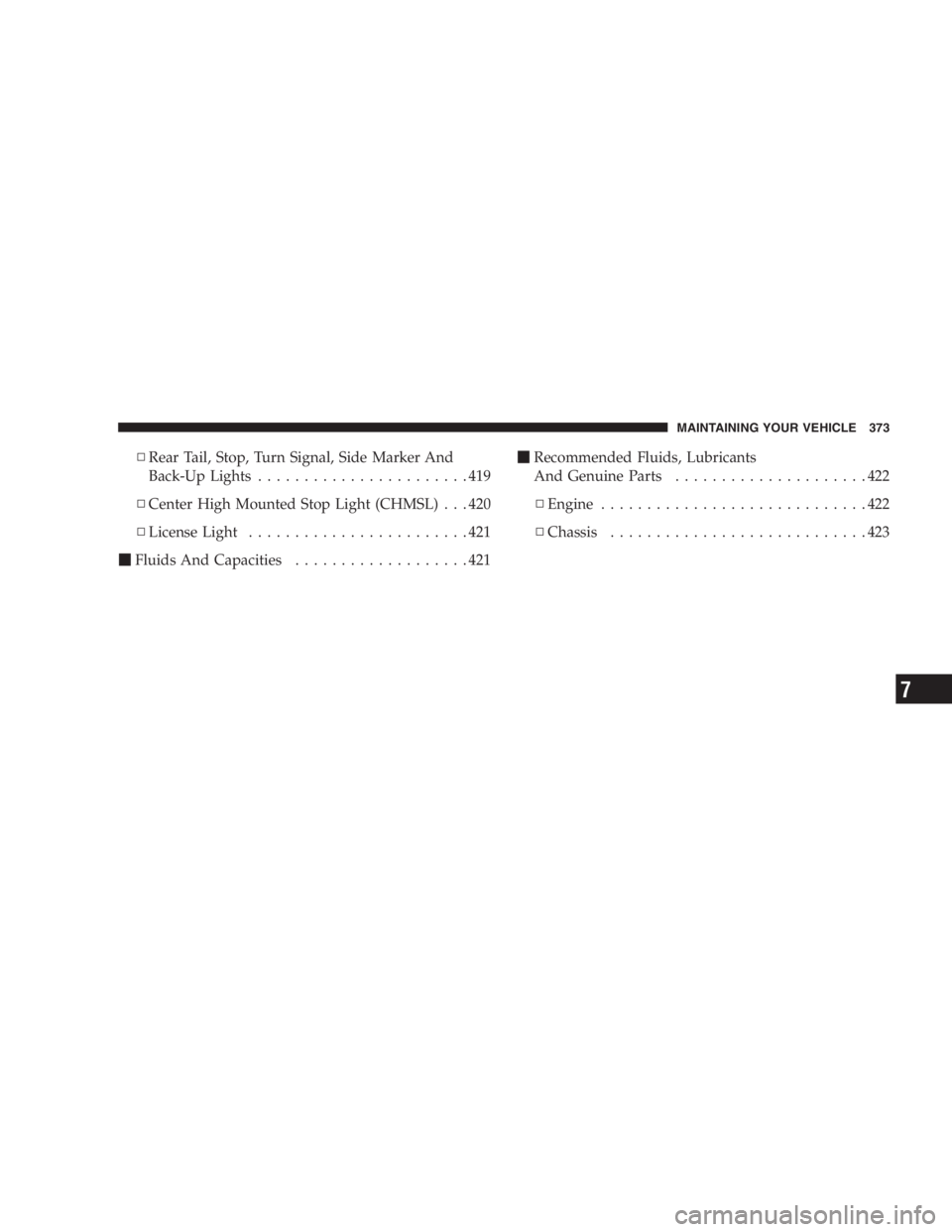

▫ Rear Tail, Stop, Turn Signal, Side Marker And
Back-Up Lights .......................419
▫ Center High Mounted Stop Light (CHMSL) . . . 420
▫ License Light ........................421

Fluids And Capacities ...................421
Recommended Fluids, Lubricants
And Genuine Parts .....................422
▫ Engine .............................422
▫ Chassis ............................423 MAINTAINING YOUR VEHICLE 373
7

NOTE: For lighted switches, see your dealer for replace-
ment instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
LIGHT BULBS — Exterior Bulb Number
Back-up, Tail, Stop, Turn Signal, & Sidemarker . . . 3057
Center High-Mounted Stop Light ............. 921
Fog Light — If Equipped .................. 9145
Front Side marker, Park/Turn Signal ........ 3457AK
Headlight ............................. 9007
License ................................ 168 BULB REPLACEMENT
Headlights
1. Remove the three screws securing the headlight mod-
ule.416 MAINTAINING YOUR VEHICLE

Front Park/Turn Signal and Sidemarker Lights
1. Remove the three screws securing the headlight mod-
ule.
2. Twist the turn signal socket to remove from the
headlight module and pull bulb from socket. 3. Replace bulb, reinstall socket and then reinstall the
headlight module.418 MAINTAINING YOUR VEHICLE

Front Fog Light
1. Reach behind the front fascia from under the vehicle.
2. Twist the front fog light bulb to remove from the fog
light housing.
3. Disconnect the electrical connector and replace the
bulb.
CAUTION!Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol. Rear Tail, Stop, Turn Signal, Side Marker and
Back-up Lights
1. Raise the liftgate.
2. Remove the two tail light assembly push-in type
fasteners, by prying under the fastener head with a large
flat screwdriver. MAINTAINING YOUR VEHICLE 419
7

Temperature Gauge ..................... 200
Exhaust Gas Caution .............. 38,83,333,393
Exhaust System ......................... 393
Extender, Seat Belt ........................ 52
Exterior Folding Mirrors ................... 93
Filters
Air Cleaner .......................... 384
Air Conditioning .................... 284,389
Automatic Transaxle .................... 405
Engine Oil ........................ 383,422
Engine Oil Disposal .................... 383
Flashers
Hazard Warning ....................... 344
Turn Signal ..................... 197,418,419
Flat Tire Stowage ........................ 355
Fluid Capacities ......................... 421
Fluid Leaks ............................. 85 Fluid Level Checks
Automatic Transmission ................. 404
Brake ............................... 401
Power Steering ........................ 390
Fog Light Service ........................ 419
Fog Lights .......................... 138,419
Freeing A Stuck Vehicle ................... 368
Fuel ................................. 330
Adding ............................. 334
Additives ............................ 332
Clean Air ............................ 331
Filler Cap ............................ 334
Gasoline ............................ 330
Gauge .............................. 196
Hoses .............................. 402
Light ............................... 197
Octane Rating ...................... 330,422
Requirements ...................... 330,421
Tank Capacity ........................ 421 INDEX 463
10

Service Engine Soon (Malfunction Indicator) . . . 202
Side Marker .......................... 419
Theft Alarm .......................... 200
Turn Signal ..................... 138,418,419
Voltage ............................. 199
Warning (Instrument Cluster Description) ..... 196
Washer Fluid ......................... 201
Load Leveling System .................... 185
Loading Vehicle ................... 181,336,337
Capacities ........................... 337
Tires ............................... 312
Locks
Door ................................ 17
Lower Anchors and Tether for CHildren (LATCH) . 74
Lubrication, Body ....................... 391
Luggage Rack .......................... 182
Lumbar Support ........................ 112
Maintenance, Airbag ...................... 67 Maintenance Free Battery .................. 387
Maintenance Procedures ................... 379
Maintenance Schedule .................... 426
Schedule  A  ......................... 440
Schedule  B  .......................... 429
Maintenance, Sunroof ..................... 167
Malfunction Indicator Light .............. 202,377
Manual, Service ......................... 454
Map/Reading Lights ..................... 150
Mini-Trip Computer ...................... 154
Mirrors ................................ 92
Automatic Dimming ..................... 92
Electric Remote ........................ 94
Exterior Folding ........................ 93
Heated .............................. 95
Outside .............................. 94
Rearview ............................. 92
Vanity ............................... 95
Modifications/Alterations, Vehicle ............. 7 INDEX 467
10

Pretensioners .......................... 50
Rear Seat ............................. 42
Untwisting Procedure .................... 48
Seats ................................. 107
Adjustment .......................... 107
Bench ............................ 126,128
Easy Entry ........................... 120
Easy-Out Roller ....................... 126
Heated .............................. 110
Integrated, Child ....................... 68
Lumbar Support ....................... 112
Power .............................. 108
Reclining ......................... 1 10,112
Removal ....................... 121,124,126
Tilting .............................. 120
Security Alarm (Theft Alarm) ................ 27
Selection of Coolant ................... 395,422
Sentry Key ............................. 13
Sentry Key Programming ................... 15 Service Assistance .................... 448,449
Service Contract ......................... 450
Service Engine Soon Light (Malfunction Indicator) . 202
Service Manuals ........................ 454
Setting the Clock ........................ 204
Shoulder Belts ........................... 42
Signals, Turn ................... 138,197,418,419
Sliding Door ............................ 29
Slippery Surfaces, Driving On ............... 367
Snow Chains (Tire Chains) ................. 327
Snow Tires ............................ 329
Spare Tire ..................... 320,321,349,360
Spark Plugs ............................ 384
Speed Control .......................... 147
Speedometer ........................... 197
Starting ............................... 292
Engine Fails to Start ................. 293,295
Starting and Operating .................... 292 INDEX 471
10

Transmitter, Garage Door Opener ............ 159
Transmitter Programming ................... 23
Transmitter, Remote Keyless Entry ............ 20
Transporting Pets ........................ 77
Tread Wear Indicators .................... 322
Trip Odometer .......................... 203
Trip Odometer Reset Button ................ 204
Turn Signals ................... 138,197,418,419
Uniform Tire Quality Grades ................ 455
Universal Joints ......................... 391
Universal Transmitter ..................... 159
Unleaded Gasoline ....................... 330
Untwisting Procedure, Seat Belt .............. 48
Vanity Mirrors ........................... 95
Variance, Compass ....................... 152
Vehicle Certification Label ................. 336
Vehicle Identification Number ................ 6 Vehicle Information Center ................. 155
Vehicle Loading ................... 313,336,337
Vehicle Modifications/Alterations .............. 7
Vehicle Storage ....................... 283,415
Vehicle Theft Alarm ....................... 27
Video Entertainment System ................ 243
Warning Flasher, Hazard .................. 344
Warning Lights (Instrument Cluster
Description) ........................... 196
Warnings and Cautions ..................... 6
Warranty Information ..................... 451
Washer, Adding Fluid .................. 286,392
Washer, Rear ........................ 285,286
Washing Vehicle ......................... 407
Wheel Alignment and Balance ............... 324
Wheel and Wheel Trim .................... 408
Wheel Bearings ......................... 406
Wind Buffeting ....................... 40,167474 INDEX
