2005 DODGE GRAND CARAVAN climate control

• If the power liftgate encounters multiple obstructions
within the same cycle, the system will automatically
stop and must be opened or closed manually.
WARNING!• Driving with the liftgate open can allow poison-
ous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.
• If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode. Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the liftgate in cold weather.
WINDOWS
Manual Rear Vent Windows
A lever at the rear of each window releases the window
so that it can be pushed out for ventilation.
Power Vent Windows — If Equipped
Switches on the driver ’ s door trim panel let the driver
operate the two vent windows from the front seat.38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

While cruising, brief full-throttle acceleration, within the
limits of local traffic laws, contributes to a good break-in.
Wide open throttle acceleration in low gear can be
detrimental and should be avoided.
The engine oil installed in the engine at the factory is a
high quality energy conserving type lubricant. Oil
changes should be consistent with anticipated climate
conditions under which vehicle operations will occur.
The recommended viscosity and quality grades are
shown in Section 7 of this manual. NON-DETERGENT
OR STRAIGHT MINERAL OILS MUST NEVER BE
USED.
A new engine may consume some oil during its first few
thousand miles (kilometers) of operation. This should be
considered as a normal part of the break-in and not
interpreted as an indication of difficulty. SAFETY TIPS
Exhaust Gas
WARNING!Exhaust gases can injure or kill. They contain carbon
monoxide (CO) which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO)
follow the safety tips below.
Do not run the engine in a closed garage or in confined
areas any longer than needed to move your vehicle in or
out of the area.
If it is necessary to sit in a parked vehicle with the engine
running, adjust your heating or cooling controls to force
outside air into the vehicle. Set the blower at high speed. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 83
2

WARNING!If you are required to drive with the deck lid/liftgate
open, make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode.
Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after a collision if they have been damaged (bent retractor, torn
webbing, etc. If there is any question regarding belt or
retractor condition, replace the belt.
Airbag Light
The light should come on and remain on for 6
to 8 seconds as a bulb check when the ignition
switch is first turned ON. If the LED is not lit
during starting, have it checked. If the light
stays on or comes on while driving, have the system
checked by an authorized dealer.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield.84 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Customer Programmable Features — If Equipped
Press the “ MENU ” button until one of the display choices
following appears:
Language
When in this display you may select one of five lan-
guages for all display nomenclature, including the trip
computer functions. Press the “ STEP ” button while in
this display selects English, Francaise, Deutsch, Italiano,
or Espanol. As you continue the displayed information
will be shown in the selected language.
Rear Park Assist — If Equipped
When this feature is selected the system scans for objects
behind the vehicle using four sensors located in the rear
bumper. Objects can be detected from up to 71 inches
(180 cm). Pressing the “ STEP ” button while in this
display will disable/enable the Rear Park Assist System. US or Metric
Pressing the “ STEP ” button when in this display selects
US or Metric. The overhead console and climate control
displays will be in the selected units.
Service Interval
When this feature is selected a service interval between
2,000 miles (3 200 km) and 6,000 miles (9 600 km) in 500
mile (800 km) increments may be selected. Pressing the
“ STEP ” button when in this display will select distances
between 2,000 miles (3 200 km) and 6,000 miles (9 600
km) in 500 mile (800 km) increments.
Reset Service Distance (Displays Only if Service
Interval was Changed)
When this feature is selected the current accumulated
service distance can be reset to the newly selected service
interval. Pressing the “ STEP ” button when in this display
will select “ Ye s ” or “ No. ”156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

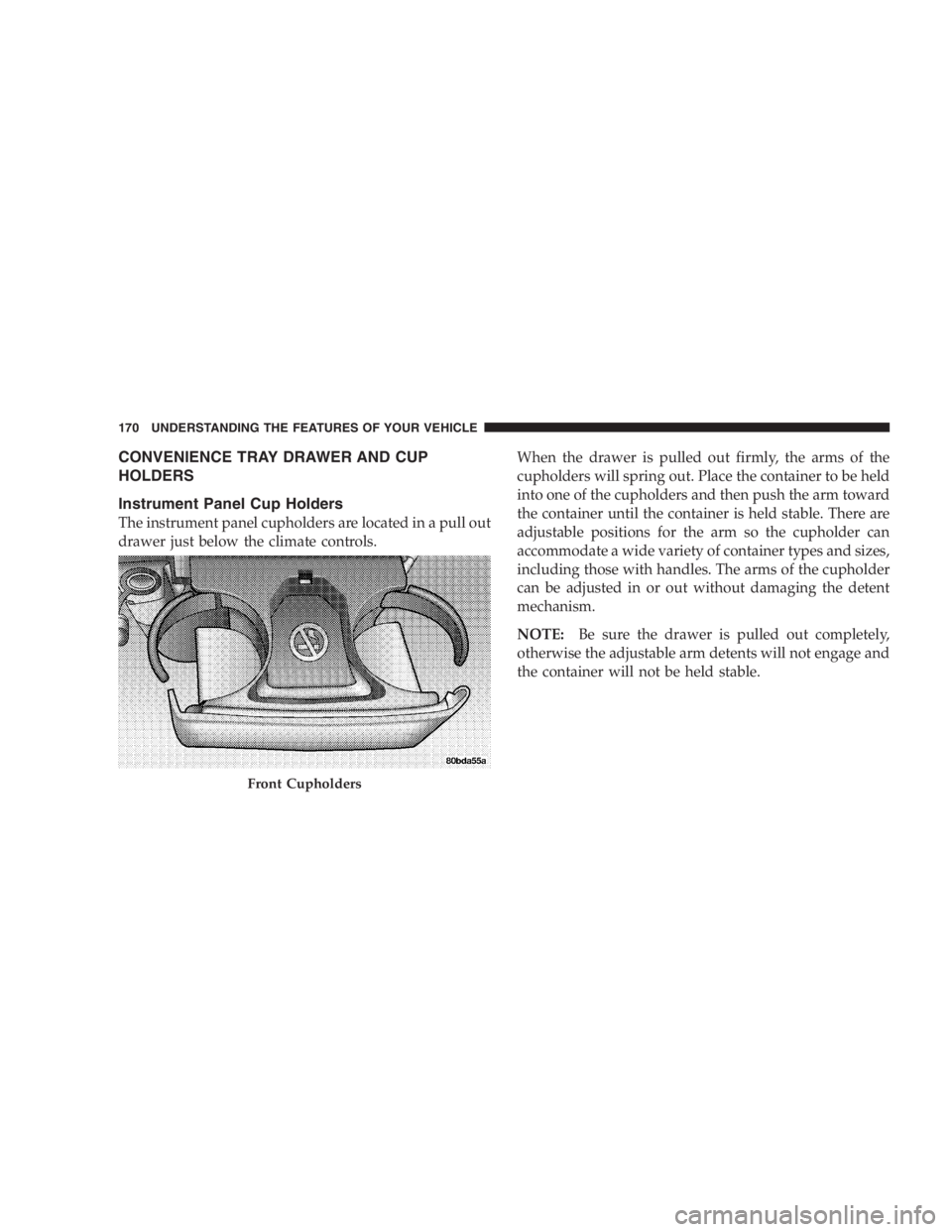

CONVENIENCE TRAY DRAWER AND CUP
HOLDERS
Instrument Panel Cup Holders
The instrument panel cupholders are located in a pull out
drawer just below the climate controls. When the drawer is pulled out firmly, the arms of the
cupholders will spring out. Place the container to be held
into one of the cupholders and then push the arm toward
the container until the container is held stable. There are
adjustable positions for the arm so the cupholder can
accommodate a wide variety of container types and sizes,
including those with handles. The arms of the cupholder
can be adjusted in or out without damaging the detent
mechanism.
NOTE: Be sure the drawer is pulled out completely,
otherwise the adjustable arm detents will not engage and
the container will not be held stable.
Front Cupholders170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Satellite Radio — If Equipped ..............254
▫ System Activation .....................254
▫ Electronic Serial Number/Sirius Identification
Number (ENS/SID) ....................255
▫ Selecting Satellite Mode In RBB, RAH And RBK
Radios .............................255
▫ Selecting Satellite Mode In RBP, RBU, RAZ, RB1
And RBQ Radios .....................256
▫ Selecting a Channel ....................256
▫ Storing And Selecting Pre-Set Channels ......257
▫ Using The PTY (Program Type) Button (If
Equipped) ..........................257
▫ PTY Button  Scan  .....................257
▫ PTY Button  Seek  .....................257 ▫ Satellite Antenna ......................257
▫ Reception Quality .....................258

Remote Sound System Controls —
If Equipped ...........................258
▫ Radio Operation ......................259
▫ Tape Player .........................259
▫ CD Player ..........................260

Cassette Tape And Player Maintenance .......260

CD/DVD Disc Maintenance ...............261

Radio Operation And Cellular Phones ........261

Climate Controls .......................262
▫ Manual Air Conditioning And
Heating System ......................262
▫ Front Mode Control ...................263UNDERSTANDING YOUR INSTRUMENT PANEL 191
4

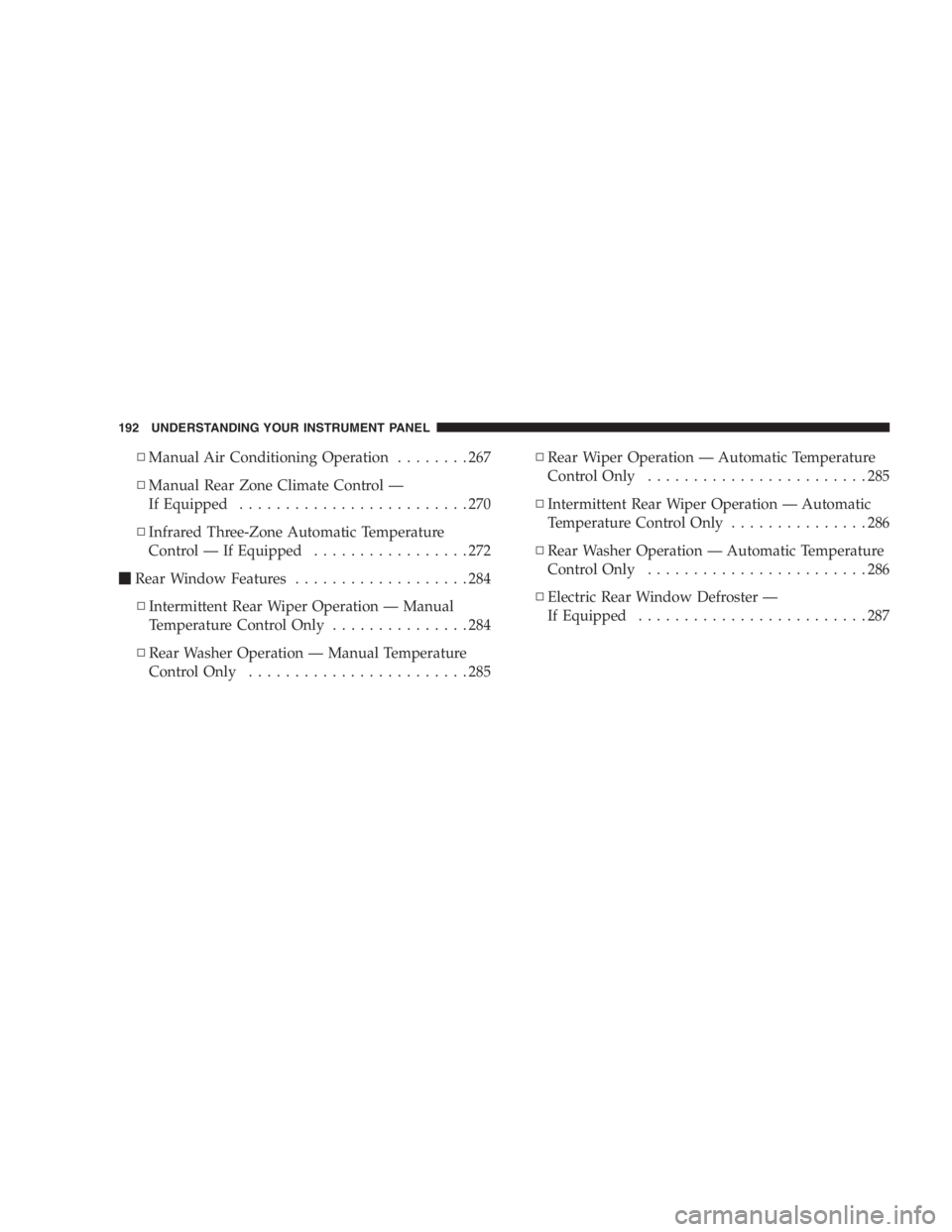

▫ Manual Air Conditioning Operation ........267
▫ Manual Rear Zone Climate Control —
If Equipped .........................270
▫ Infrared Three-Zone Automatic Temperature
Control — If Equipped .................272

Rear Window Features ...................284
▫ Intermittent Rear Wiper Operation — Manual
Temperature Control Only ...............284
▫ Rear Washer Operation — Manual Temperature
Control Only ........................285 ▫ Rear Wiper Operation — Automatic Temperature
Control Only ........................285
▫ Intermittent Rear Wiper Operation — Automatic
Temperature Control Only ...............286
▫ Rear Washer Operation — Automatic Temperature
Control Only ........................286
▫ Electric Rear Window Defroster —
If Equipped .........................287192 UNDERSTANDING YOUR INSTRUMENT PANEL

CLIMATE CONTROLS
The Air Conditioning and Heating System is designed to
make you comfortable in all types of weather.
Manual Air Conditioning and Heating System Front Blower Control
The Front Blower Control selects whether the Cli-
mate Control System is ON or OFF. When the blower
control is set to the O (OFF) position the front blower will
turn off and the system will be placed in the Recirculation
mode. When the blower control is set to any position
other than off, it selects the amount of air delivered to the
passenger compartment. There are four blower speeds.
The fan speed increases as you
move the control clockwise.
Manual Air Conditioning and Heating Controls262 UNDERSTANDING YOUR INSTRUMENT PANEL
