2005 DODGE GRAND CARAVAN ECO mode

(OCS) to properly classify the front passenger and calcu-
late the proper airbag deployment. Do not make any
modifications to the front passenger seat components,
assembly, or to the seat cover.
WARNING!Unapproved modifications or service procedures to
the front passenger seat assembly, its related compo-
nents, or seat cover may inadvertently change the
airbag deployment in case of a frontal crash. This
could result in death or serious injury to the front
seat passenger if the vehicle is involved in an acci-
dent. A modified vehicle may not comply with
required Federal Motor Vehicle Safety Standards
(FMVSS). The following requirements must be strictly adhered to:
• Do not modify the front passenger seat assembly or
components in any way.
• Do not modify the front seat center console or center
position seat in any way.
• Do not use prior or future model year seat covers not
designated for the specific model being repaired. Al-
ways use the correct seat cover specified for the
vehicle.
• Do not replace the seat cover with an aftermarket seat
cover.
• Do not add a secondary seat cover other than those
approved by DaimlerChrysler/Mopar.64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

8. If necessary, reposition the seat head restraint.
9. Inspect the tether anchor strap for nicks, abrasions,
discoloration, and loose threads. If these, or any other
condition that might effect the performance of the strap is
observed, DO NOT USE. Contact your local
DaimlerChrysler dealership for a replacement part.
NOTE: Stow the child restraint tether strap in its
original position when not in use. WARNING!The vehicle tether anchor is designed to be used
with a child restraint only. It should not be used for
any other purpose. Before use inspect the tether
anchor strap for nicks, abrasions, discoloration, and
loose threads. If these or any other condition that
might effect the performance of the strap is ob-
served, DO NOT USE, personal injury may result.
Contact your local DaimlerChrysler dealership for a
replacement part.
ENGINE BREAK-IN RECOMMENDATIONS
A long break-in period is not required for the engine in
your new vehicle.
Drive moderately during the first 300 miles (500 km).
After the initial 60 miles (100 km), speeds up to 50 or 55
mph (80 or 90 km/h) are desirable.82 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

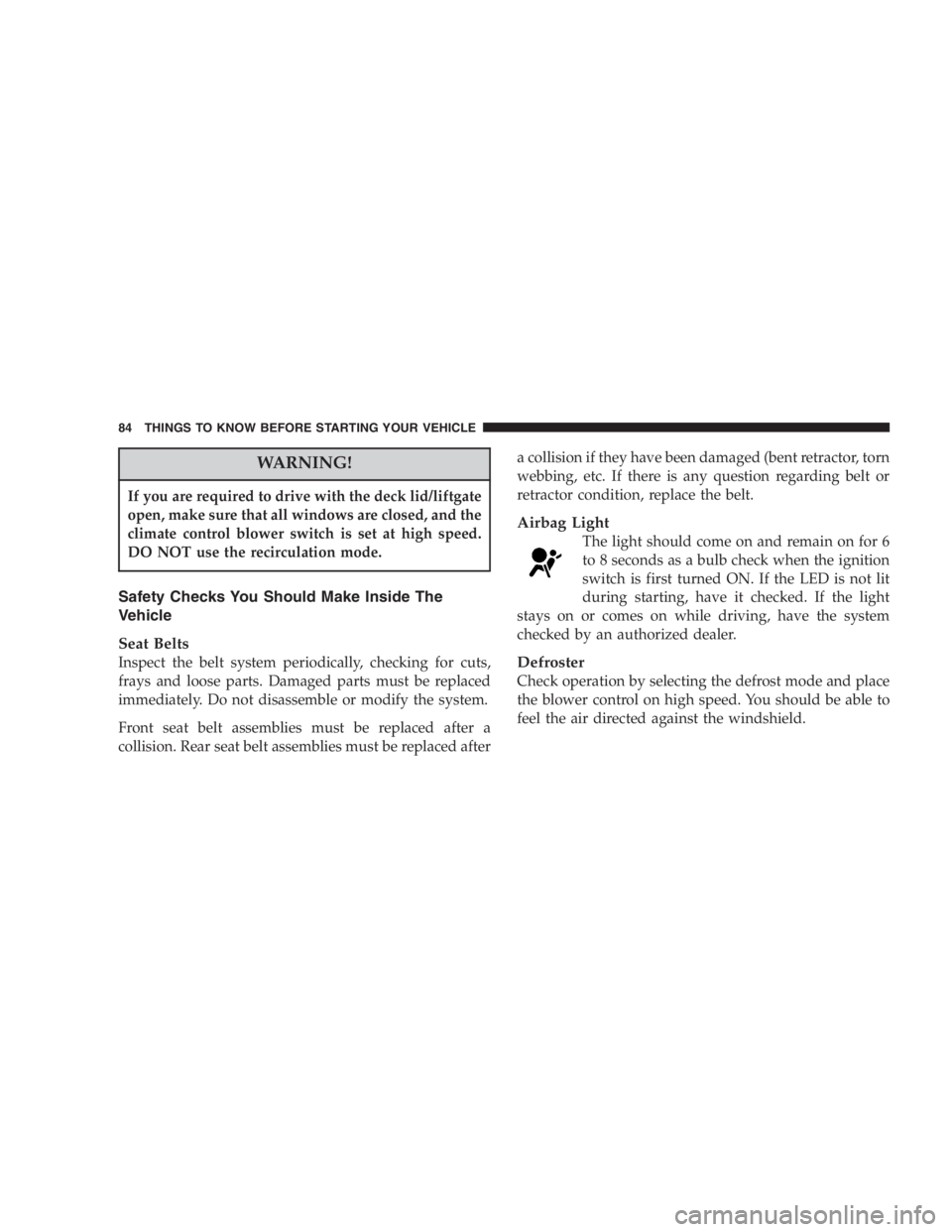

WARNING!If you are required to drive with the deck lid/liftgate
open, make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode.
Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after a collision if they have been damaged (bent retractor, torn
webbing, etc. If there is any question regarding belt or
retractor condition, replace the belt.
Airbag Light
The light should come on and remain on for 6
to 8 seconds as a bulb check when the ignition
switch is first turned ON. If the LED is not lit
during starting, have it checked. If the light
stays on or comes on while driving, have the system
checked by an authorized dealer.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield.84 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Rear-Most Bench Seat
The seat position can be adjusted fore and aft to any of
three positions - normal (rearward), intermediate, and
full forward. In this way varying needs for legroom and
cargo space behind the seat can be accommodated. The release lever is below the seat and is accessible from
the front and back of the seat.
Rear Seat Descriptions
7 Passenger Model — 2 – passenger bench or bucket seats
in the second position and 3 – passenger bench seat or
50/50 bench seat in the third position. All rear seats are
removable.
Rear Bench Seating Flexibility
The 3 – passenger bench seat may be adjusted to any of 3
positions on its tracks while installed in the vehicle. The
bench seat may also be moved to the second seating
position or removed from the vehicle.
Release Lever Location128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Interior light Defeat (OFF)
Rotate the dimmer control to the
OFF position (extreme bottom).
The interior lights will remain off
when the doors or liftgate are
open.
Parade Mode (Daytime Brightness Feature)
Rotate the dimmer control to the
first detent. This feature brightens
the odometer, radio and overhead
displays when the park lights or
headlights are on. Automatic Headlights — If Equipped
This system automatically turns
your headlights ON or OFF based
on ambient light levels. To turn
the system ON, turn the headlight
switch to the extreme counter-
clockwise position. When the sys-
tem is ON, the Headlight Time
Delay feature is also ON. This
means your headlights will stay
ON for up to 90 seconds after you turn the ignition
switch OFF. To turn the Automatic System OFF, turn the
headlight switch clockwise to the OFF position.
NOTE: The engine must be running before the head-
lights will come ON in the Automatic mode.136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

turns in an area free from large metal or metallic objects,
the “ CAL ” symbol will turn off and the compass will
function normally.
Manual Compass Calibration
If the compass appears erratic and the “ CAL ” symbol
does not appear, you must put the compass into the
Calibration Mode manually.
To put into a Calibration Mode: Turn on the ignition
switch and set the display to Comp/Temp. Press the
RESET button on vehicles equipped with a Compass/
Mini Trip Computer for at least 10 seconds until the
“ CAL ” symbol appears. On vehicles equipped with
Compass/Temp press and hold the C/T and US/M
buttons for 10 seconds. Release the RESET button and
complete three 360 ° turns in an area free from large metal
objects. The “ CAL ” symbol will turn off and the compass
will function normally. CAUTION!Do not place any external magnets, such as magnetic
roof mount antennas, in the vicinity of the compass.
Do not use magnetic tools when servicing the over-
head console.
Compass Variance
Compass Variance is the difference between magnetic
North and Geographic North. In some areas of the
country, the difference between magnetic and geographic
North is great enough to cause the compass to give false
readings. If this occurs, the compass variance must be set.
NOTE: Magnetic materials should be kept away from
the overhead console.152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Mini-Trip Computer
This displays information on the following:
• Average Fuel Economy (ECO AVG)
Shows the average fuel economy since the last reset.
• Distance To Empty (DTE)
Shows the estimated distance that can be travelled with
the fuel remaining in the tank. This estimated distance is
determined using the MPG for the last few minutes.
• Trip Odometer (ODO)
Shows the distance travelled since the last reset.
• Elapsed Time (ET)
Shows the accumulated ignition ON time since the last
reset.
• Off Mode
Shows a blank display. • Step Button
Push this button to cycle through all the Compass/Mini-
trip Computer displays.
• US/M Button
Press this button to convert the display from U.S. to
metric.
To Reset The Display
Pressing the Reset button once will clear the resettable
function currently being displayed. Resettable functions
are average fuel economy, trip odometer and elapsed
time. Pressing the reset button twice within four seconds
will clear all resettable functions. Reset will only occur if
a resettable function is currently being displayed.154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

If this feature is not selected, the driver ’ s seat, driver ’ s
mirror, adjustable pedals, and radio settings can only
return to their memory set positions using the memory
recall buttons (1or 2) on the driver ’ s door panel.
Any transmitter linked to memory will remain linked,
but will not recall the memory positions. The transmitter
memory recall function will operate again when this
feature is selected. Refer to Driver Memory System for
more information. Pressing the  STEP  button when in
this mode will select between  Ye s  or  No  .
Sound Horn On Lock
When this feature is selected a short horn sound will
occur when the remote keyless entry “ Lock ” button is
pressed. This feature may be selected with or without the
flash lights on LOCK/UNLOCK feature. Pressing the
“ STEP ” button when in this display will select “ Ye s ” or
“ No. ” Flash Lights On Lock/Unlock?
When this feature is selected, the front and rear turn
signals will flash when the doors are locked or unlocked
using the remote keyless entry transmitter. This feature
may be selected with or without the sound horn on lock
feature selected. Pressing the “ STEP ” button when in this
display will select “ Ye s ” or “ No. ”
Sliding Door Open Flash?
When this feature is selected, and the sliding door(s) are
opened, the left and right exterior hazard lights will flash
for 12 seconds to alert other drivers in the area that
passenger(s) could be entering or exiting the vehicle.
Pressing the  STEP  button when in this display will
select “ Ye s ” or “ No. ”
Headlamp Delay
When this feature is selected the driver can choose, when
exiting the vehicle, to have the headlamps remain on for158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
